The AV-L91B0EK & AV-L9CB0EK form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a free flow path that does not allow debris or contaminants to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals include FDA & WRAS approved seats with a bovine free supply. The Koei UNIC actuators are used in the most demanding environments such as food processing plants, beverage manufacturers, pharmaceutical companies and many other industrial settings that require reliable control systems without sacrificing efficiency or cost savings.

Shop Help Me

Key features and benefits of AV-L91B0EK & AV-L9CB0EK Actuated Ball Valves.

Key Features

The Koei UNIC electric actuator eliminates the need for expensive service contracts and costly equipment replacements by delivering reliable performance year after year with no downtime or interruption of production. The actuator can also be easily integrated into existing machinery.

Key Features

A Koei UNIC Electric Actuator is a compact and innovative product that provides smooth operation over its entire speed range in high shock environments, making them the perfect solution for your next high impact project.

Key Features

This actuator is easy to install and operate. All units come complete with general operations and maintenance manuals as standard and free after sales support. You will receive all of the information available to keep equipment operating at peak performance.

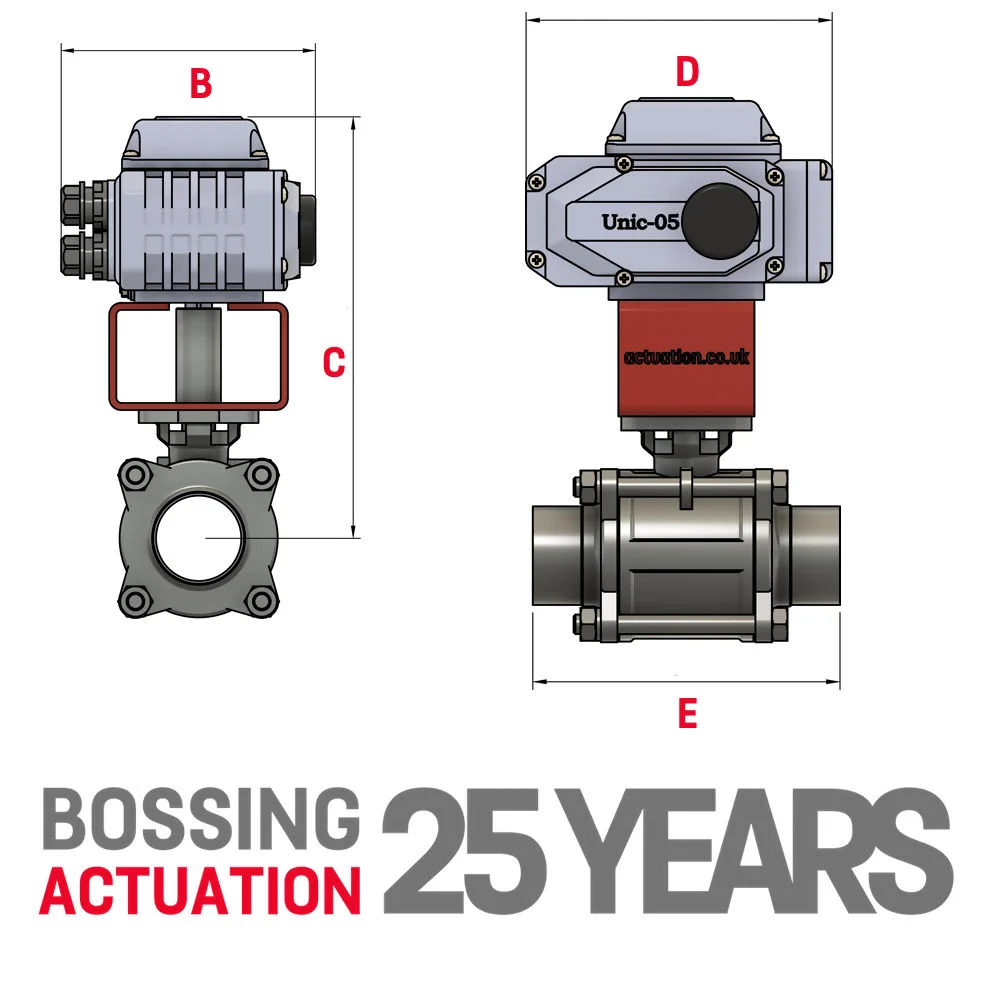

	B	C	D	E	Model

1/2"	145.00	218.00	159.00	90.00	UNIC 05
3/4"	145.00	225.00	159.00	90.00	UNIC 05
1"	145.00	234.00	159.00	100.00	UNIC 05
1 1/4"	TBA	TBA	TBA	TBA	TBA
1 1/2"	145.00	247.00	159.00	125.00	UNIC 05
2"	155.00	280.00	208.00	150.00	UNIC 10
2 1/2"	155.00	302.00	208.00	190.00	UNIC 10
3"	155.00	311.00	208.00	220.00	UNIC 10
4"	187.00	350.00	257.00	270.00	UNIC 20

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

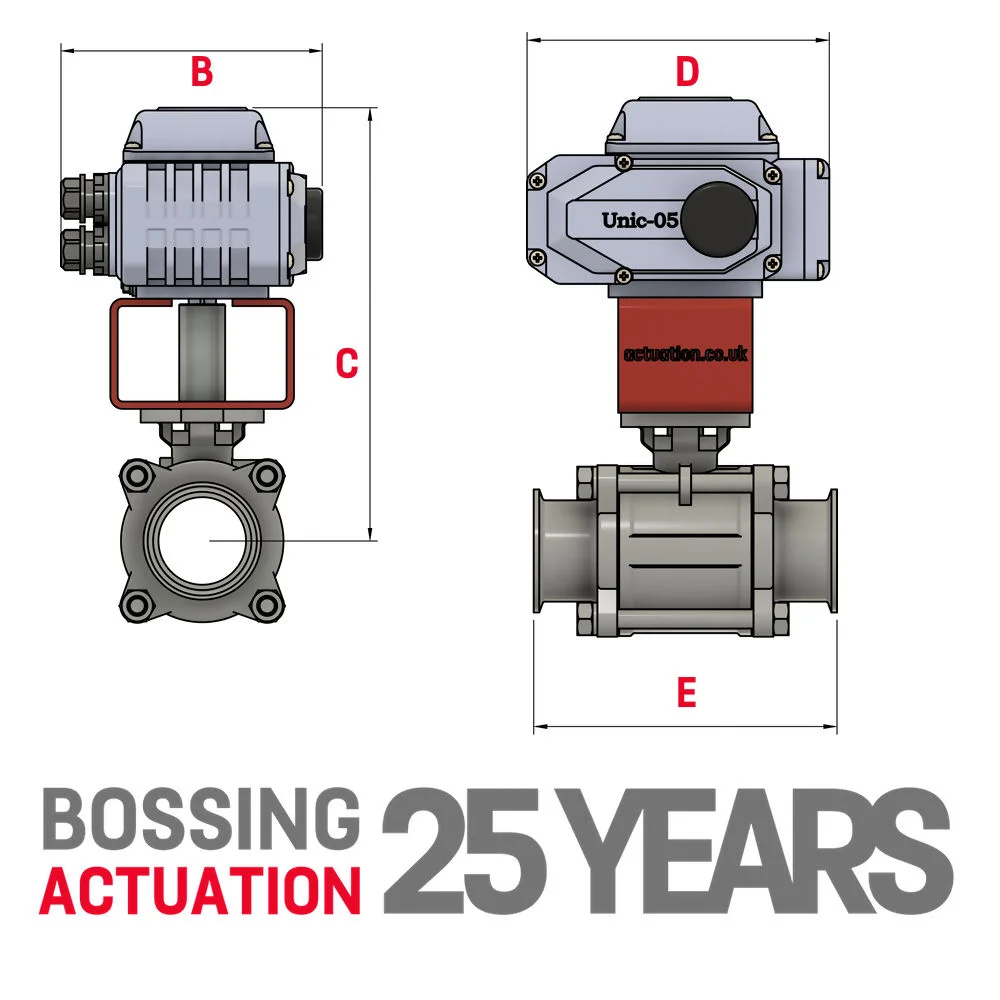

	B	C	D	E	Model

1/2"	145.00	218.00	159.00	90.00	UNIC 05
3/4"	145.00	225.00	159.00	90.00	UNIC 05
1"	145.00	234.00	159.00	100.00	UNIC 05
1 1/4"	TBA	TBA	TBA	TBA	TBA
1 1/2"	145.00	247.00	159.00	125.00	UNIC 05
2"	155.00	280.00	208.00	150.00	UNIC 10
2 1/2"	155.00	302.00	208.00	190.00	UNIC 10
3"	155.00	311.00	208.00	220.00	UNIC 10
4"	187.00	350.00	257.00	270.00	UNIC 20

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600® Cavity Filled Seats & Seals
Seat Approvals:	3A, FDA & Wras Approved
Cleaning:	Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard:	MSS SP-110, BS4825
Surface Finish:	Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing:	MSS SP-110
Face 2 Face:	ASME B16.10
Pressure Rating:	400 PSI

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, position feedback is included as standard on the AV-L9CB0EK range, with switches confirming open and closed positions.

Yes, discounts are usually available on multi-unit or bulk orders of the AV-L9CB0EK range. Get in touch with your required quantity and specification and our sales team will confirm the best pricing for your order.

Yes, the AV-L9CB0EK range can be supplied with ATEX certification for use in hazardous areas. Please confirm this requirement when ordering so the correct documentation is issued with your valve.

Yes, we can advise on larger sizes outside the standard AV-L9CB0EK range. Send us your line size and process details by email or give us a call and we will confirm availability and lead time.

Yes, we can deliver directly to your customer on a plain, unbranded label. Send us a copy of your delivery note and we will include it with the shipment so your customer receives it under your company name.

Yes, we offer credit accounts for trade and repeat customers, subject to a credit check. Apply on the product page at checkout or contact our sales team directly and we will guide you through the application process.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
