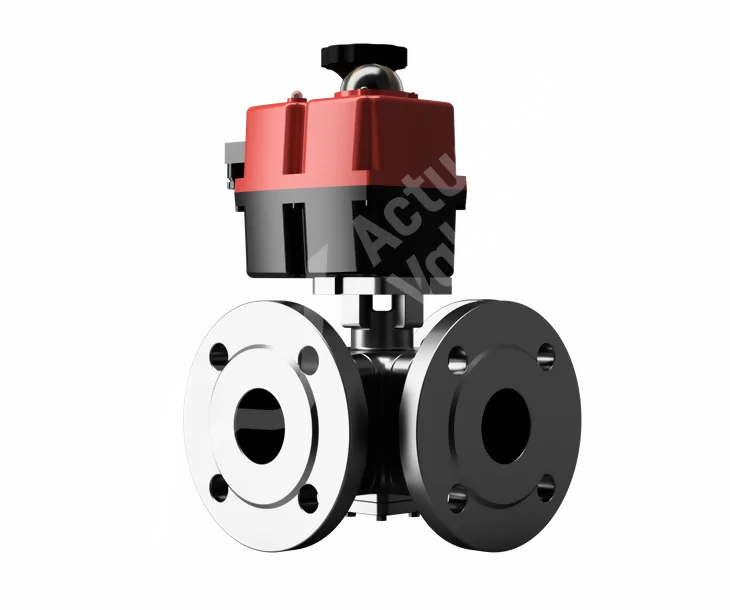

J4CS J&J Electric Actuator PN16-PN40 3-Way Ball Valves

The 3-Way diverter valve features a direct mount actuation pad for quick and easy automation. This allows us to get products out of the door to you quicker whilst also reducing the overall footprint of package and most importantly wight and cost. J&J Electric Valve Actuator comes with a robust manual override handle that provides a reliable mechanical backup in the event of a power failure. This safety feature allows you to switch between open and closed positions until systems or power is restored. 3-Way Ball Valves are available as an L Port or T Port can be used in heating and hot water applications to regulate temperature. The valves control the flow of liquid passing through them to either allow flow in one direction or another, or divert flow from one path to another.

Key Features

Key features and benefits of AV-L5K00JJ & AV-L5N00JJ Actuated Ball Valves.
1

Key Features

The AV-L5300 & 5400 Full Bore Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and ball made from high quality stainless steel, these valves can withstand even the most demanding conditions.
2

Key Features

The 3-Way diverter valve features a direct mount actuation pad for quick and easy automation. This allows us to get products out of the door to you quicker whilst also reducing the overall footprint of package and most importantly wight and cost.
3

Key Features

J&J Electric Actuators offers a durable polyamide electric actuator housing that is suitable for both indoor and outdoor industrial environments. Our actuators have ingress protection to IP67 (Temporary Immersion) and are completely weatherproof.

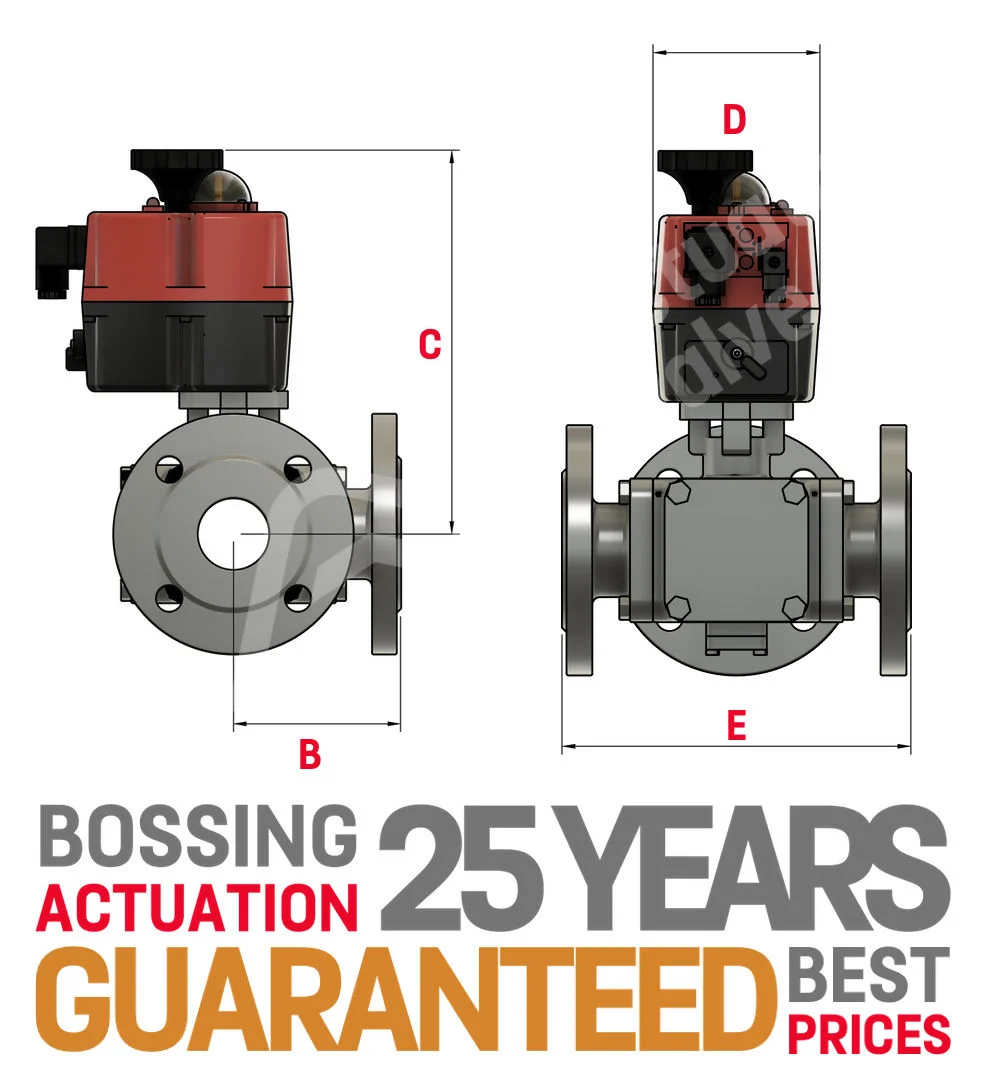

3-Way PN16 PN40 Technical Stuff

B C D Model E
TBA TBA TBA TBA TBA TBA
TBA TBA TBA TBA TBA TBA
1/2" TBA 224.00 110.00 J4CS20 150.00
3/4" TBA 228.00 110.00 J4CS20 165.00
1" TBA 239.00 110.00 J4CS35 181.00
1 1/4" TBA TBA TBA TBA TBA
1 1/2" TBA 281.00 110.00 J4CS55 190.00
2" TBA 288.00 110.00 J4CS85 212.00
2 1/2" TBA 361.00 214.00 J4CS140 230.00
3" TBA 373.00 214.00 J4CS140 310.00 / 340.00
4" TBA 404.00 214.00 J4CS300 352.00 / 386.00
5" TBA TBA TBA TBA TBA

3-Way PN16 PN40 Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
