3 Piece Premium Elomatic Actuated Ball Valves

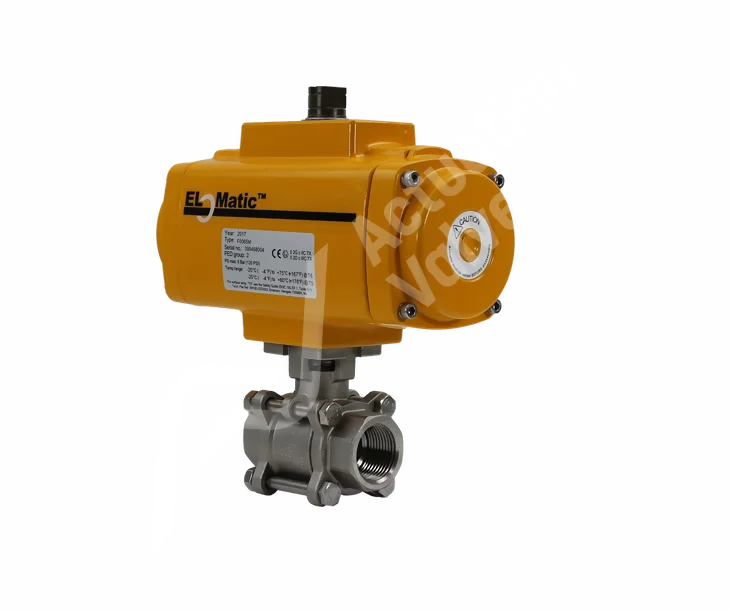

The AV-L3000EL, 3100EL & 3200EL actuated ball valves form part of the 3 piece stainless steel standard valve range from Actuation Valve. This particular unit has a drop out centre section that is fully maintainable without the need for completely removing the valve. Perfect for scheduled maintenance and seat replacements. Various approvals include FDA & WRAS approved seats as well as DNV/Lloyds. Additional options included FOC are (Certificate Of Conformity) and a two page full build assembly and Calibration Certificate. Every unit is assembled and tested in house prior to despatch.

Key Features

Key features and benefits of AV-L3000EL, AV-L3100EL & AV-L3200EL Actuated Ball Valves.
1

Key Features

Proven by TÜV that these devices operate faultlessly over time even under harsh conditions like high temperature or humidity. These features make it possible to design highly reliable systems based on our pneumatic actuators alone.
2

Key Features

The Stainless Steel Ball Valves are economical, reliable and easy to use. They come with an FDA approved TFM seat that's also WRAS certified so they're perfect for some sanitary applications (Please check). These valves are ideal for both commercial and residential use.
3

Key Features

The EL-O-Matic Pneumatic Actuator makes your life easier by replacing your old actuator with this one simple device that works on all common valve types (ball valves, butterfly valves). This is utilised with industry mountings such as ISO 5211 and VDE/VDI3845 (NAMUR).

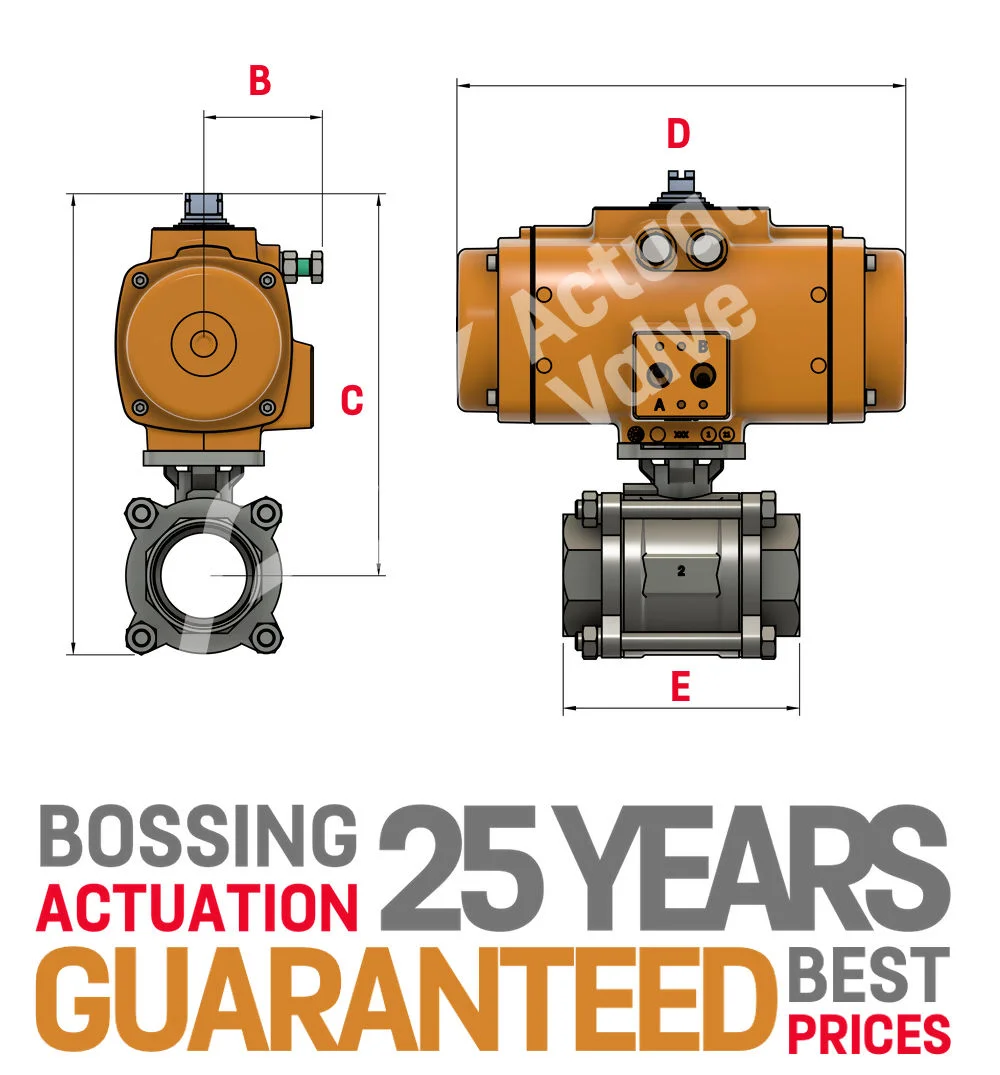

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 48.00 153.00 166.00 75.00 33.00 122.00 103.00 75.00
3/8" 48.00 153.00 166.00 75.00 33.00 122.00 103.00 75.00
1/2" 48.00 153.00 166.00 75.00 33.00 122.00 103.00 75.00
3/4" 48.00 159.50 166.00 80.00 48.00 159.50 166.00 80.00
1" 58.00 190.50 192.00 90.00 48.00 169.50 166.00 90.00
1 1/4" 58.00 195.00 192.00 110.00 48.00 174.00 166.00 110.00
1 1/2" 69.00 215.30 217.00 120.00 58.00 203.30 192.00 120.00
2" 69.00 229.20 247.00 140.00 69.00 222.20 217.00 140.00
2 1/2" 75.00 277.00 304.00 185.00 69.00 251.00 247.00 185.00
3" 87.00 291.50 362.00 205.00 75.00 285.50 235.00 205.00
4" 109.00 361.00 385.00 240.00 87.00 323.00 265.00 240.00

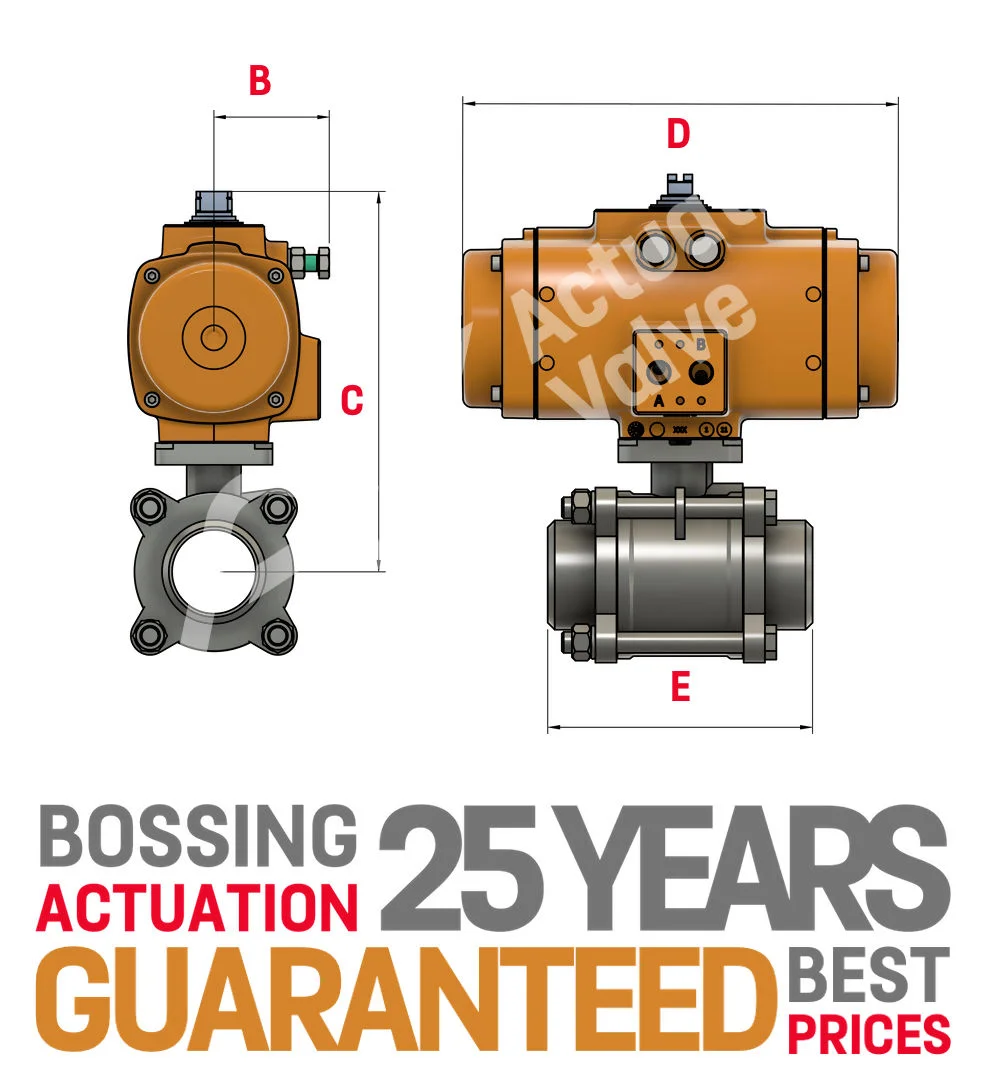

Screwed/Socket Weld 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Valve 3D Stuff

Butt Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 48.00 153.00 166.00 70.00 33.00 122.00 103.00 70.00
3/8" 48.00 153.00 166.00 70.00 33.00 122.00 103.00 70.00
1/2" 48.00 153.00 166.00 75.00 33.00 122.00 103.00 75.00
3/4" 48.00 159.50 166.00 90.00 48.00 159.50 166.00 90.00
1" 58.00 190.50 192.00 100.00 48.00 169.50 166.00 100.00
1 1/4" 58.00 195.00 192.00 110.00 48.00 174.00 166.00 110.00
1 1/2" 69.00 215.30 217.00 125.00 58.00 203.30 192.00 125.00
2" 69.00 229.20 247.00 150.00 69.00 222.20 217.00 150.00
2 1/2" 75.00 277.00 304.00 190.00 69.00 251.00 247.00 190.00
3" 87.00 291.50 362.00 220.00 75.00 285.50 235.00 220.00
4" 109.00 361.00 385.00 270.00 87.00 323.00 265.00 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (AV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000) ASME B1.20.1
Socket Weld Ends: (AV-L3100) ASME B16.11
Butt Weld Ends: (AV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
