The AV-A5000 & 5100 3-Way ball valve is suitable for mixing, distributing or diverting water or other mediums. The stainless steel construction provides durability and corrosive resistance to chemicals and external factors. Options for L or T Port Configurations at point of order. The industry-leading AV-A5000 & 5100 Multiport 3-Way Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves. AV-ARES Electric Valve Actuator is a multi voltage electric actuator that allows for site standardisation without the need for changing models. The AV-ARES features a specially designed circuit board with the electric actuator capable of receiving 24-240V AC or DC supply.

Shop Help Me

Key features and benefits of AV-L5000AR & AV-L5100AR Actuated Ball Valves.

Key Features

The AR-ARES Electric Actuator is capable of operating at temperatures of -25 to 60 Deg C without sacrificing speed or power consumption. With its ability to operate in multiple environments this electric actuator is sure to deliver on all fronts when you need it most.

Key Features

The AV-ARES Electric Actuator provides an ideal manual override for any application where there is a need to switch between electrical control and mechanical operation in case of power failure or other emergency situations.

Key Features

AV-ARES range of electric actuators offer high torque with low noise levels at an affordable price point. Our quiet technology allows you to run your actuators at full capacity while also maintaining operator comfort levels during extended periods of operation.

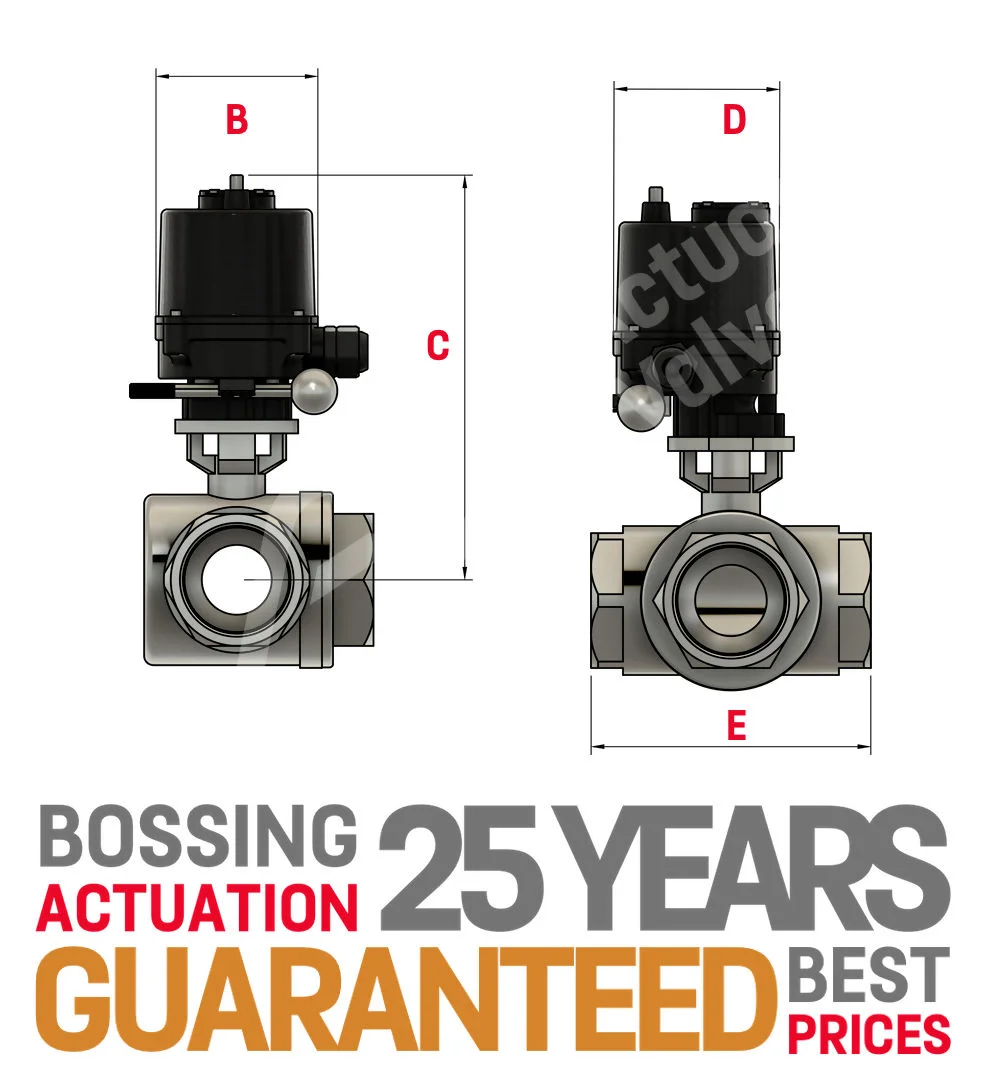

	B	C	D	E	Model

1/4"	88.00	176.00	88.00	79.00	AV-A1
3/8"	88.00	176.00	88.00	79.00	AV-A1
1/2"	88.00	176.00	88.00	79.00	AV-A1
3/4"	88.00	182.00	88.00	88.00	AV-A1
1"	88.00	192.50	88.00	108.00	AV-A1
1 1/4"	88.00	196.00	88.00	124.00	AV-A1
1 1/2"	88.00	271.50	88.00	135.00	AV-A1
2"	TBA	TBA	TBA	TBA	TBA
2.5"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA
6"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 400
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 228/1

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, position feedback is included as standard on the AV-A5000 and AV-A5100 range. Limit switches confirm when the valve has reached its fully open and fully closed positions, wired through as part of the AV-ARES actuator's standard specification.

Yes, discounts are usually available on multi-unit or bulk orders of the AV-A5000 and AV-A5100 range. Get in touch with your required quantity and specification and our sales team will confirm the best pricing for your order.

The AV-A5000 and AV-A5100 range can be supplied with Lloyd's Register approval for marine and offshore applications. Please confirm this requirement when ordering so the correct certification is issued with your valve.

Yes, we can advise on larger sizes outside the standard AV-A5000 and AV-A5100 range. Send us your line size and process details by email or give us a call and we will confirm availability and lead time.

Yes, we can deliver directly to your customer on a plain, unbranded label. Send us a copy of your delivery note and we will include it with the shipment so your customer receives it under your company name.

Yes, we offer credit accounts for trade and repeat customers, subject to a credit check. Apply on the product page at checkout or contact our sales team directly and we will guide you through the application process.

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
