PTFE Seat Lugged Type Actuated Butterfly Valves

Fully Lugged Type Ductile Iron PTFE Seat Butterfly Valves are used in piping systems as a dead end service Valve or where regular/predicted disconnecting of the pipe on either side may need to be removed for maintenance and installation without disruption to both sides of the line. A non-toxic PTFE internal seal which also partially covers the outer body of the valve for perfect sealing with counter flanges. Thus avoiding any possibility of cross-contamination and providing a butterfly valve that is extremely resistant to chemicals and solvents.

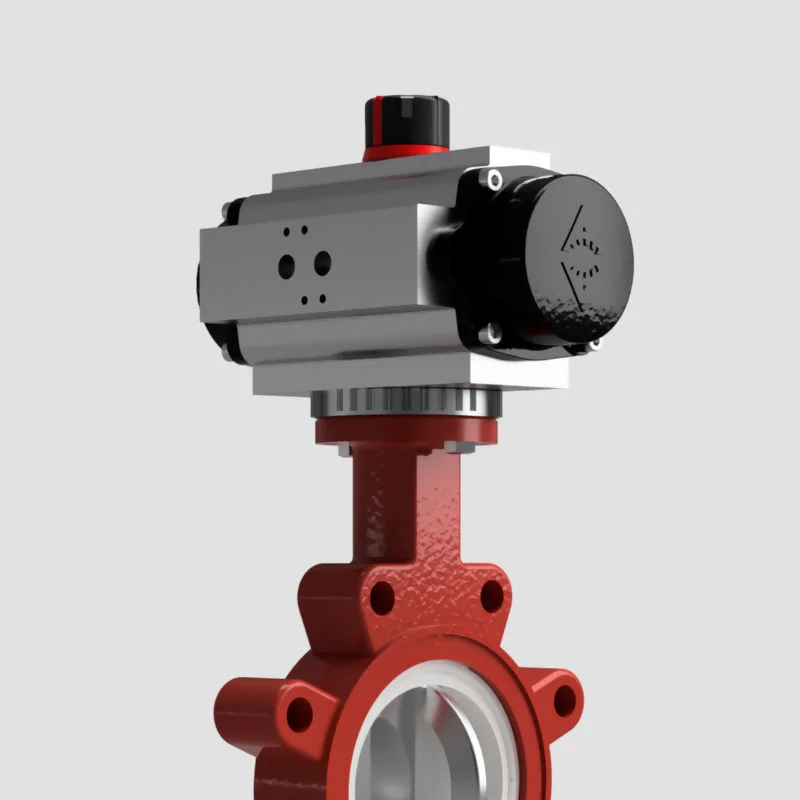

20LP4040F0AC - Lugged Pattern PTFE Seat Actreg Actuated Valves

Mainly for use in highly corrosive environments and higher service temperatures the High Performance Wafer Pattern PTFE Seat Butterfly Valve features a non-toxic PTFE internal seal which also partially covers the outer body of the valve for perfect sealing with counter flanges. The Actreg Actuator features an external stroke adjustment for 5 degrees regulation, placed on the opposite side of Namur connection for better manipulation when the solenoid valve is assembled.

Size Range: DN32-DN100 (1 1/4"-18")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Actuated Function: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

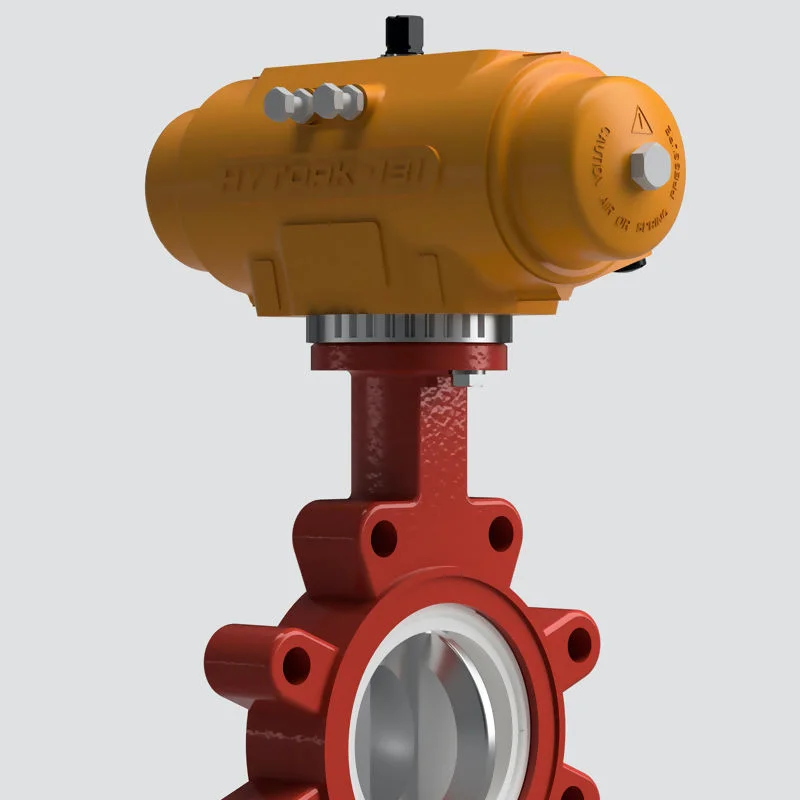

20LP4040F0XL - Lugged Type Hytork Actuated Butterfly Valves

The PTFE Butterfly Valve features a non-toxic PTFE seal that also partially covers the outer body of the valve for perfect sealing with counter flanges. This makes them ideal for use in highly corrosive environments and higher service temperatures where traditional materials fail. Ideal for applications where frequent On/Off cycles are required such as material handling equipment (MHE) due to its high cycle life expectancy. Hytork actuators are SIL rated to several million cycles with a proven track record. Low operational torque and high precision means lower costs for actuation with replaceable seals that offer flexibility and cost-effectiveness. This reduces lead times as well as downtime on end users' equipment which are crucial when it comes to maintaining production.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

20LP4040F0AT - Lugged Type Air Torque PTFE Seat Butterfly Valves

A combination of the TTV 20LP4040F0 and Air Torque actuator. Most commonly used amongst the chemical and food or beverage industries this actuated butterfly valve assembly outperforms most others on the market. A rilsan coated body butterfly valve and anodised aluminium actuator provide external protection for most non aggressive external application factors whilst the internal PTFE seat and stainless steel disc provides superior corrosion resistance as well as an FDA approved contact material for consumable products. A replaceable valve seat and actuator rated to SIL3 complete a robust high performance package that will go the distance and provide maximum life capacity. The Air Torque actuator is in field convertible should you ever require a change from the spring return and double acting functionalities.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

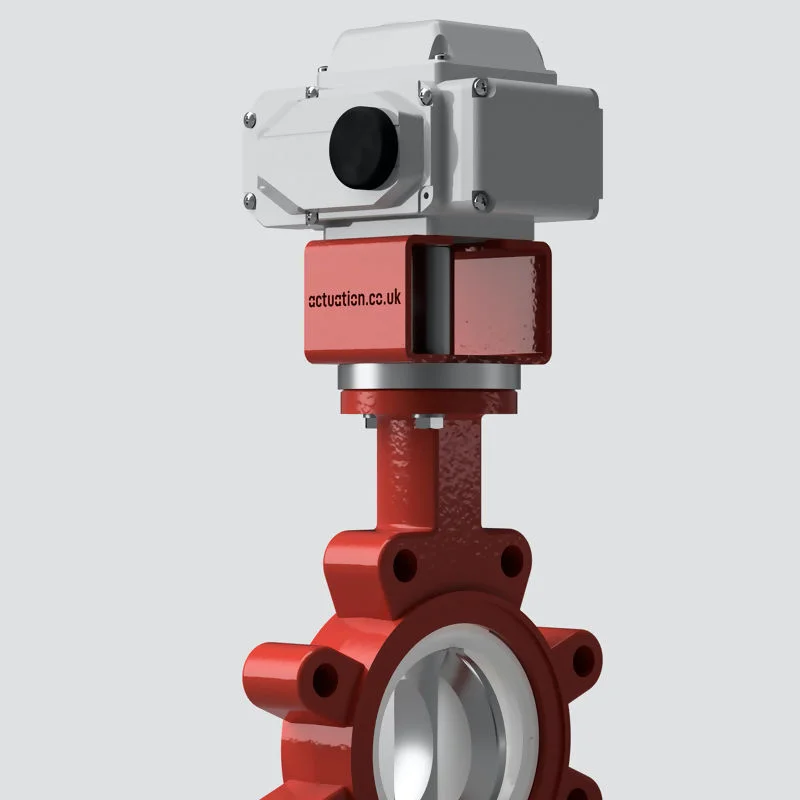

20LP4040F0EL - Lugged Type PTFE Seat Actuated Butterfly Valves

Actuated Butterfly Valves are an innovative solution for any company looking for a more efficient way to control fluid flow in their industrial processes. These TTV Butterfly Valves have been designed with two components that work together to provide perfect sealing capabilities. With its long life springs and precision engineering, the EL-O-Matic Pneumatic Actuator offers safe & secure plant operations. Features include high durability, low maintenance and simple operation. These qualities make it an ideal choice for your application. The PTFE Butterfly Valve is particularly suitable for volatile and aggressive chemicals. The valve does not deform and has a remarkably high resistance to wear and tear, giving high durability and performance even in difficult conditions.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

20LP4040F0EK - Lugged Electric PTFE Seat Actuated Butterfly Valves

The compact and corrosion resistant TTV PTFE Butterfly Valves design provides high flow capacity with a non toxic PTFE liner, providing resistance to aggressive fluids such as acids, alkalis, solvents and most industrial chemicals. The Koei UNIC Electric Actuator provides a vibration resistant and shock absorbent solution for the most compact product on today's market. This actuator will give you smooth operations throughout its entire speed range in high-shock environments. Lugged Butterfly Valves are used to control the flow of fluids in a piping system. They have threaded inserts on both sides. The lugged design of these valves is great because it allows you to easily disconnect either side of the piping system without having to remove the valve itself.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

20LP4040F0MC - Lugged Pattern Actuated PTFE Seat Butterfly Valves

The Asahi electric actuator features a thermally bonded powder coated corrosion resistant housing (Series 92) rated to Nema 4X with stainless steel trim. ABS Product Type Approved for use in Marine and Offshore Applications. Asahi electric actuators are provided with gear trains pre-lubricated at the factory prior to despatch. The specially formulated lubricant offers extended life cycles whilst also covering a wide range of temperature options for various ambient and operating requirements, as well as reducing wear. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility to modulate high operation/cycle requirements, while providing sturdiness needed in harsh environments.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

20LP4040F0MA - Lugged MAX Air PTFE Actuated Butterfly Valves

Combining the MT range of actuators from Max Air Technologies and TTV's 20LP4040F0 butterfly valve provides an extremely cost effective automated shut off solution. The Max Air actuator utilizes the same body design and end caps for both double acting and spring return applications allowing customizable stock profiles. This allows us to offer large quantities on short lead times with all assmebly and testing performed in house. Attention to detail features special epoxy coated internal springs to increase corrosion resistance. Your perfect choice for pneumatic butterfly valves on a restricted budget.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

Be Happy. Best Prices Guaranteed

Best pricing or we will donate some cash to a local dog charity. We like dogs, sorry cats. Loads of terms apply. Ask us for details. No fake rubbish Valves considered.

20LP4040F0ROM - Lugged Pattern Actuated PTFE Seat Butterfly Valves

A quality package from both Rotork (ROM) and TTV's conectric butterfly valves. Reliability when it matters for frequent or infrequent use the Rotork ROM electric actuator is there when you need it and offers worldwide customer service and support with an extremely low cost of ownership. The compact and lightweight valve package has a non clucth manual override design and can be operatred without any lever upon power failure. Corrosion protection offered to C5-M (Actuator) as standard. Additional options include Profibus, Modbus & Fieldbus from the ROMpak range of actuated butterfly valves.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

20LP4040F0RPX - Lugged Bettis RPX PTFE Actuated Butterfly Valves

The 20LP4040F0RPX combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality PTFE Seat butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

40W4040VA - TTV Valpes Wafer Butterfly Valves - Stainless Steel

A combination of the TTV 40W4040 and Valpes Electric Valve Actuator. A full CF8M stainless steel material valve with 316 stainless steel shaft. This particular actuated butterfly valve package is suitable for aggressive mediums and external environments with specific marine  application coatings on request. A replaceable valve seat and actuator rated to rated to IP68 complete a robust offering that will go the distance and provide maximum life capacity. The Valpes Electric Actuator offers fail in position as well as battery backup failsafe return for critical applications. Modbus-RTU & bluetooth versions are also available on a short lead time with CE, DNV-GL, CSA/UL & EAC Approvals.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 12VDC, 24VDC/AC, 110V/230VAC, Modbus-RTU, Bluetooth
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
Find Out More

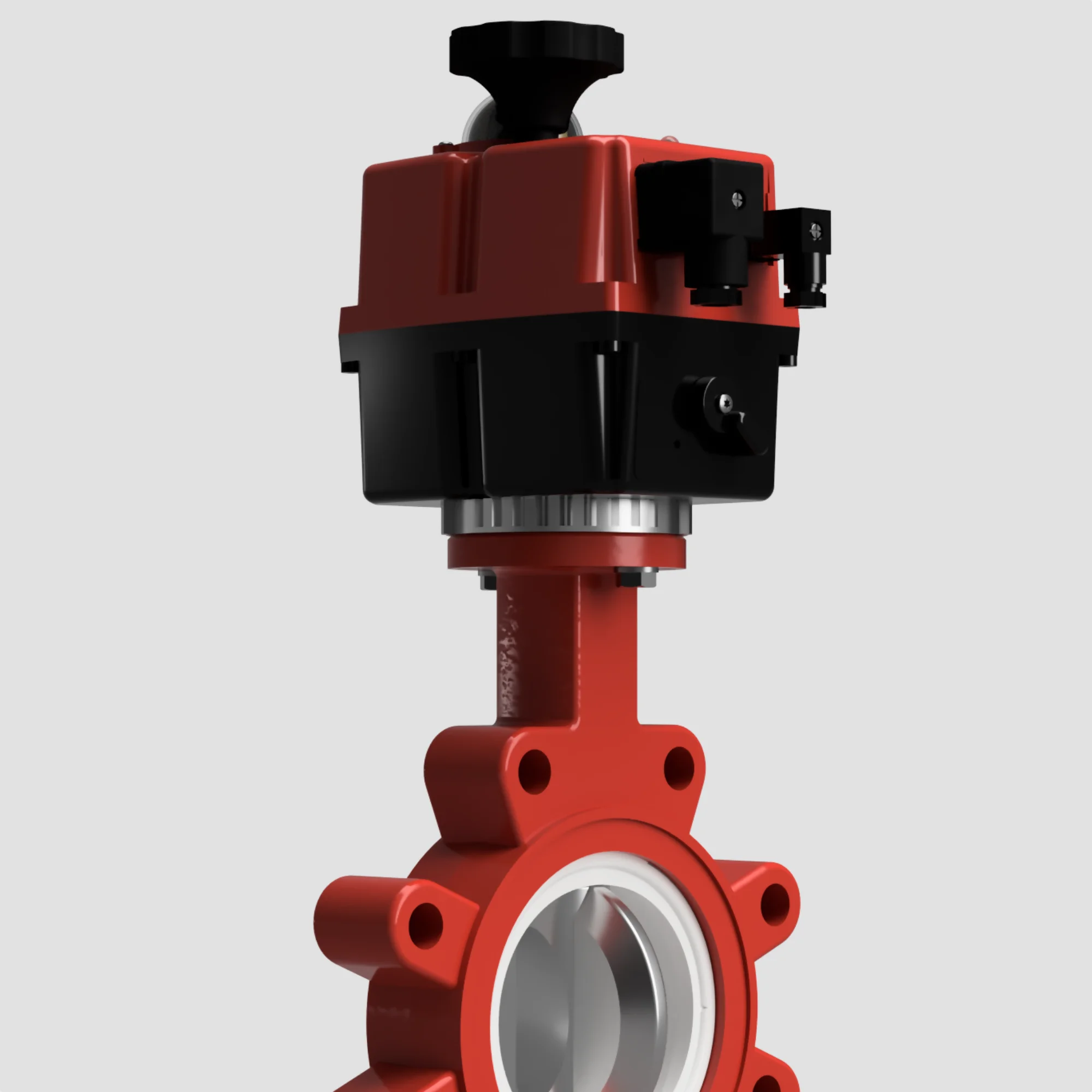

20LP4040F0JJ - Lugged Pattern PTFE Seat JJ Actuated Valves

TTV Butterfly Valves feature an innovative disc design that greatly increases Cv values resulting in lower energy costs and improved efficiency with no sacrifice in performance or durability compared to other manufacturers valves on the market. They have threaded inserts on both sides. The lugged design of these valves is great because it allows you to easily disconnect either side of the piping system without having to remove the valve itself. The J4S product line features an affordable electric actuator that works seamlessly with any IOS or Android device without the need for additional hardware or software. This makes it easy to connect your application directly to your smart phone, tablet or computer.

Size Range: DN32-DN100 (1 1/4"-18")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

20LP4040F0FE - Lugged Pattern PTFE Seat Festo Actuated Valves

Lugged Butterfly Valves are commonly used in piping systems as a dead end service Valve or where regular/predicted disconnecting of the pipe on either side may need to be removed for maintenance and installation without disruption to both sides of the line. The Festo DFPD Series Quarter Turn Actuator combines quality German engineering with affordability to create a cost effective pneumatic valve system that can be used in any industry from food production to medical research. The TTV PTFE Seat Butterfly Valves are suitable for applications with slurries, liquids and bulk solids. The valves are intended for use in the chemical, food and beverage, pulp and paper industry or with seawater or other aggressive media where standard material are not suitable.

Size Range: DN32-DN100 (1 1/4"-18")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

Frequently Asked Questions

A PTFE Seat Actuated Butterfly Valve is a type of valve that uses a butterfly disc with a PTFE (Polytetrafluoroethylene) seat to control the flow of fluids in a pipeline. It's actuated, meaning it can be operated remotely or automatically.

PTFE seats provide excellent chemical resistance and ensure a tight seal, making them ideal for applications where corrosion or leakage prevention is crucial.

These valves are commonly used in industries such as chemical processing, pharmaceuticals, food and beverage, and water treatment for precise fluid control.

Actuation can be manual (by hand), pneumatic, or electric. Manual valves are operated by hand, while pneumatic and electric versions use air or electricity for remote operation.

Yes, some PTFE Seat Actuated Butterfly Valves are designed to handle high-pressure applications, but it's essential to select the right type for your specific needs.

Yes, these valves come in various sizes from 1 1/2" to 12" to accommodate different pipe diameters and flow rates.

PTFE seats are low-maintenance due to their excellent resistance to wear and tear. However, regular inspections and cleaning may be necessary to ensure optimal performance.

PTFE seats can handle a range of temperatures, but it's crucial to select valves specifically designed for high-temperature applications to prevent damage.

Industries such as pharmaceuticals and food processing often require compliance with regulatory standards, and PTFE Seat Actuated Butterfly Valves are chosen for their hygienic properties and chemical resistance.

Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.

Yes, many manufacturers offer customisation options for these valves to meet the unique requirements of different applications, including size, actuation type, and material compatibility.
