Asco Numatics & Aventics Pneumatic Cylinders

Pneumatic cylinders are occasionally known as air cylinders. These mechanical devices harness the power of compressed air, in order to produce a force in a reciprocating motion, usually up-and-down, or back and forth. They are similar to hydraulic cylinders, as they force a component to move in a specific direction. Usually, the component, a piston, is a disc or cylinder, and a rod transfers the force to move the object. We have a range of pneumatic cylinders available for various tasks. You can choose from different compact, ISO standard, NFPA interchangeable, repairable, non-repairable, rotary, rodless and speciality made to order units. Our products are easy to install and highly efficient, and we have over 20 years experience of supplying pneumatic cylinders for a variety of projects across all industries.

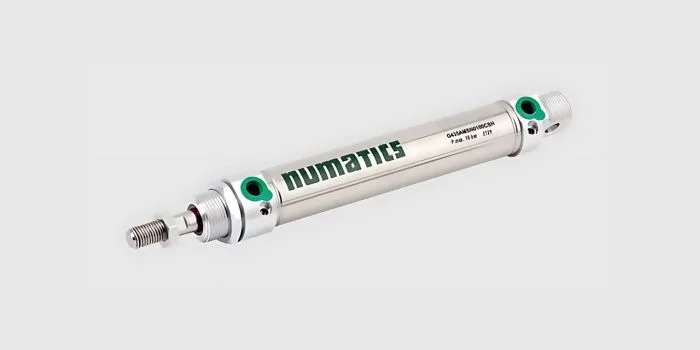

Asco Numatics 435 Series Round Pneumatic Cylinders

Round-profile pneumatic cylinders are generally used wherever overall space is a consideration, and/or where edges need to be reduced to a minimum. The ASCO 435 series adheres to the ISO 6432 standard, and offers excellent corrosion resistance, with a stainless steel barrel and piston rod as standard.

Please note that this series has now been superseded by the Aventics MNI series.

Bore Size: 8, 10, 12, 16, 20, 25
Temperature Rating: -20c to 70c
Pressure Rating: 2 to 10bar
Stroke Length: 5 to 900mm
Function: Double- or Single-Acting (with options)
Application: Industrial Automation & Manufacturing
Find Out More

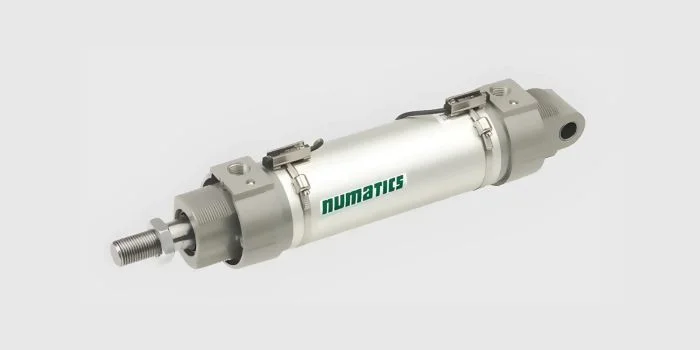

Asco Numatics 438 Series Round Pneumatic Cylinders

Round-profile pneumatic cylinders are generally used wherever overall space is a consideration, and/or where edges need to be reduced to a minimum. The ASCO 438 series adheres to the ISO 6431 standard, so can be used in place of an ISO 15552 cylinder with a rear trunnion. The chromed steel piston rod can be changed out for a stainless equivalent on request.

Please note that this series has now been superseded by the Aventics RPC series.

Bore Size: 32, 40, 50, 63mm
Temperature Rating: -20c to 70c
Pressure Rating: 1 to 10bar
Stroke Length: 5 to 1000mm
Function: Double-Acting, Single-Acting
Application: Industrial Automation & Manufacturing
Find Out More

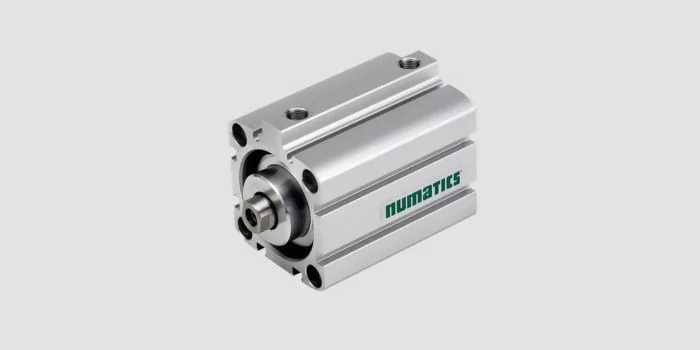

Asco Numatics 441 Series Short Stroke Compact Cylinders

Short-stroke cylinders are typically used in situations requiring standard pneumatic pressures and bore sizes, but shorter stroke lengths. This series is designed with short and narrow spaces in mind, ideal for a cramped installation, and has the option of an anti-rotation device fitted to the piston rod.

Please note that this series is still available currently, but due to be superseded by the Aventics KPZ / KHZ series.

Bore Size: 8, 10, 12, 16, 20, 25, 32, 40, 50, 63, 80, 100mm
Temperature Rating: -20c to 120c (depending on options)
Pressure Rating: 1 to 10bar
Stroke Length: 4 to 150mm
Function: Double-Acting, Single-Acting
Application: Industrial Automation & Manufacturing
Find Out More

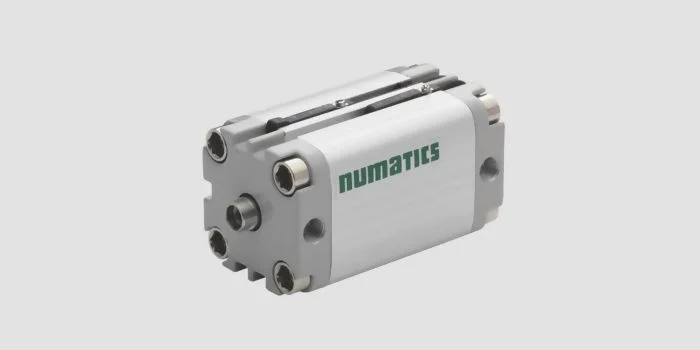

Asco Numatics 449 Series Compact ISO Pneumatic Cylinders

Compact pneumatic cylinders such as the ASCO 449 series are typically used in industrial automation settings that demand a small profile. These cylinders conform to the ISO 21287 standard, and offer easy mounting with the option to slide a trunnion mount directly onto the cylinder barrel.

Please note that this series is now superseded by the Aventics CCI series.

Bore Size: 20, 25, 32, 40, 50, 63, 80, 100mm
Temperature Rating: -20c to 70c
Pressure Rating: 1 to 10bar
Stroke Length: 5 to 400mm
Function: Double-Acting, Single-Acting
Application: Industrial Automation & Manufacturing
Find Out More

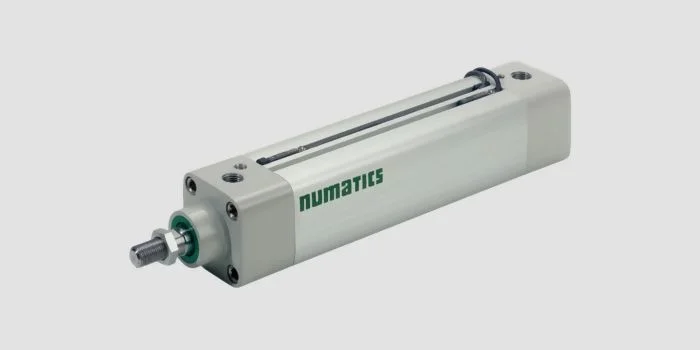

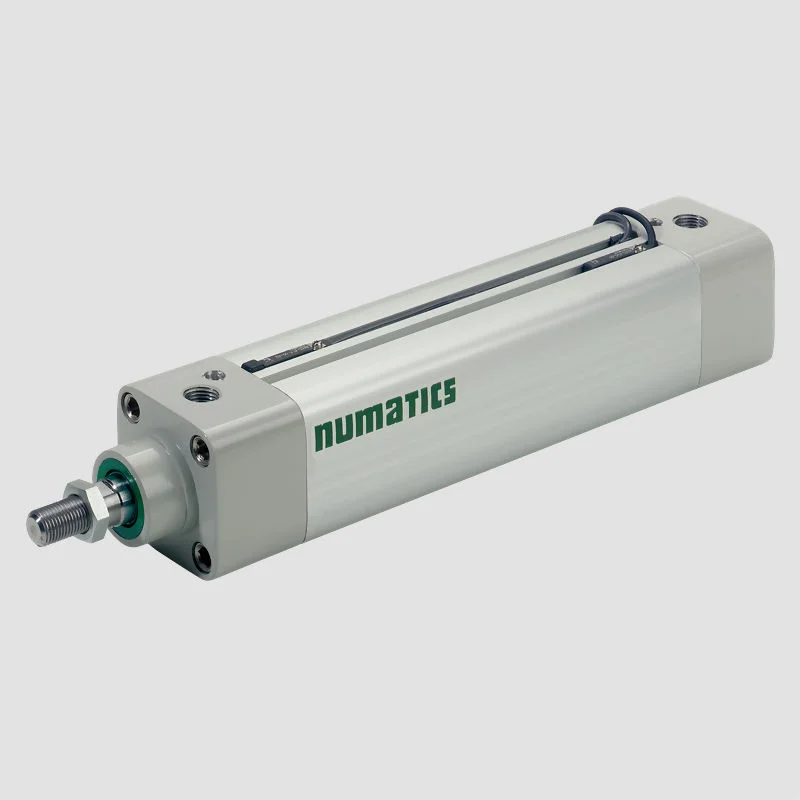

Asco Numatics 453 Series ISO Standard Profiled Barrel Cylinders

Pneumatic profile cylinders are commonly used in industrial automation for low-pressure load movement, and offer a streamlined appearance with simple installation and repair options. The ASCO 453 series offers a wide range of options for the piston rod and seals, such as locking devices and low-friction seals.

Please note that this series is now superseded by the Aventics PRA series.

Bore Size: 32, 40, 50, 63, 80, 100mm
Temperature Rating: -20c to 120c
Pressure Rating: 1 to 10bar
Stroke Length: 5 to 2000mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

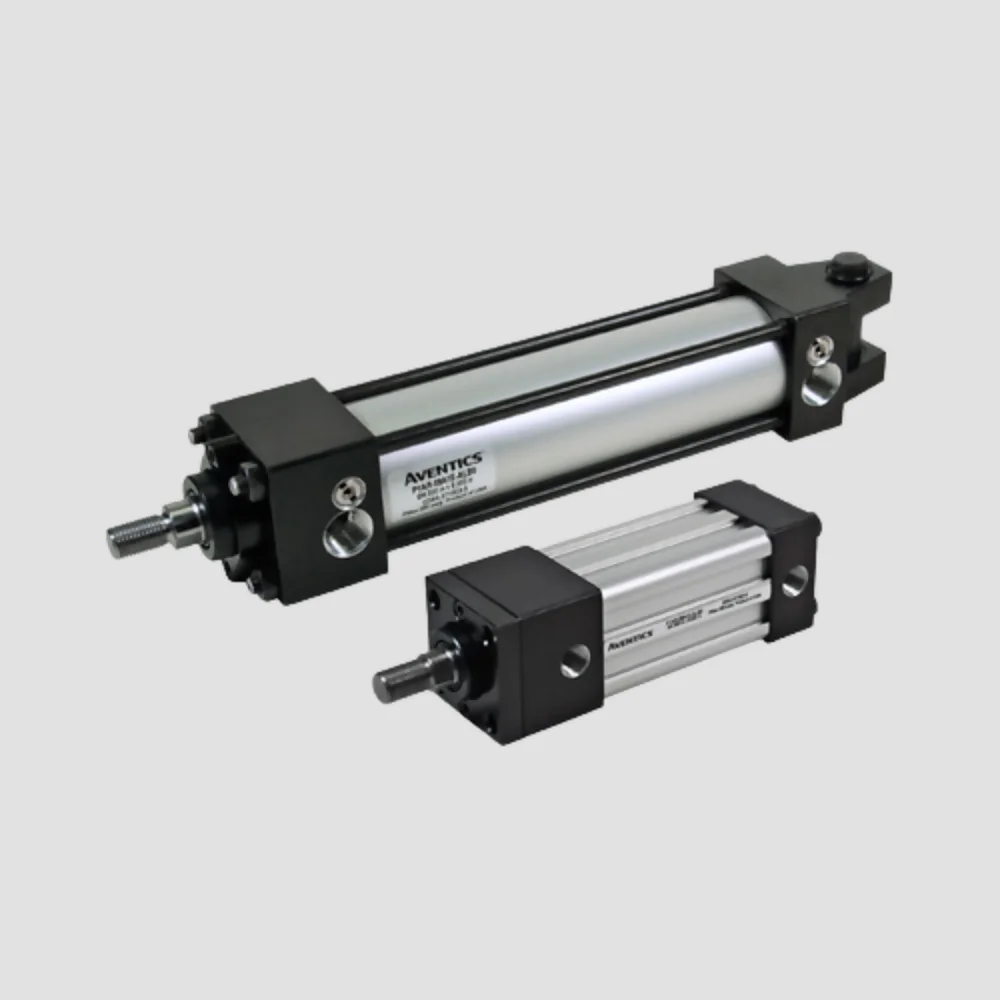

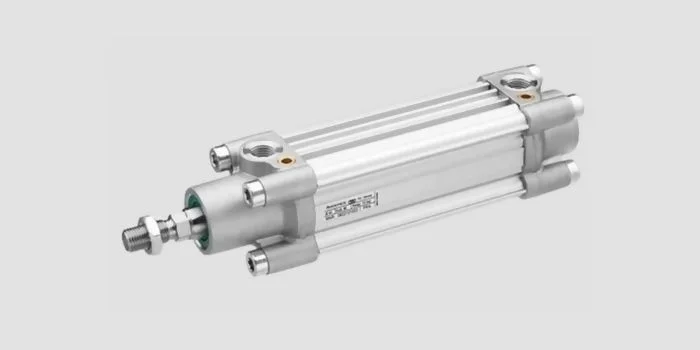

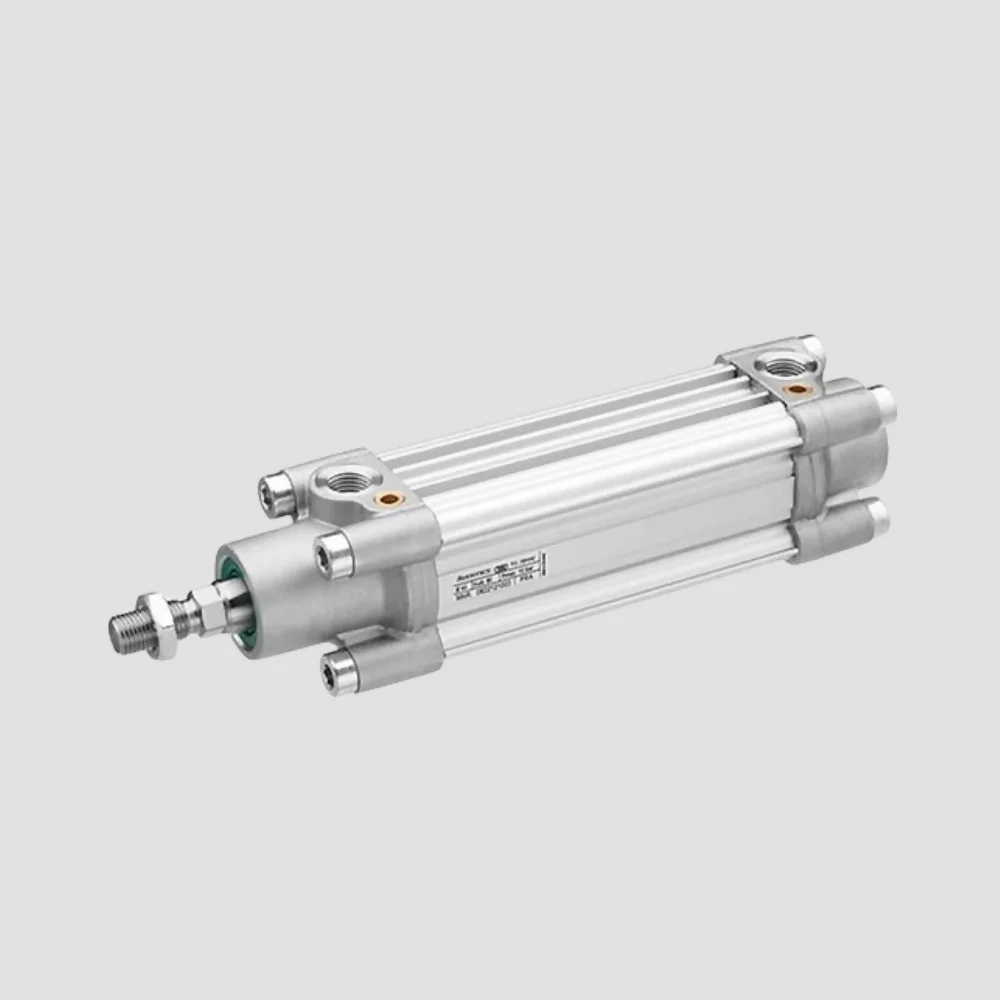

Aventics PRA Series Piston Rod Pneumatic Cylinders

Pneumatic profile cylinders are commonly used in industrial automation for low-pressure load movement, and offer a streamlined appearance with simple installation and repair options. The end caps can be easily removed for any repair requirements, and sensors can be installed directly into the cylinder body by way of T-slots. This range adheres to the ISO 15552 standard, and we can quickly configure a great number of features on a PRA to match your requirements if there's no standard option available.

Bore Size: 32, 40, 50, 63, 80, 100, 125mm
Temperature Rating: -40c to 120c (depending on options)
Pressure Rating: 1.5 to 10bar
Stroke Length: 2 to 1600mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

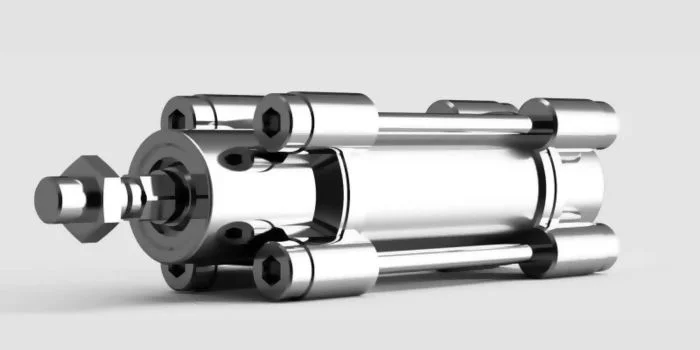

Aventics TRB Series Piston Rod Pneumatic Cylinders

Pneumatic tie-rod cylinders are typically utilised in industrial automation settings for low-pressure load movement, in cases where a greater bore size and/or structural strength is needed over a profile cylinder. These cylinders have external rods in the corners for support, which can be individually removed during repairs by easily removing the end caps. The TRB series adheres to the ISO 15552 standard, and we can quickly configure a great number of features on a TRB cylinder to suit your needs if there is no standard option available.

Bore Size: 32, 40, 50, 63, 80, 100, 125mm
Temperature Rating: -40c to 120c (depending on options)
Pressure Rating: 1.5 to 10bar
Stroke Length: 1 to 1600mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

Aventics ITS Series Piston Rod Pneumatic Cylinders

Pneumatic tie-rod cylinders are typically utilised in industrial automation settings for low-pressure load movement, in cases where a greater bore size and/or structural strength is needed over a profile cylinder. These cylinders have external rods in the corners for support, which can be individually removed during repairs by easily removing the end caps. The ITS series adheres to the ISO 15552 standard, covering the larger bore sizes that aren't available in the TRB series, and we can quickly configure a ITS cylinder to suit your needs if there is no standard option available.

Bore Size: 160, 200, 250, 320mm
Temperature Rating: -40c to 120c
Pressure Rating: 2 to 10bar
Stroke Length: 10 to 2700mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

Aventics CCL-IS Piston Rod External Thread Pneumatic Cylinders

Pneumatic profile cylinders are commonly used in industrial automation for low-pressure load movement, and offer a streamlined appearance with simple installation and repair options. This range is designed for use in Food & Beverage applications, with easy-to-clean anodised surfaces and NFS-H1 scrapers and lubricants, while adhering to the ISO 15552 standard. We can quickly configure a CCL-IS to match your requirements if there's no standard option available.

Bore Size: 25, 32, 40, 50, 63, 80, 100, 125mm
Temperature Rating: -20c to 120c (depending on options)
Pressure Rating: 1.5 to 10bar
Stroke Length: 1 to 1500mm
Function: Double-Acting
Application: Food & Beverage
Find Out More

Aventics CCL-IC Piston Rod External Thread Pneumatic Cylinders

Pneumatic profile cylinders are commonly used in industrial automation for low-pressure load movement, and offer a streamlined appearance with simple installation and repair options. This range is designed for use in Food & Beverage applications, with easy-to-clean anodised surfaces, NFS-H1 scrapers and lubricants, and hygienic plugs for the unused mounting holes, all while adhering to the ISO 21287 standard. We can quickly configure a CCL-IC to match your requirements if there's no standard option available.

Bore Size: 16, 20, 25, 32, 40, 50, 63, 80, 100mm
Temperature Rating: -20c to 120c (depending on options)
Pressure Rating: 1 to 10bar
Stroke Length: 1 to 300mm
Function: Double-Acting or Single-Acting (Spring Retracted)
Application: Food & Beverage
Find Out More

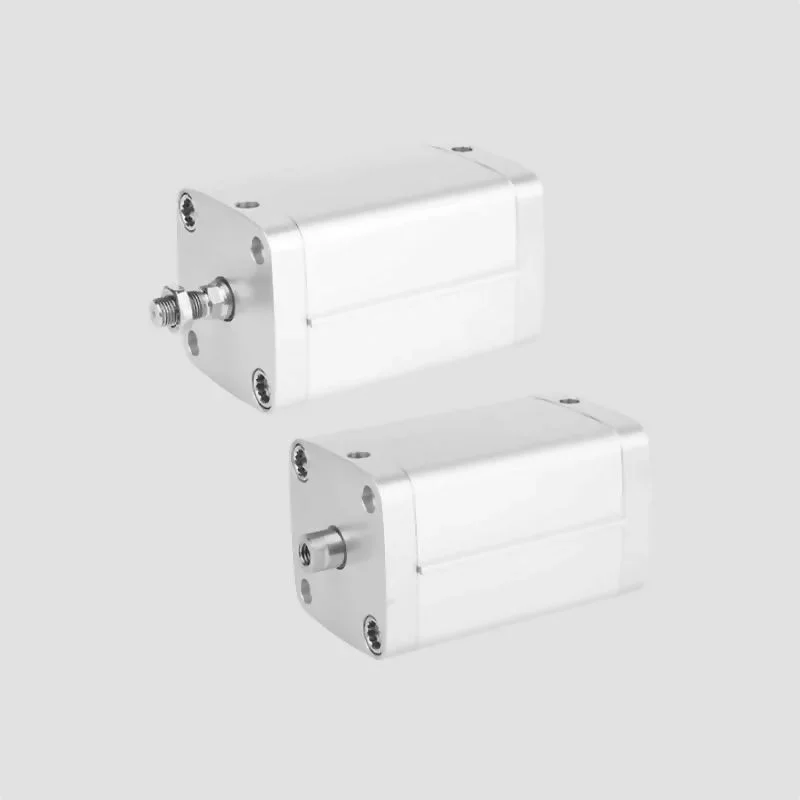

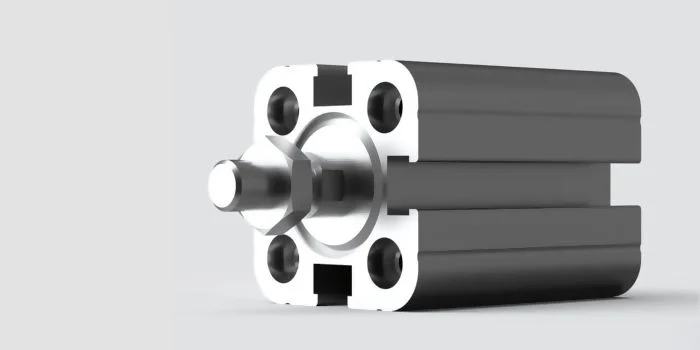

Aventics CCI Series Compact Pneumatic Cylinders

Compact pneumatic cylinders such as the Aventics CCI range are generally used in industrial automation settings that demand a small profile. This range is available in both metric and imperial (inch) measurements, with a wide selection of functions and a solid body for easy cleaning. The CCI series also adheres to the ISO 21287 standard, and we can configure a non-standard option for you in no time at all.

Bore Size: 16, 20, 25, 32, 40, 50, 63, 80, 100mm
Temperature Rating: -20c to 120c (depending on options)
Pressure Rating: 1 to 10bar
Stroke Length: 1 to 300mm
Function: Double-Acting or Single-Acting, with options
Application: Industrial Automation & Manufacturing, Compact Machine Designs
Find Out More

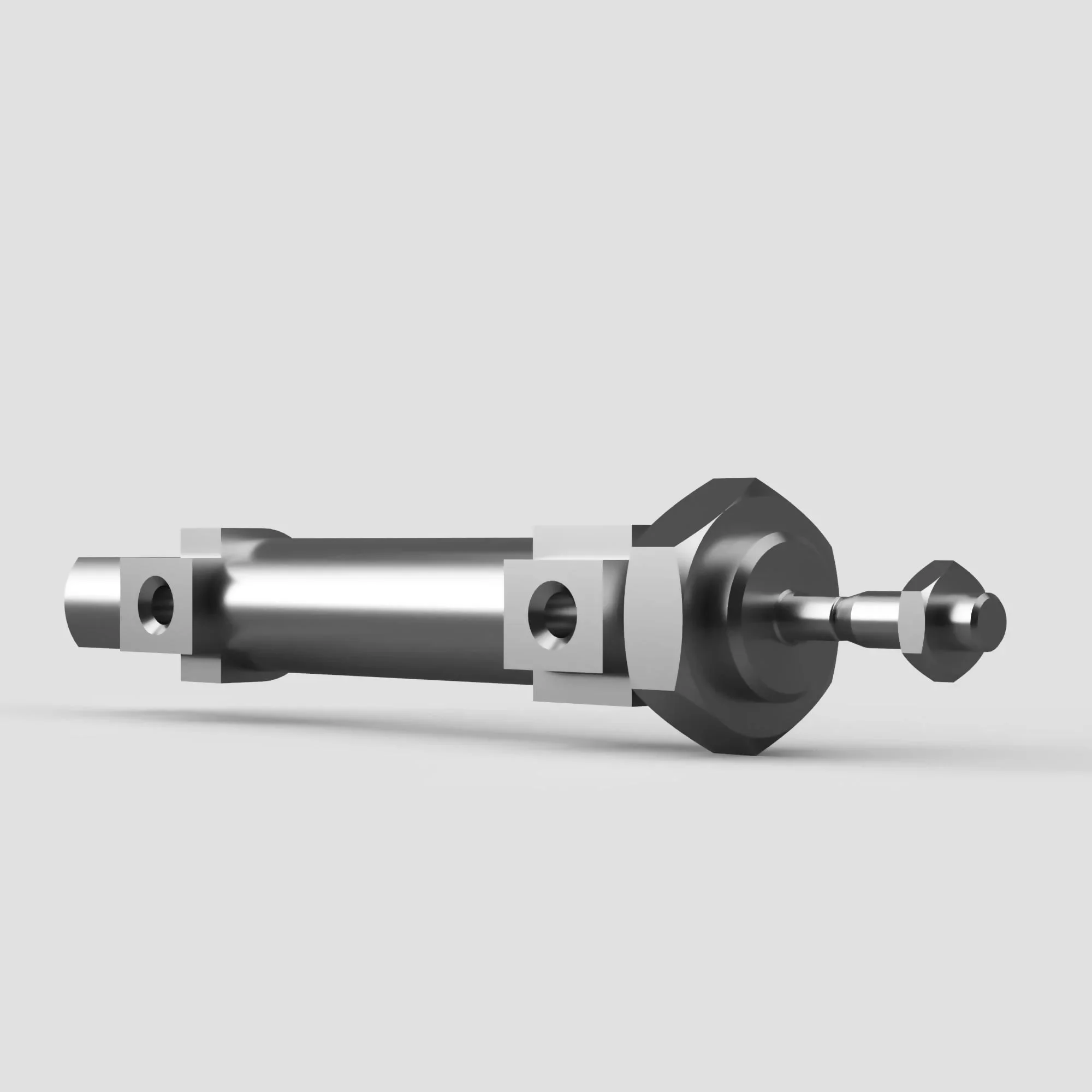

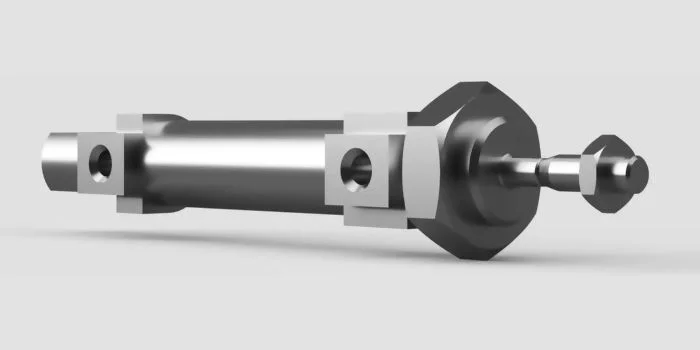

Aventics MNI Series Pneumatic Cylinders

Mini pneumatic cylinders such as the Aventics MNI range are generally used in industrial automation settings that demand a small bore size, fast operation and a long service life. This range is available with the option of both double- and single-acting functionality, and adheres to ISO 6432 standards. We can quickly configure a non-standard MNI cylinder to suit your needs, if there is no standard option available.

Bore Size: 10, 12, 16, 20, 25mm
Temperature Rating: -25c to 120c (depending on options)
Pressure Rating: 1 to 10bar
Stroke Length: 1 to 1100mm
Function: Double-Acting or Single-Acting (retracted)
Application: Industrial Automation & Manufacturing
Find Out More

Aventics CSL-RD Series Pneumatic Cylinders

Mini pneumatic cylinders such as the Aventics CSL-RD range are generally used in industrial automation settings that demand a small bore size, fast operation and a long service life. This range is suited for Food & Beverage applications, with NSF-H1 grease and seals, and an all-Stainless body. There are options available for body type; ISO 6432, cleanline, or mini, which we can rapidly configure to suit your needs.

Bore Size: 16, 20, 25mm
Temperature Rating: -20c to 120c (depending on options)
Pressure Rating: 1 to 10bar
Stroke Length: 1 to 1100mm
Function: Double-Acting
Application: Food & Beverage, Industrial Automation & Manufacturing
Find Out More

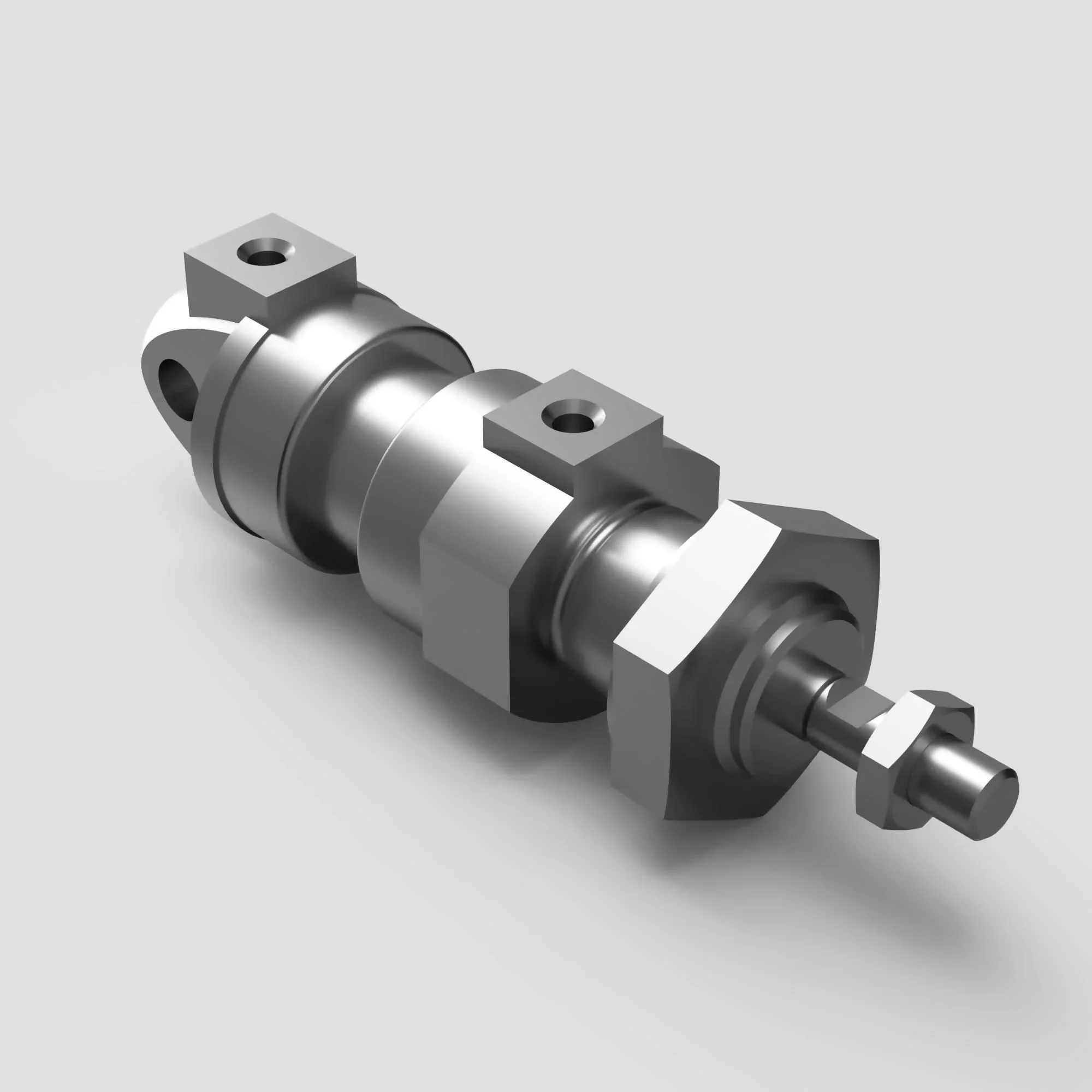

Aventics ICM Series MINI Pneumatic Cylinders

Mini pneumatic cylinders such as the Aventics ICM range are generally used in industrial automation settings that demand a small bore size, fast operation and a long service life. These cylinders are designed as a cost-effective solution for corrosion-resistance, with a combination of stainless steel and polymer construction, and are suitable for Food & Beverage applications.

Bore Size: 8, 10, 12, 16, 20, 25, 32mm
Temperature Rating: -20c to 70c
Pressure Rating: 2 to 10bar
Stroke Length: 12 to 400mm
Function: Double-Acting
Application: Food & Beverage, Industrial Automation & Manufacturing
Find Out More

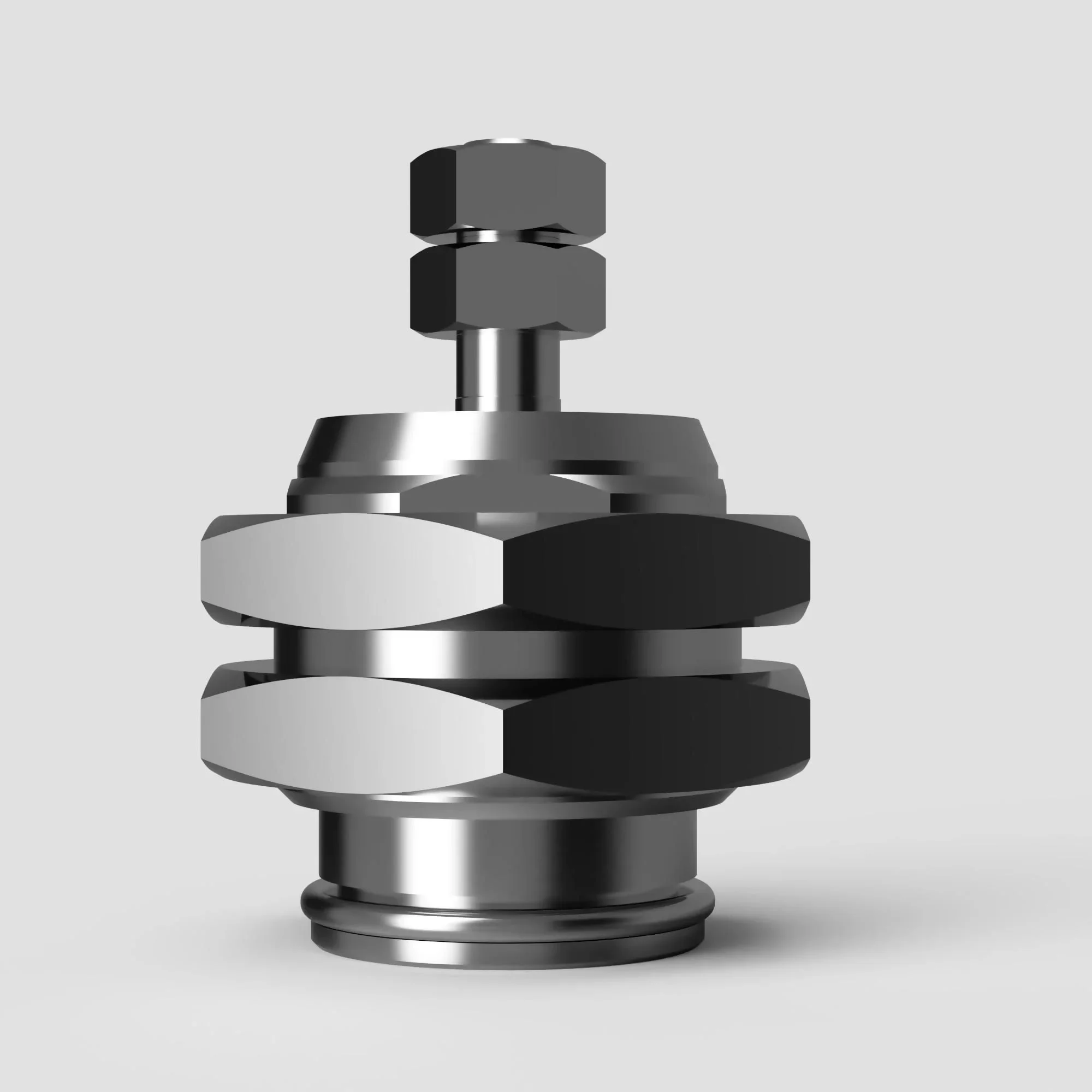

Aventics SWN Series Screw-In Pneumatic Cylinders

Screw-in pneumatic cylinders are used in manufacturing settings as a way to manipulate and position small loads and components. The cylinder screws directly into a valve port for easy installation and great space efficiency.

Bore Size: 6, 10, 16mm
Temperature Rating: -20c to 80c
Pressure Rating: 2 to 8bar
Stroke Length: 5, 10, 15mm
Function: Single-Acting (retracted)
Application: Industrial Automation & Manufacturing
Find Out More

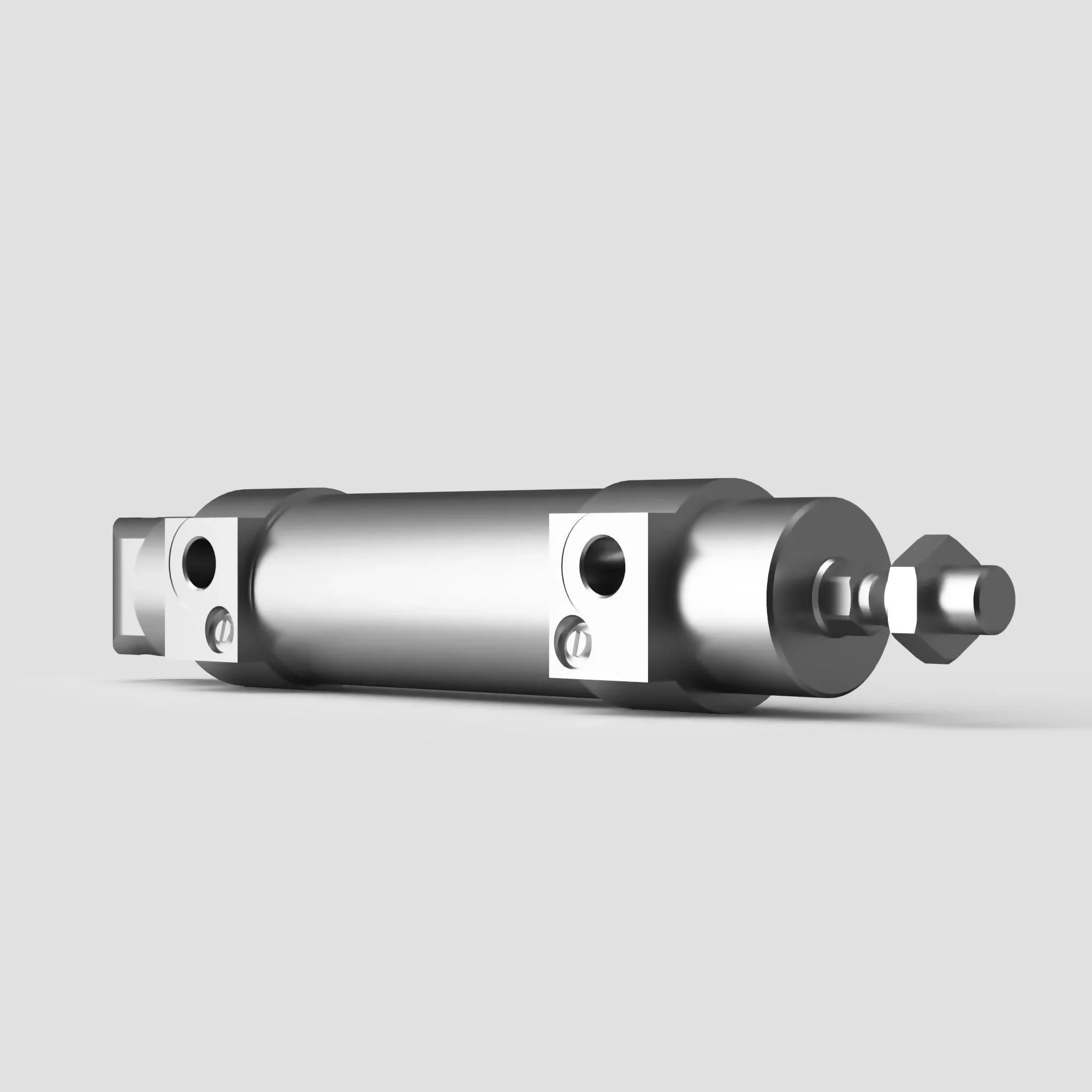

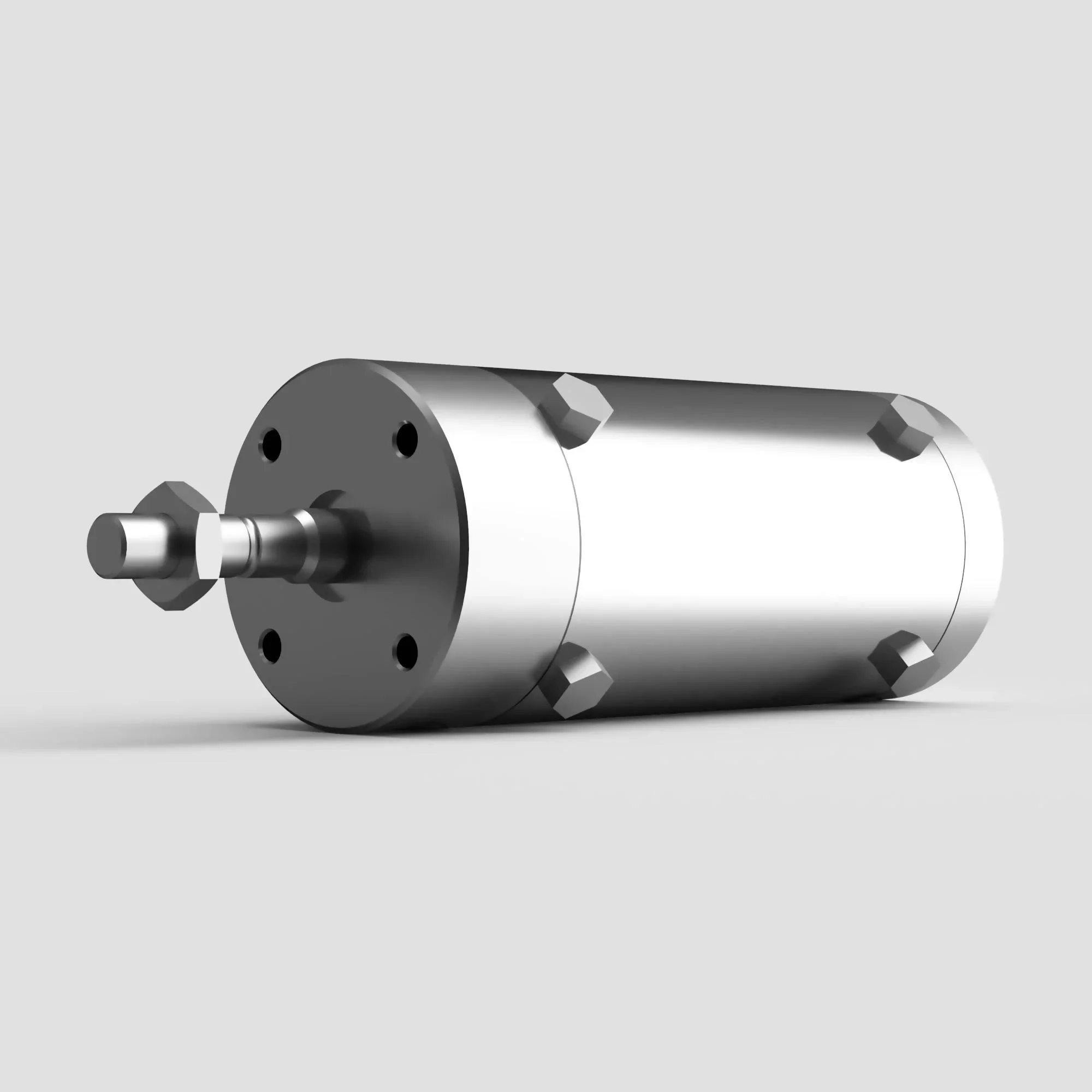

Aventics RPC Series Pneumatic Cylinders

Round-profile pneumatic cylinders are generally used where space is a consideration, and/or where edges need to be reduced to a minimum. The Aventics RPC series offers a variety of sizes and formats to suit a number of standards. These cylinders offer great corrosion-resistance, with a combination of stainless and galvanised steel construction, and you can choose between ISO and DIN threads for further compatibility. We can quickly configure an RPC cylinder to suit your requirements, if there is no standard option available.

Bore Size: 32, 40, 50, 63mm
Temperature Rating: -20c to 120c
Pressure Rating: 1 to 10bar
Stroke Length: 1 to 1200mm
Function: Double-Acting, Single-Acting (retracted)
Application: Industrial Automation & Manufacturing
Find Out More

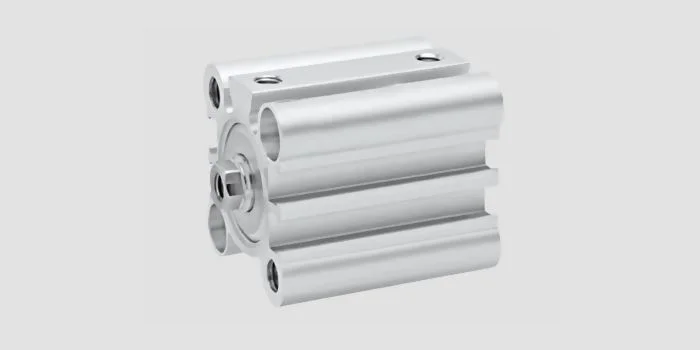

Aventics KPZ Series Compact Pneumatic Cylinders

Short-stroke cylinders such as the Aventics KPZ series are typically used in situations requiring standard pressures and bore sizes, but shorter stroke lengths. This series adheres to the NFE49-004 standard, and has a wide range of options for function and piston rod, all of which can be configured with the usual options and accessories.

Bore Size: 16, 20, 25, 32, 40, 50, 63, 80, 100mm
Temperature Rating: -20c to 120c
Pressure Rating: 1 to 10bar
Stroke Length: 1 to 300mm
Function: Double- or Single-Acting, various options
Application: Industrial Automation & Manufacturing
Find Out More

Aventics KHZ Series Pneumatic Cylinders

Short-stroke cylinders such as the Aventics KHZ series are typically used in situations requiring standard pressures and bore sizes, but shorter stroke lengths. This series is designed with short and narrow spaces in mind, ideal for a cramped installation. The KHZ cylinders all come with a non-rotating piston rod as standard.

Bore Size: 8, 12, 16, 20, 25, 32, 40, 50, 63, 80, 100mm
Temperature Rating: -25c to 80c
Pressure Rating: 1 to 10bar
Stroke Length: 4, 5, 10, 15, 20, 25, 30, 40, 50, 80, 100mm
Function: Double-Acting, Single-Acting (retracted)
Application: Industrial Automation & Manufacturing
Find Out More

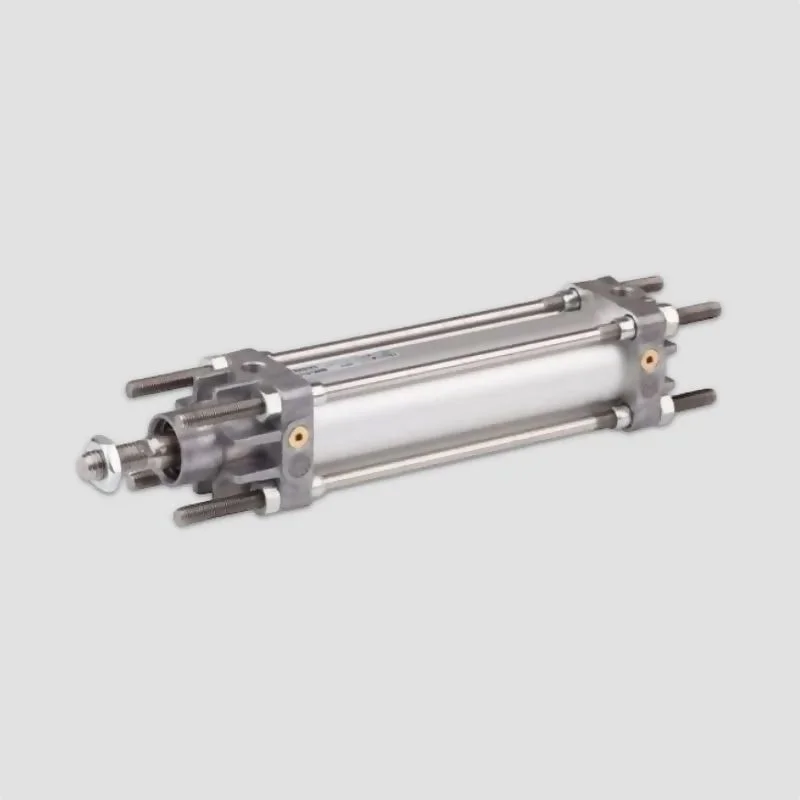

Aventics 167 Series Tie Rod Pneumatic Cylinders

Pneumatic tie-rod cylinders are typically utilised in industrial automation settings for low-pressure load movement, in cases where a greater bore size and/or structural strength is needed over a profile cylinder. These cylinders have external rods in the corners for support, which can be individually removed during repairs by easily removing the end caps. The 167 series adheres to the old ISO 6431 standard and has a wide range of seal options, including one for low-pressure hydraulic operation. We can configure a 167 cylinder to suit your needs if one isn't readily available from the catalogue.

Bore Size: 25, 32, 40, 50, 63, 80, 100mm
Temperature Rating: -40c to 120c
Pressure Rating: 2 to 10bar
Stroke Length: 1 to 1600mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

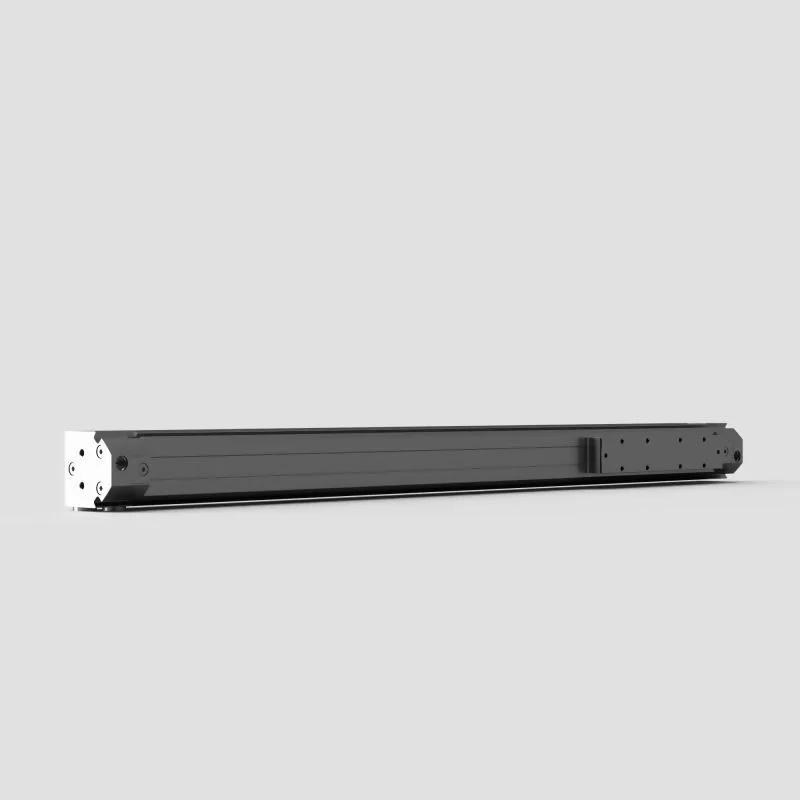

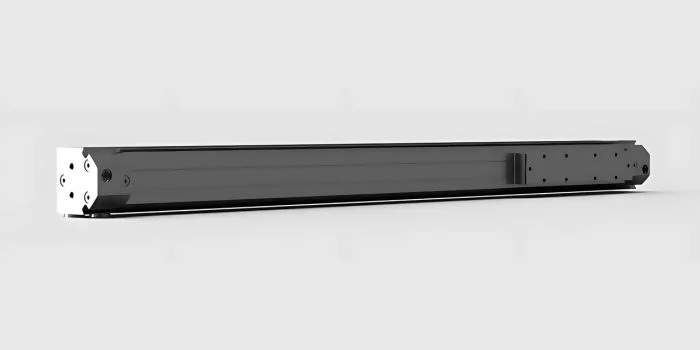

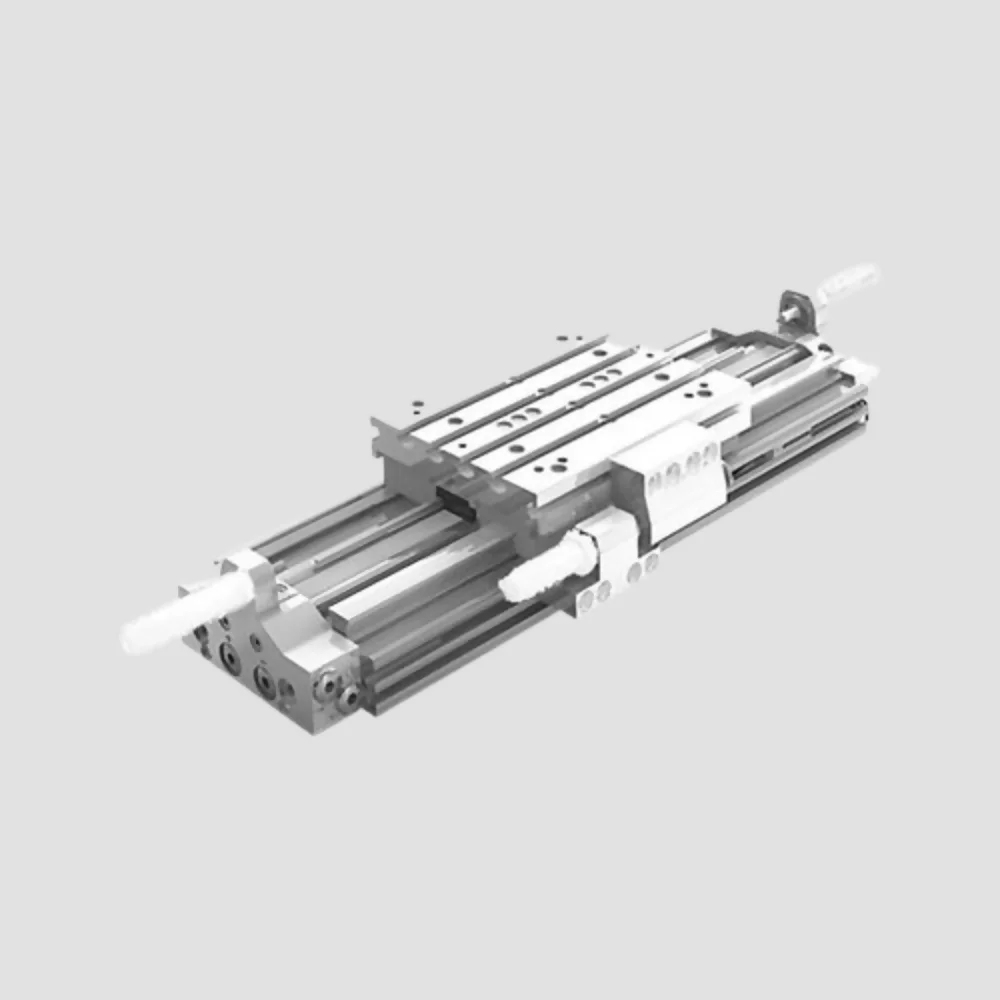

Aventics RTC Series Rodless Pneumatic Cylinders

Rodless cylinders are often installed in a production line, where a runner block is used to transfer a load from one point to another or provide positioning and movement cover to an area, eg. for spray painting. The RTC range is highly configurable, with a number of guide styles and adaptations to replace other cylinder series, amongst more common options.

Bore Size: 16, 25, 32, 40, 50, 63, 80
Temperature Rating: -25c to 60c
Pressure Rating: 2 to 8bar
Stroke Length: 12 to 9900mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

Aventics CKP Series Rodless Pneumatic Cylinders

Rodless cylinders are often installed in a production line, where a runner block is used to transfer a load from one point to another or provide positioning and movement cover to an area, eg. for spray painting. The CKP range is a heavy-duty slide unit with a small profile for the strokes available. It features easy and robust mountings and a high load capacity, and can be configured to suit your needs.

Bore Size: 16, 25, 32mm
Temperature Rating: -10c to 60c
Pressure Rating: 3 to 8bar
Stroke Length: 13 to 1800mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

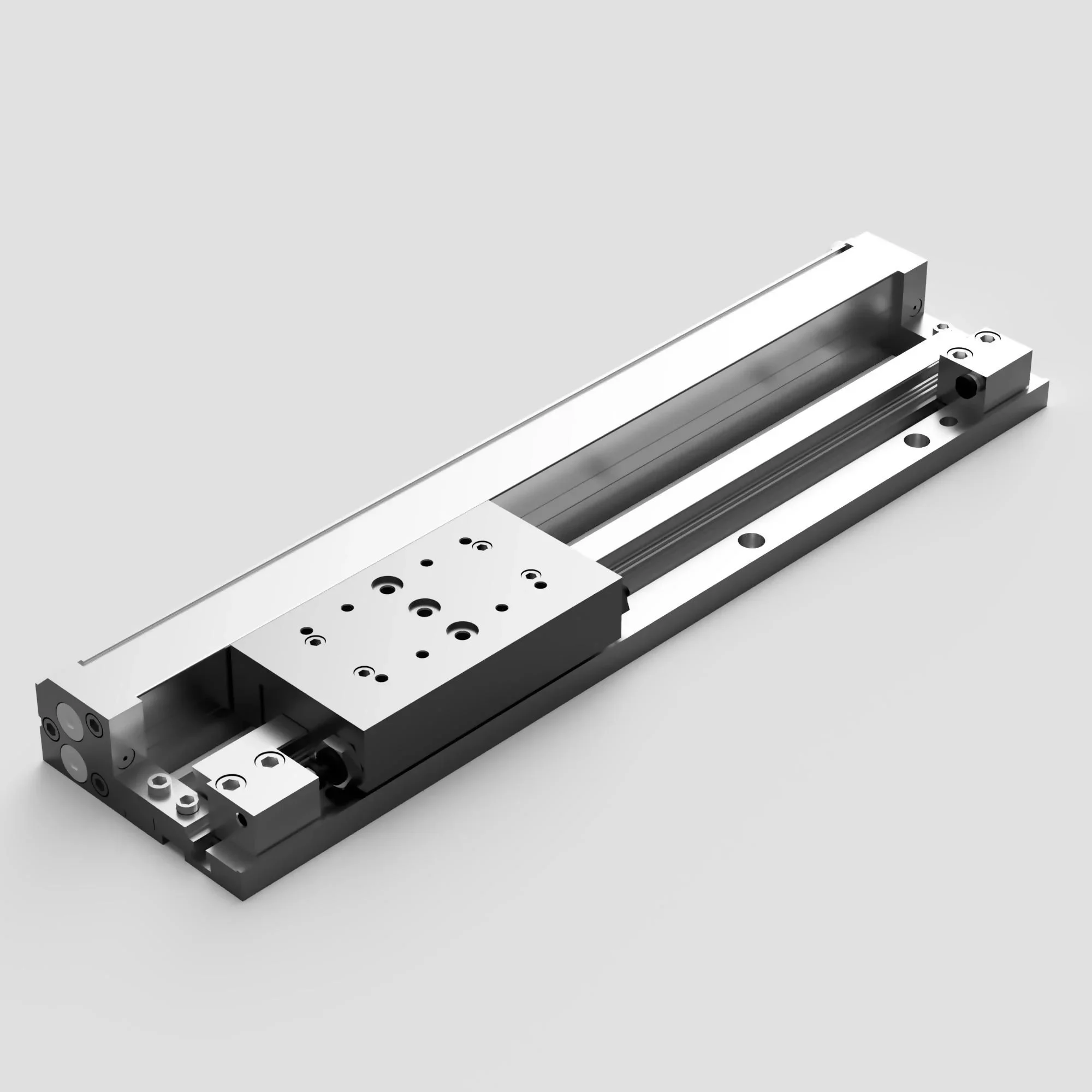

Aventics GSU Series Compact Rodless Pneumatic Cylinders

Rodless cylinders are often installed in a production line, where a runner block is used to transfer a load from one point to another or provide positioning and movement cover to an area, eg. for spray painting. The GSU series is a guided slide unit for precise positioning, and has the option of an air line on one or both sides available, with a high load capacity and hydraulic cushioning.

Bore Size: 16, 25mm
Temperature Rating: 0c to 60c
Pressure Rating: 2 to 8bar
Stroke Length: 200, 300, 400, 500, 600, 700, 800, 900, 1000mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

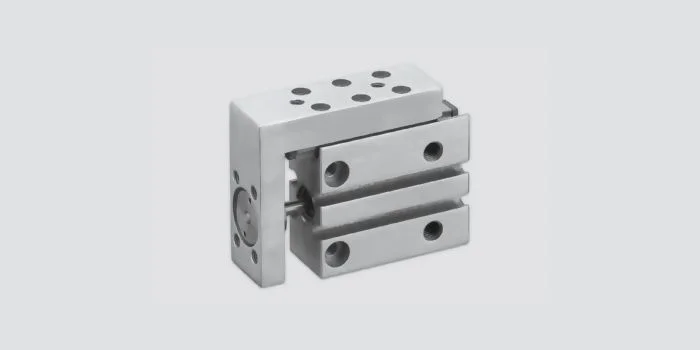

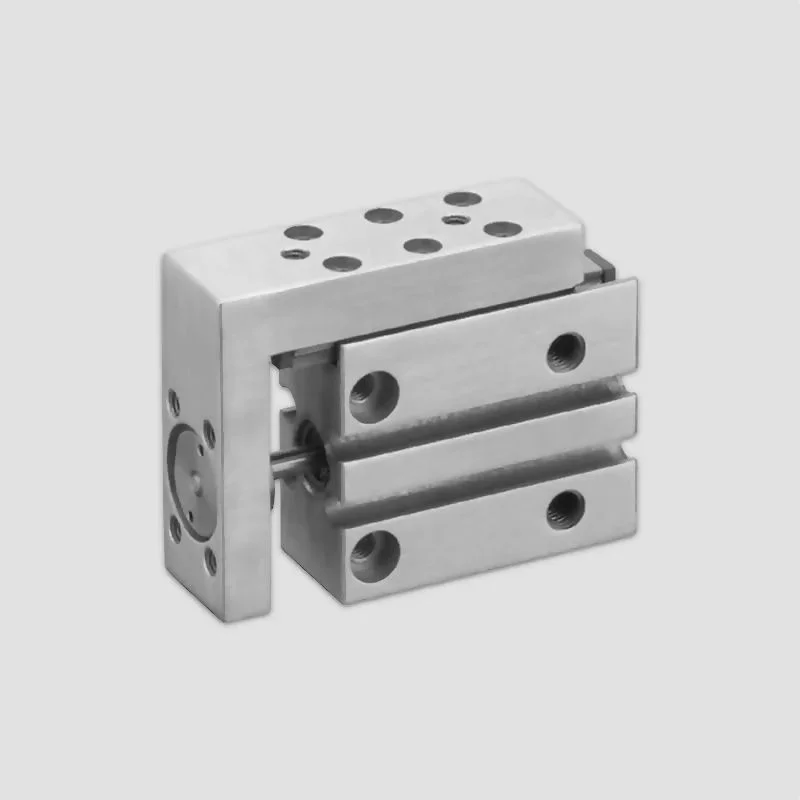

Aventics MSN Series Precise Mini Guide Pneumatic Cylinders

Guide cylinders such as the Aventics MSN series are used in automation applications that require precise guidance control for a mounted item in the machine. This series has a small and narrow profile for use in those tight spaces, and offers a number of mounting locations to allow a great array of positioning options.

Bore Size: 6, 10, 16mm
Temperature Rating: 0c to 60c
Pressure Rating: 2.5 to 10bar
Stroke Length: 5, 10, 15, 20, 25, 30mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

Aventics MSC Series Robust Max Payload Pneumatic Slide Cylinders

Guide cylinders such as the Aventics MSC series are used in automation applications that require precise guidance control for a mounted item in the machine. This mini guide series offers a small profile for installation in smaller spaces, and offers a number of mounting locations to allow a great array of positioning options. This series is highly configurable, so we can create a cylinder to suit your needs if there's no standard option for the job.

Bore Size: 8, 12, 16, 20, 25mm
Temperature Rating: 0c to 60c
Pressure Rating: 1 to 10bar
Stroke Length: 10, 20, 30, 40, 50, 80, 100mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

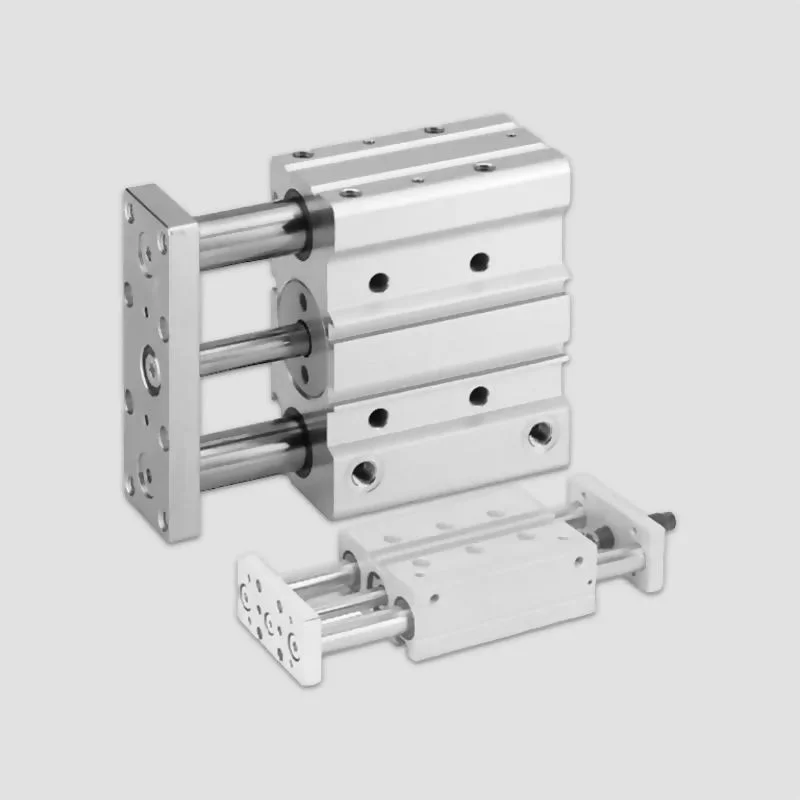

Aventics GPC Precise Pneumatic Guide Cylinders

Guide cylinders such as the Aventics GPC series are used in automation applications that require precise guidance control for a mounted item in the machine. The GPC compact guide cylinders all come with the main face attached to two guide rods that allow a high load capacity and prevent twisting, while the additional stability provides extra precision.

Bore Size: 10, 12, 16, 20, 25, 32, 40, 50, 63, 800, 100mm
Temperature Rating: -10c to 70c
Pressure Rating: 2 to 8bar
Stroke Length: 10, 20, 30, 35, 40, 50, 75, 100, 125, 150, 160, 200mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

Aventics TWC Double Piston Powerful Pneumatic Cylinders

Double or twin-piston cylinders are typically used where some extra force and stability is required from a pneumatic cylinder in a small form factor. The Aventics TWC series has the option of built in locking systems - one each for extended and retracted end position locking.

Bore Size: 10, 16, 20, 25, 32mm (per piston)
Temperature Rating: 0c to 60c
Pressure Rating: 2 to 7bar
Stroke Length: 10, 20, 30, 40, 50, 60, 70, 80, 90, 100mm
Function: Double-Acting
Application: Industrial Automation & Manufacturing
Find Out More

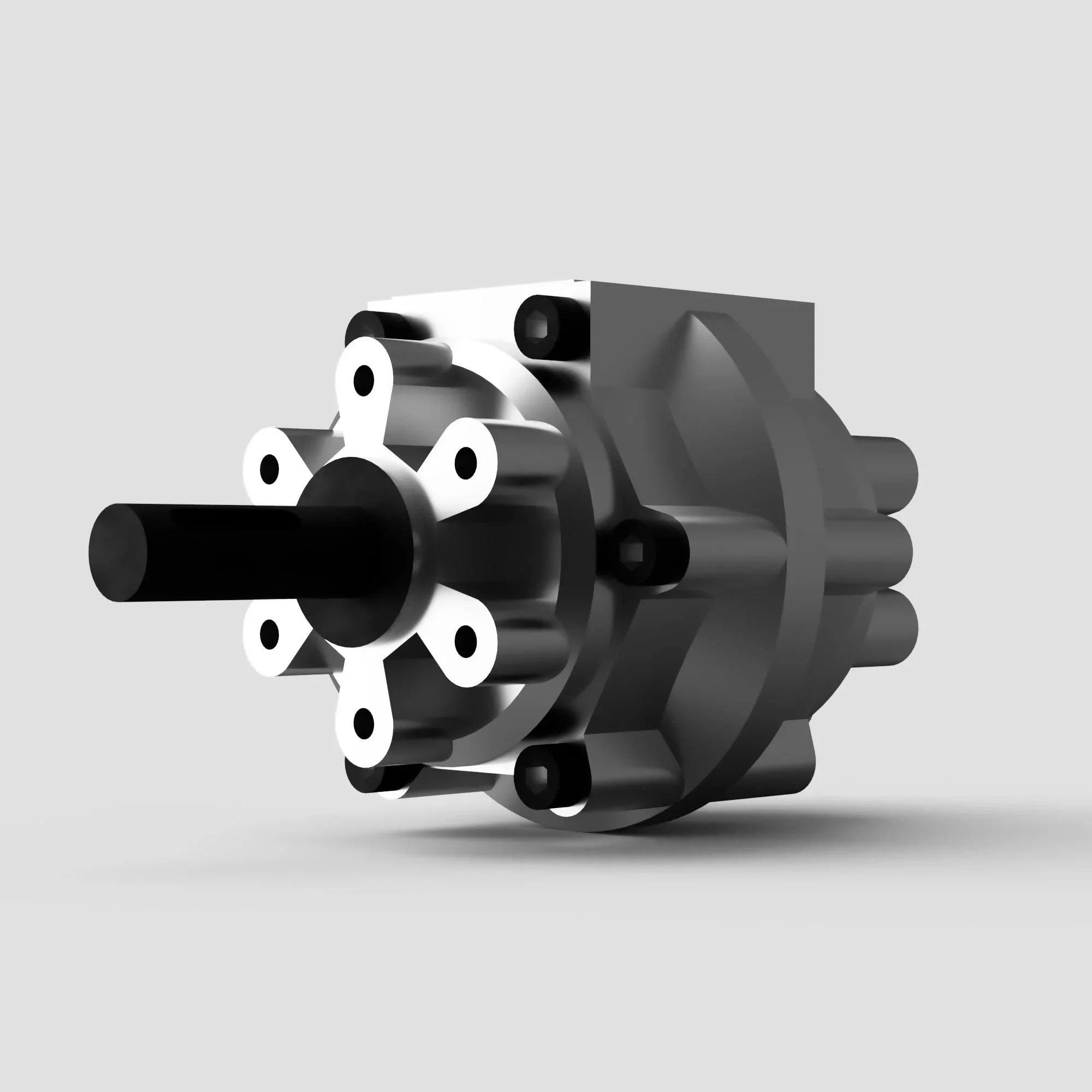

Aventics Rotary Vane RAK Series Pneumatic Cylinders

Pneumatic rotary actuators are commonly used in industrial automation to assist with controlling the speed and rotation of attached components. The Aventics RAK series has a wide range of rotation that can be adjusted to your needs, and has an optional hydraulic shock absorber available for pre-installation.

Temperature Rating: -5c to 80c
Pressure Rating: 2 to 7bar
Angle of Rotation: 30 to 270 degrees
Application: Industrial Automation & Manufacturing
Find Out More

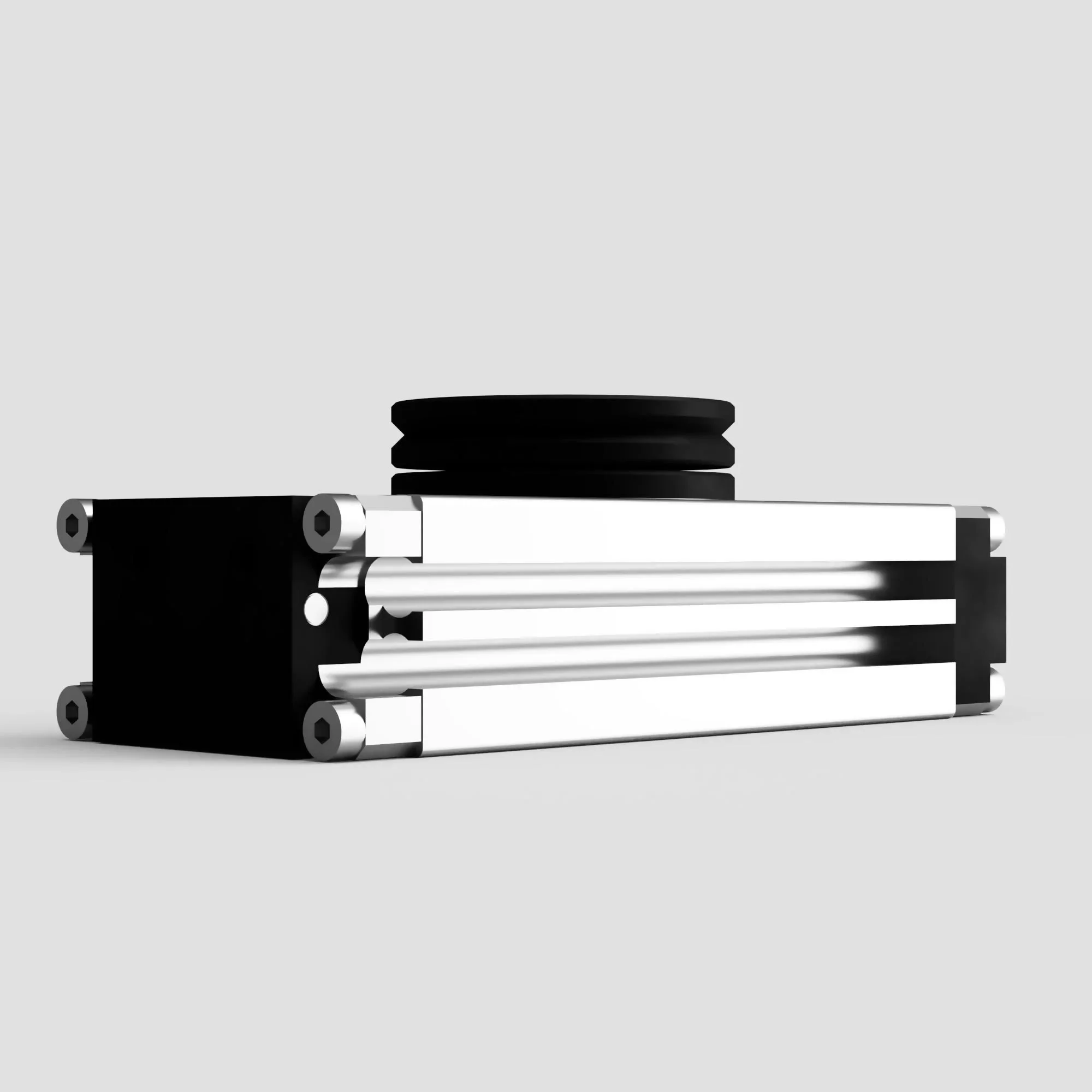

Aventics RCM Series Rotary Compact Pneumatic Cylinders

Pneumatic rotary actuators are commonly used in industrial automation to assist with controlling the speed and rotation of attached components. The Aventics RCM compact rotary series has a combination rack/pinion-flange mechanism that provides high torque in a small package, and an option to include hydraulic cushioning as standard.

Temperature Rating: 5c to 60c
Pressure Rating: 2 to 7bar
Angle of Rotation 0 to 180 degrees
Application: Industrial Automation & Manufacturing
Find Out More

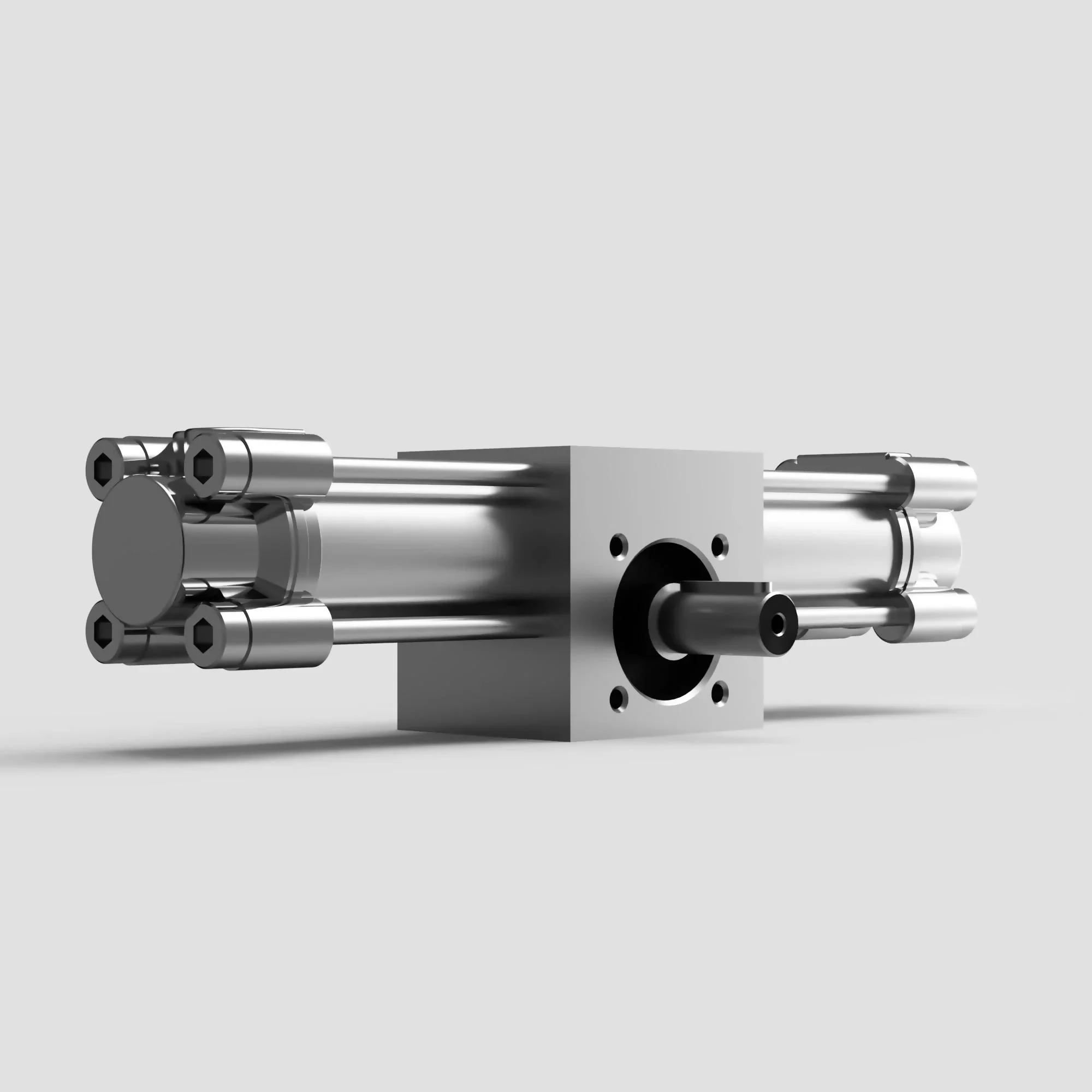

Aventics TRR Series Rack And Pinion Gearbox Pneumatic Cylinders

Pneumatic rotary actuators are commonly used in industrial automation to assist with controlling the speed and rotation of attached components. The Aventics TRR series is a double-piston rack-and-pinion gearbox actuator with an ISO cylinder basis. This series has a great angle-of-rotation range, adjustable pneumatic cushioning, and a temperature rating more reminiscent of standard cylinders, allowing use in more environments than some other rotary actuators.

Bore Size: 32, 40, 50, 63, 80, 100mm
Temperature Rating: -20c to 80c
Pressure Rating: 2 to 10bar
Angle of Rotation: 0 to 360 degrees
Application: Industrial Automation & Manufacturing
Find Out More

Pneumatic Cylinder Specifications

Pneumatic cylinders are occasionally known as air cylinders. These mechanical devices harness the power of compressed air, in order to produce a force in a reciprocating motion, usually up-and-down, or back and forth. They are similar to hydraulic cylinders, as they force a component to move in a specific direction. Usually, the component, a piston, is a disc or cylinder, and a rod transfers the force to move the object.

For some types of work, it is preferable to use a pneumatic cylinder as they are quieter than other types of valves, cleaner and require less space. This type of cylinders is cleaner because they use air rather than a fluid – meaning there is less likely to be a leakage which could contaminate the area. This makes pneumatic cylinders ideal for use in areas where cleanliness is a priority.

Pneumatic Cylinder Specifications

Bore Size Range: 20MM – 200MM
Body Materials: Aluminium, Stainless Steel (More on request)
Port Size Range: 1/8” – 1 1/4” & M5/M7
Applications: Bottling, Press Printing/Stamping, Biofuels, Suspension, Heating, Life Sciences
Applications: Tyre Manufacturing, Refining, Commercial Laundry, Combustion, Automotive

Types of Pneumatic Cylinder

Pneumatic cylinders vary in terms of their size and appearance, but there are three main types available on the market.

Single acting cylinder. This type uses the pressure from compressed air to create a force in one direction – usually outwards, and a spring to return the force to the home direction. The cylinder usually has an extension to compromise for the space that the spring requires.

Double acting cylinder. A double acting cylinder uses the force of air to move in two different strokes – extend and retract. This type of cylinder has two ports to let air in – one for instroke and one for outstroke.

Rodless band cylinder. A rodless band cylinder offers a high level of load control as it has no piston rod. It uses a magnet or mechanical coupling to transmit force to the rest of the cylinder. The cylinder has two flexible metal bands – one is used to stop air escaping, whilst the other is designed to protect the slot and the inner band.

Design of Pneumatic Cylinders

Depending on what the pneumatic cylinder is required for, there are various designs available. Materials used for these cylinders vary between aluminium, steel, nickel plated brass and stainless steel. The type of material selected depends on the temperature, humidity and level of loads that the cylinder is required for.

Tie rod cylinder. This is the most common type and it is usually deemed to be the safest.

Flanged-type cylinder. Fixed flanges are fitted to the cylinder – this is more common in hydraulic cylinders rather than pneumatic cylinders.

Threaded end cylinder. The ends of this type of cylinder are screwed onto the body.

Asco Numatics pneumatic cylinders are available for sizes ranging from 20MM to 200MM, however custom options are available on request.

Pneumatic Cylinders

(11197 Items)
Refine
Hide Filters Show Filters
Sort By
  • Low to High
  • High to Low
  • A to Z
  • Z to A
  • New In
You've viewed 36 of 11197 products
