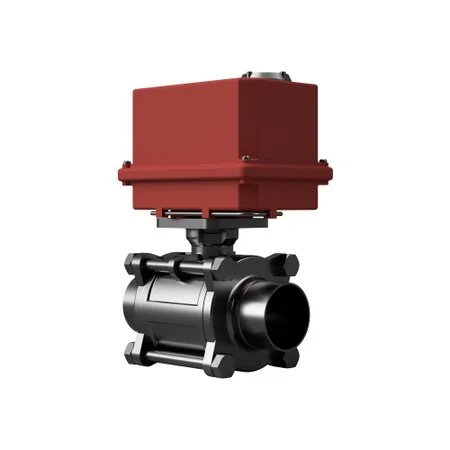

Hygienic Tri Clamp-Weld OD AV-Lite Actuator Ball Valves

The AV-L91B0AV & AV-L9CB0AV form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a free flow path that does not allow debris or contaminents to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals inlcude FDA & Wras approved seats with a bovine free supply. Actuation Valve provide fast turnaround times without sacrificing quality or expertise and all orders come with a two page test report detailing all opening/closing times on each valve tested. Whether you need one product or several hundred off-the-shelf parts, we can deliver. Low Torque requirements from the AV-L91B0AV & AV-L9CB0AV Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.

Key Features

Key features and benefits of AV-L91B0AV & AV-L9CB0AV Actuated Ball Valves.
1

Key Features

Available with Torque Outputs up to 40NM the AV-LITE range offers competitive actuation for small and medium actuated hygienic ball valves and comes complete with Direct Mount capabilities for your ISO 5211 Valves in 110VAC, 230VAC & 24VDC.
2

Key Features

The AV-LITE Nylon housing is rated both Waterproof & Dustproof to IP67 and is resistance to heat, acid and alkali. All models offer constant mechanical and visual position indication at the top of the Actuator cover.
3

Key Features

The compact motor offers low power consumption and is suitbale for the majority of small bore ball valves C/W with an internal overheating protection device and can also be wired to a control box for signal feedback.

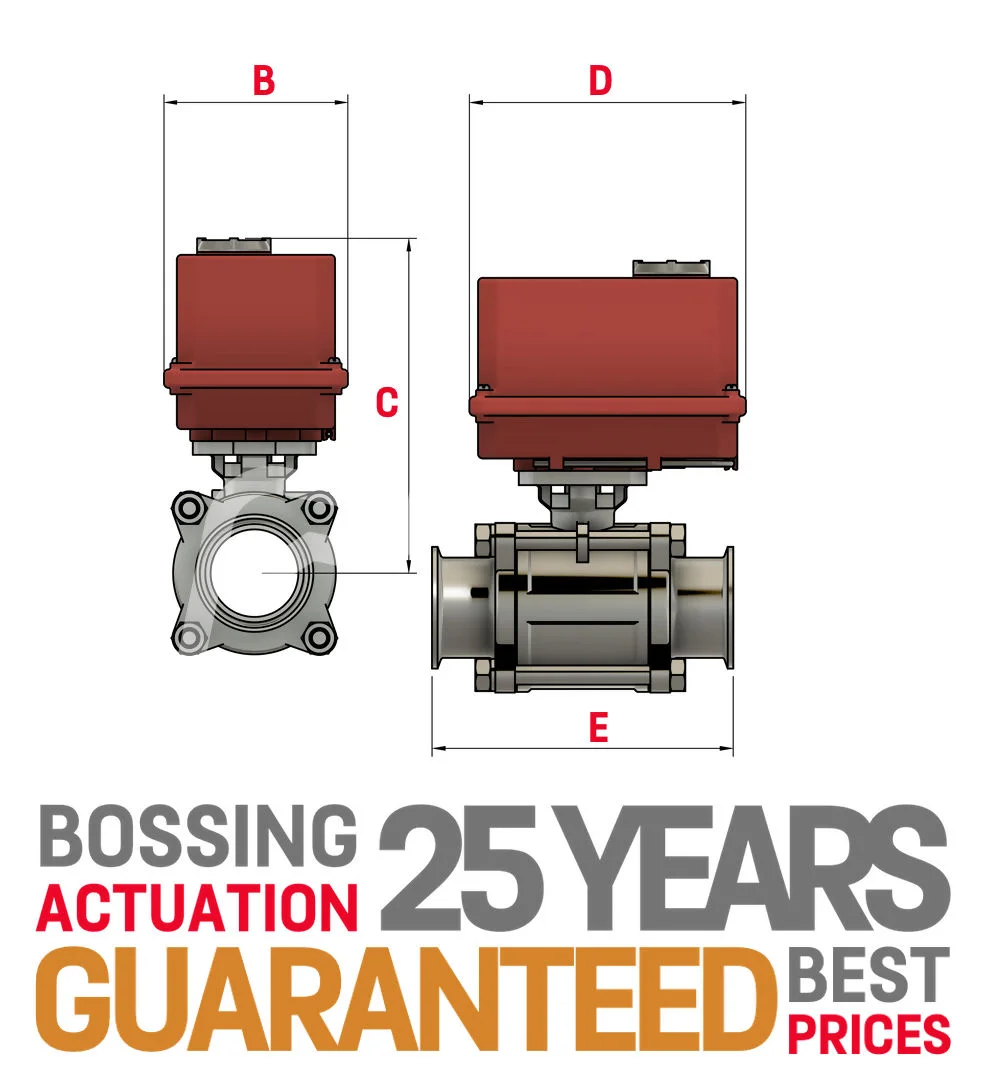

Tri Clamp Technical Stuff

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 100.00 152.50 145.00 90.00 AV-02
3/4" 100.00 159.50 145.00 90.00 AV-02
1" 100.00 168.50 145.00 100.00 AV-02
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 121.90 212.50 147.00 125.00 AV-03
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Tri Clamp 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Hygienic Weld OD 3D Stuff

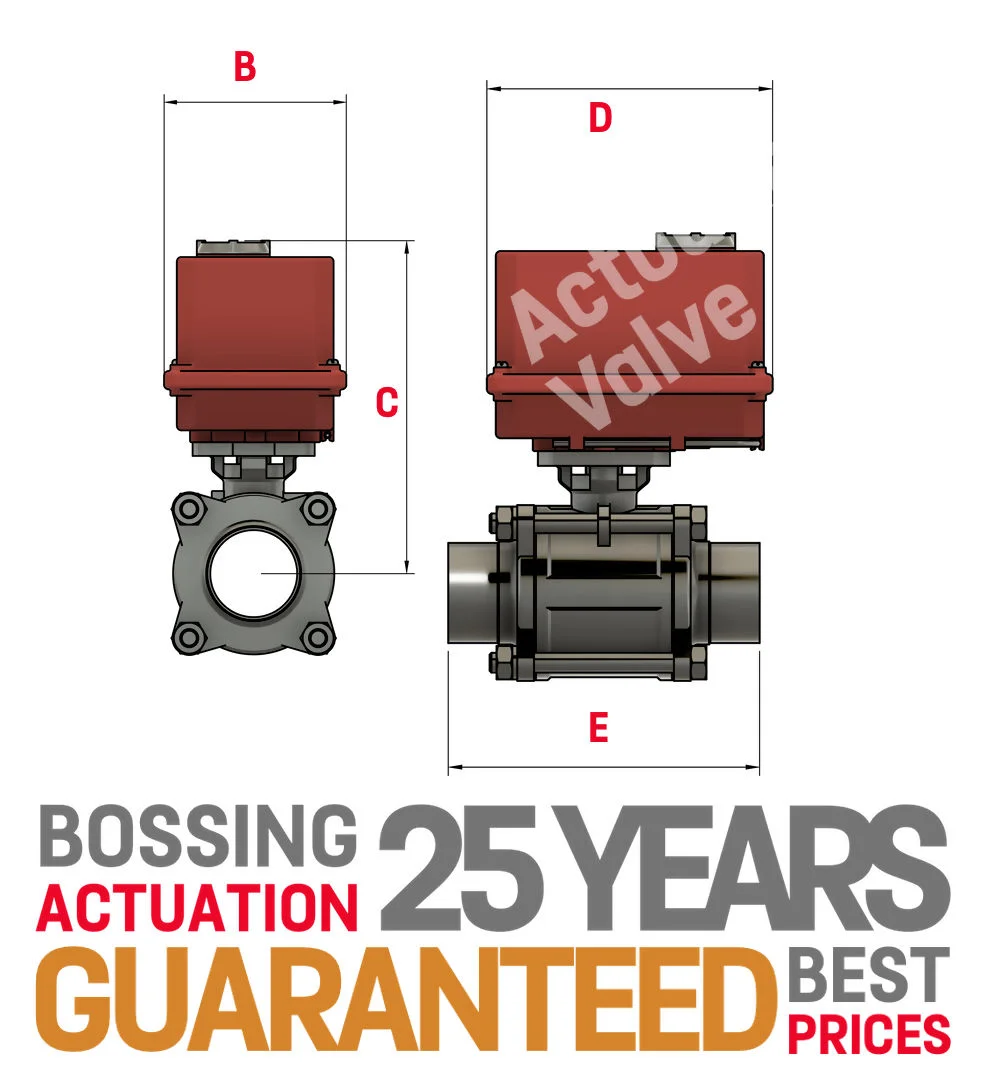

Hygienic Weld OD Technical Stuff

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 100.00 152.50 145.00 90.00 AV-02
3/4" 100.00 159.50 145.00 90.00 AV-02
1" 100.00 168.50 145.00 100.00 AV-02
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 121.90 212.50 117.00 125.00 AV-03
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
