2 Piece Full Bore Wras Approved Festo Ball Valves

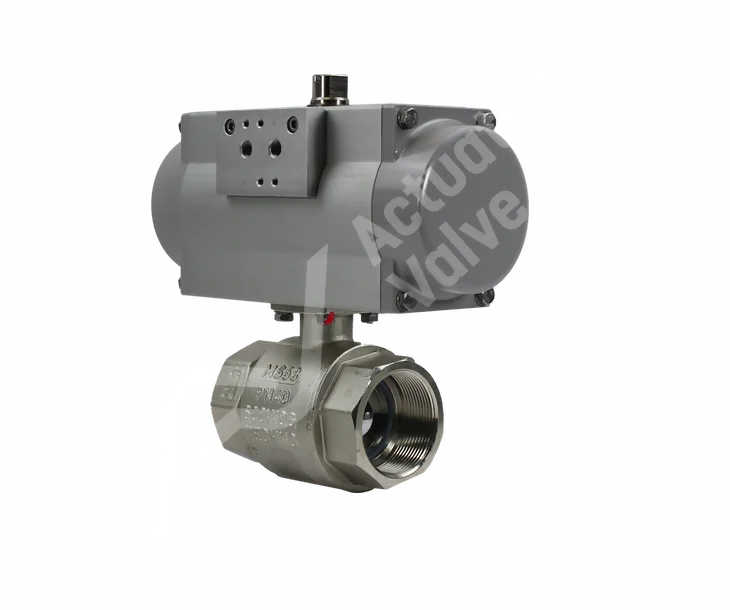

The AV4500FE 2 piece full bore brass ball valve offers a compact, cost effective actuated valve solution for screwed and threaded pipelines. Also with WRAS approval suitable for potable drinking water. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed. Express shipping for delivery within 24-48 hours for stock components. WRAS approval certificates with all assemblies at no extra cost.

Key Features

Key features and benefits of AV-L4500FE Actuated Ball Valves.
1

Key Features

The Wras approved ball valve features a full bore flow which allow for maximum flow with minimal pressure drop. The quality brass body allows for operating pressures capable of meeting PN40 ratings.
2

Key Features

The Festo pneumatic actuator is a new generation of pneumatically driven control elements that provide you with many advantages over conventional solutions. It offers high quality, long service life, easy handling and an excellent price/performance ratio.
3

Key Features

Festo offers thousands of pneumatic components and complete systems that make it easy to choose the perfect part for your application. They offer everything from small pilot valves to large air cylinders and even complete air control panels with integrated displays.

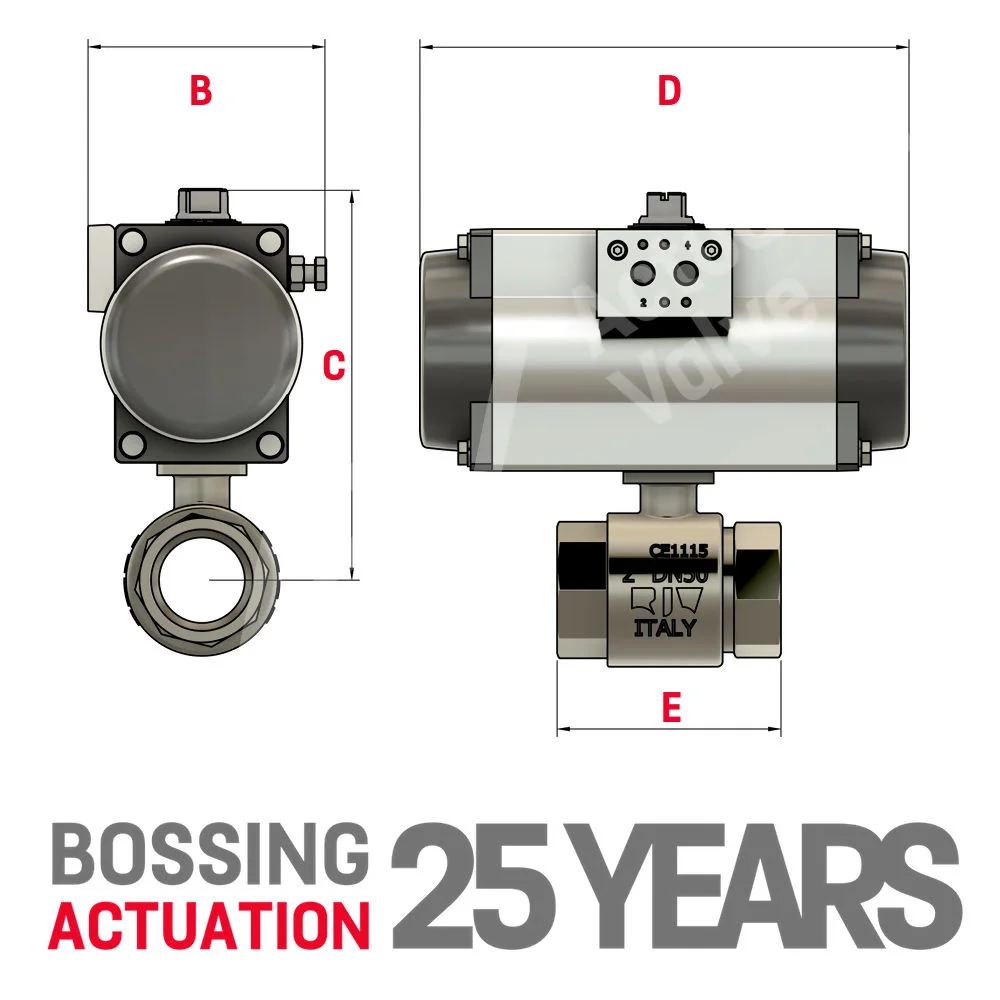

AV-L4500FE Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 77.00 131.00 145.70 77.77 131.00 133.30 59.00
3/4" 77.00 137.00 145.70 77.77 137.00 133.30 69.00
1" 77.00 141.00 145.70 77.77 141.00 133.30 83.00
1 1/4" 89.70 158.50 170.40 77.77 146.50 133.30 94.00
1 1/2" 89.70 170.00 223.10 84.50 163.00 153.50 102.00
2" 108.00 195.00 153.50 89.70 177.50 151.40 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L4500FE Ball Valve 3D Stuff

Wras Approved Actuated Ball Valves

WRAS approval is a mandatory requirement for any product that carries or receives drinking water from the public mains in the UK. It provides proof that our products have been tested by an independent body to ensure they meet all relevant standards and requirements as set out by Government. The AV4500 is a Wras Approved Ball Valve suitable for use drinking water.

Valve Standards & Stuff

Body Material: Brass CW 617 N
Seats Material: PTFE
Shaft Material: Brass CW 614 N
O-Rings Material: Viton
Ball Material: Brass CW 617 N
Approvals: Wras approved
Mounting: ISO 5211 Connection
End Connections: BSPP
Pressure Rating: PN40

Frequent Interrogation

Yes, this Valve is suitable for drinking water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

4-20mA Control Available On This Product

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.
