2 Piece Wras Approved AV-Ventus Actuated Valves

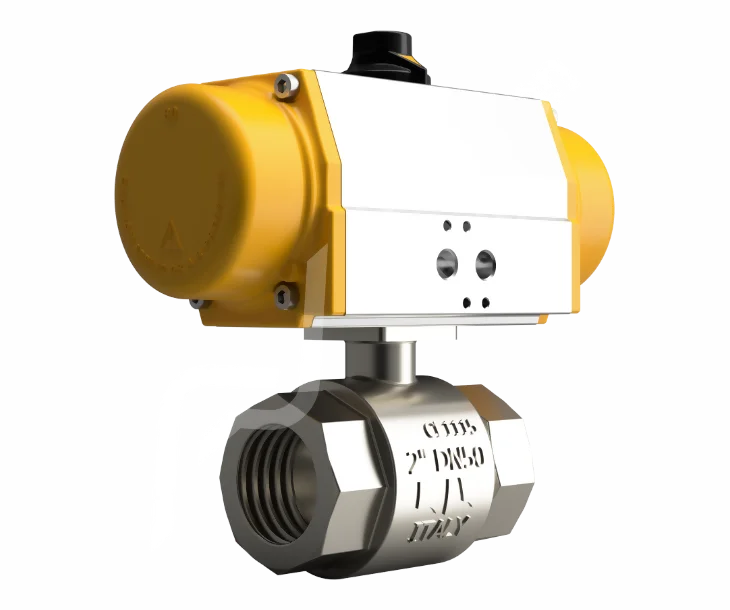

The AV-L4500UF, a two-piece full bore brass ball valve, provides an efficient and economical actuated valve solution for screwed and threaded pipelines. It's also WRAS approved for use with potable drinking water. The ISO 5211 mounting pad facilitates quick actuation using our in-stock stainless steel mounting brackets, enabling immediate processing of assembly and testing after your order placement. We offer express shipping, ensuring delivery within 24-48 hours for in-stock components, and include WRAS approval certificates with all assemblies at no additional charge. AV-Ventus Actuators are designed to be maintenance-free, reducing the need for frequent interventions and ensuring long-term reliability in various applications.
Shop Help Me

Key Features

Key features and benefits of AV-L4500VE Actuated Ball Valves.
1

Key Features

Our ball valves undergo independent testing by accredited laboratories to confirm compliance with UK safety standards. The AV-L4500 is specifically designed to meet all WRAS approval requirements, making it ideal for commercial or industrial installations.
2

Key Features

The AV-Ventus actuator's innovative design incorporates a range of advanced features specifically engineered to enhance the overall performance of the system, with a primary focus on ensuring jerk-free sliding. This characteristic plays a pivotal role in achieving unparalleled stability and precision in the control of the actuator's movement.
3

Key Features

The AV-Ventus actuator incorporates a patented rack and pinion mechanism that is wear-proof and made without the use of aluminium, ensuring durability and reliability.

Valve Standards & Stuff
Body Material: Brass CW 617 N
Seats Material: PTFE
Shaft Material: Brass CW 614 N
O-Rings Material: Viton
Ball Material: Brass CW 617 N
Approvals: Wras Approved
Mounting: SO 5211 Connection
End Connections: BSPP
Pressure Rating: PN40

Frequent Interrogation

Uflow Actuated Ball Valves are precision-engineered valves designed to control the flow of liquids or gases in industrial systems.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

Yes, Uflow Actuated Ball Valves are designed to handle high-pressure conditions, making them ideal for demanding industrial settings.

Uflow Actuated Ball Valves are rigorously tested and meet industry-specific safety standards to ensure reliability and compliance.

Uflow Actuated Ball Valves can be equipped with materials that resist corrosion, making them suitable for corrosive environments.

Lead times for Uflow Actuated Ball Valves may vary, but the we aim to provide efficient and timely delivery.

Actuated Ball Valves are known for their reliability, quick operation, and suitability for a wide range of applications. They are also easy to automate.

Actuated Ball Valves are commonly used in industries such as oil and gas, water treatment, chemical processing, and HVAC systems.
Actuated Ball Valves can be operated remotely, while Manual Ball Valves require manual turning of a handle or lever.
Yes, Actuated Ball Valves can be designed to handle high-pressure applications, making them versatile for various industries.
Uflow offers a warranty for its valves, and the duration may vary depending on the specific valve model.

Wras Approved Actuated Ball Valves

WRAS approval is a mandatory requirement for any product that carries or receives drinking water from the public mains in the UK. It provides proof that our products have been tested by an independent body to ensure they meet all relevant standards and requirements as set out by Government. The AV4500 is a Wras Approved Ball Valve suitable for use drinking water.

AV Ventus Datasheets and Certificates

  • PDF
Datasheets

AV Ventus Quarter Turn Pneumatic Actuator
  • PDF
Datasheets

AV Ventus Identification Chart
  • PDF
Datasheets

AV Ventus Torque Chart
  • Document
Certificates

ATEX Certificate
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

2 Piece Wras Approved AV-Ventus Actuated Ball Valves
