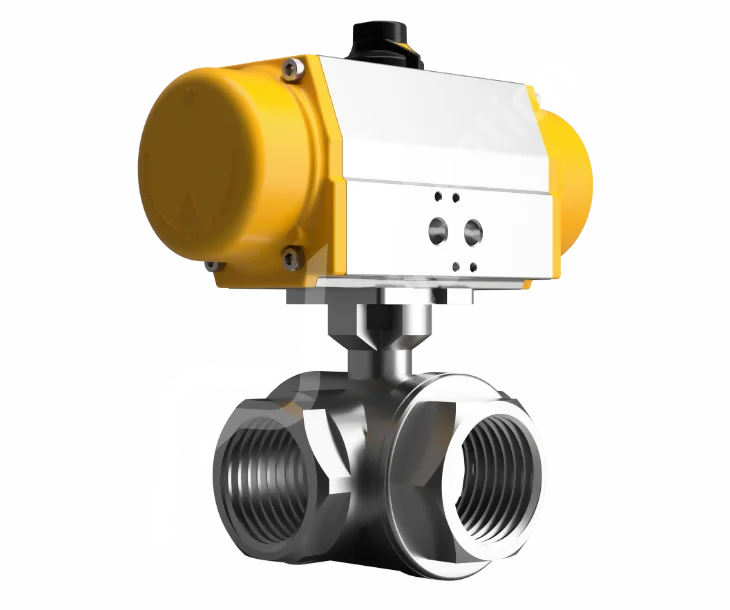

3-Way Full Bore BSPP AV-Ventus Actuator Valves

The versatile and economical valve, available in screwed connections NPT & BSP, features a WRAS (Water Regulations Advisory Scheme) Certified TFM 1600 PTFE Seat that is also FDA approved. It is classified for use in potentially explosive environments, suitable for Group II Category 2 Zones 1, 2, 21, and 22 in accordance with the 2014/34/EU Atex directive. All units comply with the Pressure Equipment Directive (PED 2014/68/EU). Designed for long-lasting, reliable performance, the valve offers a variety of materials and options, including alternate coatings tailored to specific application requirements. The actuator's design includes features that promote jerk-free sliding, contributing to stable and precise control in the movement of the actuator.
Shop Help Me

Key Features

Key features and benefits of AV-L5300VE & AV-L5400VE Actuated Ball Valves.
1

Key Features

The AV-L5300 & 5400 Full Bore 3-Way Ball Valves, being silicone-free, are apt for use with oil-based paint products and applications. This ensures that the valve will not introduce any contamination to the medium, thereby maintaining the integrity of the end finish.
2

Key Features

Actuation Valve offers rapid turnaround times, maintaining high standards of quality and expertise. Each order is accompanied by a detailed two-page test report, documenting the opening and closing times of each tested valve. Whether your requirement is for a single product or several hundred off-the-shelf parts, we are equipped to deliver efficiently.
3

Key Features

AV-Ventus Pneumatic actuators are designed to consume low volumes of air while delivering maximum torque, making them energy-efficient and cost-effective.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
Face 2 Face: BSPP ISO 7-1

Frequent Interrogation

Uflow Actuated Ball Valves are precision-engineered valves designed to control the flow of liquids or gases in industrial systems.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

Yes, Uflow Actuated Ball Valves are designed to handle high-pressure conditions, making them ideal for demanding industrial settings.

Uflow Actuated Ball Valves are rigorously tested and meet industry-specific safety standards to ensure reliability and compliance.

Uflow Actuated Ball Valves can be equipped with materials that resist corrosion, making them suitable for corrosive environments.

Lead times for Uflow Actuated Ball Valves may vary, but the we aim to provide efficient and timely delivery.

Actuated Ball Valves are known for their reliability, quick operation, and suitability for a wide range of applications. They are also easy to automate.

Actuated Ball Valves are commonly used in industries such as oil and gas, water treatment, chemical processing, and HVAC systems.
Actuated Ball Valves can be operated remotely, while Manual Ball Valves require manual turning of a handle or lever.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

AV Ventus Certification and Datasheets

  • PDF
Datasheets

AV Ventus Quarter Turn Pneumatic Actuator
  • PDF
Datasheets

AV Ventus Identification Chart
  • PDF
Datasheets

AV Ventus Torque Chart
  • Document
Certificates

ATEX Certificate

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

3-Way BSPP Full Bore Uflow Actuated Valves
