3-Way Full Bore Festo Actuated SS Ball Valves

The AV-L5300 & 5400 Full Bore stainless 3-Way steel ball valves can be used on oils based paints and coatings applications such as automotive refinishing. They're 100% silicone free so they won't contaminate your product or leave behind residue which can ruin your finish over time. The AV-L5300 & 5400 Full Bore Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and ball made from high quality stainless steel, these valves can withstand even the most demanding conditions. The new Festo Pneumatic Actuator is easy to install, affordable and accurate. This makes it perfect for automating valves in industries like chemical production or pharmaceuticals where safety is paramount.

Key Features

Key features and benefits of AV-L5300FE & AV-L5400FE Actuated Ball Valves.
1

Key Features

The DFPD Series Pneumatic Actuators are designed to withstand harsh conditions that would destroy most standard pneumatic components. These high-quality actuators come with Festo’s reputation for build quality and reliability so you can be sure they will work when it matters most.
2

Key Features

The 3-Way diverter valve features a direct mount actuation pad for quick and easy automation. This allows us to get products out of the door to you quicker whilst also reducing the overall footprint of package and most importantly wight and cost.
3

Key Features

The DFPD series features an innovative rack and pinion combination that provides high output operation with constant torque characteristic across swivel range. This unique gearing system allows the pneumatic actuators to be controlled smoothly and precisely.

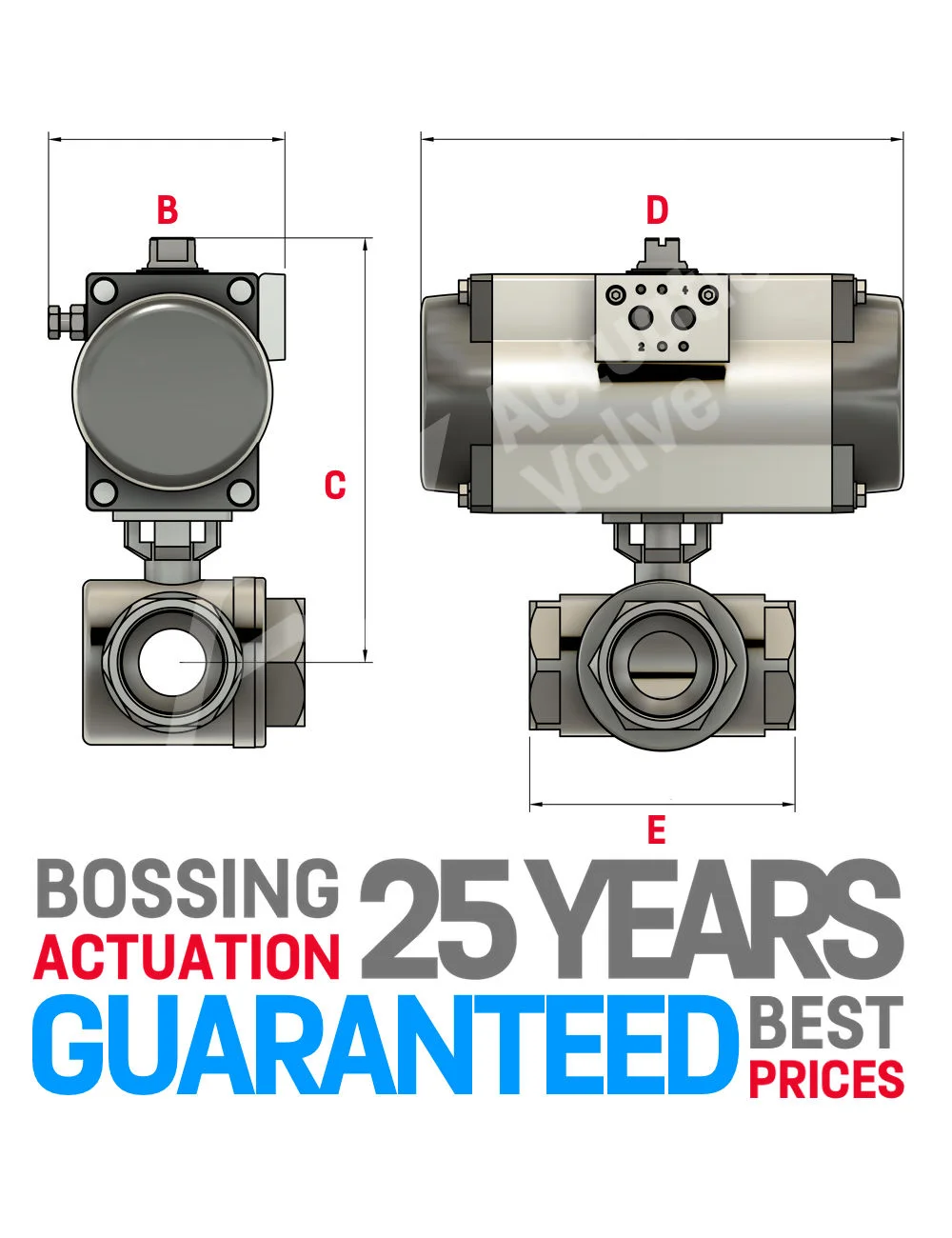

FB 3-Way Ball Valve Technical Stuff

B C D B C D E
SR SR DA DA DA DA SR/DA
1/4" 77.70 143.00 145.70 77.70 143.00 133.30 79.00
3/8" 77.70 143.00 145.70 77.70 143.00 133.30 79.00
1/2" 77.70 149.00 145.70 77.70 149.00 133.30 88.00
3/4" 89.70 171.50 170.40 77.70 159.50 133.30 108.00
1" 89.70 175.00 170.40 77.70 163.00 133.30 124.00
1 1/4" 89.70 185.50 170.40 77.70 173.50 133.30 135.00
1 1/2" 108.00 212.80 223.10 108.00 212.80 189.30 164.00
2" TBA TBA TBA TBA TBA TBA TBA
2.5" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA TBA TBA

FB 3-Way Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 7-1

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.

Festo DFPD Actuator Videos

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
