3-Way PN16-PN40 Full Bore Festo Actuator Ball Valves

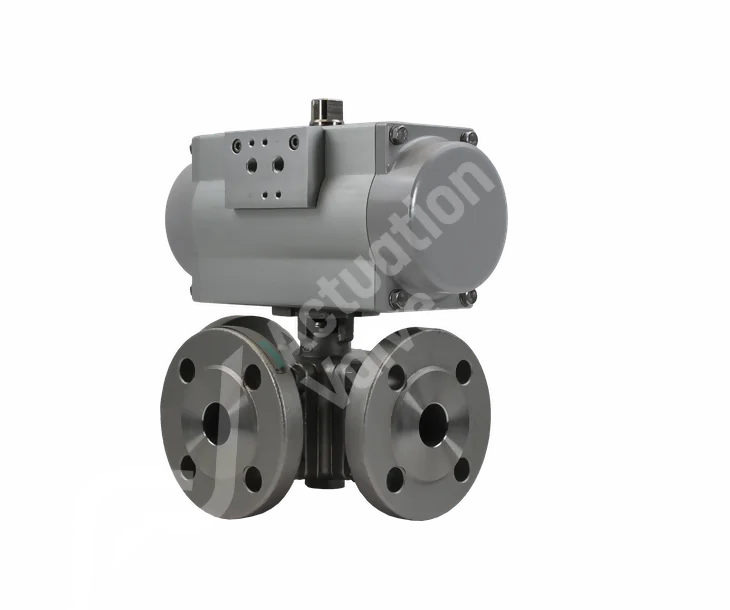

Our AV-L5K00FE/5N00FE 3-Way actuated multiport ball valves provide various process diverting capabilities with L & T port ball designs. The flanged PN16 & PN40 pressure rated valves provide both medium and high pressure options depending on your application requirements with easy installation. With pneumatic actuation both fail safe and fail in position setups are available with double acting and spring return units. This can be specified at point of order.

Key Features

Key features and benefits of AV-L5K00FE & AV-L5N00FE Actuated Ball Valves.
1

Key Features

Our Festo Pneumatic Actuator is a cost-effective solution for your automation problems. It's easy to install, it works with almost any valve or damper on the market, and it can be expanded easily if you need more valves or dampers in the future.
2

Key Features

The new Festo Pneumatic Actuator is easy to install, affordable and accurate. This makes it perfect for automating valves in industries like chemical production or pharmaceuticals where safety is paramount.
3

Key Features

The AV-L5K00 & 5N00 3-Way Ball Valve is suited to DIN flanged connections and the stainless steel body houses either an L or T drilled ball configuration. The L port valve is drilled at 90 degrees from two different sides to resemble an L whereas the T also features a hole straight through.

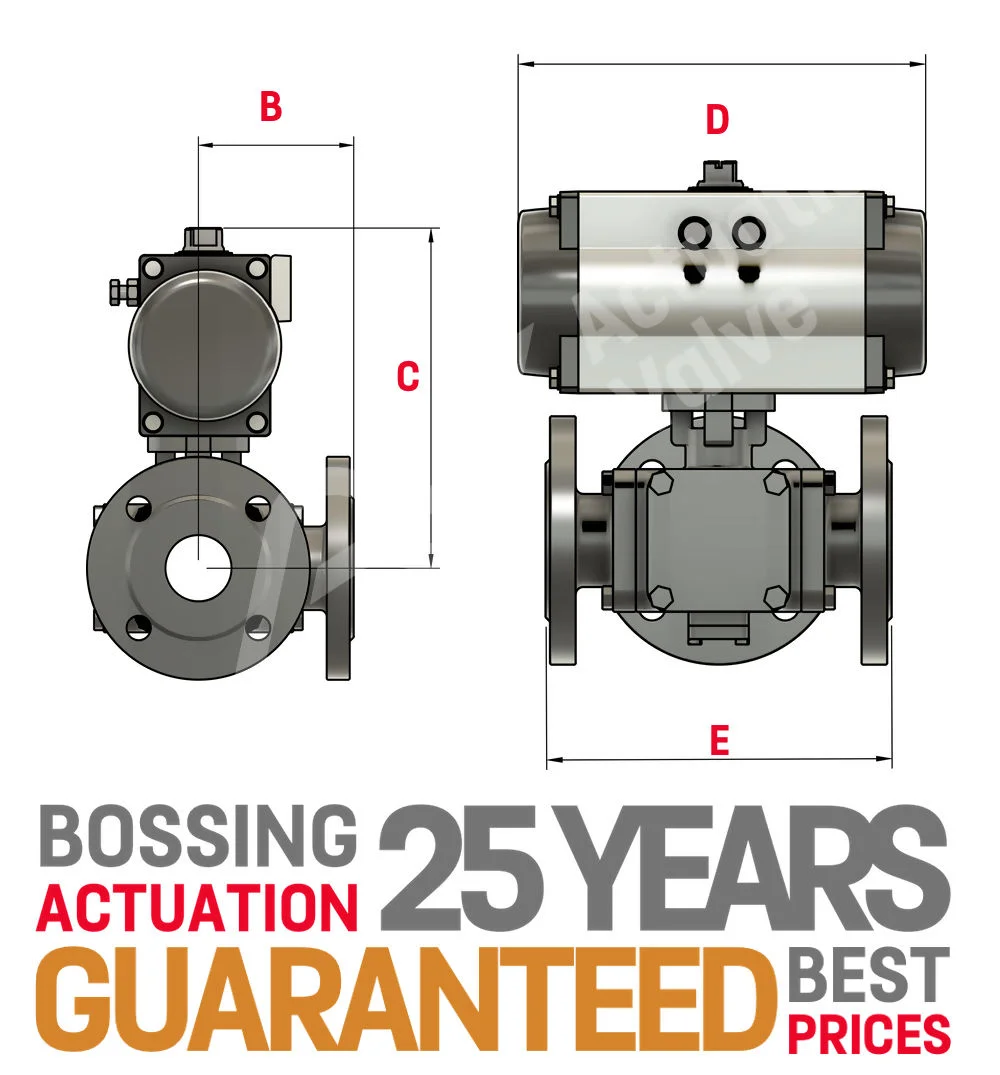

3-Way PN16 PN40 Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" TBA 153.00 145.70 TBA 153.00 133.30 150.00
3/4" TBA 169.00 170.40 TBA 157.00 133.30 165.00
1" TBA 180.00 170.40 TBA 180.00 151.40 181.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA
1 1/2" TBA 215.00 223.10 TBA 197.00 151.40 190.00
2" TBA 235.00 252.30 TBA 222.00 189.30 212.00
2 1/2" TBA 261.00 270.90 TBA 250.00 213.70 230.00
3" TBA 299.00 301.40 TBA 273.00 270.90 310.00 / 340.00
4" TBA 364.00 374.20 TBA 342.00 334.40 352.00 / 386.00

3-Way PN16 PN40 Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
