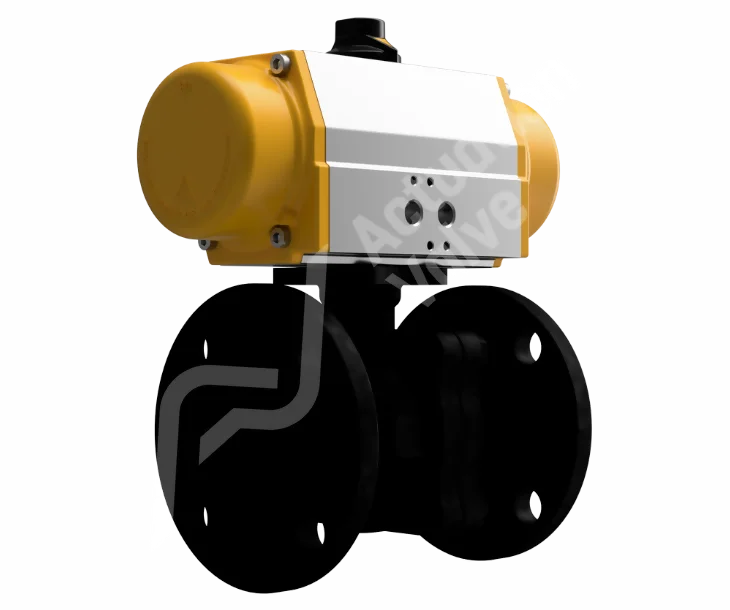

PN16 Carbon Steel AV-Ventus Actuator Valves

The AV-L6KC0UF flanged PN16 actuation valves provide a straightforward quarter-turn actuated solution suitable for low to medium pressure requirements, featuring DIN flanged connections with a maximum pressure of 16 bar. AV-Ventus Actuators stand out in the market due to their innovative and compact design, offering a space-efficient solution that caters to a wide range of applications. The engineering behind these actuators reflects a commitment to practicality, ensuring optimal functionality in diverse settings.
Shop Help Me

Key Features

Key features and benefits of the AV-L6KC0VE Actuated Ball Valves.
1

Key Features

The AV-L6KC0 carbon steel ball valves are well-suited for use in oil-based paints and coatings applications, including automotive refinishing. Their 100% silicone-free design ensures that they do not contaminate the product or leave behind residues, which could otherwise deteriorate the finish over time.
2

Key Features

We provide easy access to 3D CAD and Step files for our new product line, enabling swift integration into system designs within minutes. Additionally, we offer a range of mounting options, including direct and customised box section kits, to ensure a perfect fit for your project requirements.
3

Key Features

The AV-Ventus pneumatic actuator is constructed using aluminium extrusion, combining strength and lightweight properties for efficient and reliable performance in pneumatic rotary applications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Frequent Interrogation

Uflow Actuated Ball Valves are precision-engineered valves designed to control the flow of liquids or gases in industrial systems.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

Yes, Uflow Actuated Ball Valves are designed to handle high-pressure conditions, making them ideal for demanding industrial settings.

Uflow Actuated Ball Valves are rigorously tested and meet industry-specific safety standards to ensure reliability and compliance.

Uflow Actuated Ball Valves can be equipped with materials that resist corrosion, making them suitable for corrosive environments.

Lead times for Uflow Actuated Ball Valves may vary, but the we aim to provide efficient and timely delivery.

Actuated Ball Valves are known for their reliability, quick operation, and suitability for a wide range of applications. They are also easy to automate.

Actuated Ball Valves are commonly used in industries such as oil and gas, water treatment, chemical processing, and HVAC systems.
Actuated Ball Valves can be operated remotely, while Manual Ball Valves require manual turning of a handle or lever.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

AV Ventus Certification and Datasheets

  • PDF
Datasheets

AV Ventus Quarter Turn Pneumatic Actuator
  • PDF
Datasheets

AV Ventus Identification Chart
  • PDF
Datasheets

AV Ventus Torque Chart
  • Document
Certificates

ATEX Certificate
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Carbon Steel DIN PN16 AV-Ventus Actuator Valves
