All butterfly valves are rigorously tested to meet ever-changing industry requirements with our research and development team constantly creating design improvements to future proof the next generation. Typical applications include HVAC, Power Generation and Hydro Carbon Processing. All of our actuated butterfly valves can be set up in either the Fail Safe Close/Open Position with several manual override features across the range. Control and Indication add-ons can be specified at the time of order. Each individual actuator retains its full traceability all the way back to the factory with a unique serial number. All assemblies performed by Actuation Valve in house also detail and cross reference this serial number with accompanying valves and accessories in a build sheet format.

Shop Help Me

Key features and benefits of the Colossus Hytork XL Fully Lugged Actuated High Performance Butterfly Valves.

Key Features

With its compact design and simple mounting, you won't sacrifice performance for size with this industrial pneumatic actuator. This Hytork XL will allow you to increase production and profitability with minimal downtime and efficiency.

Key Features

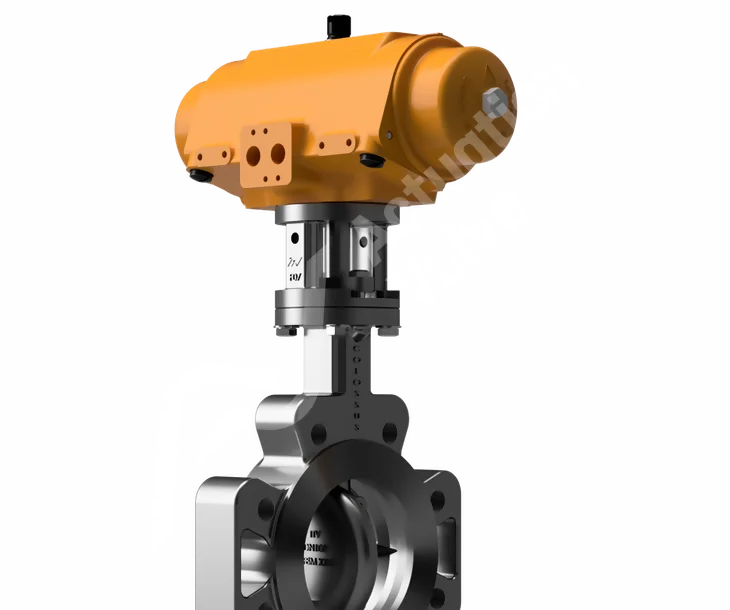

High-performance Double Offset Butterfly Valves are designed for use in exceptionally harsh conditions with critical shutoff isolation and throttling control applications. The aptly named Colossus is available as a Metal Seated or PTFE seated design.

Key Features

With lugged butterfly valves If one side needs repair, you can simply disconnect it from the piping system and leave the other side connected until repairs are complete. This makes maintenance easier and faster compared to wafer pattern butterfly valves.

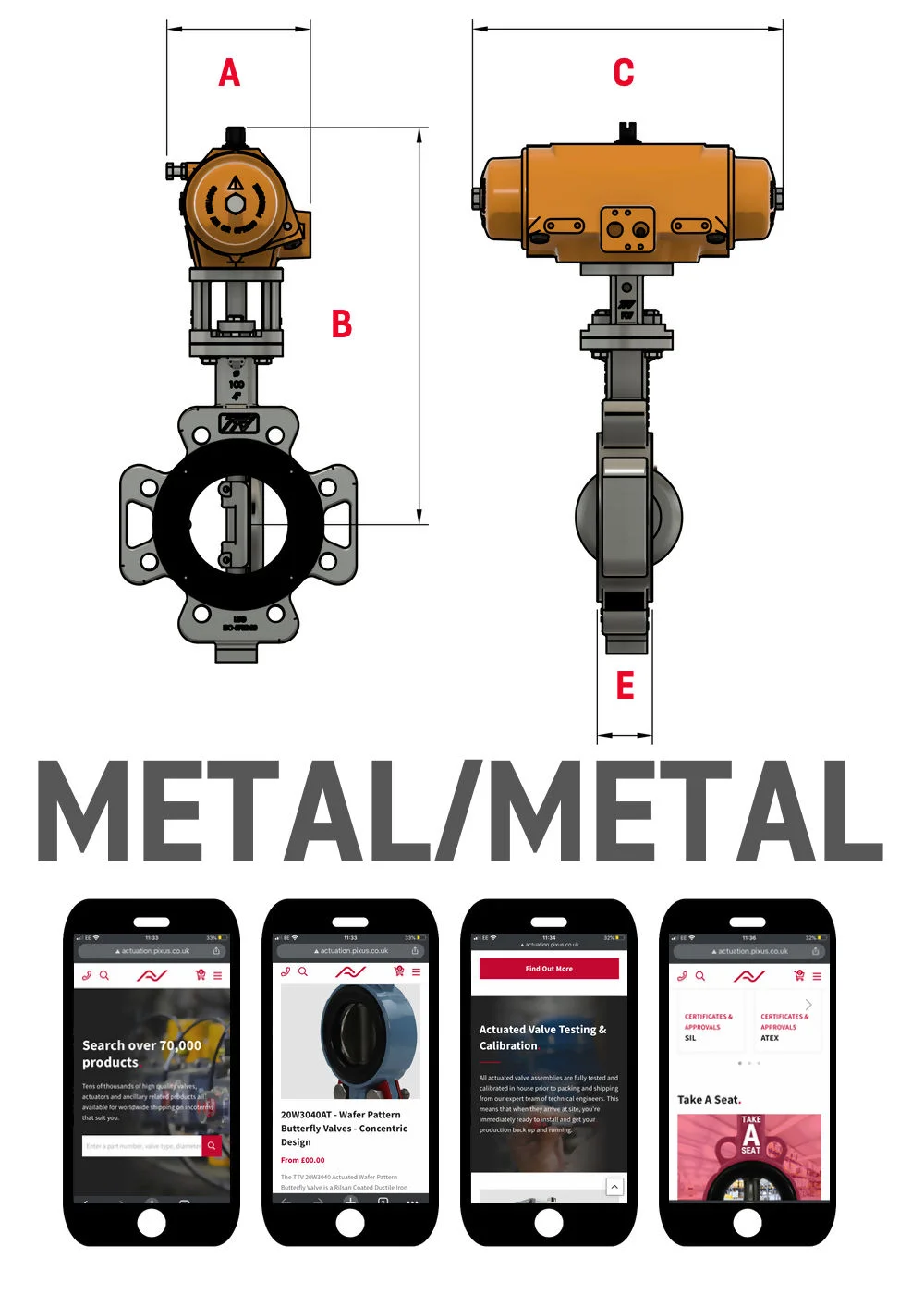

	A	B	C	A	B	C	E
	SR	SR	SR	DA	DA	DA	SR/DA
2"	116.50	250.40	221.80	116.50	250.40	221.80	43.00
2.5"	133.50	278.40	292.00	116.50	262.40	221.80	46.50
3"	143.10	292.05	331.60	133.50	286.40	292.00	47.00
4"	143.10	313.05	331.60	133.50	307.40	292.00	52.00
5"	174.00	369.00	462.00	158.50	359.90	349.80	56.00
6"	190.00	424.00	582.00	190.00	424.00	324.00	56.00
8"	246.00	499.00	696.00	199.00	484.00	396.00	63.00
10"	253.00	599.00	862.00	199.00	539.00	396.00	71.00
12"	321.00	732.00	884.00	253.00	636.00	476.00	78.00
14"	321.00	716.00	884.00	253.00	620.00	476.00	92.00
16"	321.00	760.00	884.00	321.00	760.00	515.00	102.00
18"	414.00	855.00	876.00	321.00	785.00	515.00	114.00
20"	528.00	1028.00	950.00	321.00	820.00	515.00	127.00
24"	528.00	1088.00	950.00	321.00	880.00	515.00	154.00

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

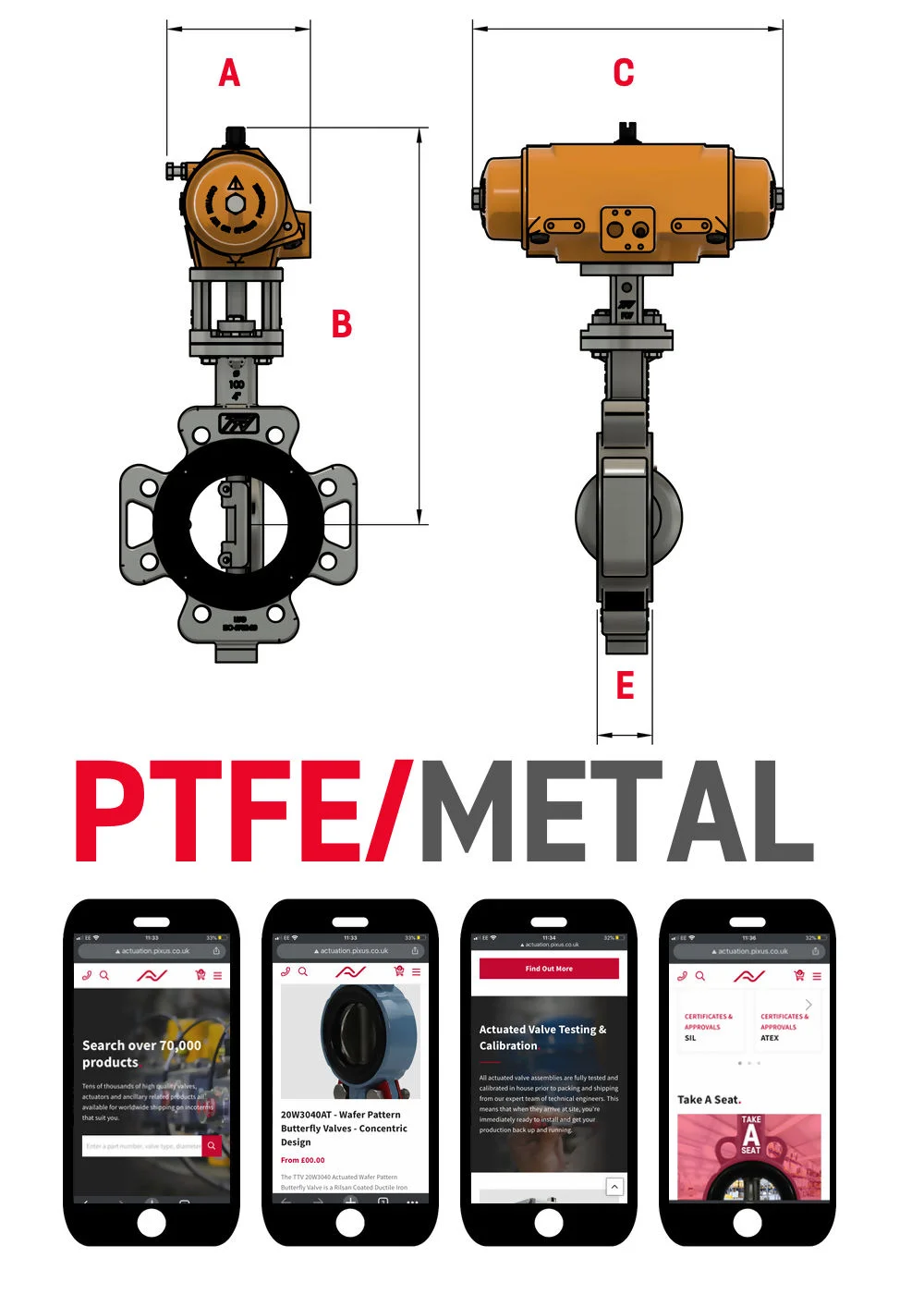

	A	B	C	A	B	C	E
	SR	SR	SR	DA	DA	DA	SR/DA
2"	84.50	245.00	203.50	84.50	245.00	153.50	43.00
2.5"	84.50	261.00	241.00	84.50	261.00	153.50	46.50
3"	93.00	283.00	259.00	84.50	266.00	153.50	47.00
4"	106.50	304.00	304.00	93.00	291.00	203.50	52.00
5"	108.50	334.00	394.50	106.00	322.00	241.00	56.00
6"	135.00	381.00	422.50	108.50	353.00	259.00	56.00
8"	166.00	422.00	605.00	136.00	390.00	304.00	63.00
10"	181.00	481.00	605.00	166.00	432.00	394.50	71.00
12"	221.50	543.00	710.00	181.00	474.00	422.50	78.00
14"	262.00	628.50	710.00	200.00	550.50	474.00	92.00
16"	262.00	648.50	710.00	221.50	595.00	528.00	102.00
18"	330.00	720.00	876.00	262.00	688.50	605.00	114.00
20"	330.00	770.00	950.00	330.00	770.00	710.00	127.00
24"	528.00	1038.00	950.00	371.00	873.00	812.00	154.00

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.


Body Material:	Stainless Steel CF8M, Cast/Carbon Steel A216 WCB
Disc Materials:	Stainless steel (CF-8M)
Shaft Materials:	Stainless Steel F-316
Design:	API 609, ASME B16.34, MSS SP-67, EN 593, Nace MR 0175
Inspection & Testing:	ISO 5208 / API 598
Connections:	ISO 5752 series 20, BS 5155 series 4, DIN PN 10/16/25, ANSI 150/300
Seat Materials:	Soft seat: R-PTFE (-50ºC / +220ºC), Hard seat: F-316L (-100ºC / +500ºC)
Applications:	Chemical, Vacuum, LPG/LNG, Hydrocarbons, Steam, Gas, Bitumen, Thermal Oil

These valves are widely used in industries such as oil & gas, water treatment, chemical processing, power generation, and HVAC systems. Their durability and tight shut-off capabilities make them ideal for handling liquids, gases, and aggressive media in demanding environments.

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

We can. The final is product customizable at the bottom of the page! Have a look down there or get us on 0151 547 1221. We have everything from Safe Area to ATEX in multiple voltages.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boxes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

Metal - Metal Seat complies with BS 6755 Part 2 or API 6FA/607 (Fire Safety). Valve only.

A double offset butterfly valve features two offsets in its design—one behind the disc and one from the pipeline centreline. This creates a cam-like movement, allowing the disc to lift away from the seat during operation, reducing friction and wear while maintaining a tight shut-off.

When paired with a Hytork actuator, these valves offer reliable automation, reduced operating torque, and precise flow control. The double offset design ensures longer service life, improved sealing performance, and suitability for higher pressure and temperature applications compared to concentric valves.

A double offset butterfly valve is a better choice because it reduces friction between the disc and seat during operation. This means less wear, a longer lifespan, lower operating torque, and more reliable sealing compared to a standard concentric valve where the disc stays in constant contact with the seat.

Yes — it typically comes with an operation and maintenance manual, either included or supplied digitally.
