Pneumatic Actuator Valves - 2 Piece Premium Festo Actuated Ball Valves

The AV-L2000FE stainless steel pneumatic actuator valve delivers full bore process flow in a compact 2 piece body design. This threaded end connection valve is lightweight and easy to install with SIL approval for peace of mind that you will have reliable shut off performance for many years to come. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed. Express shipping for delivery within 24-48 hours for stock components.

Key Features

Key features and benefits of AV-L2000FE Actuated Ball Valves.
1

Key Features

Low Torque requirements from the AV-L2000 Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.
2

Key Features

Festo’s DFPD series is an innovative design that sets itself apart from other pneumatic actuator valves by providing high performance with low energy consumption and long lifetime under harsh conditions. More importantly, the DFPD does this at an affordable price point.
3

Key Features

Festo has developed an innovative control technology that allows you to use one pneumatic actuator across many different applications. The DFPD is suitable for high temperatures up to 150°C as well as low temperatures down to -50°C (Model specific, please check).

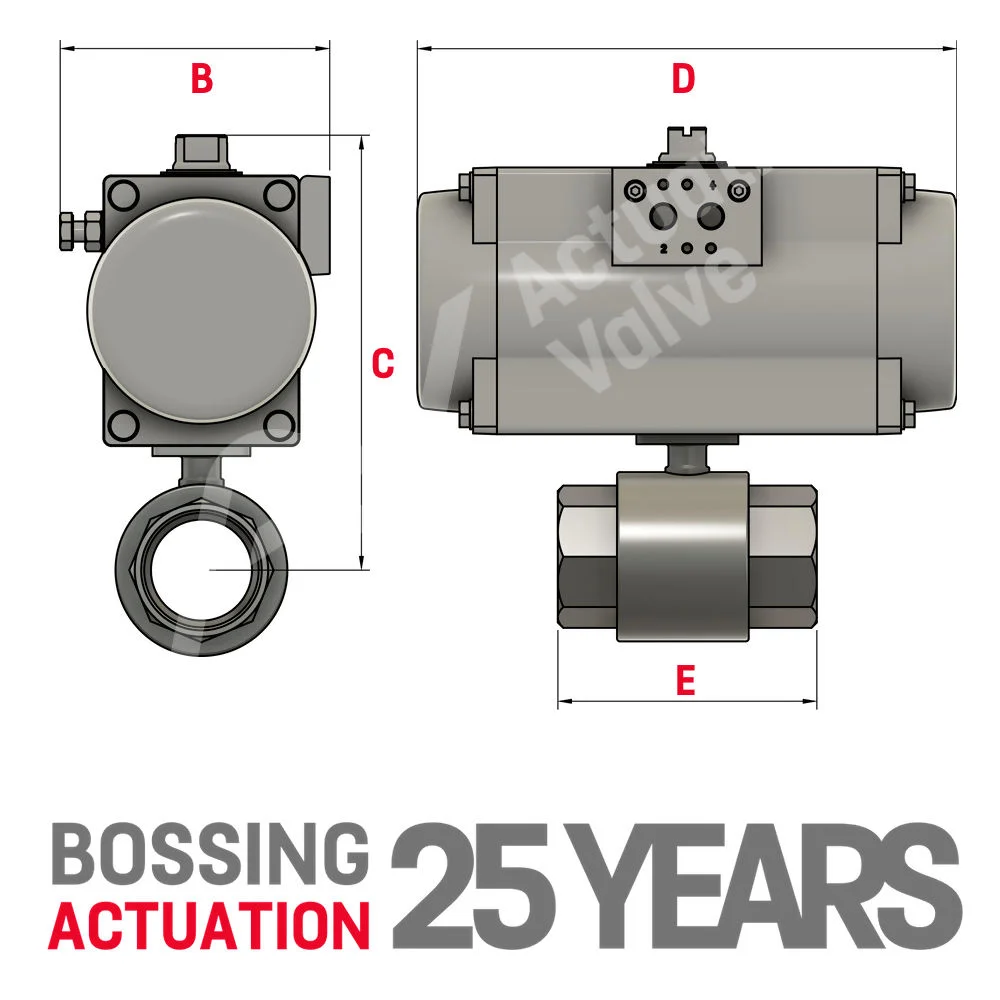

AV-L2000FE Ball Valve Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 77.70 142.50 145.70 67.00 77.70 142.50 133.30 67.00
3/8" 77.70 142.50 145.70 67.00 77.70 142.50 133.30 67.00
1/2" 77.70 142.50 145.70 67.00 77.70 142.50 133.30 67.00
3/4" 77.70 149.00 145.70 70.40 77.70 149.00 133.30 70.40
1" 77.70 158.00 145.70 85.00 77.70 158.00 133.30 85.00
1 1/4" 89.70 174.50 170.40 94.00 77.70 162.50 133.30 94.00
1 1/2" 89.70 183.50 170.40 105.00 89.70 183.50 151.40 105.00
2" 108.00 208.50 223.10 125.00 89.70 190.50 151.40 125.00
2 1/2" 123.70 243.00 252.30 155.00 108.00 230.00 189.30 155.00
3" 133.40 263.00 270.90 173.00 123.80 252.00 213.70 173.00

AV-L2000FE Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10
Pressure Rating: 1000 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

4-20mA Control Available On This Product

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.

Festo DFPD Actuator Videos

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
