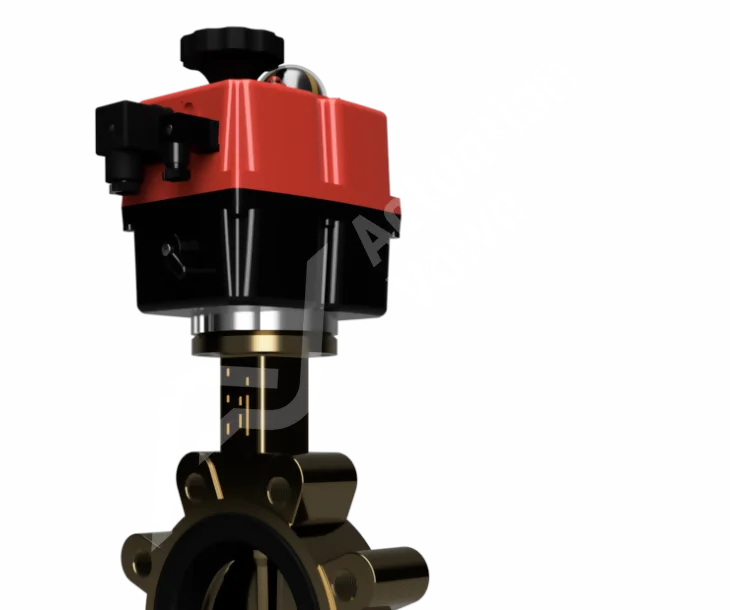

Lugged Aluminium Bronze TTV/JJ Actuated Butterfly Valves

The physical strength, structural stability, and corrosion resistance of bronze, in particular, makes it very suitable for a wide variety of applications in the mainstream of industrial re­quirements. Bronze in valve manufac­ture is usually an alloy of copper, tin, lead, and zinc. Actuators designed and built for reliability. Our actuators come with a robust manual override handle that provides a mechanical backup in the event of a power failure. This safety feature allows the user to switch between open and closed positions until systems or power is restored.

Key Features

Key features and benefits of the 80LM580JJ Actuated Butterfly Valves.
1

Key Features

Our standard corrosive resistant Butterfly Valves are available in a wide range of sizes to suit all industry standards with 2" to 12" Butterfly Valves all available from stock in ANSI or DIN Flanged Connections.
2

Key Features

Modbus connection enables on site plug and play with existing units up to a maximum of 32 actuators or valve assemblies. This is performed through a local ethernet connection or through WIFI of up to 1600 meters without signal boosting technology.
3

Key Features

The J&J J4CS electric valve actuators are designed for 75% duty rating and has been proven reliable by thousands of customers around the world. The actuator comes with a 3 year 60000 cycle warranty as a result of continuous research and development.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: Aluminium Bronze
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, position feedback is available on this actuated butterfly valve. A switch box can be fitted to provide open and closed position indication, with options for zoned and safe area installations including LED visual indication.

We offer discounts on larger order quantities of this actuated aluminium bronze butterfly valve. Contact our sales team with the size, quantity and specification you need and we will provide a tailored quotation.

This actuator is fitted with a manual override handle, which allows the valve to be moved between open and closed positions by hand in the event of a power failure. Once power is restored, the actuator resumes normal electric operation without any reset procedure being required.

This aluminium bronze butterfly valve is available from stock in sizes from 2" to 12" with ANSI or DIN flanged connections. If you need a size outside this range, get in touch with our sales team with the size, body material and connection type you require and we will confirm availability and lead time.

Yes, we can deliver directly to your customer. Send us a copy of your delivery note and we will attach it to the box so your customer sees your company details, not ours.

Yes, we offer credit accounts for regular customers. Get in touch with our sales team to apply, and once approved you can order on account rather than paying upfront each time.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C
