JJ Stainless Steel Lugged PTFE Actuated Butterfly Valves

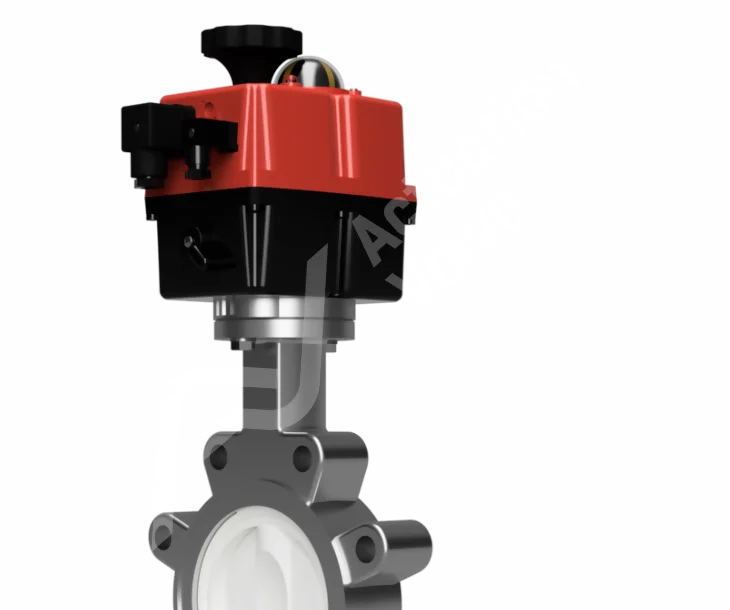

Lugged Stainless Steel Actuated PTFE Lined Butterfly Valves are perfect for a dead end service in piping systems or where regular/predicted disconnecting of the pipe on either side may need to be removed for maintenance and installation without having to disrupt both sides of the line. The JJ electric actuators are built with rugged construction, high quality components and advanced technology to ensure maximum performance and durability over time. The JJ electric actuator is an affordable alternative that reduces downtime and maintenance costs.
Shop

Key Features

Key features and benefits of the 40LP4040F0TJJ Actuated Butterfly Valves.
1

Key Features

The High Performance Lugged Pattern PTFE Butterfly Valve is a high-temperature, chemical resistant valve that can handle extreme conditions.
2

Key Features

The internal seal of this unit consists of non-toxic and durable material.
3

Key Features

Adaptable to existing site infrastructures featuring support for modbus communications protocol. Modbus is an open protocol that allows the connection of multiple industrial electronic devices capable of transmitting information or data over serial lines.

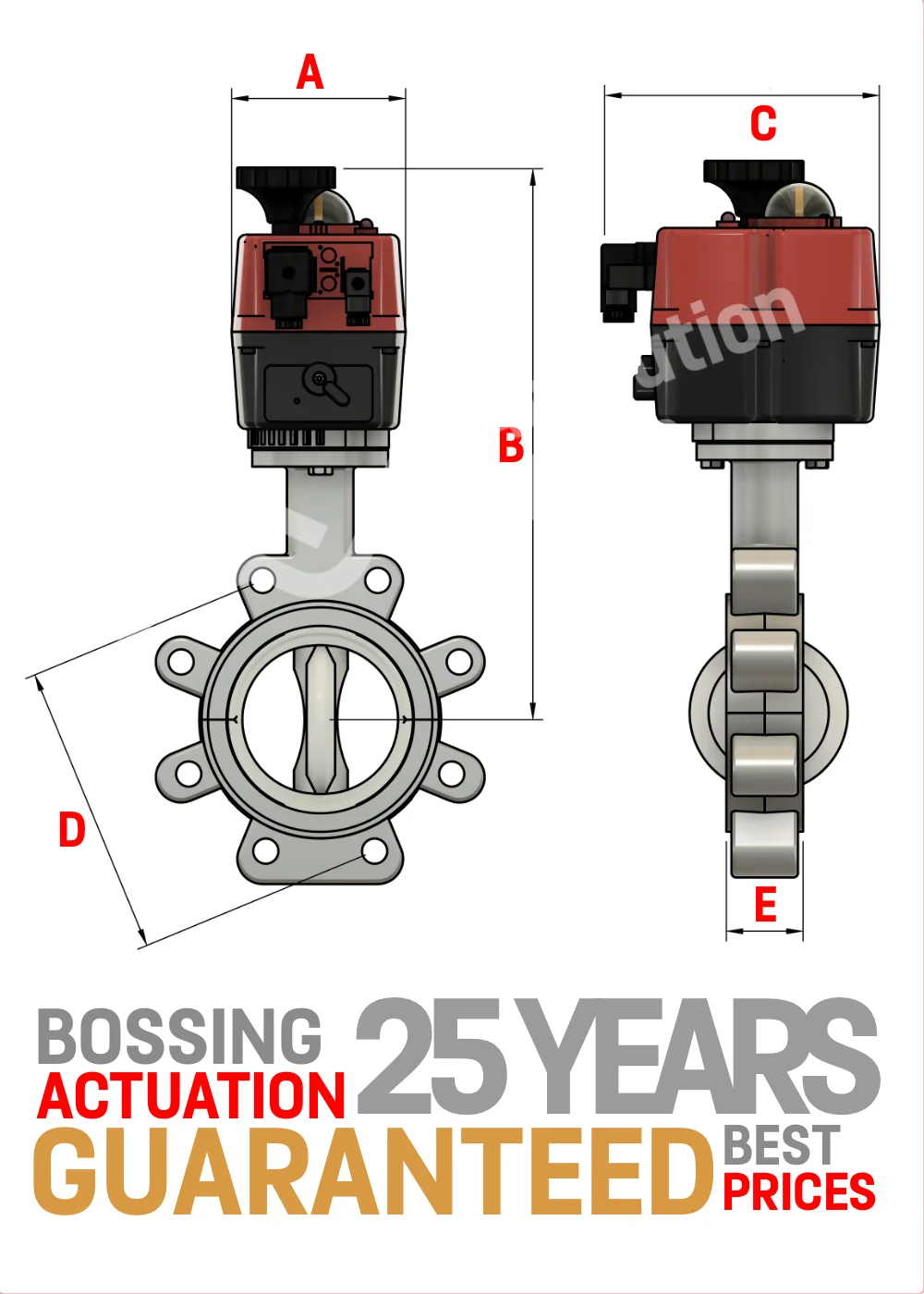

Lugged Type Butterfly Valve Technical

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 84.50 245.00 153.50 84.50 245.00 153.00 TBA 33.00
2" 84.50 261.00 153.50 84.50 261.00 153.00 TBA 43.00
2.5" 93.00 283.00 203.50 84.50 266.00 153.00 TBA 46.00
3" 106.50 304.00 241.00 93.00 291.00 203.50 TBA 46.00
4" 108.50 334.00 259.00 106.00 322.00 241.00 TBA 52.00
5" 135.00 381.00 304.00 108.50 353.00 259.00 TBA 56.00
6" 166.00 422.00 394.50 136.00 390.00 304.00 TBA 56.00
8" 181.00 481.00 422.50 166.00 432.00 394.00 TBA 60.00
10" 221.50 543.00 528.00 181.00 474.00 422.50 TBA 68.00
12" 262.00 628.50 605.00 200.00 550.50 474.00 TBA 78.00
14" 262.00 648.50 605.00 221.50 595.00 528.00 TBA 78.00
16" 330.00 720 710.00 262.00 688.50 605.00 TBA 102.00
18" 330.00 770 710.00 330.00 770.00 710.00 TBA 114.00
20" TBA TBA TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA TBA TBA

Lugged Type Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff
Body Material: 316L Stainless Steel
Seats Material: PTFE
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, a switch box can be fitted to the JJ electric actuator to provide open and closed position feedback. Switch boxes are available from stock for safe area and hazardous area installations, including LED visual indication.

Pricing depends on the valve size, seat material and quantity you require. Contact our sales team with details of your project and we will provide a tailored quotation, including any volume pricing available for larger or repeat orders.

Yes, the JJ electric actuator supports the Modbus communications protocol, allowing it to be integrated with existing site control and monitoring infrastructure. This gives you remote status monitoring alongside standard local operation. Let us know your system requirements and we can confirm compatibility.

This range is available from 1.5 inch up to 18 inch as standard, with 20 inch and 24 inch sizes available to order. Contact our sales team with your specification and we will confirm availability and lead time.

Yes, we can deliver direct to your customer. Send us a copy of your delivery note and we will attach it to the outer packaging so it arrives ready for them, with no reference to our details.

Yes, we offer credit accounts for business customers. Complete a short application with your company details and trading history, and once approved you will be able to order on account. Contact our sales team to get started.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.
