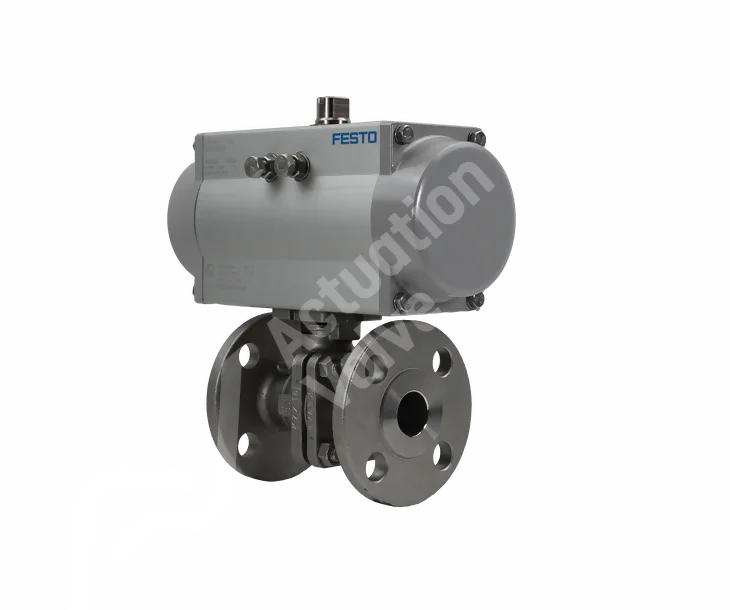

Stainless Steel Flanged PN16 Festo Actuator Ball Valves

This package is a perfect choice for those who need to deal with medium aggressive water conditions and harsh external environments. It has been designed using only high quality materials from the manufacturer Kingdom Controls. By switching from conventional ball valves to our low torque AV-L6K00 Ball Valve, you'll save money on installation costs and maintenance while improving overall reliability. Our product is designed with the end-user in mind and we understand what works best for industrial automation. The DFPD series features an innovative rack and pinion combination that provides high output operation with constant torque characteristic across swivel range. This unique gearing system allows the pneumatic actuators to be controlled smoothly and precisely.

Key Features

Key features and benefits of AV-L6K00FE Actuated Ball Valves.
1

Key Features

The AV-L6K00 line of stainless steel ball valves is designed with you in mind. They're easy to install and incredibly durable so you get the most out of your product without worrying about repairs or replacements down the road.
2

Key Features

Our Festo Pneumatic Actuator is a cost-effective solution for your automation problems. It's easy to install, it works with almost any valve or damper on the market, and it can be expanded easily if you need more valves or dampers in the future.
3

Key Features

The Festo pneumatic rack-and-pinion is ideal for use in applications where space is at a premium or where it needs to be mounted close to the drive unit due to mounting restrictions such as vibration requirements or limited depth available behind an enclosure.

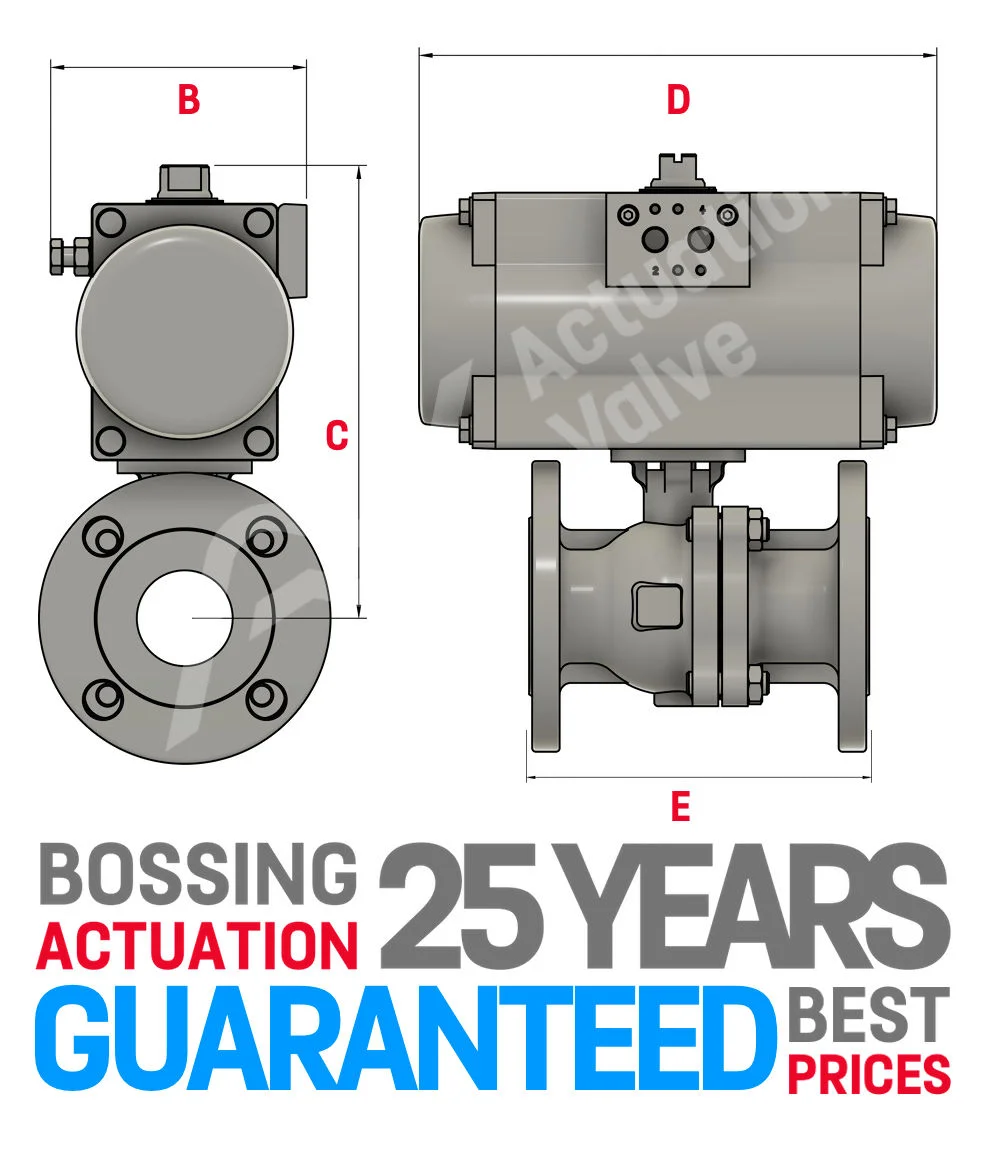

Flanged PN16 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 77.70 148.00 145.70 115.00 77.70 148.00 133.30 115.00
3/4" 77.70 153.00 145.70 120.00 77.70 153.00 133.30 120.00
1" 77.70 159.00 145.70 125.00 77.70 159.00 133.30 125.00
1 1/4" 89.70 183.00 170.40 130.00 77.70 171.00 133.30 130.00
1 1/2" 89.70 188.00 170.40 140.00 89.70 188.00 151.40 140.00
2" 108.00 215.00 223.10 150.00 89.70 197.00 151.40 150.00
2 1/2" 123.70 245.00 252.30 170.00 108.00 232.00 189.30 170.00
3" 133.40 266.00 270.90 180.00 123.80 255.00 213.70 180.00
4" 154.00 320.00 301.40 190.00 133.40 294.00 270.90 190.00
5" 154.00 363.00 301.40 325.00 133.40 337.00 270.90 325.00
6" 201.50 436.70 428.20 350.00 182.30 418.00 374.20 350.00
8" 225.50 528.70 519.30 400.00 201.50 485.70 482.20 400.00

Flanged PN16 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

4-20mA Control Available On This Product

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.
