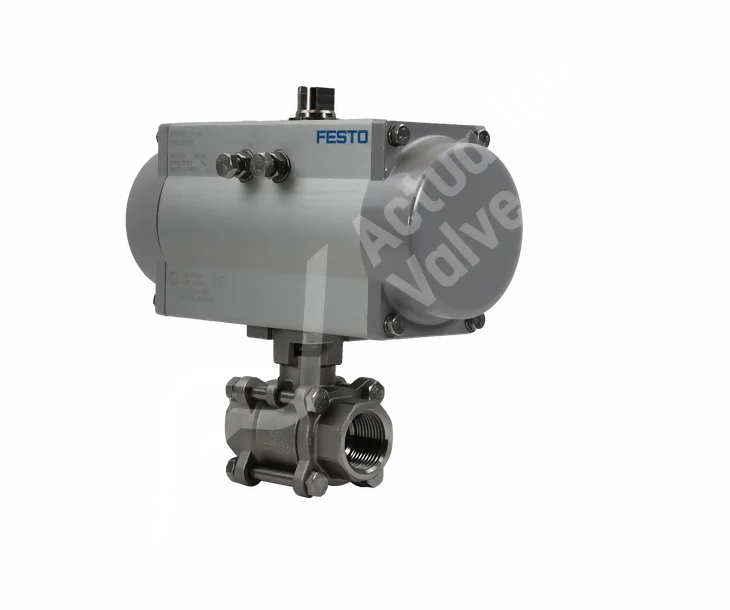

3 Piece Festo Actuated Premium Ball Valves

The isolation Ball Valve is a reliable and fully maintainable design. The 3 piece body allows for future proofing your preventive maintenance schedule with an easily removed drop out section that can be replaced when needed. The AV-L3000 stainless steel ball valves can be used on oils based paints and coatings applications such as automotive refinishing. They're 100% silicone free so they won't contaminate your product or leave behind residue which can ruin your finish over time. The Festo pneumatic actuator is a new generation of pneumatically driven control elements that provide you with many advantages over conventional solutions. It offers high quality, long service life, easy handling and an excellent price/performance ratio.

Key Features

Key features and benefits of the AV-L3000FE, AV-L3100FE & AV-L3200FE Actuated Ball Valves.
1

Key Features

The AV-L3000 stainless steel ball valves feature an easy to access single piece swing out body design so there's no need to take apart the entire valve every time you want to replace seals or do any other kind of service work.
2

Key Features

With the DFPD Series from Festo you get standard solutions tailored precisely to your requirements. Whether it’s one-off production runs or mass production we will find the perfect solution for your project from initial planning through to final assembly and commissioning.
3

Key Features

The Festo Pneumatic Actuator is a compact rack-and-pinion combination that's easy to install even when space is at a premium with high force output of up to 2500NM. The DFPD can be used as either single-acting or double-acting depending on your needs.

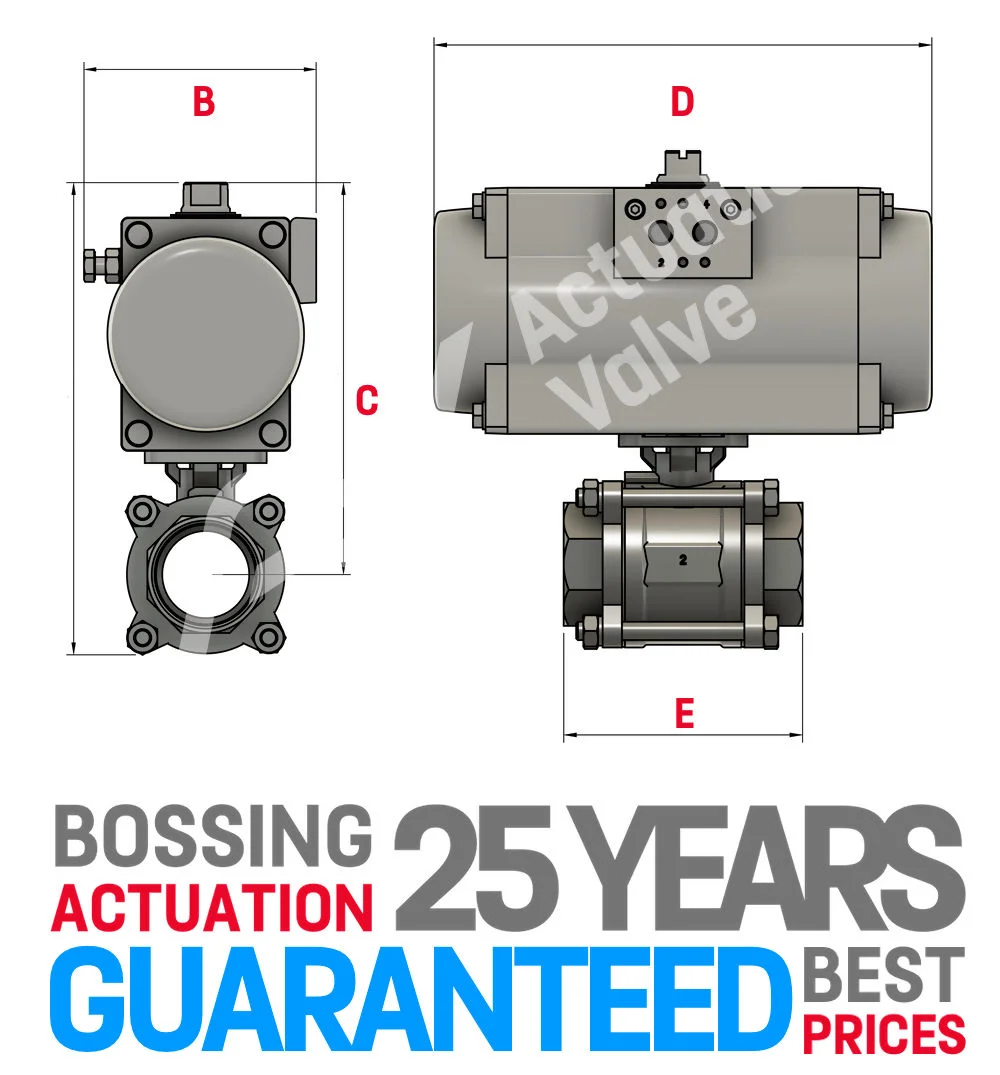

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 77.70 142.00 145.70 75.00 77.70 142.00 133.30 75.00
3/8" 77.70 142.00 145.70 75.00 77.70 142.00 133.30 75.00
1/2" 77.70 142.00 145.70 75.00 77.70 142.00 133.30 75.00
3/4" 77.70 148.50 145.70 80.00 77.70 148.50 133.30 80.00
1" 77.70 158.50 145.70 90.00 77.70 158.50 133.30 90.00
1 1/4" 89.70 175.00 170.40 110.00 77.70 163.00 133.30 110.00
1 1/2" 89.70 183.30 170.40 120.00 89.70 183.30 151.40 120.00
2" 108.00 208.20 223.10 140.00 89.70 190.20 151.40 140.00
2 1/2" 113.80 243.00 252.30 185.00 108.00 230.00 189.30 185.00
3" 133.40 262.50 270.90 205.00 130.00 251.50 213.70 205.00
4" 154.00 320.00 301.40 240.00 133.40 294.00 270.90 240.00

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Valve 3D Stuff

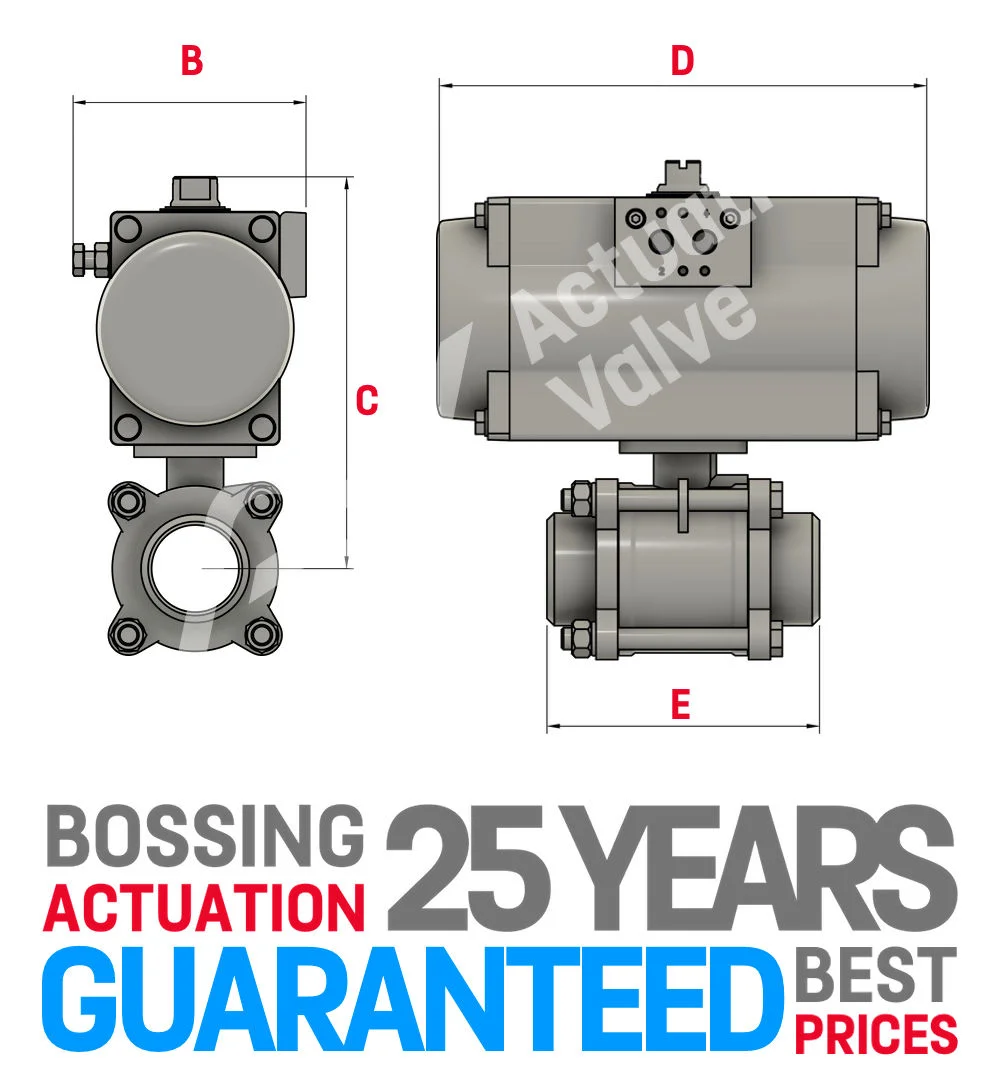

Butt Weld Valve Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 77.70 142.00 145.70 70.00 77.70 142.00 133.30 70.00
3/8" 77.70 142.00 145.70 70.00 77.70 142.00 133.30 70.00
1/2" 77.70 142.00 145.70 75.00 77.70 142.00 133.30 75.00
3/4" 77.70 148.50 145.70 90.00 77.70 148.50 133.30 90.00
1" 77.70 158.50 145.70 100.00 77.70 158.50 133.30 100.00
1 1/4" 89.70 175.00 170.40 110.00 77.70 163.00 133.30 110.00
1 1/2" 89.70 183.30 170.40 125.00 89.70 183.30 151.40 125.00
2" 108.00 208.20 223.10 150.00 89.70 190.20 151.40 150.00
2 1/2" 123.70 243.00 252.30 190.00 108.00 230.00 189.30 190.00
3" 133.40 262.50 270.90 220.00 123.80 251.50 213.70 220.00
4" 154.00 320.00 301.40 270.00 133.40 294.00 270.90 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (AV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000) ASME B1.20.1
Socket Weld Ends: (AV-L3100) ASME B16.11
Butt Weld Ends: (AV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.
