Actuation Valve’s Spring Return Electric Actuators are the ideal choice for reliable fail-safe operations across critical applications. Perfect for setups needing immediate action upon power loss, these actuators utilise a powerful motor to compress a spring and store energy while in operation. In the event of a power failure, the stored energy is swiftly released, returning the valve to a secure position—whether fully open or closed.

Key features and benefits of Spring Return Electric Actuators

Key Features

Designed specifically for fail-safe scenarios, these actuators utilise a spring return mechanism to automatically revert the valve to a safe position—fully open or closed—in the event of power loss, providing essential security in high-stakes environments?.

Key Features

Built to endure harsh conditions, Actuation Valve’s models typically come with enclosures that are dust and water-resistant, meeting NEMA and IP standards. This resilience ensures reliable performance across challenging environments, including the oil, gas, and chemical sectors?.

Key Features

These actuators are engineered for both linear and quarter-turn valve types, making them ideal for varied industrial applications. Their flexibility allows for easy integration into existing systems, enhancing process control across sectors like water treatment and power generation.

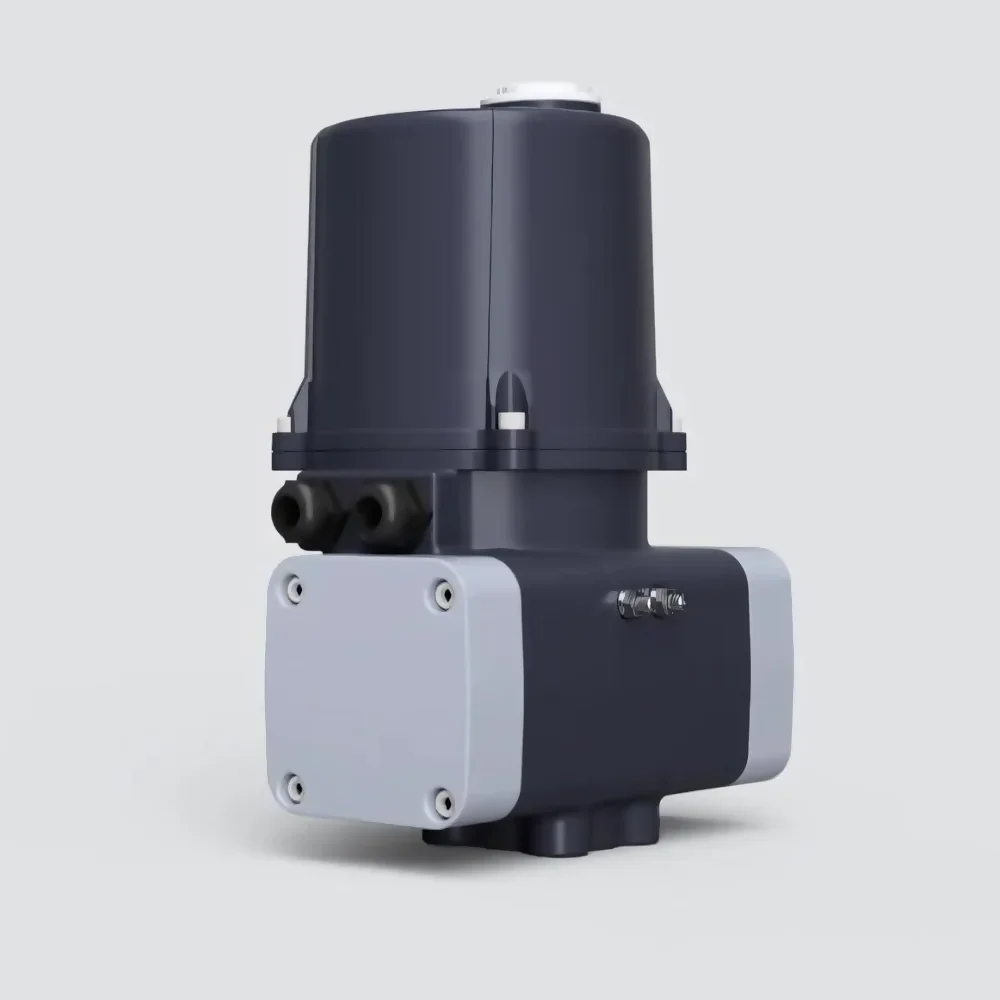

The V-Tork VTMR Series Spring Return Electric Actuator offers dependable, automated control with torque capacities from 50Nm to 300Nm, ideal for secure operations in various industrial setups. Using a spring-driven pinion and rack mechanism, it charges under normal power conditions. In a power loss, the spring discharges to return devices to a safe open or closed position, reducing risks like the hammer-blow effect. This actuator, made from durable materials and certified to ISO 9001:2015 and SIL2, operates smoothly within -25°C to 65°C.

Body Materials:	Nylon, Spring Steel, 34# Steel, 40CR, Tempered Glass, Ceramic, Q235, & Bearing Steel
Certifications:	ISO 9001:2015, SGC MD 2006/42/EC, & DNV
Working Temperature Range:	-25°C to 65°C
Safety Integrity Grade:	SIL2
Torque Range (NM):	50 to 300

Find Out More

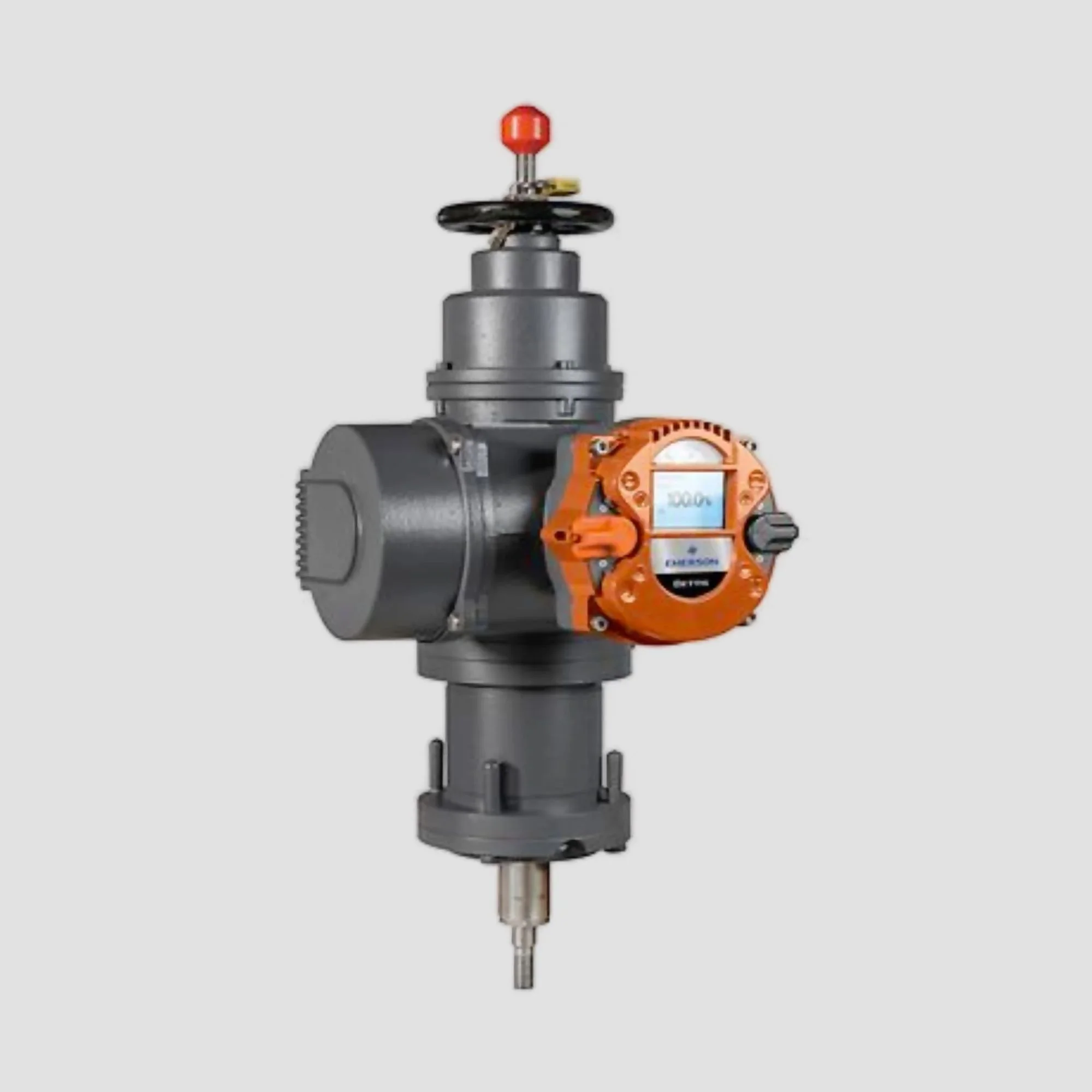

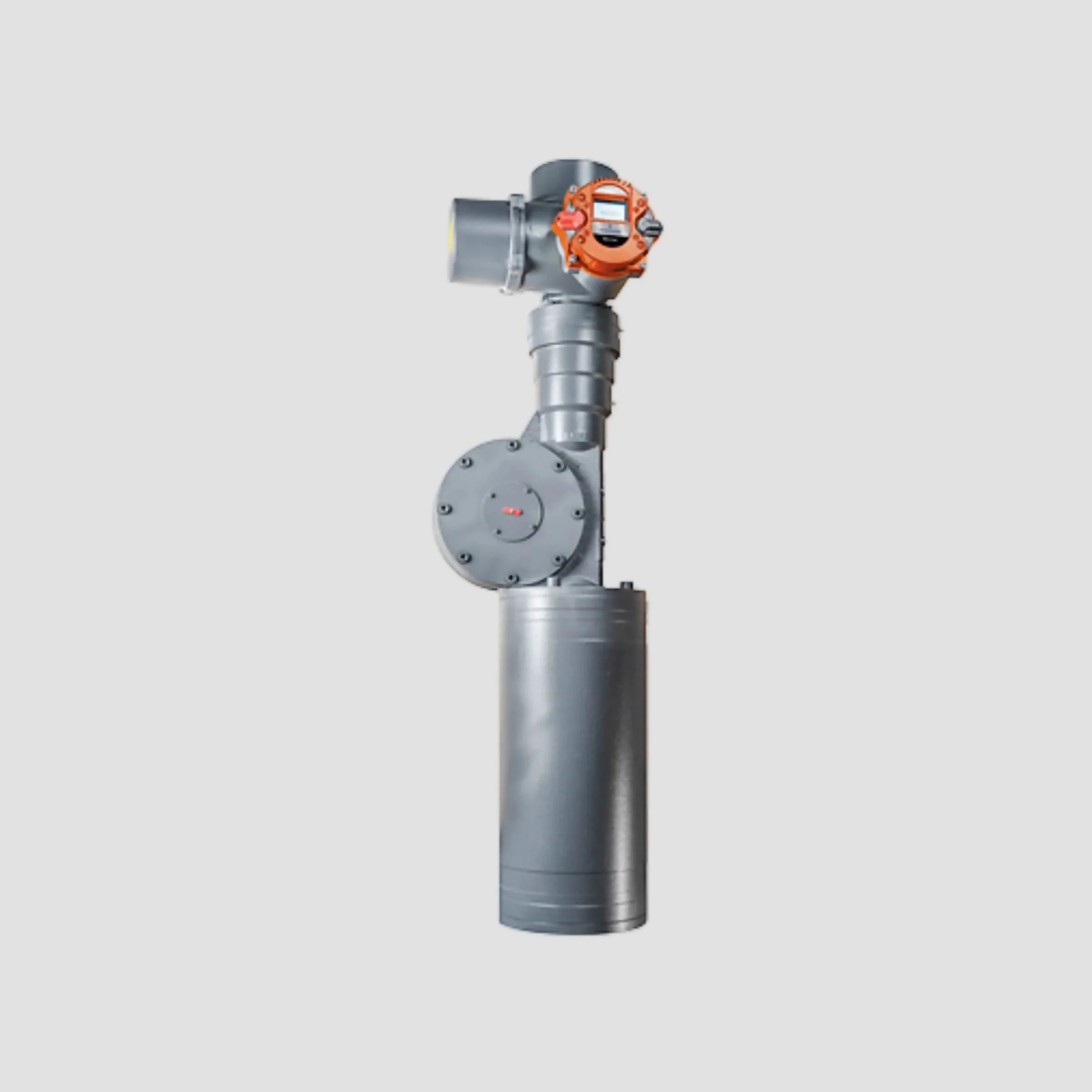

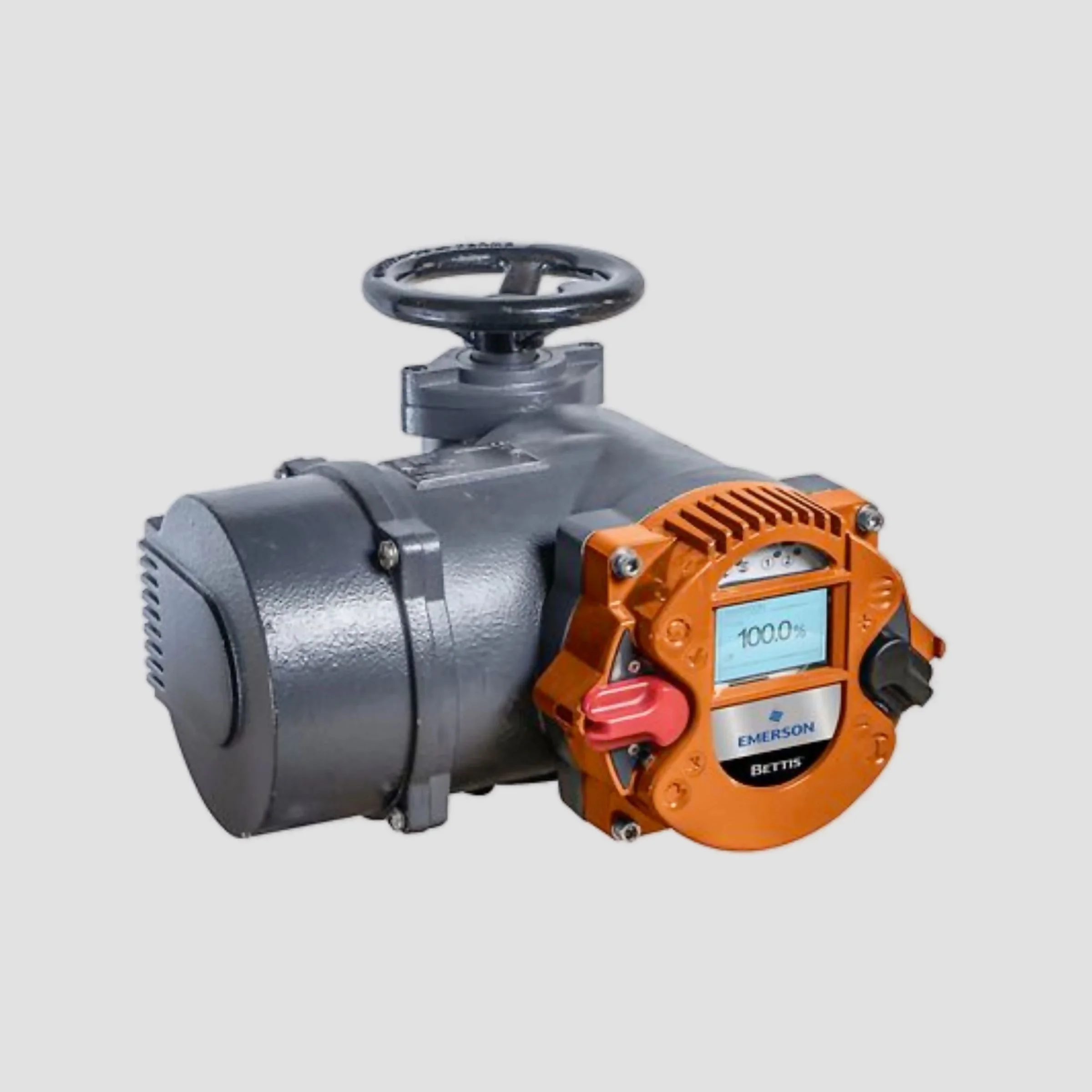

The Bettis Spring Return Electric Actuators deliver advanced, non-intrusive fail-safe operation, ideal for sectors like oil & gas, power, and water treatment. Available in linear, quarter-turn, and multi-turn options, these actuators provide dependable ON/OFF and modulation control without the need for batteries. With features like adjustable speeds, SIL3 certification, and Bluetooth® configuration, they ensure seamless monitoring and peak performance. These actuators meet ATEX, IECEx, UL, and CSA standards, supporting various valve types, including ball, butterfly, and plug.

Product Type:	Linear Electric Actuator, Quarter-turn Electric Actuator, & Multi-turn Electric Actuator
Actuation:	Electric
Certifications:	ATEX, IECEx ,UL ,CSA
Control Type:	On/Off, Continuous Modulation
Valve Type:	Ball, Butterfly, Plug, Dampers, Globe

Find Out More

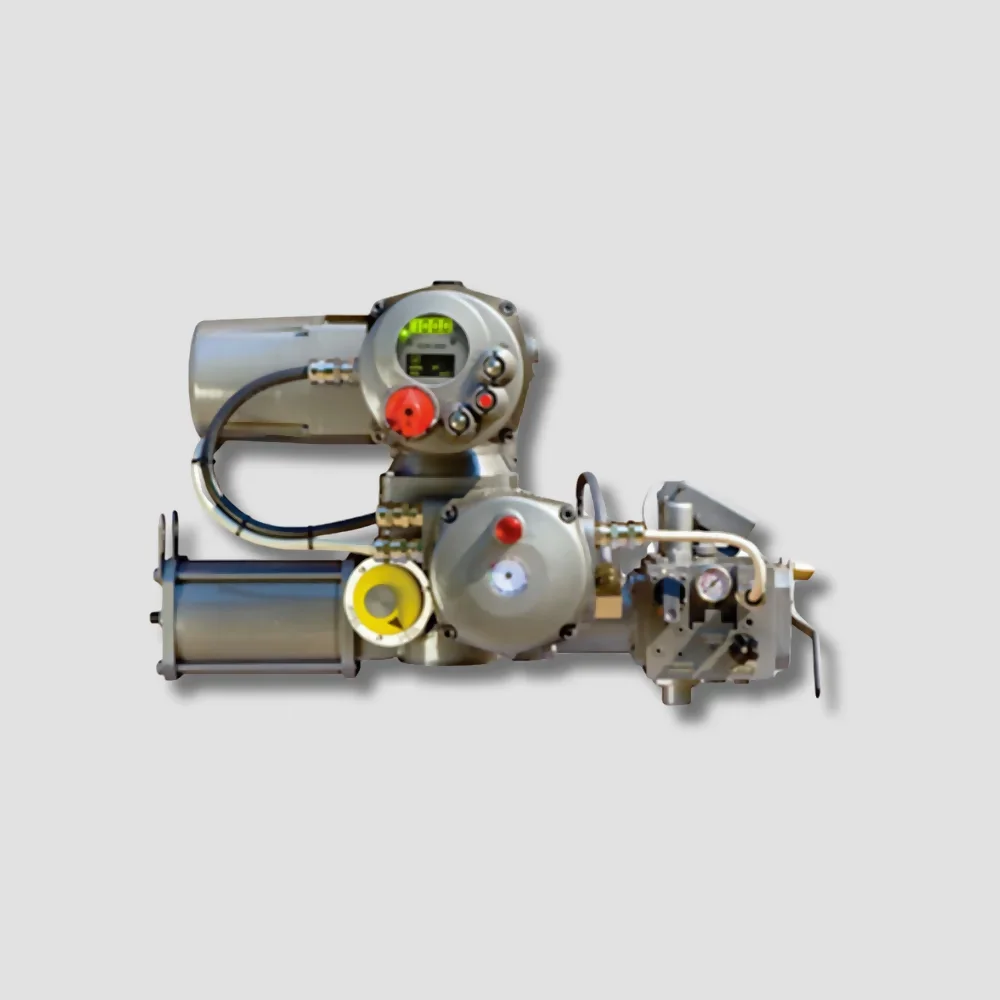

The Biffi EFS 3000 Electric Actuator, suited for safety-focused applications in sectors like oil and gas, incorporates a spring return for fail-safe positioning, an epicyclic gear system for increased torque, and an electromagnetic clutch. It provides low-pressure hydraulic control, Bluetooth® connectivity, and a non-intrusive interface for diagnostics. Enhanced maintenance tools, valve tracking, adjustable data logging, and support for open bus protocols such as LonWorks® and Profibus DPV2 deliver dependable performance.

Power Supply:	3-Phase: 220 V To 690 V At 50/60 Hz; Single-Phase: 110 V To 240 V At 50/60 Hz; DC: 24 V
Operating Time:	Electric Mode And Spring Fail Operating Times Are Configurable
Explosion-Proof Rating:	ATEX Ex-d IIB T4, ATEX Ex-de IIB T4, IECEx
SIL 3 Applications:	Suitable For Use In Safety Integrity Level 3 Applications
Water-Proof Rating:	IP66

Find Out More

Spring return actuators are widely used in various automation and control applications, providing reliable operation through a mechanical spring mechanism. These actuators are commonly installed in systems requiring fail-safe positioning, where the actuator’s design ensures that valves or dampers return to a pre-set position in the event of power loss. Often available in pneumatic or electric configurations, spring return actuators cater to diverse industries including oil and gas, water treatment, and chemical processing, where consistent and controlled operations are paramount.

Spring return actuators are tailored to suit a range of environmental conditions and can be integrated with numerous control systems, allowing seamless application in automated processes. Their design incorporates a spring pack providing the required motion, which is compactly housed to protect against wear. Furthermore, they are frequently compatible with both on/off and modulating services, making them adaptable for varied operational needs.

Spring return actuators offer several key advantages, making them highly valuable in automated systems. One of the primary benefits is their fail-safe capability: in the event of power or pneumatic pressure loss, the built-in spring mechanism automatically returns the actuator to a predetermined position, which is critical for safety in applications like chemical processing and gas handling. These actuators also provide dependable, low-maintenance operation due to their simple yet robust design, with fewer moving parts than double-acting actuators. This leads to greater durability and reduces the likelihood of mechanical failure, making them a reliable choice across various sectors.

Additionally, spring return actuators can perform effectively in extreme environments, from high-pressure and high-temperature conditions to corrosive settings, enhancing operational reliability and longevity. Another advantage is their energy efficiency during fail-safe activation, as the stored spring energy replaces the need for external power.

A spring return electric actuator is a device that automatically returns to its original position using an internal spring when power is removed, ensuring a default or fail-safe position.

It operates by using electrical power to move to a specific position, and the internal spring mechanism brings it back to a default position if power fails.

Key benefits include increased safety in power outages and reliable fail-safe positioning, ensuring controlled operations.

They are widely used in process industries, water treatment, and energy sectors where safe positioning during power loss is critical.

Consider factors like torque requirements, environmental conditions, compatibility with control systems, and the fail-safe position needed.

Yes, many models are designed to withstand outdoor environments, but it’s essential to check specific ratings like IP protection.

Unlike double-acting actuators, which require power in both directions, spring return actuators use a spring to return to a set position in the event of a power loss.

Yes, most spring return actuators are compatible with modern control systems, enabling remote operation and monitoring.

Routine maintenance involves inspecting electrical connections, checking for wear, and ensuring that the spring mechanism remains functional.

Lifespan varies depending on usage and environment, but with proper maintenance, these actuators are generally long-lasting.

The spring is compressed during operation, storing energy to bring the actuator back to its fail-safe position when power is cut.

Yes, they vary by specifications like torque capacity, size, and materials, making it possible to find options suited to various industrial requirements.
