Metal Seated Ball Valves

Metal seated ball valves are ideal for high-temperature, abrasive, and severe service applications. With a durable metal-to-metal sealing design, they provide reliable performance in extreme environments, resisting wear and corrosion. These valves feature precision-engineered components that ensure a tight shut-off and extended service life. Suitable for industries such as oil and gas, chemical processing, and power generation, metal seated ball valves are a dependable solution for challenging conditions.

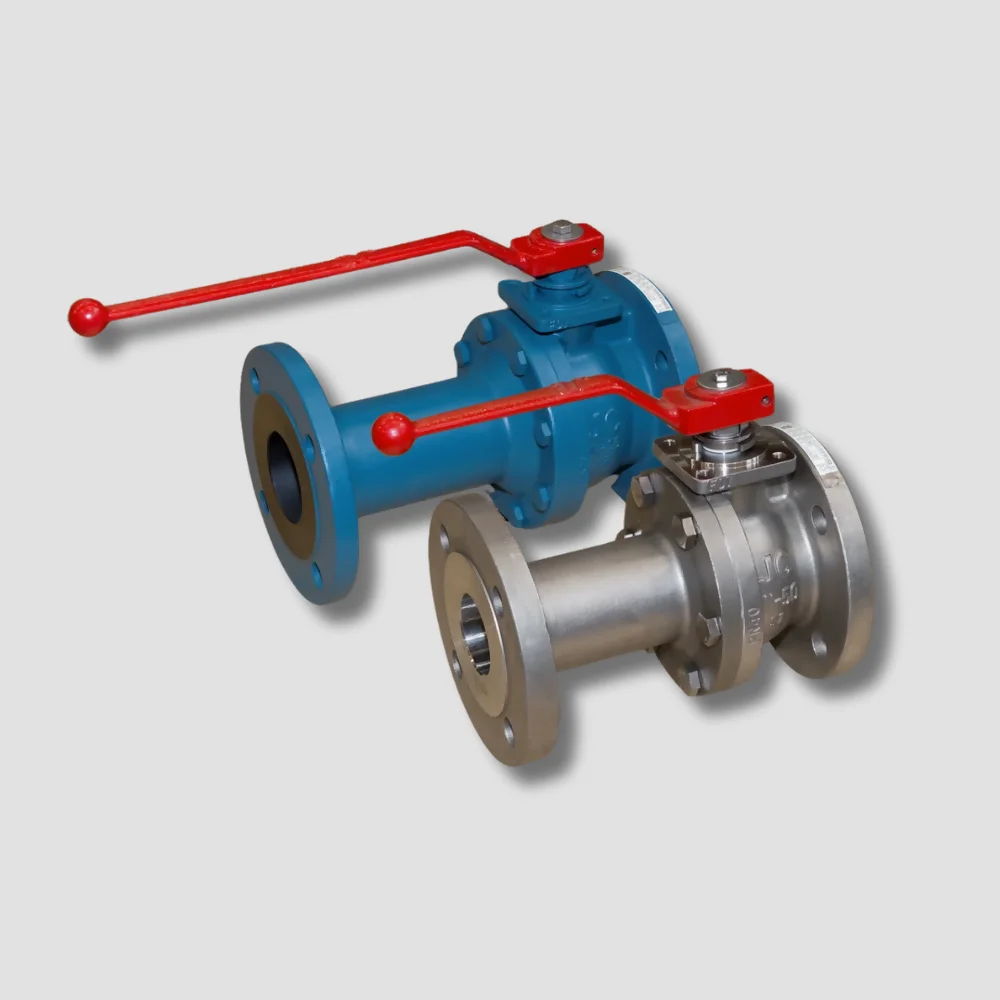

JC Valves 3515/3530 Full Bore Metal Seated Ball Valves

The JC Valves 3515/3530 Full Bore Metal Seated Ball Valves deliver dependable performance in various sectors, including Oil & Gas, Chemical, and Marine. These valves are available in Class 150 (½” to 8”) and Class 300 (½” to 6”), featuring a split body design, flanged connections, and blowout-proof stems. They comply with stringent standards like API 6D, PED, and ISO 15848, offering safety and durability in tough environments, enhanced by fire-safe and anti-static features.

Find Out More

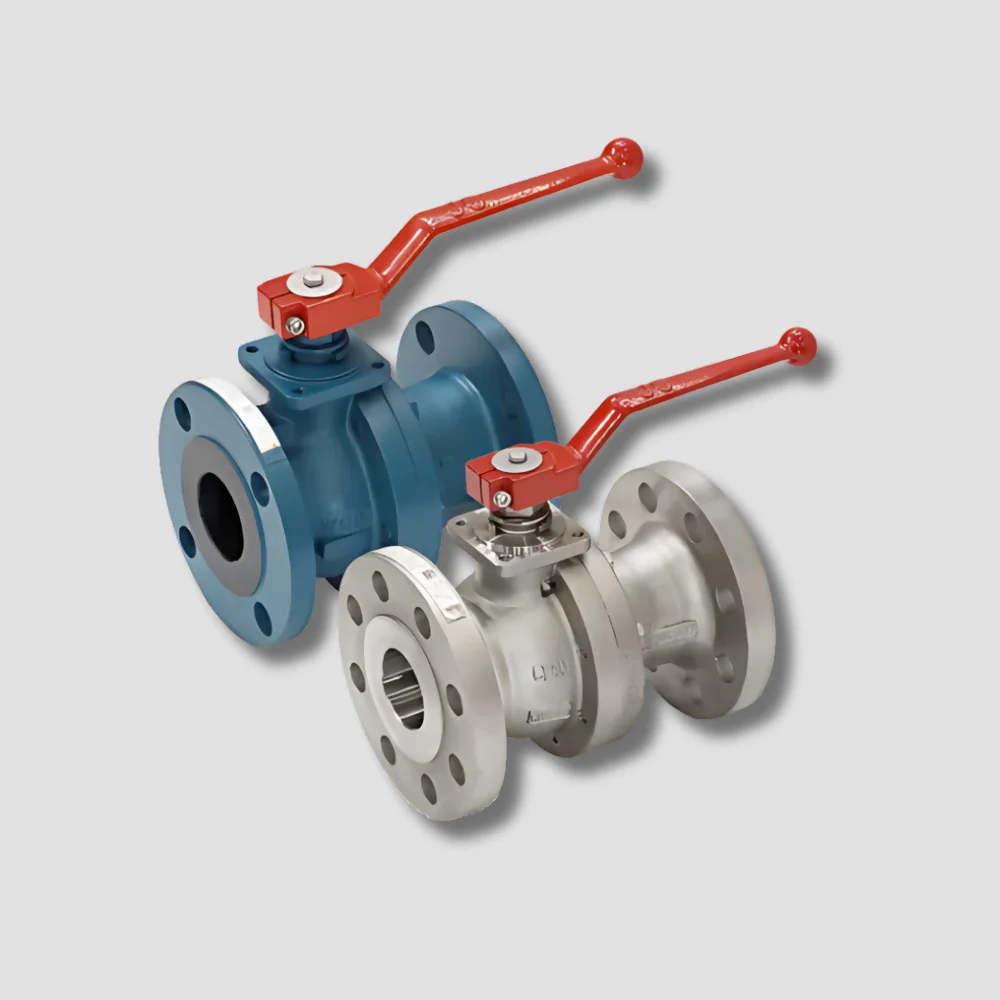

JC Valves 3560 Full Bore Metal Seated Ball Valves

The JC Valves 3560 Full Bore Metal Seated Ball Valves, suited for Class 600 and ranging from ½” to 2”, feature a split body, flanged connections, a blowout-proof stem, and fixed antistatic devices. Compliant with API 6D, PED, and NACE MR0175/ISO15156, these valves are ideal for the Oil & Gas, Chemical, and Marine sectors. They ensure safety with fire-safe certification (API 607, ISO 10497) and meet fugitive emissions standards (ISO 15848).

Find Out More

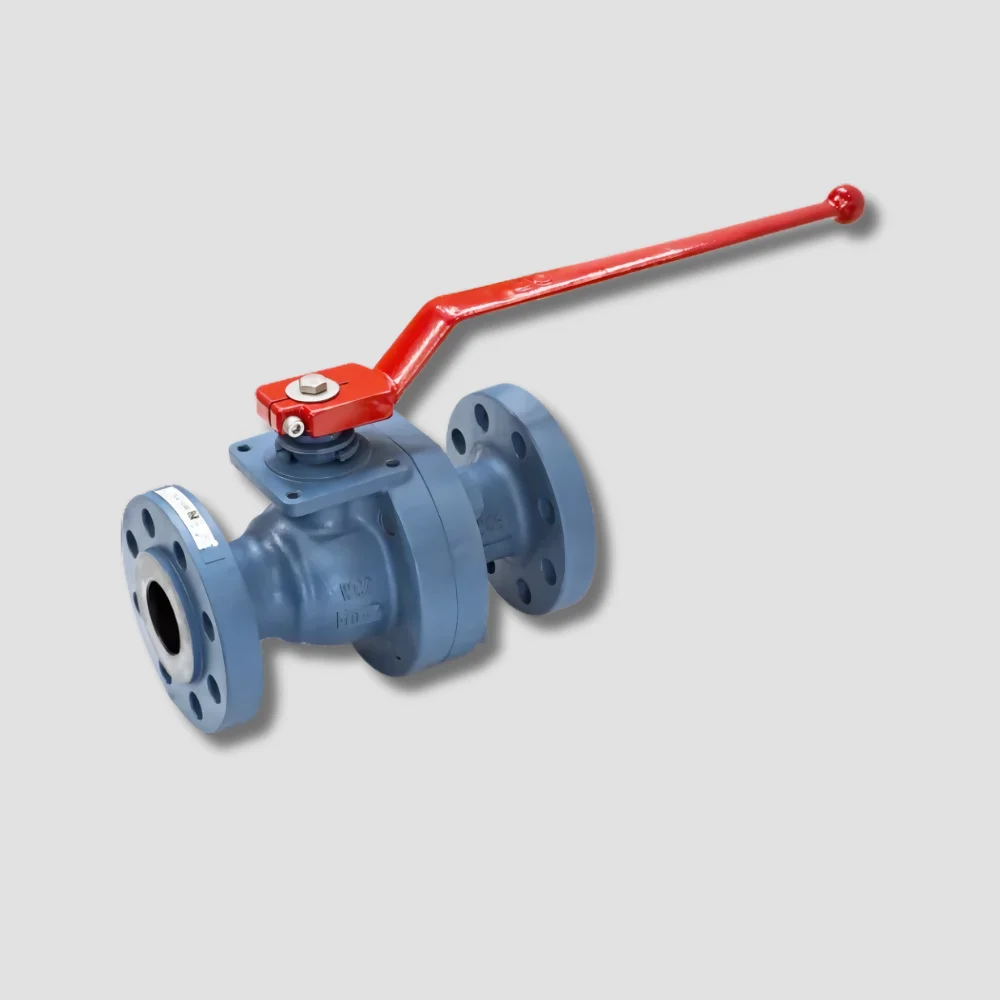

JC Valves 3516/3540 Full Bore Metal Seated Ball Valves

JC Valves' 3516/3540 full bore metal seated ball valves deliver dependable performance in industries like oil and gas, chemicals, and energy. These valves are available in PN 16 (DN 65-DN 200) and PN 40 (DN 15-DN 150), featuring a split body design, flanged connections, blowout-proof stem, antistatic devices, and a cavity pressure balancing hole. They meet PED, ATEX, and fire-safe standards, ensuring compliance with ISO and NACE specifications, ideal for challenging applications.

Find Out More

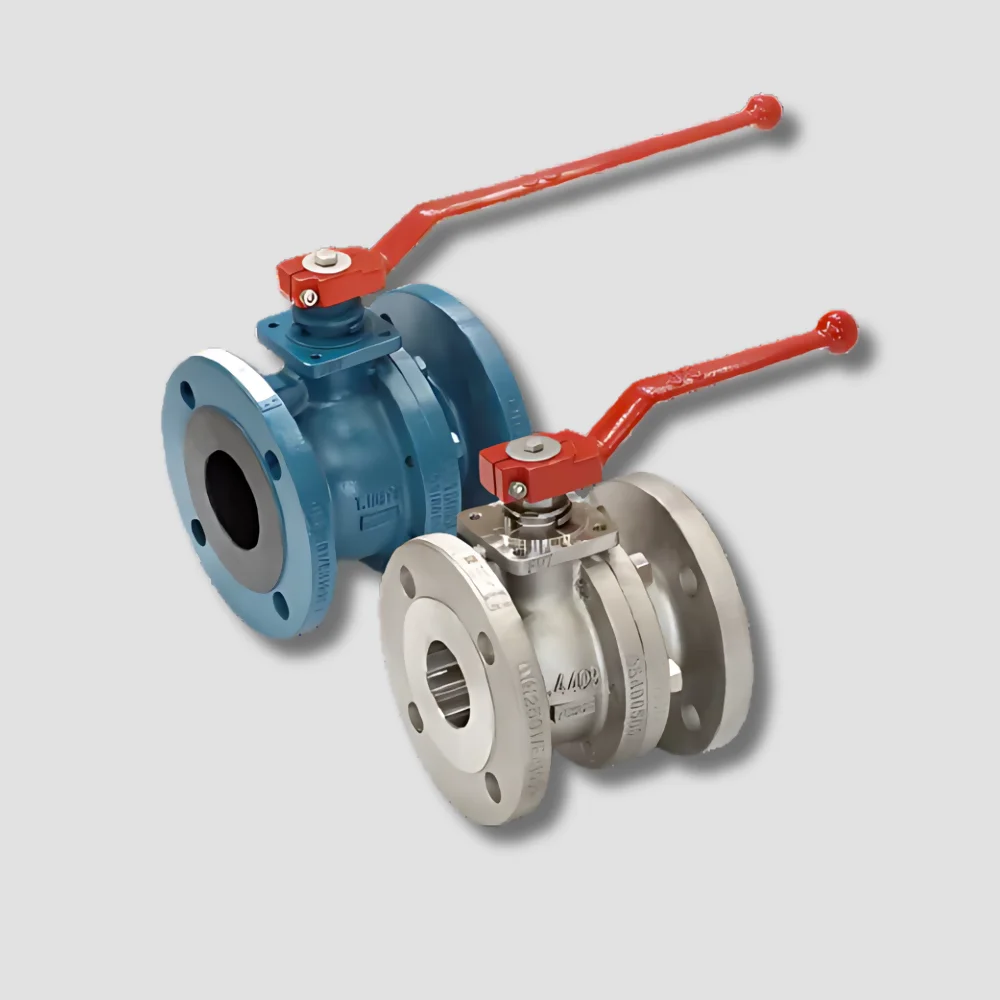

JC Valves 3316/3340 Full Bore Metal Seated Ball Valves

The JC Valves 3316/3340 Full Bore Metal Seated Ball Valves deliver consistent performance in various sectors, such as Oil & Gas, Chemical & Petrochemical, and Marine. These valves, ranging from DN 15 to DN 200 with PN 16 and PN 40 ratings, are split body with flanged connections and feature a blowout-proof stem and live loaded packing. They meet PED, API 607, ISO 10497, and NACE standards, ensuring safety and durability in tough environments.

Find Out More

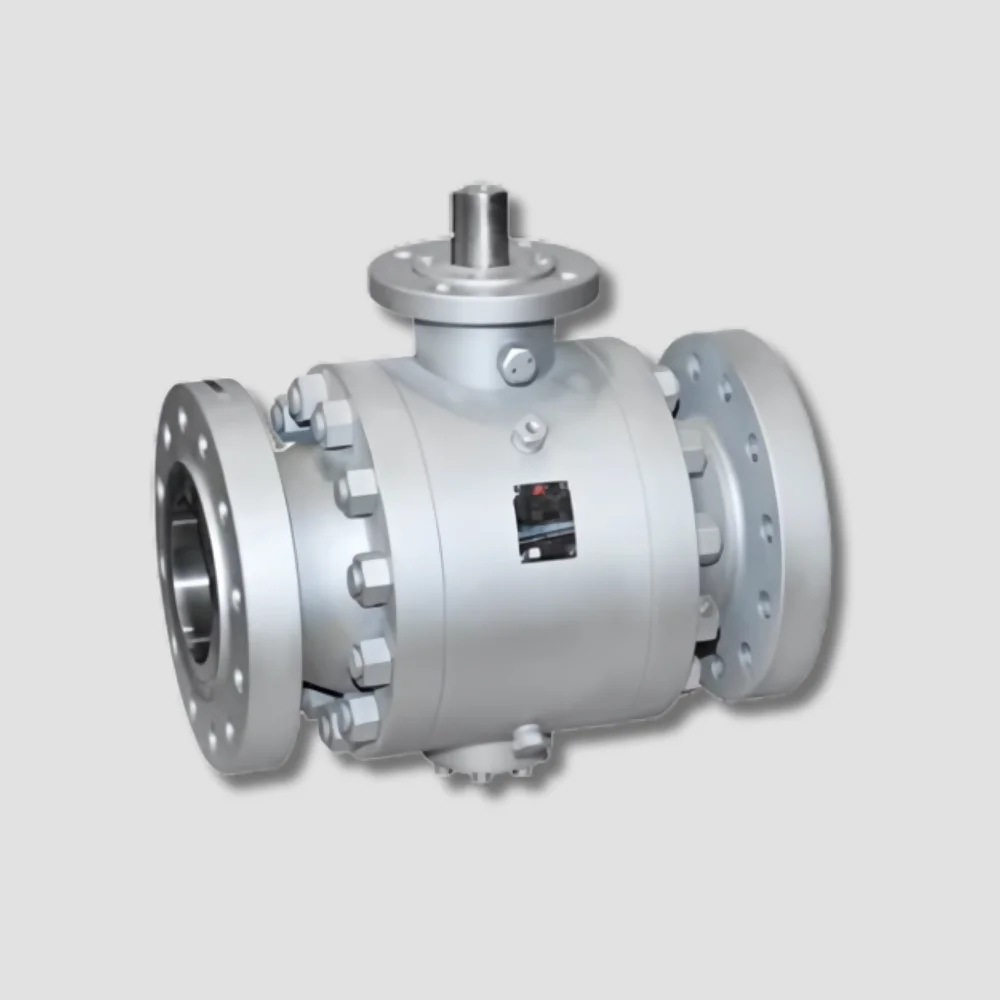

JC Valves 6015/6030/6060/6090/6050 Full Bore Metal Seated Valves

JC Valves presents a versatile selection of full bore trunnion mounted ball valves, including models 6015, 6030, 6060, 6090, and 6050. These valves range in size from 2" to 24" and cover Class 150 to 1500. Features include a 3-piece body, flanged connections, blowout-proof stems, and antistatic devices. Meeting API 6D, PED, and fire-safe standards, they are ideal for sectors such as oil and gas, chemicals, and energy, offering reliability in challenging conditions.

Find Out More

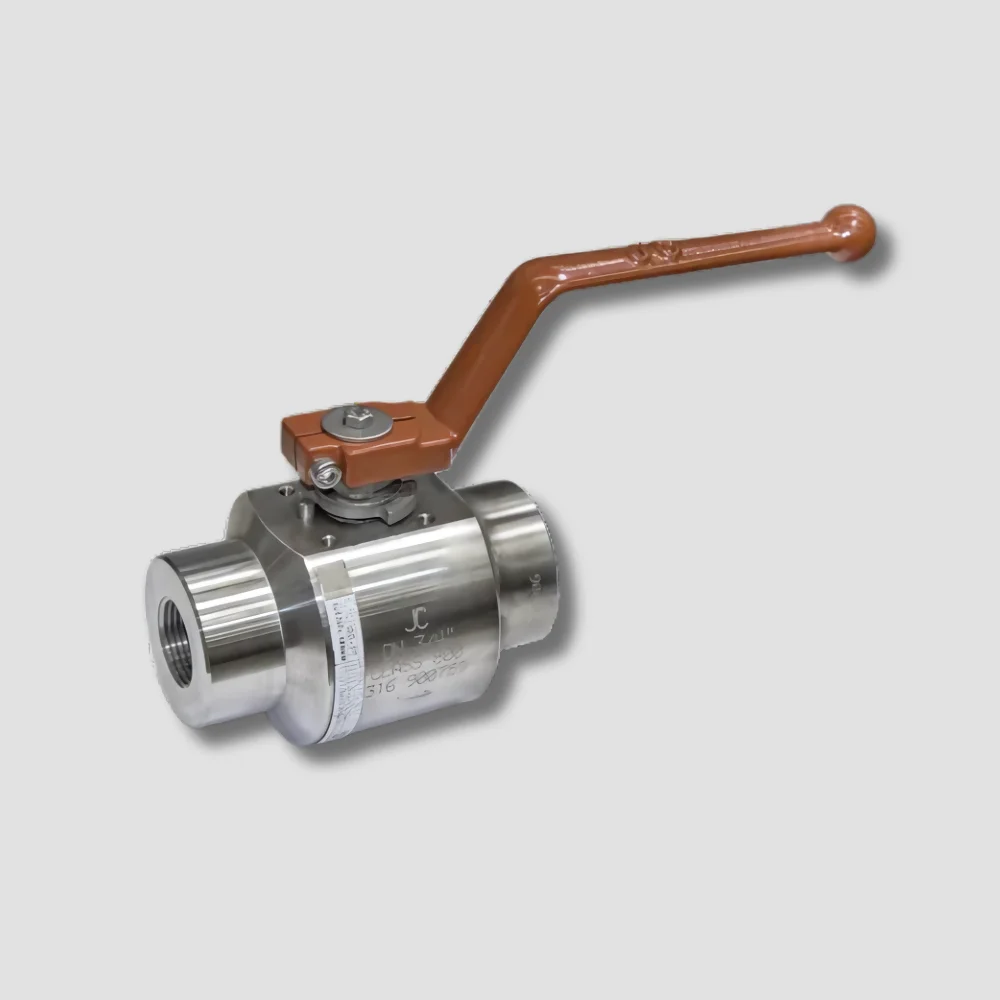

JC Valves 3411/3511 Reduced Bore Metal Seated Ball Valve

The JC Valves 3411/3511 Reduced Bore Metal Seated Ball Valves cater to stringent demands across the oil and gas, chemical, and petrochemical sectors, among others. These valves, available in Class 800 (3411) and Class 1500 (3511) ranging from 1/2" to 2", incorporate a monoblock design, flanged connections, a blowout-proof stem, and fixed antistatic devices. Complying with API 6D, PED, and fire-safe standards, they deliver reliable performance, featuring live loaded packing and cavity pressure balancing for increased safety.

Find Out More

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Frequently Asked Questions

Ball valves consist of a spherical ball with a bore that is rotated to open or close the valve. When aligned with the valve body, the bore allows fluid flow; when perpendicular, it seals the valve. The ball seals against seats in the valve body when closed to stop flow. Ball valves are quick opening, achieve full bore operation, and have low pressure drop. They can be automated or manually operated, with the handle indicating open/closed status. Ball valves come in 2-way, 3-way and multi-way configurations and are commonly used for shutoff, throttling and flow control of liquids, gases, and slurries in various industries. Key advantages are tight sealing, quick on-off operation, and full bore flow when open.

A ball valve works by utilising a perforated spherical ball that rotates within the valve body to control flow. When the valve is open, the ball's bore is aligned parallel with the flow path, allowing fluid to travel through the valve's inlet, through the ball's bore, and out the outlet. When closed, the ball is rotated 90 degrees by the handle or actuator so that the bore is perpendicular to the flow, sealing off the inlet and outlet ports. As the ball rotates, it presses against valve seats on either side to form a tight seal and stop flow. The open/close state is clearly indicated by the handle position. Ball valves achieve tight shutoff and can be opened/closed quickly with a 1/4 turn of the ball. Their uncomplicated operation, full bore flow, and low pressure drop make ball valves ideal for shutoff, throttling and control applications.

The common types include full port, reduced port, V-port, trunnion, and multiport ball valves, each designed for specific flow control conditions and applications.

Ball valves are ideal for applications requiring low-pressure drop and quick, on-off service. They are commonly used in applications involving water, natural gas, and in certain industrial processes.

Ball valves are typically made from materials like brass, stainless steel, PVC, and CPVC, offering various levels of strength, corrosion resistance, and suitability for different temperatures and pressures.

The correct size depends on the pipeline size and the flow requirements. It's essential to match the valve size with the flow rate, pressure, and the physical properties of the fluid.

While primarily designed for on/off control, certain types of ball valves, like V-port valves, can modulate flow. However, they may not offer the precise control of a globe or needle valve.

Maintenance involves regular cleaning, inspecting for leaks or damage, and lubricating the valve components. It's crucial to follow the manufacturer's guidelines for maintenance.

Common signs include leaks, difficulty in turning the handle, a fully or partially blocked flow, or any unusual noise during operation.

Yes, specific types of ball valves are designed to withstand high temperatures, but it's important to choose a valve made from materials suitable for the intended application's temperature range.

Ball valves offer faster shut-off, better durability for frequent operation, and generally have a smaller footprint. However, gate valves provide better throttling capabilities and are better for sustained shutoff.

The lifespan of a ball valve depends on its material, usage, and the conditions it's exposed to. Generally, ball valves are known for their durability and can last for many years with proper maintenance.
