Small Bore Ball Valves

Small bore ball valves are ideal for precise flow control in applications requiring compact design and reliable operation. These valves feature a compact body with options for various materials, ensuring compatibility across different fluids and pressure ratings. With easy quarter-turn operation, they offer efficient shut-off capabilities, enhancing safety and performance. Small bore ball valves are versatile, supporting diverse industrial settings such as gas, oil, and water systems where space is limited.

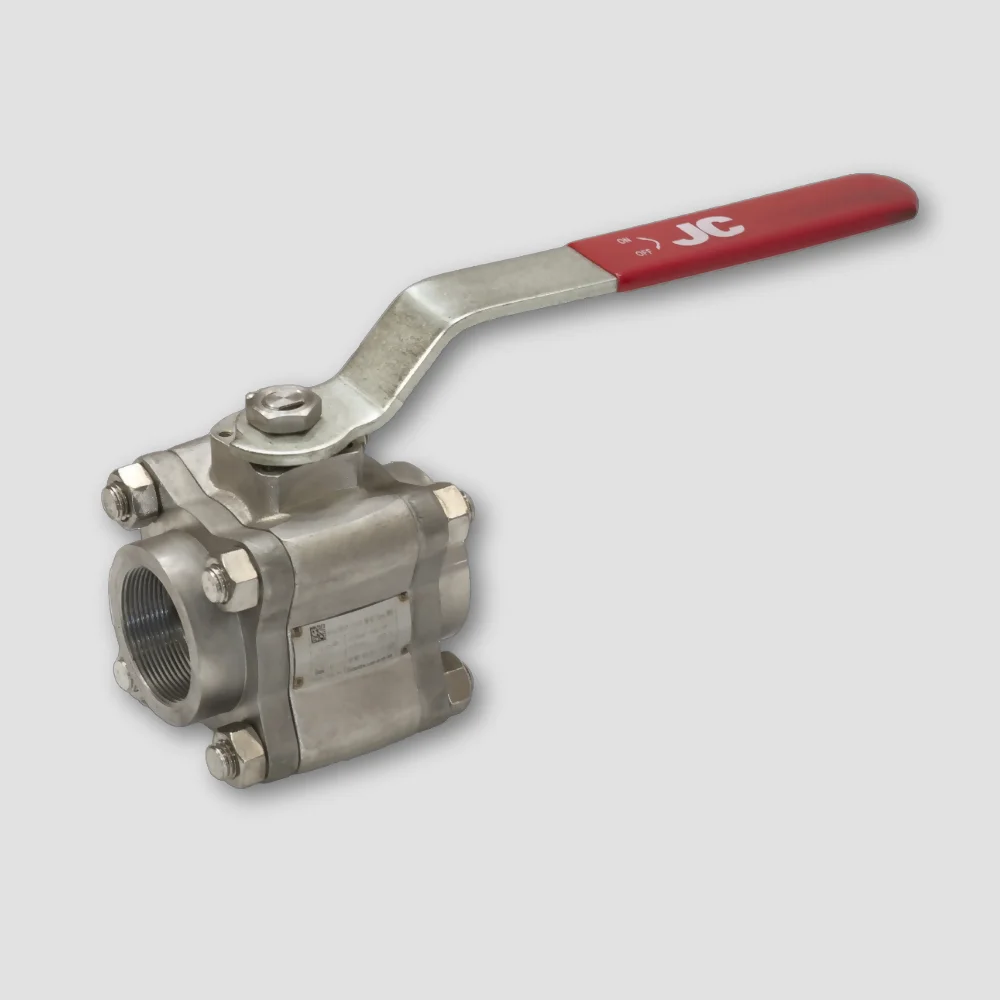

JC Valves 800 Small Bore Ball Valves

The JC Valves 800 Small Bore Full Bore Ball Valves come in Class 800 sizes ranging from 1/2” to 2”. These valves feature a three-piece bolted body and a full bore design. Notable features include a blowout-proof stem, non-removable antistatic devices, a cavity pressure balancing hole, and live loaded packing. Meeting PED, NACE, API 607, and ATEX standards, they are ideal for demanding sectors like oil and gas, chemicals, marine, and pharmaceuticals, ensuring reliable performance.

Find Out More

JC Valves 81500 Small Bore Ball Valves

The JC Valves 81500 Full Bore Small Bore Ball Valves offer a Class 1500 range, spanning 1/4” to 2” with a three-piece bolted body. Notable features include a blowout-proof stem, a cavity pressure balancing hole, non-removable antistatic devices, and live-loaded packing. These valves comply with PED and MSS SP 55 standards, with all wetted components meeting NACE MR0175/ISO15156 requirements. They are fire-safe according to API 607, suitable for fugitive emissions (ISO 15848), and widely used in the oil & gas, chemical, marine, and energy sectors.

Find Out More

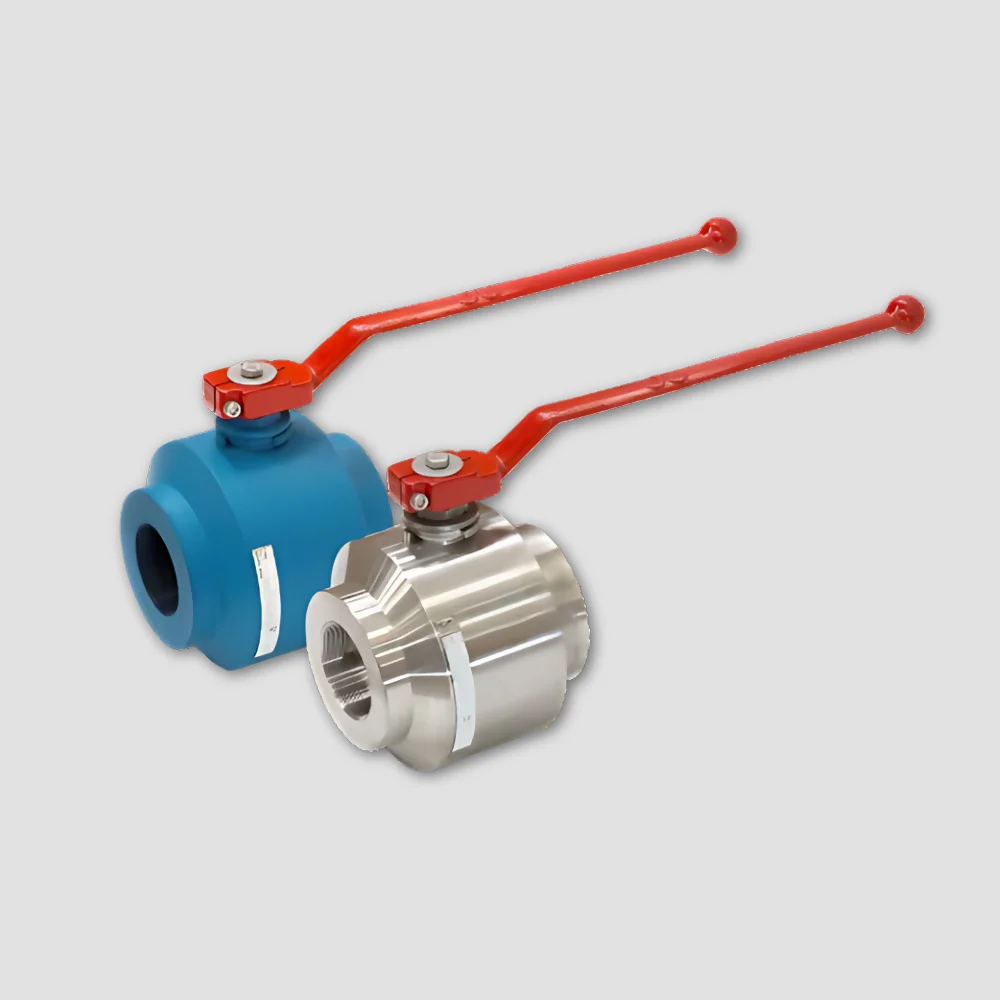

JC Valves 400 Full Bore Small Bore Ball Valves

The JC Valves 400 Full Bore Small Bore Ball Valves, available in Class 800 from 3/8” to 2”, feature a monoblock welded body, blowout-proof stem, and non-removable antistatic devices. With PED, NACE, and fire-safe certifications, these valves meet stringent ISO 15848 and ATEX standards, making them suitable for oil & gas, chemical, energy, marine, and waste treatment industries.

Find Out More

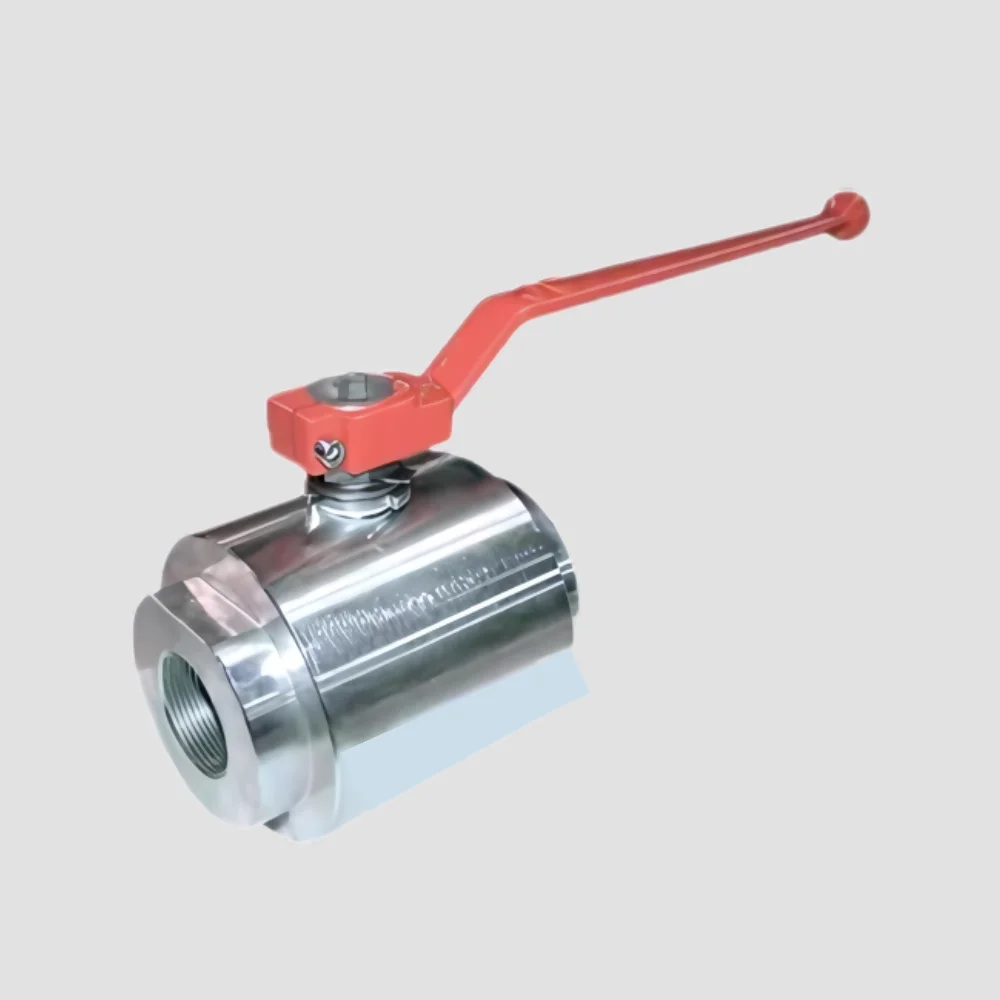

JC Valves 41500 Small Bore Ball Valves

The JC Valves 41500 Full Bore Small Bore Ball Valves, ranging from 3/8” to 2” and rated Class 1500, feature a monoblock welded body, blowout-proof stem, and fixed antistatic devices. These valves are equipped with a cavity pressure balancing hole and live-loaded packing, adhering to PED, MSS SP 55, and NACE standards. They are fire-safe according to API 607 and ISO 10497, making them ideal for the oil & gas, chemical, energy, marine, and mining industries. They meet ISO 15848/TA-LUFT for fugitive emissions and ATEX standards.

Find Out More

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Frequently Asked Questions

Ball valves consist of a spherical ball with a bore that is rotated to open or close the valve. When aligned with the valve body, the bore allows fluid flow; when perpendicular, it seals the valve. The ball seals against seats in the valve body when closed to stop flow. Ball valves are quick opening, achieve full bore operation, and have low pressure drop. They can be automated or manually operated, with the handle indicating open/closed status. Ball valves come in 2-way, 3-way and multi-way configurations and are commonly used for shutoff, throttling and flow control of liquids, gases, and slurries in various industries. Key advantages are tight sealing, quick on-off operation, and full bore flow when open.

A ball valve works by utilising a perforated spherical ball that rotates within the valve body to control flow. When the valve is open, the ball's bore is aligned parallel with the flow path, allowing fluid to travel through the valve's inlet, through the ball's bore, and out the outlet. When closed, the ball is rotated 90 degrees by the handle or actuator so that the bore is perpendicular to the flow, sealing off the inlet and outlet ports. As the ball rotates, it presses against valve seats on either side to form a tight seal and stop flow. The open/close state is clearly indicated by the handle position. Ball valves achieve tight shutoff and can be opened/closed quickly with a 1/4 turn of the ball. Their uncomplicated operation, full bore flow, and low pressure drop make ball valves ideal for shutoff, throttling and control applications.

The common types include full port, reduced port, V-port, trunnion, and multiport ball valves, each designed for specific flow control conditions and applications.

Ball valves are ideal for applications requiring low-pressure drop and quick, on-off service. They are commonly used in applications involving water, natural gas, and in certain industrial processes.

Ball valves are typically made from materials like brass, stainless steel, PVC, and CPVC, offering various levels of strength, corrosion resistance, and suitability for different temperatures and pressures.

The correct size depends on the pipeline size and the flow requirements. It's essential to match the valve size with the flow rate, pressure, and the physical properties of the fluid.

While primarily designed for on/off control, certain types of ball valves, like V-port valves, can modulate flow. However, they may not offer the precise control of a globe or needle valve.

Maintenance involves regular cleaning, inspecting for leaks or damage, and lubricating the valve components. It's crucial to follow the manufacturer's guidelines for maintenance.

Common signs include leaks, difficulty in turning the handle, a fully or partially blocked flow, or any unusual noise during operation.

Yes, specific types of ball valves are designed to withstand high temperatures, but it's important to choose a valve made from materials suitable for the intended application's temperature range.

Ball valves offer faster shut-off, better durability for frequent operation, and generally have a smaller footprint. However, gate valves provide better throttling capabilities and are better for sustained shutoff.

The lifespan of a ball valve depends on its material, usage, and the conditions it's exposed to. Generally, ball valves are known for their durability and can last for many years with proper maintenance.
