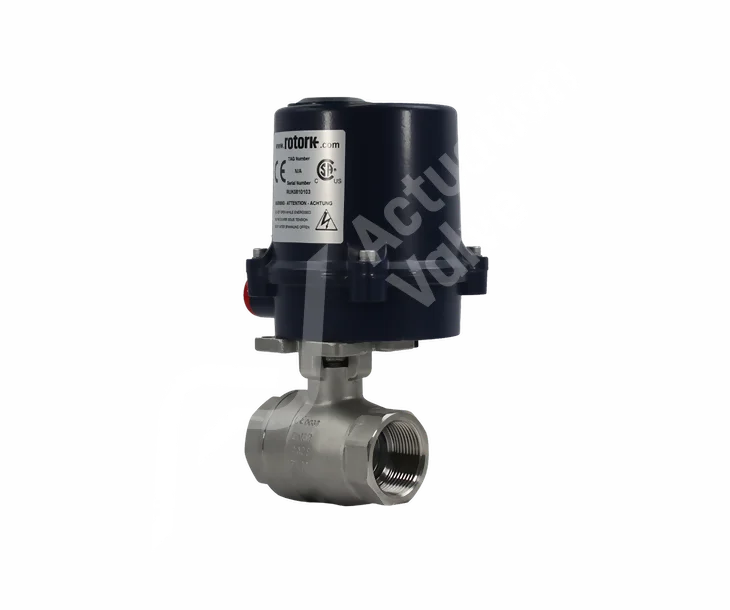

Rotork ROM Premium Electric Actuated 2 Piece Ball Valves

The AV-L2000 line of stainless steel ball valves is designed with you in mind. They're easy to install and incredibly durable so you get the most out of your product without worrying about repairs or replacements down the road. All devices come with ISO 5211 direct mounting pad for express actuation assembly with 48 hour shipping for stock components. Suitable for pressures up to 1000 PSI this silicone free valve is available electrically actuated with fail in position on/off functionality, batterfy backup options are also available for non standard applications. PTFE TFM 1600 seats can be adapted to TFM 4215 for higher temperature applications. Whether you are looking for a an electric actuator that is operated continuously throughout the day or infrequently maybe once per month you can rest assured that the Rotork ROM electric actuator will be there to respond and operate your process line when you need it to.

Key Features

Key features and benefits of AV-L2000ROM Actuated Ball Valves.
1

Key Features

We recommend using these 2 Piece Full Bore Stainless Steel Ball Valves if you have limited space, or want to reduce total package weight and cost without compromising performance or reliability. Reduced torque also allow the use of a more compact actuator.
2

Key Features

The Rotork ROM electric actuator is a compact, lightweight and cost effective for use in many industrial automation applications. It has been designed to be easy-to install with an intuitive user interface and operations manuals that allow for immediate use once on site.
3

Key Features

The Rotork ROM electric actuator offers the best of both worlds in terms of temperature. It operates at ambient temperatures ranging from -30 to +70 ºC, making it suitable for many demanding environments, but also has a wide variance when compared with other actuators.

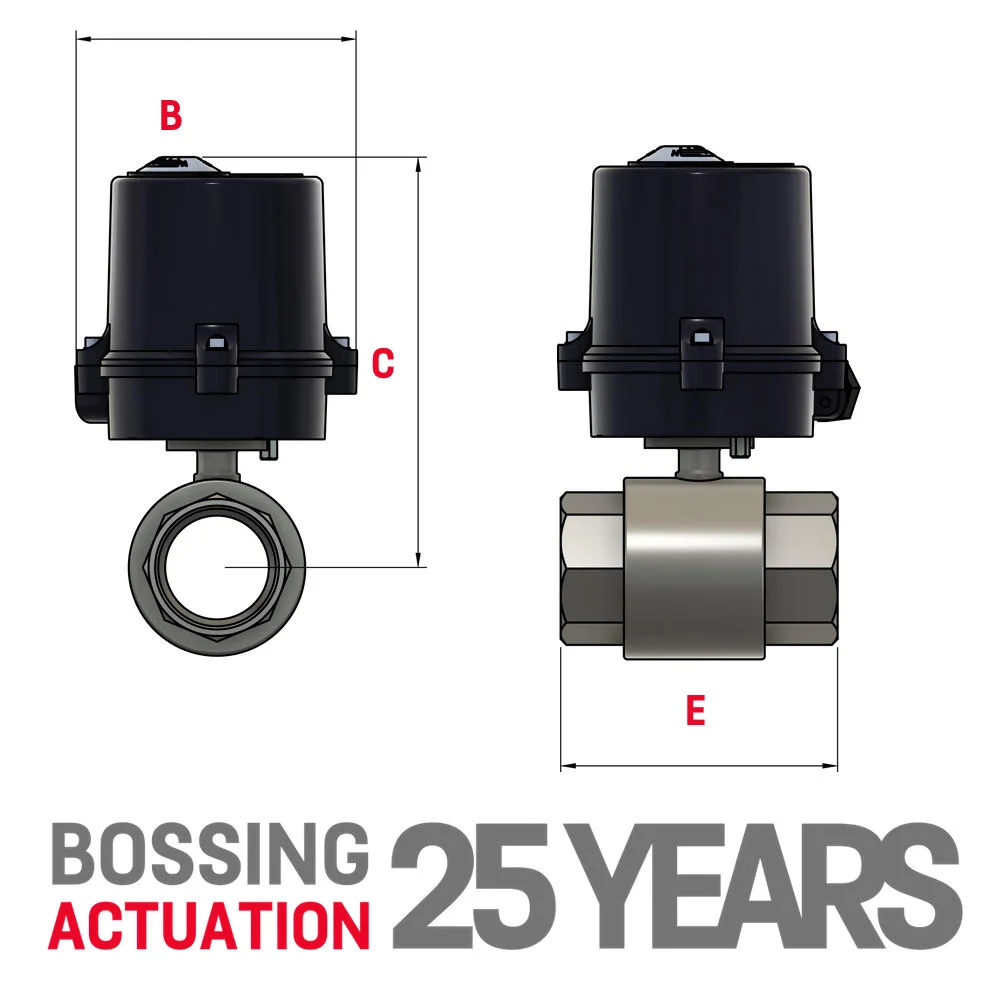

AV-L2000ROM Ball Valve Technical Stuff

B C E Model
1/4" 114.00 178.50 67.00 ROM-1
3/8" 114.00 178.50 67.00 ROM-1
1/2" 114.00 178.50 67.00 ROM-1
3/4" 114.00 185.00 70.40 ROM-1
1" 114.00 194.00 85.00 ROM-1
1 1/4" 114.00 198.50 94.00 ROM-1
1 1/2" 114.00 207.50 105.00 ROM-1
2" 114.00 247.50 125.00 ROM-A
2 1/2" 196.00 412.00 155.00 ROM-2
3" 196.00 421.00 173.00 ROM-3

AV-L2000ROM Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10
Pressure Rating: 1000 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
