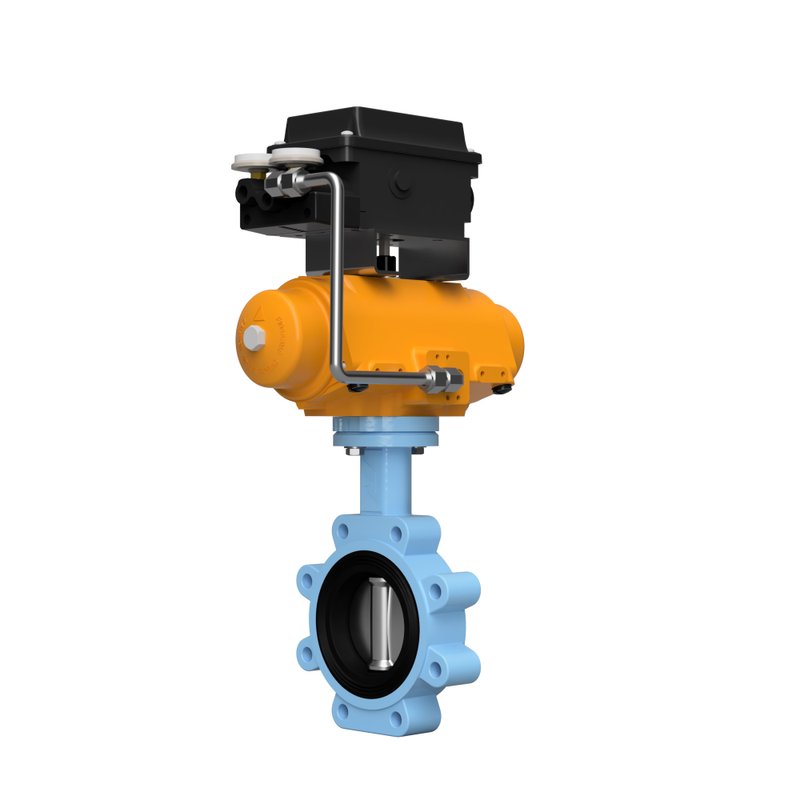

20L3040ETXLDN0040SRALANSI150 TTV Hytork XL Ductile Iron GJS500-7 Concentric Lugged ANSI150 High Temperature EPDM 4-20mA Electro Pneumatic Spring Return Actuated Butterfly Valves

£1332.00ex. VAT
Pay in 3 easy payments of £532.80 with Klarna
Add to Basket
Make an Enquiry Apply for Credit
Next Day Delivery Available
Technical Support
Price Match Guarantee

Technical Specs

Valve Size 1.5"
Connections Flanged
Pressure Design ANSI 150
Body Design Lugged
Body Material Ductile Iron GJS500-7
Seat Design Concentric
Seat Material High Temperature EPDM
Actuator Function 4-20mA - Air Open Spring Close
Actuator Type Pneumatic
Actuator Housing Powder Coated LM25 Aluminium Casting
Manual Override None
F2F Dimension 33
Part Number 20L3040ETXLPDDN0040SRALANSI150
Brand TTV
Actuator Brand Hytork
