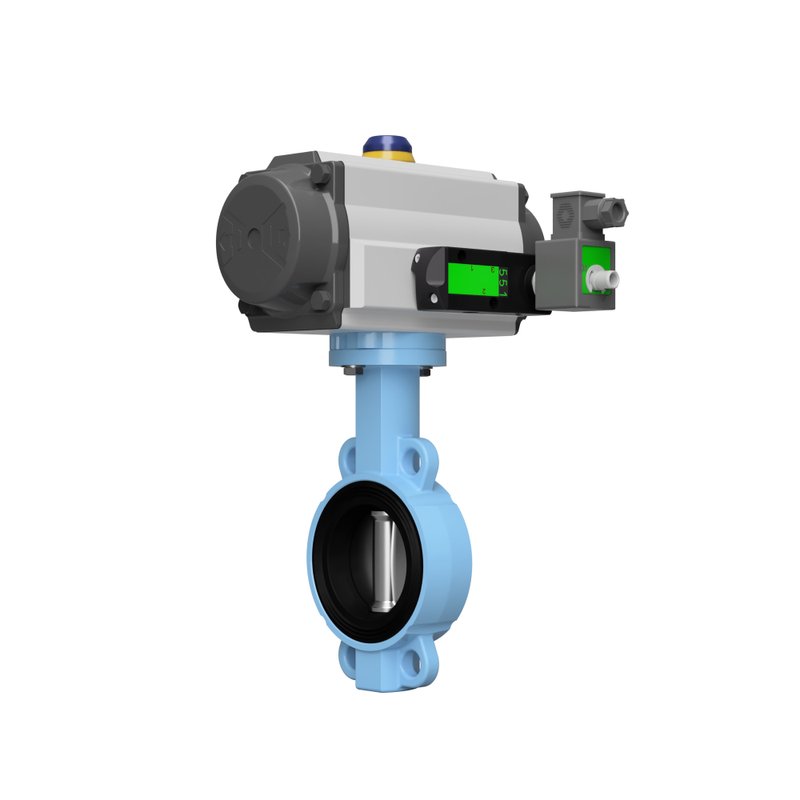

The 20W3040E0ATDN0400DAALANSI15002 is a 16" TTV butterfly valve in a wafer pattern, rated ANSI Class 150 for flanged pipework and supplied as a complete actuated assembly.
The valve has a ductile iron GJS500-7 body and a concentric seat design, fitted with an EPDM seat.
It is automated with an Air Torque pneumatic actuator, double acting (air to open, air to close). The actuator has an anodised aluminium housing and a screw-type manual override.
It is supplied with a 110VAC SCG551A001MS pilot solenoid valve and without a limit switch box.
