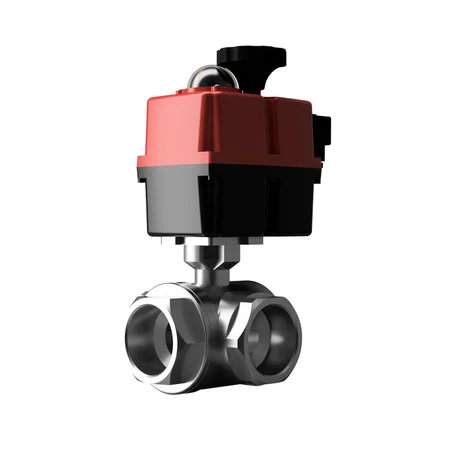

The AV-L5300 & 5400 Full Bore 3-Way Ball Valves are silicone free and suitable for use on oils based paint products and applications. This allows complete assurance that the Valve will not apply any contamination to the medium that could effect the end finish. The J4S product line features an affordable electric actuator that works seamlessly with any IOS or Android device without the need for additional hardware or software. This makes it easy to connect your application directly to your smart phone, tablet or computer. 3-Way Ball Valves can be used to divert flow from one fluid flow path to another in industrial process systems. 3-Way Ball Valves are typically used in the process industry to connect, disconnect or redirect flow between two or more fluid flow paths.

Shop Help Me

Key features and benefits of AV-L5300JJ & AV-L5400JJ Actuated Ball Valves.

Key Features

Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.

Key Features

Low Torque requirements from the AV-L5300 & 5400 Full Bore 3-Way Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.

Key Features

J&J electric actuators feature a highly visible 360 degree visual position indicator that offers immediate local valve open or closed identification. With this technology, you'll always have clear valve position visibility available at all times.

	B	C	D	E	Model

1/4"	179.00	214.00	110.00	79.00	J4CS20
3/8"	179.00	214.00	110.00	79.00	J4CS20
1/2"	179.00	214.00	110.00	79.00	J4CS20
3/4"	179.00	220.00	110.00	88.00	J4CS20
1"	179.00	230.50	110.00	108.00	J4CS20
1 1/4"	179.00	234.00	110.00	124.00	J4CS20
1 1/2"	179.00	244.50	110.00	135.00	J4CS35
2"	181.00	278.80	110.00	164.00	J4CS55
2.5"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA
6"	TBA	TBA	TBA	TBA	TBA

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 400
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 7-1
Body Seal Material:	PTFE
Stem Packing Material:	PTFE

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, position feedback is included as standard on the J4CS range, with switches confirming open and closed positions.

Yes, discounts are usually available on multi-unit or bulk orders of the J4CS range. Get in touch with your required quantity and specification and our sales team will confirm the best pricing for your order.

Yes, the J4CS range can be supplied with Nace MR-0175 certification for sour service applications. Please confirm this requirement when ordering so the correct documentation is issued with your valve.

Yes, we can advise on larger sizes outside the standard J4CS range. Send us your line size and process details by email or give us a call and we will confirm availability and lead time.

Yes, we can deliver directly to your customer on a plain, unbranded label. Send us a copy of your delivery note and we will include it with the shipment so your customer receives it under your company name.

Yes, we offer credit accounts for trade and repeat customers, subject to a credit check. Apply on the product page at checkout or contact our sales team directly and we will guide you through the application process.

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.

DRAWINGS & SCHEMATICS

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
