3-Way FB PN16-PN40 Electric Rotork Actuated Ball Valve

Our AV-L5K00ROM/5N00ROM 3-Way actuated multiport ball valves provide various process diverting capabilities with L & T port ball designs. The flanged PN16 & PN40 pressure rated valves provide both medium and high pressure options depending on your application requirements with easy installation. Three way ball valves are commonly used to control the direction of fluids. They can be configured as diverter or selector valves, depending on you application requirements. L or T Port Configurations are available with 90 Degree or 180 Degree Actuators. The Rotork ROM electric actuator offers electric valve operation in ambient temperatures ranging from -30 to +70 ºC making it suitable for many demanding environments. The variance in high or low temperature operations make the ROM one of the most versatile electric actuators available.

Key Features

Key features and benefits of AV-L5K00ROM & AV-L5N00ROM Actuated Ball Valves.
1

Key Features

Three way ball valves are commonly used to control the direction of fluids. They can be configured as diverter or selector valves, depending on you application requirements. L or T Port Configurations are available with 90 Degree or 180 Degree Actuators.
2

Key Features

Rotork ROM provides both mechanical end-of-travel protection for your application. It offers a simple solution for providing reliable actuation control when using electric actuators without compromise on safety or performance.
3

Key Features

High alloy steel gear trains provide self-locking function to avoid valve back drive, which ensures that no unnecessary movement occurs when the actuator does not have power. This prevents process media from passing through and causing any potential unwanted issues in your system.

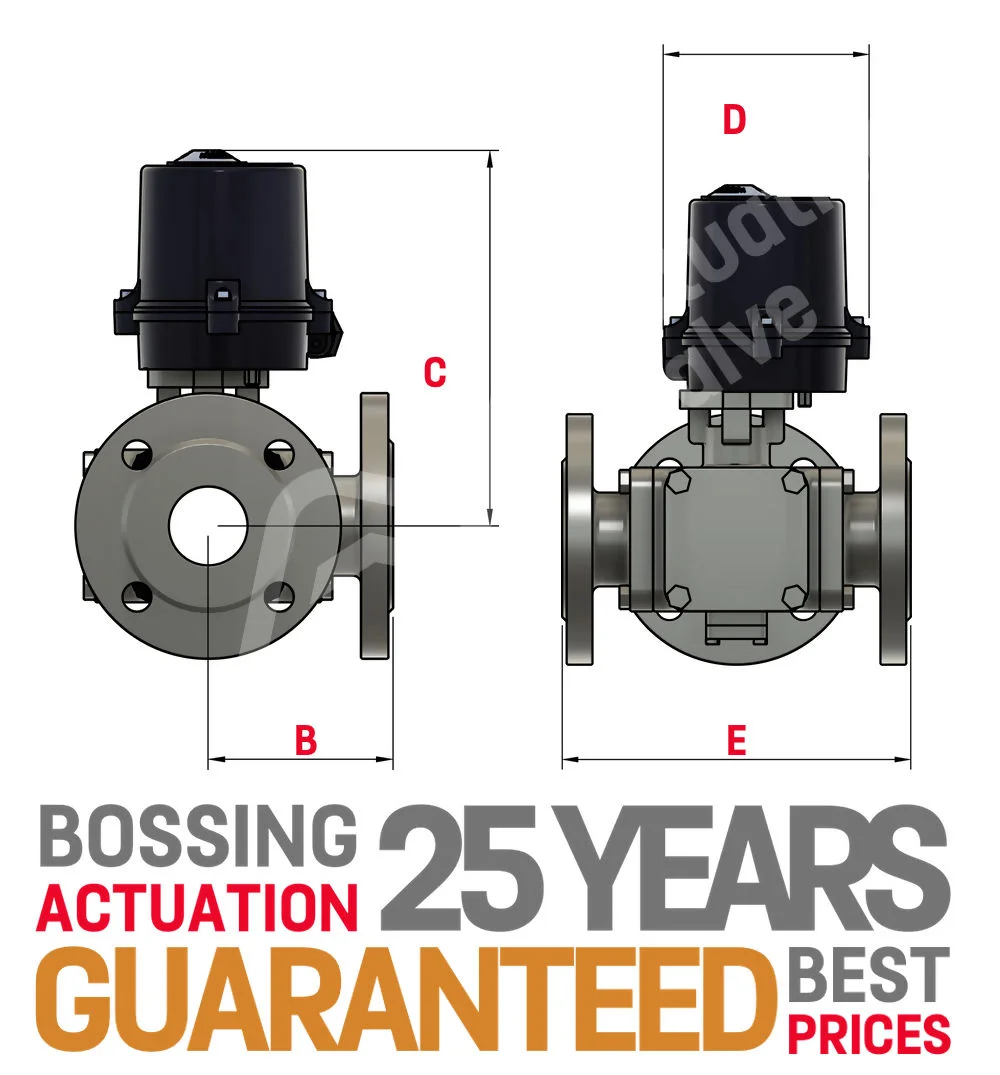

3-Way PN16 PN40 Technical Stuff

B C D E Model
TBA TBA TBA TBA TBA TBA
TBA TBA TBA TBA TBA TBA
1/2" TBA 189.00 114.00 150.00 ROM-1
3/4" TBA 193.00 114.00 165.00 ROM-1
1" TBA 204.00 114.00 181.00 ROM-1
1 1/2" TBA 254.00 114.00 190.00 ROM-A
2" TBA 404.00 196.00 212.00 ROM-2
2 1/2" TBA 419.00 196.00 230.00 ROM-3
3" TBA 431.00 196.00 310.00 / 340.00 ROM-3
4" TBA 542.00 232.00 352.00 / 386.00 ROM-4
5" TBA TBA TBA TBA TBA

3-Way PN16 PN40 Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
