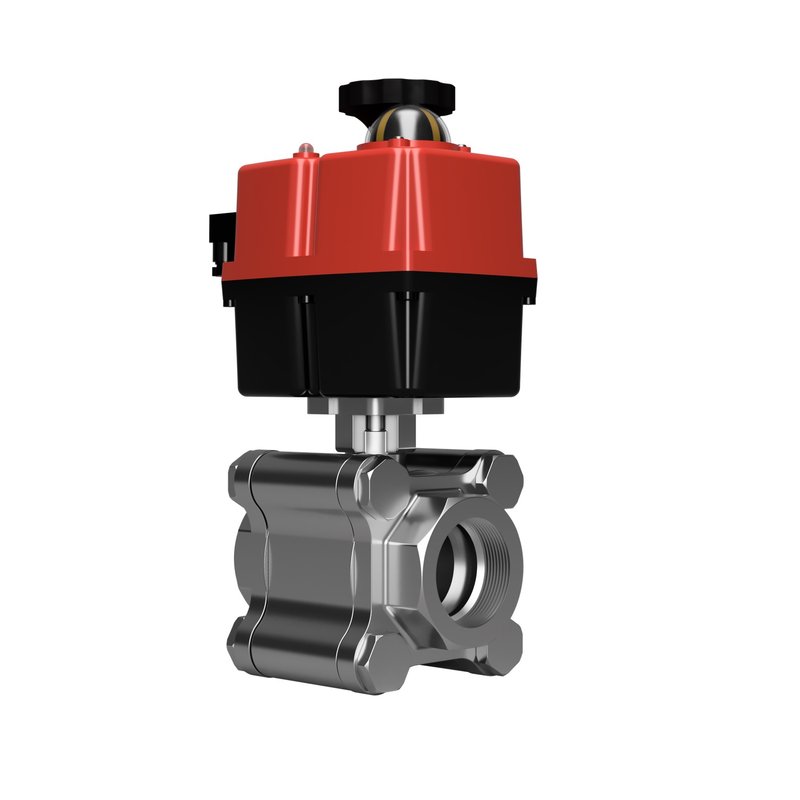

AV-L80HTFSBDN0020JJMC240A 3 PCE Full Bore Screwed BSP Stainless Steel A351 CF8M Electric Actuated Ball Valves Modulating Control

£579.94ex. VAT
Pay in 3 easy payments of £231.98 with Klarna
Add to Basket
Make an Enquiry Apply for Credit
Next Day Delivery Available
Technical Support
Price Match Guarantee

Technical Specs

Valve Size .75"
Connections Screwed BSP
Pressure Design 2000 PSI
Body Design 3 PCE Full Bore
Body Material Stainless Steel A351 CF8M
Ball Design Straight Through
Seat Material Peek
Actuator Function Modulation Control 4-20mA 0-20mA 0-10V or 1-10V
Actuator Type Electric
Actuator Housing Polyamide
Power 240VAC Multi Voltage
Manual Override Handle
IP Rating IP67
F2F Dimension 80
Part Number AV-L80HTFSBDN0020JJMC240A
Brand Kingdom
Actuator Brand J+J
