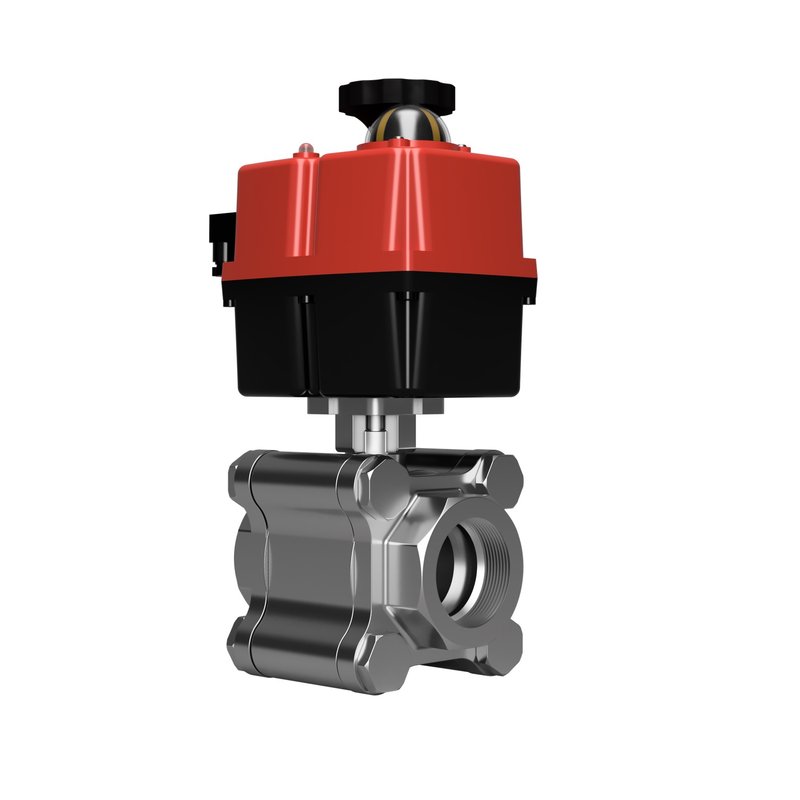

AV-L80HTFSBDN0025JJMC24D 3 PCE Full Bore Screwed BSP Stainless Steel A351 CF8M Electric Actuated Ball Valves Modulating Control

Product Code:

(0 reviews)

£576.24ex. VAT

Pay in 3 easy payments of £230.50 with Klarna

Qty:

Next Day Delivery Available

Technical Support

Price Match Guarantee

Technical Specs


Valve Size	1"
Connections	Screwed BSP
Pressure Design	2000 PSI
Body Design	3 PCE Full Bore
Body Material	Stainless Steel A351 CF8M
Ball Design	Straight Through
Seat Material	Peek
Actuator Function	Modulation Control 4-20mA 0-20mA 0-10V or 1-10V
Actuator Type	Electric
Actuator Housing	Polyamide
Power	24VDC Multi Voltage
Manual Override	Handle
IP Rating	IP67
Part Number	AV-L80HTFSBDN0025JJMC24D
Brand	Kingdom
Actuator Brand	J+J
F2F Dimension	90

Product Reviews (0)
