Butterfly Valve Electric And Pneumatic Actuators

All of our Butterfly Valve Actuators come from strictly sourced quality Manufacturers with proven track records for reliability and performance. Actuation Valve have built a reputation for providing high-quality fit and forget solutions whether this be for free issued Butterfly Valves or a complete Actuated Valve package. As the sole UK distributor and stockist for Spanish Butterfly Valve Manufacturer TTV we can offer a vast range of Body Materials, Designs & Seat Materials to suit your application requirements.

Key Features

Key features and benefits of Butterfly Valve Actuators.
1

Key Features

Butterfly Valve Actuators both Pneumatic & Electric allow the End User to operate multiple Valve with synchronisation, the use of multiple valves at the same time and remote operation of isolated units.
2

Key Features

For Valves that require high break out torque and operation torque a Butterfly Valve Actuator enables ease of use over that of lever operated valves and manual gear operation. Butterfly Valves Actuators can provide high power outputs.
3

Key Features

Butterfly Valve Actuators can offer a more reliable use of operation with fail safe position return for critical applications. Actuators are more reliable than a single manual operator and include optional overrides.

Air Torque Pneumatic Butterfly Valve Actuators

The Air Torque butterfly valve actuators are manufactured, assembled & tested in Bergamo Italy to highest of international standards and approvals. In a little over 20 years since the company was founded in 1990, the Air Torque brand of aluminium, rack & pinion and scotch yoke pneumatic actuators have become known worldwide for their high quality and reliability, with 100% of all manufacturing and construction materials sourced within Western European Countries.

Function: Spring Return, Double Acting
Body Material: Anodized Aluminium, PTFE Coating, Epoxy Coating, Stainless Steel
Rotation: 90°, 120°, 135°, 180°
Torque Levels: 8-10,000 NM
Operating Media: Dry/Lubricated Air, Inert/Non-Corrosive Gases
Pressure Rating: 2.5 Bar (36 PSI) Minimum – 8 Bar (116 PSI) Maximum
Certifications: SIL3 IEC 61508, ATEX 94/9/EC, GOST, GOST-R, EN 60529 IEC 529
Find Out More

Hytork Pneumatic Butterfly Valve Actuators

The Hytork XL Rack And Pinion Pneumatic Actuators combine reliability, quality Pneumatic ButterflyValve Actuation in a compact, cost-effective solution. The robust heavy duty body design combines a high strength aluminium casting which protects the Actuator from any dents, knocks or extreme usage that may be seen in certain process industry environments. Having a modular design the Hytork XL Range Pneumatic Actuator is field convertible.

Function: Spring Return, Double Acting
Body Material: Powder Coated LM25 Aluminium Casting
Rotation: 90°
Torque Levels: 19-3232NM, (167 to 28500 lbf.in)
Operating Media: Dry/Lubricated Air, Inert/Non-Corrosive Gases
Pressure Rating: Max 8.3 Bar-Pneumatic/120 PSI
Certifications: ATEX, PED, Machine Directive, TR010, SIL
Find Out More

Elomatic Pneumatic Butterfly Valve Actuators

Fit and forget pneumatic butterfly valve actuators from Elomatic combined with exceptional valves from TTV together provide a formidable actuated butterfly valve assembly. The Elomatic range of F-Series rack and pinion quarter turn actuators are stocked in both spring return and double acting combinations for modular valve assembly according to budget and application. A powder coated finish provides superior corrosion resistance to external elements.

Function: Spring Return, Double Acting
Body Material: Powder Coated Cast Aluminium
Rotation: 90°
Torque Levels: 12-4100NM, (106 to 36474 lbf.in)
Operating Media: Dry/Lubricated Air, Inert/Non-Corrosive Gases
Pressure Rating: Max 8.3 Bar-Pneumatic/120 PSI
Certifications: ATEX, PED, Machine Directive, TR010, SIL3

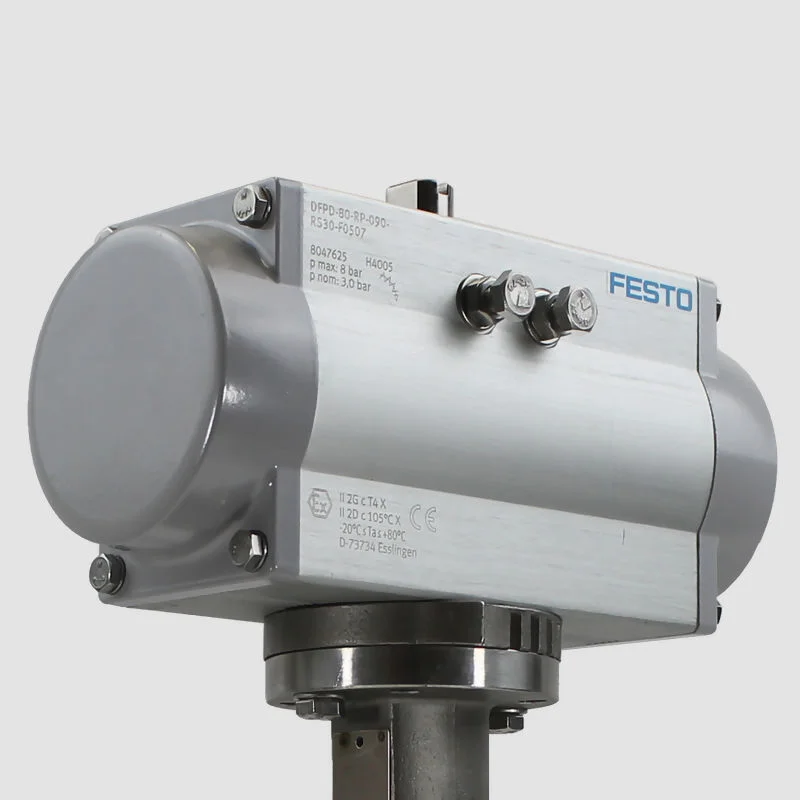

Festo Pneumatic Rack And Pinion DFPD Valve Actuators

Festo DFPD range of pneumatic quarter turn butterfly valve actuators are suitable for the automation of valve sizes ranging from 1 1/4" - 18". Customisable spring variations allow for accurate calibration and torque output aswell as spring return and double acting in-fiield Interchangeability. Available in 13 varients this Italian manufactured actuator covers over 80% of all process automation requirements significant stocks available for next delivery of stand alone units and fully assembled and tested actuated valves units.

Function: Spring Return, Double Acting
Body Material: Anodized Wrought Aluminium Alloy, Epoxy Coating
Rotation: 90°, 120°, 135° & 180°
Torque Levels: 4-3,248 NM
Operating Media: Compressed Air
Pressure Rating: 2.0 Bar (29 PSI) Minimum – 8 Bar (116 PSI) Maximum
Certifications: SIL2, ATEX 94/9/EC
Find Out More

Butterfly Valve Actuators

Actuation Valve have been providing Butterfly Valve Actuators and Actuation solutions for over 20 years. Serving predominantly the UK market our range of Actuators is available in both Spring Return & Double Acting Pneumatic Operation, Electric On/Off or Electric Fail Safe.

All of our Butterfly Valve Actuators come from strictly sourced quality Manufacturers with proven track records for reliability and performance. Actuation Valve have built a reputation for providing high-quality fit and forget solutions whether this be for free issued Butterfly Valves or a complete Actuated Valve package. As the sole UK distributor and stockist for Spanish Buttterfly Valve Manufacturer TTV we can offer a vast range of Body Materials, Designs & Seat Materials to suit your application requirements.

Pneumatic Butterfly Valve Actuators:

The Air Torque Pneumatic Actuator is the perfect choice for Pneumatic Butterfly Valve Actuated Valves and comes with a long list of approvals and certifications. From stock, our capabilities include Actuating Valves up to DN600 in Spring Return & Double Acting. We also carry a large range of Solenoid Valves & Switch Box Position Monitors for pilot operations and feedback. The Air Torque Butterfly Valve Actuator approvals include ISO 9001, SIL 3 IEC 61508, ATEX 94/9/EC, DNV Type Approval, GOST-R, GOST & EN60529 IEC 529.

Electric Butterfly Valve Actuators:
