PTFE Seat Lugged Actreg Actuated Butterfly Valves

Actreg's Actuator is built for long-lasting, reliable performance with a wide variety of materials and options that allow you to specify alternate coatings that are best suited for your application requirements. The pneumatic actuators combine quality parts designed over many years by in field experts. All available at a competitive price point. The bi-directional travel stops allow easy setting of the valve stroke which prevents premature valve failures. Our Pneumatic Actuators can be used with other common ancillary components such as solenoid valves, position switches, gauges and pressure regulators. Lugged style valves have threaded inserts at both sides of the body that allow them to be installed with only bolts and no nuts.

Key Features

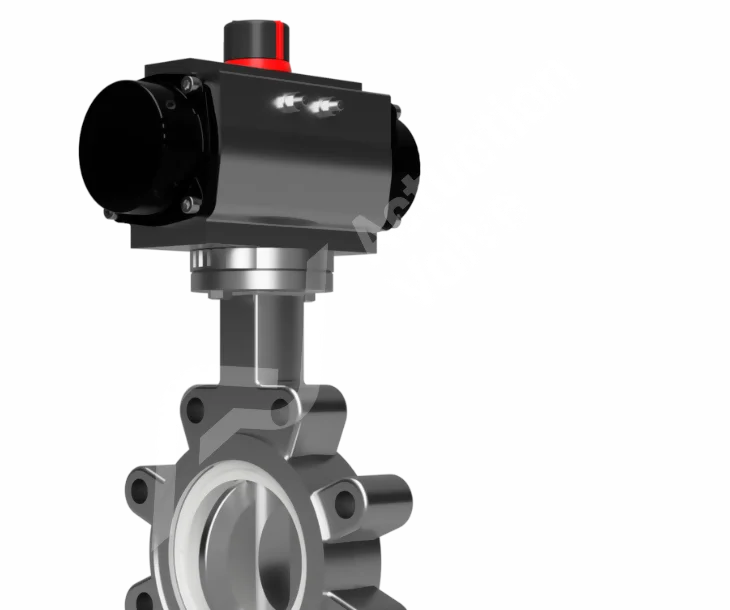

Key features and benefits of the 40LP4040F0AC Actuated Butterfly Valves.
1

Key Features

All of our actuated butterfly valves can be set up in either the Fail Safe Close/Open Position with several manual override features across the range.
2

Key Features

With lugged butterfly valves If one side needs repair, you can simply disconnect it from the piping system and leave the other side connected until repairs are complete. This makes maintenance easier and faster compared to wafer pattern butterfly valves.
3

Key Features

Position indicators available for the Actreg actuator include direct mounting puk sensors such as P&F, IFM and other manufactures depending on end user approved vendor lists (AVL’s). Position monitoring switch boxes and sensors are also available from stock for quick assembly.

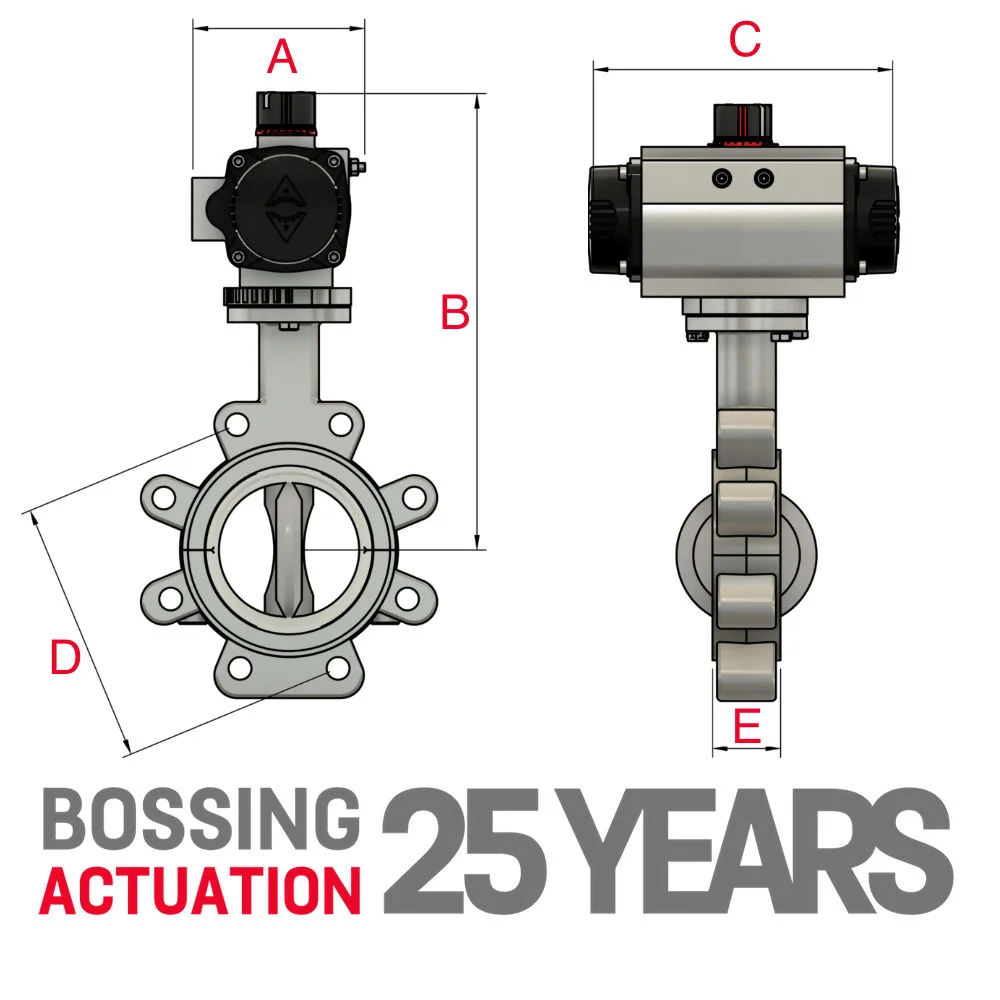

Lugged Type Butterfly Valve Technical

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 111.00 277.00 145.70 91.00 240.00 158.00 TBA 33.00
2" 122.00 303.00 170.40 91.00 256.00 158.00 TBA 43.00
2.5" 122.00 308.00 170.40 111.00 273.00 177.00 TBA 46.00
3" 152.50 351.00 223.10 111.00 281.00 177.00 TBA 46.00
4" 152.50 369.00 252.30 122.00 317.00 196.00 TBA 52.00
5" 173.00 405.00 270.90 135.50 349.00 225.00 TBA 56.00
6" 173.00 414.00 334.40 152.50 395.00 225.00 TBA 56.00
8" 191.50 491.00 374.20 173.00 447.00 273.00 TBA 60.00
10" 212.50 497.00 469.60 191.50 462.00 304.00 TBA 68.00
12" 242.50 666.00 519.30 212.50 512.70 372.00 TBA 78.00
14" 356.00 683.00 519.30 242.50 575.70 439.00 TBA 78.00
16" 356.00 723.00 636.00 276.50 678.70 461.00 TBA 102.00
18" TBA TBA TBA 356.00 728.70 510.00 TBA 114.00
20" TBA TBA TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA TBA TBA

Lugged Type Butterfly Valve 3D Stuff

Actreg Actuator Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Standards & Stuff

Body Material: CF8M Stainless Steel
Disc Materials: Stainless steel (CF-8M), Duplex
Shaft Materials: AISI 316, 17-4PH, Duplex
Face To Face: ISO 5752 Series 20, BS 5155 Wafer, DIN 3202 Part 3, Series K1
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 705, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, API 598

Frequent Interrogation

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

We can. The final is product customizable at the bottom of the page! Have a look down there or get us on 0151 547 1221. We have everything from Safe Area to ATEX in multiple voltages.

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boxes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No. Why do people keep asking!? We are not the silly pink valve company.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Non Toxic FDA Approved PTFE

Wafer Pattern concentric design features a non-toxic PTFE internal seal which also partially covers the outer body of the valve for perfect sealing with counter flanges. Thus avoiding any possibility of cross-contamination and providing a butterfly valve that is extremely resistant to chemicals and solvents with complete insolubility to 300°C.

Engineered Shaft Design

A single piece shaft design brings high strength and stability with direct mount capabilities for actuation assemblies and ensures fluid is again isolated from both the shaft and the body of the butterfly valve. This also eliminates the need for a customised mounting assembly kit which can bring additional costs and time.

Streamlined Butterfly Valve Discs

Greater CV Potential & Less Pipe Space

TTV’s streamlined discs produce a much greater Cv than other butterfly valves on the market resulting in low-pressure drops and reduced energy costs while maintaining a bi-directional zero leakage seal when in the closed position. Low operational torque and reduced friction reduces the costs of gear, pneumatic and electric actuation whilst extending the life of the valve seal. A silicone elasticised gasket facilitates the valve sealing.

For applications which require abrasion resistance the option of a UHMWPE (Ultra-High-Molecular-Weight-Polyethylene) is available for this particular butterfly valve.

Less space, results in less material, bringing significantly lower costs in the process. As part of Isolation applications, our valves can be fully open or fully closed with quarter turn movement (90 Degrees) of the functioning lever or actuator. When closed, the reliable seal and disc can provide 100% leak tight downstream shutoff and low-pressure loss across the valve when opened through a streamlined, energy saving metallic disc. These types of valves can also be used to regulate flow pressure or temperature through a multi-position lockable lever or 4-20mA 3-15 psi control.

Actuated Butterfly Valves are available in both pneumatic and electric operation and can be beneficial for use in remotely accessed areas, valves that require larger torque figures to operate, timing or synchronisation and reliability. Pneumatically Actuated Butterfly Valves provide the quickest form of operational control for open/close functionality and are available in both double acting and spring return units with either direct/solenoid operation. Spring Return units can be set up in a fail-safe closed mode for critical lines were the Valve will return to the closed position upon the event of power failure through the loaded springs. Fail-safe open Valves are also available upon request.

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

PTFE Seat Lugged Type SS Actreg Actuated Butterfly Valves
