PN10/PN16/ANSI 150 Drilling
Rated to PN16

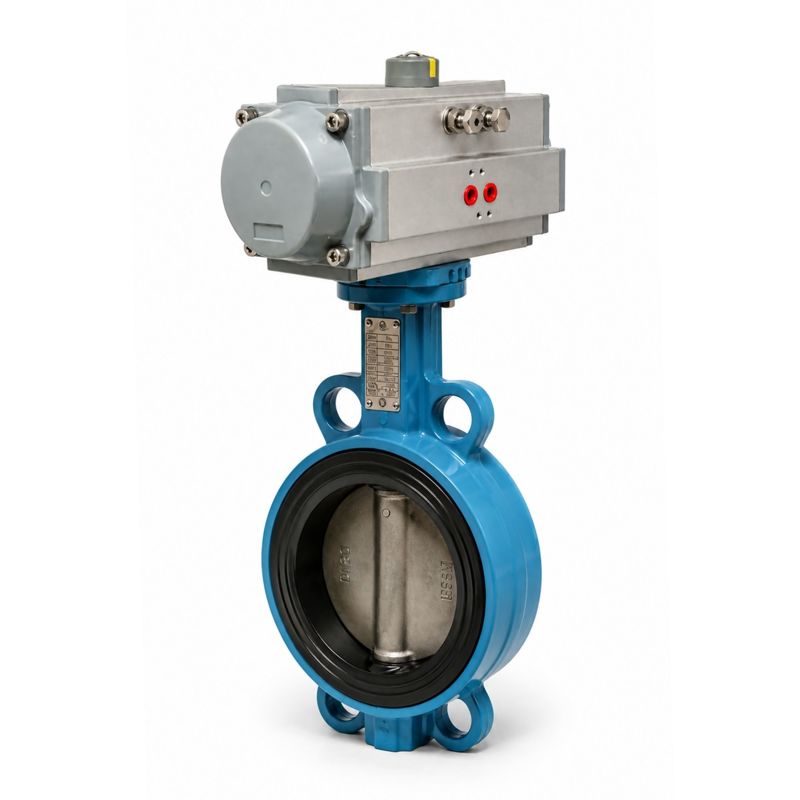

A pneumatic actuated PN16 wafer butterfly valve designed for automated isolation and flow control across water, HVAC and general industrial applications. The compact wafer design allows the valve to be installed between compatible pipeline flanges while keeping installation space and weight to a minimum.
The valve features a ductile iron GJS500-7 body, concentric disc design and EPDM seat for dependable sealing performance.
Pneumatic operation provides fast and reliable automated opening and closing, making the assembly suitable for remote operation and integration into process control systems. The actuator is mounted directly to the valve to create a compact, complete automated valve package.
Available with double acting or spring return pneumatic actuator configurations depending on the required operating and fail-safe function.
Key Features:
- Pneumatic actuated butterfly valve
- PN16 pressure design
- Wafer body design
- Concentric butterfly valve
- Ductile iron GJS500-7 body
- EPDM seat
- Pneumatic operation
- Double acting or spring return actuator options
- Suitable for automated open/close control
- Compact installation between pipeline flanges
- Complete valve and actuator assembly
- Suitable for water, HVAC and general industrial applications
