Bronze and aluminium bronze valves offer a high level of corrosion resistance to mediums such as water and salt water. These characteristics make bronze and aluminium a suitable for many applications within the Marine environment. Air Torque Pneumatic Actuator provides a solution by offering modularity, spring-loaded design that offers fail-safe operation in harsh environments. This allows end users to achieve fast cycle times without sacrificing safety or reliability. Lug-style valves have threaded inserts at both sides of the body that allow them to be installed with only bolts and no nuts. The valve is placed between two flanges, one on each side. This setup permits either piece of piping disconnected without affecting the complete process.

Shop Help Me

Key features and benefits of the 80LM580AT Actuated Butterfly Valves.

Key Features

Each individual actuator retains its full traceability all the way back to the factory with a unique serial number. All assemblies performed by Actuation Valve in house also detail and cross reference this serial number with accompanying valves and accessories in a build sheet format.

Key Features

Our standard corrosive resistant Butterfly Valves are available in a wide range of sizes to suit all industry standards with 2? to 12? Butterfly Valves all available from stock in ANSI or DIN Flanged Connections.

Key Features

The single piece body with threaded lugs is installed using two sets of bolts (One set for each flange) and enables the installer precise self centering capabilities of the valve due to the body design between flanges.

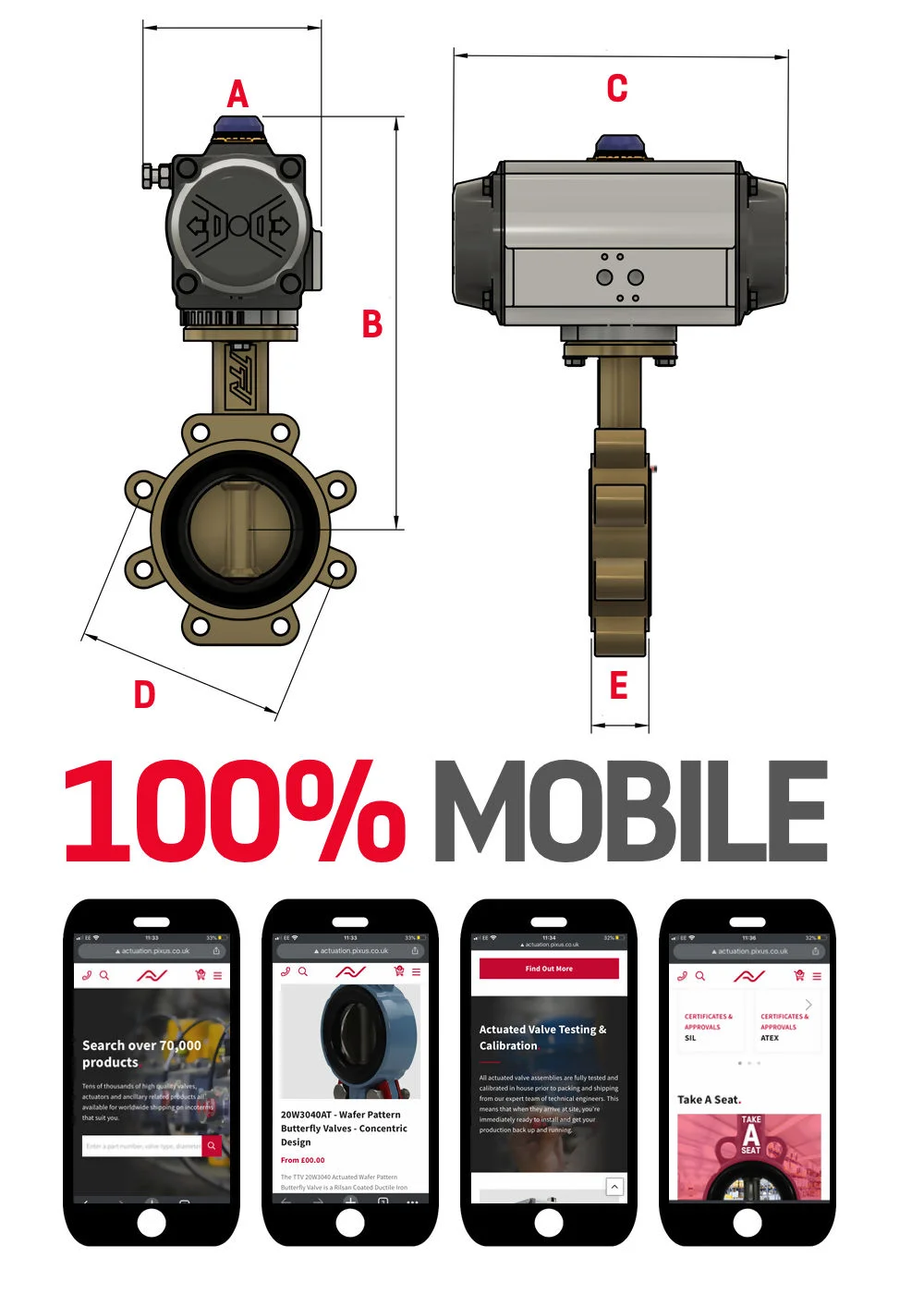

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
1.5"	84.50	245.00	153.50	84.50	245.00	153.50	TBA	33.00
2"	84.50	261.00	153.50	84.50	261.00	153.50	TBA	43.00
2.5"	93.00	283.00	203.50	84.50	266.00	153.50	TBA	46.00
3"	106.50	304.00	241.00	93.00	291.00	203.50	TBA	46.00
4"	108.50	334.00	259.00	106.00	322.00	241.00	TBA	52.00
5"	135.00	381.00	304.00	108.50	353.00	259.00	TBA	56.00
6"	166.00	422.00	394.50	136.00	390.00	304.00	TBA	56.00
8"	181.00	481.00	422.50	166.00	432.00	394.50	TBA	60.00
10"	221.50	543.00	528.00	181.00	474.00	422.50	TBA	68.00
12"	262.00	628.50	605.00	200.00	550.50	474.00	TBA	78.00
14"	262.00	648.50	605.00	221.50	595.00	528.00	TBA	78.00
16"	330.00	720.00	710.00	262.00	688.50	605.00	TBA	102.00
18"	330.00	770.00	710.00	330.00	770.00	710.00	TBA	114.00
20"	528.00	1038.00	950.00	371.00	873.00	812.00	TBA	127.00
24"	528.00	1105.00	950.00	418.00	967.00	876.00	TBA	154.00

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

DRAWINGS & SCHEMATICS

Document

Drawings & Schematics

Document

Drawings & Schematics

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

drawings & schematics

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	B148 C9500 Aluminium Bronze
Seats Material:	EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard:	Concentric, Soft Seat
Face To Face:	EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing:	EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections:	PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing:	ISO 5208, 100% Tight Shut Off, API 598

Yes, this Valve is suitable for sea water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, a switch box can be fitted to the Air Torque pneumatic actuator to provide open and closed position feedback. A switch box is available from stock for safe area and hazardous area installations, including LED visual indication.

We offer discounts on larger order quantities. Contact our sales team with the valve size, quantity and specification you need, and we will provide a tailored quotation.

Yes, the BLX V100E Series is an Electro-Pneumatic control unit that allows the actuator to incrementally adjust the valve's position between fully open and closed. Variants are available for spring return and double acting setups with feedback and safety settings. Ask our team about how the V100E can support your process requirements.

This range is available from 1.5 inch up to 24 inch as standard. Contact our sales team with your specification and we will confirm availability and lead time.

Yes, we can deliver direct to your customer. Send us a copy of your delivery note and we will attach it to the outer packaging so it arrives ready for them, with no reference to our details.

Yes, we offer credit accounts for business customers. Complete a short application with your company details and trading history, and once approved you will be able to order on account. Contact our sales team to get started.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Material	Applications	Temperature
EPDM	Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines	-20°C +110°C
High Temperature EPDM	Super Heated Water	-20°C +130°C
NBR Buna	Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air	-10°C +80°C
Hypalon	Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions	-10°C +80°C
Viton	Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels	-5°C +180°C
Polyisoprene	Water, Alcohols, Abrasive Substances (Call To Check), Ketones,	-10°C +60°C
Silicone	Low & High Temperature Resistance Applications	-30°C +150°C
High Temp Silicone	Super Heated Water	-50°C +160°C
Epichlorohydrin	Ozone Resistance, Hydrocarbons, Aromatic Oils	-25°C +145°C

Certificates and Approvals
