Lugged Type Stainless Steel Elomatic Actuated Valves

The Stainless Steel Butterfly Valves from TTV are a perfect fit for any application that requires an extremely durable and versatile concentric design. These valves can handle harsh conditions like those found in chemical plants due to their CF8M stainless steel body, or other industries where high-quality equipment is needed withstanding rigorous use over time such as power generation. The NAMUR standard interfaces allows for quick and easy fitting of additional ancillary products such as solenoid valves and and valve limit switch position boxes. A perfect addition to the EL-O-Matic actuator would be Asco solenoid valves and TopWorx limit switch boxes.
Shop Help Me

Key Features

Key features and benefits of the 40L4040EL Actuated Butterfly Valves.
1

Key Features

The EL-O-Matic Pneumatic Actuator uses an innovative design that combines proven technology with state of art engineering techniques to deliver reliable results without increasing complexity or adding additional components into your system.
2

Key Features

Compliance to NAMUR interface standard allows the actuator to be packaged with a wide range of accessories. This makes it easy to integrate the El-O-Matic Pneumatic Actuator into existing systems where there are already components available for attachment on site.
3

Key Features

Our Actuated Butterfly Valves use an innovative design that overcomes the limitations inherent in traditional butterfly valve designs while still maintaining the same simple operation and bubble tight seal required by any application where these products would normally be used.

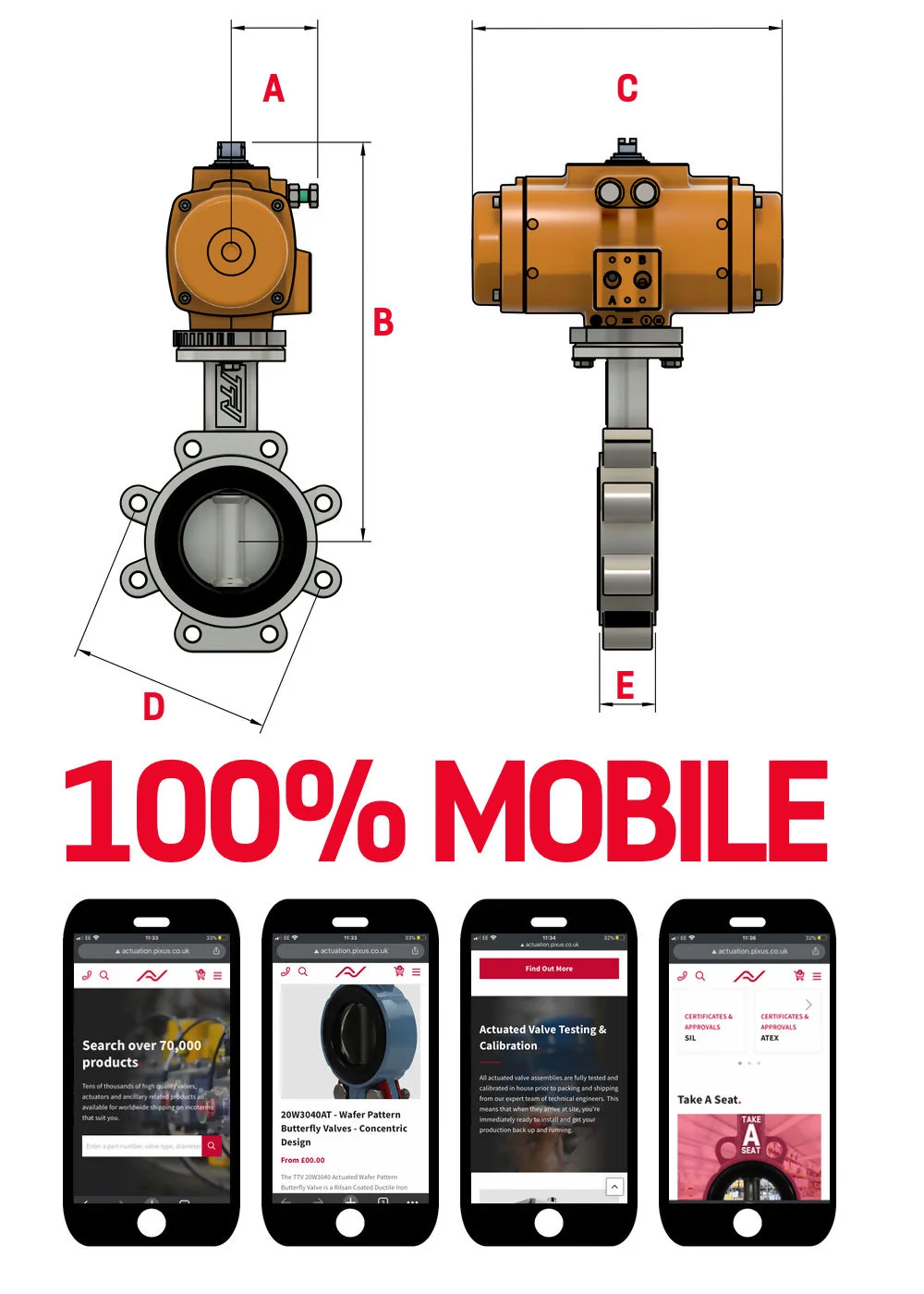

Fully Lugged Butterfly Valve Technical

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 48.00 259.00 166.00 33.00 220.00 103.00 TBA 33.00
2" 48.00 275.00 166.00 48.00 275.00 166.00 TBA 43.00
2.5" 58.00 300.00 192.00 58.00 300.00 192.00 TBA 46.00
3" 69.00 320.00 217.00 58.00 308.00 192.00 TBA 46.00
4" 69.00 345.00 247.00 69.00 338.00 217.00 TBA 52.00
5" 75.00 391.00 304.00 75.00 391.00 235.00 TBA 56.00
6" 87.00 406.00 362.00 87.00 406.00 265.00 TBA 56.00
8" 109.00 485.00 385.00 109.00 485.00 284.00 TBA 60.00
10" 132.00 540.00 476.00 132.00 540.00 356.00 TBA 68.00
12" 131.00 585.00 658.00 132.00 572.00 356.00 TBA 78.00
14" 156.00 639.00 732.00 156.00 639.00 528.00 TBA 78.00
16" 175.00 767.00 959.00 181.00 732.00 605.00 TBA 102.00
18" TBA TBA TBA 181.00 782.00 710.00 TBA 114.00
20" TBA TBA TBA 175.00 867.00 812.00 TBA 127.00
24" TBA TBA TBA TBA TBA TBA TBA 154.00

Fully Lugged Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

SMALL Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

SMALL Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
  • Size 0100
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

Valve Standards & Stuff
Body Material: CF8M Stainless Steel
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

BIG Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0200
  • ZIP
DRAWINGS & SCHEMATICS

0350
  • ZIP
DRAWINGS & SCHEMATICS

0600
  • ZIP
DRAWINGS & SCHEMATICS

0950
  • ZIP
DRAWINGS & SCHEMATICS

1600
  • ZIP
DRAWINGS & SCHEMATICS

2500

BIG Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0200
  • ZIP
DRAWINGS & SCHEMATICS

0350
  • ZIP
DRAWINGS & SCHEMATICS

0600
  • ZIP
DRAWINGS & SCHEMATICS

0950
  • ZIP
DRAWINGS & SCHEMATICS

1600
  • ZIP
DRAWINGS & SCHEMATICS

2500

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

Bureau Veritas
  • PDF
CERTIFICATES & APPROVALS

ABS
  • PDF
CERTIFICATES & APPROVALS

ATEX 2014/34/UE
  • PDF
CERTIFICATES & APPROVALS

ACS
  • PDF
CERTIFICATES & APPROVALS

PED 2014/68/UE
  • PDF
CERTIFICATES & APPROVALS

Lloyds ISO 9001

Actuator Stuff

  • PDF
Brochures

F-Series Elomatic
  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Safety Manual
  • PDF
CERTIFICATES & APPROVALS

Declaration Of Conformity
  • PDF
CERTIFICATES & APPROVALS

Attestation Of Conformity

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat

Elomatic Actuator Videos

Elomatic Overview

TopWorx Limit Switch Box

TopWorx Elomatic Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Elomatic Actuator prior to shipping.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
