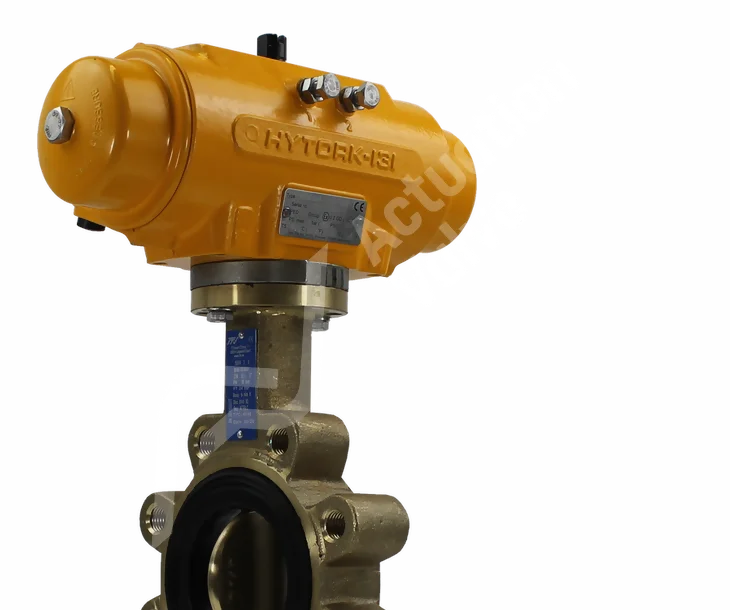

Lugged Aluminium Bronze TTV Actuated Butterfly Valves

The physical strength, structural stability, and corrosion resistance of bronze, in particular, makes it very suitable for a wide variety of applications in the mainstream of industrial re­quirements. Bronze in valve manufac­ture is usually an alloy of copper, tin, lead, and zinc. The Hytork Actuator Extremely high mechanical strength designed to withstand heavy loads when subjected to external forces like shock or impact. Ideal for use in harsh environments such as Marine or Oil & Gas with long-lasting durability. Lug valves are a great way to make repairs in the field easy. They have threaded inserts at both sides of their body, which means you can install them with no nuts. If one side needs servicing all you need do is detach whichever suits best.

Key Features

Key features and benefits of the 80LM580XL Actuated Butterfly Valves.
1

Key Features

Compact and simple yet effective design the Hytork XL range of pneumatic actuators offer easy integration of both new and existing systems. Direct. Mount capabilities and simple mounting kit assemblies which can be provided to suit your valve.
2

Key Features

In marine applications, it is important to have a product that will last. With the range of approvals from recognised bodies such as DNV, Bureau Veritas and Lloyds & ABS you can rest assured that our valves are durable and reliable.
3

Key Features

TTV Butterfly Valves concentric design features an elastic, replaceable seat that takes the shape of both the inside and partially outer side of the body of the valve to form a perfect seal. This TTV Butterfly Valve is suitable for both on and off or throttling applications.

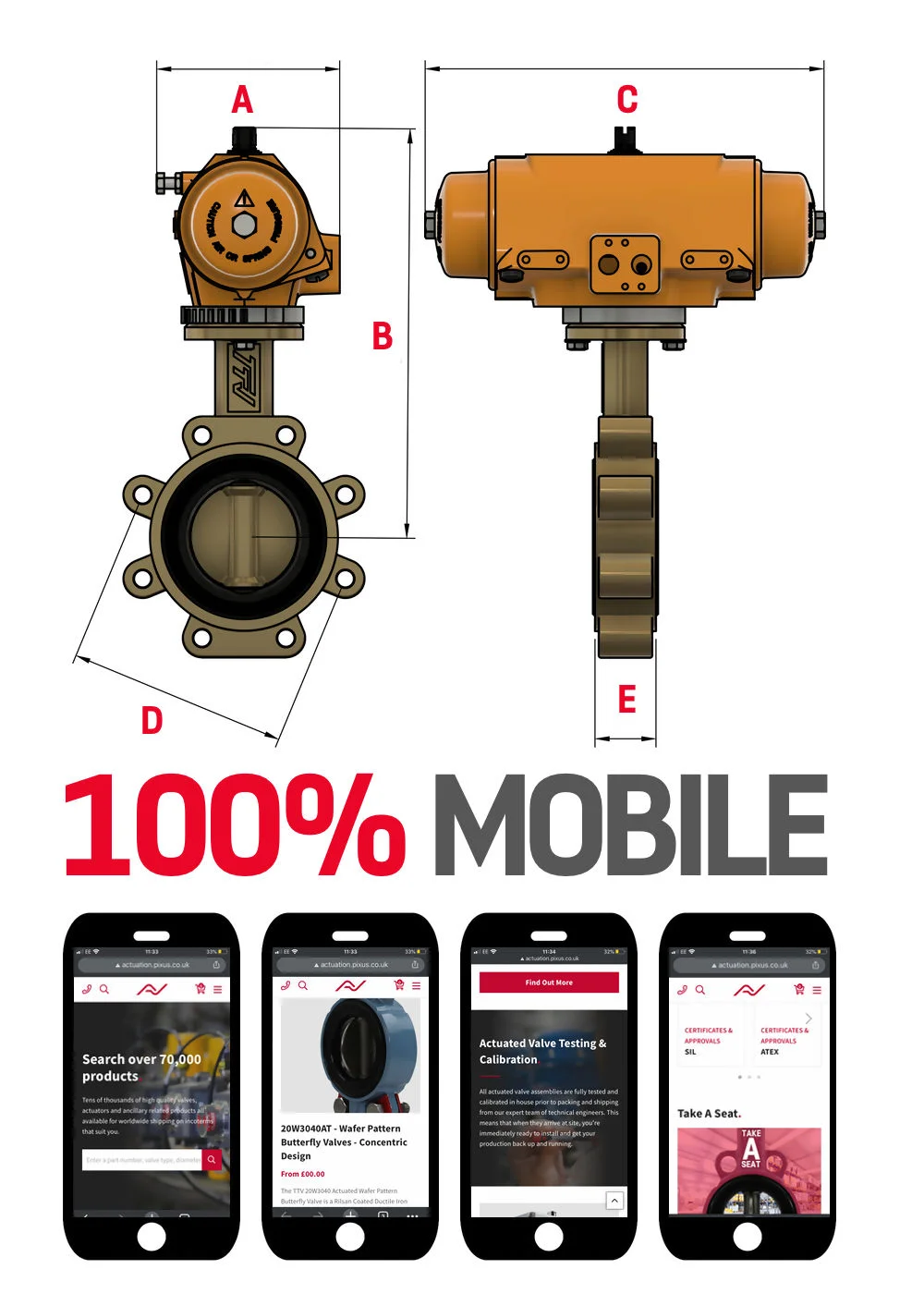

Fully Lugged Butterfly Valve Technical

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 97.00 244.50 165.00 97.00 244.50 165.00 TBA 33.00
2" 116.50 278.40 221.80 97.00 260.50 165.00 TBA 43.00
2.5" 116.50 283.40 221.80 116.50 283.40 221.80 TBA 46.00
3" 133.50 307.40 292.00 116.50 291.40 221.80 TBA 46.00
4" 143.10 331.05 331.60 133.50 325.40 292.00 TBA 52.00
5" 170.00 382.00 348.00 143.10 350.05 331.60 TBA 56.00
6" 174.00 384.00 462.00 158.50 374.90 349.80 TBA 56.00
8" 190.00 459.00 580.00 174.00 424.00 292.00 TBA 60.00
10" 240.00 482.00 647.00 190.00 452.00 324.00 TBA 68.00
12" 246.00 529.00 696.00 240.00 514.00 396.00 TBA 78.00
14" 253.00 594.00 862.00 246.00 549.00 407.00 TBA 78.00
16" 321.00 730.00 884.00 253.00 634.00 476.00 TBA 102.00
18" 321.00 780.00 884.00 321.00 780.00 515.00 TBA 114.00
20" TBA TBA TBA 321.00 830.00 515.00 TBA 127.00
24" TBA TBA TBA TBA TBA TBA TBA 154.00

Fully Lugged Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: GJS500-7 Ductile Iron Rilsan Coated
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for sea water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, a TopWorx switch box can be fitted to the Hytork pneumatic actuator to provide open and closed position feedback. A switch box is available from stock for safe area and hazardous area installations, including LED visual indication.

We offer discounts on larger order quantities. Contact our sales team with the valve size, quantity and specification you need, and we will provide a tailored quotation.

Yes, the BLX V100E Series is an Electro-Pneumatic control unit that allows the actuator to incrementally adjust the valve's position between fully open and closed. Variants are available for spring return and double acting setups with feedback and safety settings. Ask our team about how the V100E can support your process requirements.

This range is available from 1.5 inch up to 18 inch as standard, with larger sizes available to order. Contact our sales team with your specification and we will confirm availability and lead time.

Yes, we can deliver direct to your customer. Send us a copy of your delivery note and we will attach it to the outer packaging so it arrives ready for them, with no reference to our details.

Yes, we offer credit accounts for business customers. Complete a short application with your company details and trading history, and once approved you will be able to order on account. Contact our sales team to get started.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

TopWorx Limit Switch Box

TopWorx Hytork Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Hytork Actuator prior to shipping.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C
