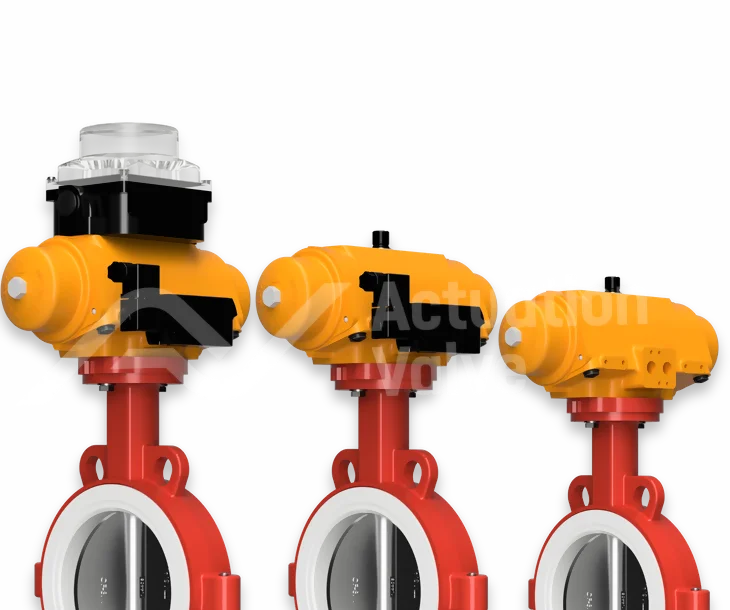

PTFE Seat Hytork Actuated Pneumatic Butterfly Valves

The complete PTFE Seat avoids any possibility of cross-contamination providing a butterfly valve that is extremely resistant to chemicals and solvents with complete insolubility to 300°C. For additional abrasion resistance the option of a UHMWPE also is available. The Hytork Pneumatic Actuator provides precise gear tooth mesh while extending gear life thanks to its extra large rack and pinion tooth design that promotes full tooth engagement. This product comes with a one year warranty against manufacturing defects from date of purchase. Hand polished, streamlined discs produce a much greater Cv than other butterfly valves on the market resulting in low pressure drops and reduced energy costs while maintaining a bi-directional bubble tight seal in the closed position.

Key Features

Key features and benefits of the 20WP4040F0TXL Actuated Butterfly Valves.
1

Key Features

Mainly for use in highly corrosive environments and higher service temperatures the High Performance Wafer Pattern PTFE Butterfly Valve features a non-toxic PTFE internal seal which also partially covers the outer body of the valve for perfect sealing with counter flanges.
2

Key Features

Affordable alternative to standard quarter turn pneumatic actuators of lower quality. Offering overall reduced cost of ownership with precise high speed actuation. Can be used a stand alone unit or part of smart automated assembly lines.
3

Key Features

The High Performance Wafer Pattern PTFE Butterfly Valve can be used in highly corrosive environments as well as higher service temperatures without any issues arising due to its unique design and properties.

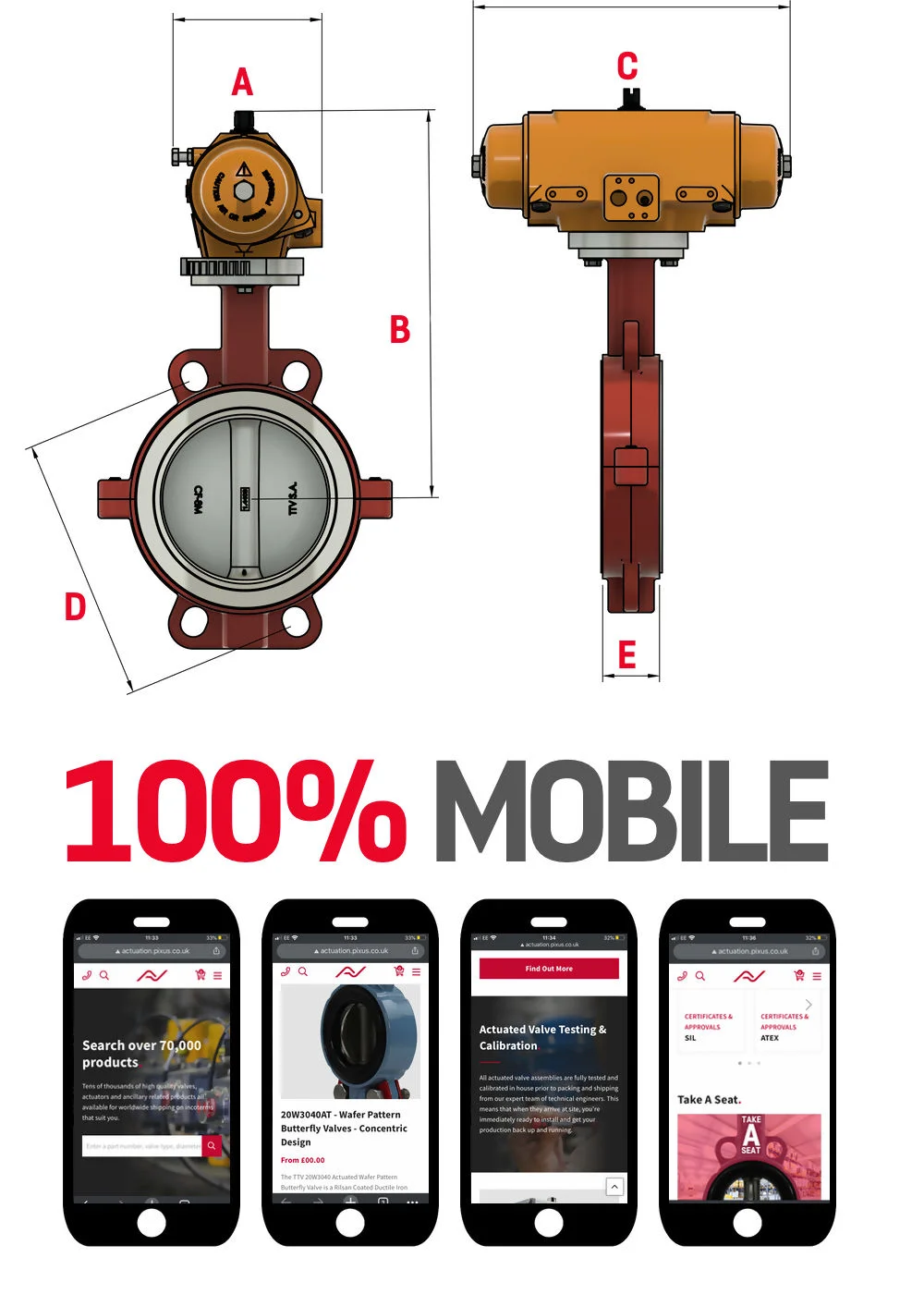

PTFE Seat Wafer Butterfly Valve Dims

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 116.50 262.40 221.80 116.50 262.40 221.80 TBA 33.00
2" 143.01 300.05 331.60 133.50 294.40 292.00 TBA 43.00
2.5" 143.01 305.05 331.60 133.50 299.40 292.00 TBA 46.00
3" 158.50 328.90 349.80 143.10 313.05 331.60 TBA 46.00
4" 170.00 363.00 348.00 143.10 331.05 331.60 TBA 52.00
5" 190.00 410.00 582.00 170.00 382.00 243.00 TBA 56.00
6" 190.00 419.00 582.00 156.00 384.00 292.00 TBA 56.00
8" 190.00 459.00 582.00 156.00 424.00 292.00 TBA 60.00
10" 240.00 482.00 647.00 174.00 452.00 324.00 TBA 68.00
12" 253.00 574.00 862.00 199.00 514.00 396.00 TBA 78.00
14" TBA TBA TBA TBA TBA TBA TBA TBA
16" TBA TBA TBA TBA TBA TBA TBA TBA
18" TBA TBA TBA TBA TBA TBA TBA TBA
20" TBA TBA TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA TBA TBA

PTFE Seat Wafer Butterfly Valve 3D

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: PTFE, PFA, UHMWPE Stainless steel (CF-8M)
Shaft Materials: AISI 316, 17-4PH, Duplex
Face To Face: ISO 5752 Series 20, BS 5155 Wafer, DIN 3202 Part 3, Series K1
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 705, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, API 598

Frequent Interrogation

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

Great. That would be in our actuated butterfly valve section! Have a look over there or get us on 0151 547 1221. We have what you need.

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boxes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No. Why do people keep asking!? We are not the silly pink valve company.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Non Toxic FDA Approved PTFE

Wafer Pattern concentric design features a non-toxic PTFE internal seal which also partially covers the outer body of the valve for perfect sealing with counter flanges. Thus avoiding any possibility of cross-contamination and providing a butterfly valve that is extremely resistant to chemicals and solvents with complete insolubility to 300°C.

Engineered Shaft Design

A single piece shaft design brings high strength and stability with direct mount capabilities for actuation assemblies and ensures fluid is again isolated from both the shaft and the body of the butterfly valve. This also eliminates the need for a customised mounting assembly kit which can bring additional costs and time.

Streamlined Butterfly Valve Discs

Greater CV Potential & Less Pipe Space

TTV’s streamlined discs produce a much greater Cv than other butterfly valves on the market resulting in low-pressure drops and reduced energy costs while maintaining a bi-directional zero leakage seal when in the closed position. Low operational torque and reduced friction reduces the costs of gear, pneumatic and electric actuation whilst extending the life of the valve seal. A silicone elasticised gasket facilitates the valve sealing.

For applications which require abrasion resistance the option of a UHMWPE (Ultra-High-Molecular-Weight-Polyethylene) is available for this particular butterfly valve.

Less space, results in less material, bringing significantly lower costs in the process. As part of Isolation applications, our valves can be fully open or fully closed with quarter turn movement (90 Degrees) of the functioning lever or actuator. When closed, the reliable seal and disc can provide 100% leak tight downstream shutoff and low-pressure loss across the valve when opened through a streamlined, energy saving metallic disc. These types of valves can also be used to regulate flow pressure or temperature through a multi-position lockable lever or 4-20mA 3-15 psi control.

Actuated Butterfly Valves are available in both pneumatic and electric operation and can be beneficial for use in remotely accessed areas, valves that require larger torque figures to operate, timing or synchronisation and reliability. Pneumatically Actuated Butterfly Valves provide the quickest form of operational control for open/close functionality and are available in both double acting and spring return units with either direct/solenoid operation. Spring Return units can be set up in a fail-safe closed mode for critical lines were the Valve will return to the closed position upon the event of power failure through the loaded springs. Fail-safe open Valves are also available upon request.

Hytork Actuator Videos

TopWorx Limit Switch Box

TopWorx Hytork Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Hytork Actuator prior to shipping.
