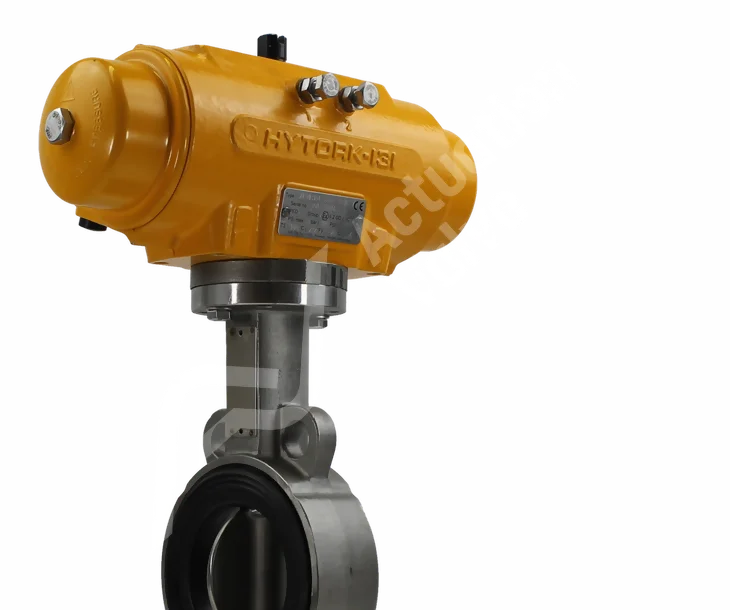

Wafer Type Stainless Steel Hytork/TTV Butterfly Valves

With the Hytork Pneumatic Actuator you get a reliable unit that has been tested extensively on thousands of installations worldwide. Our actuators offer an adjustable stroke length with no additional parts required. Simply adjust the travel stops as needed. The Wafer Pattern TTV Stainless Steel Butterfly Valves offer a very similar corrosion resistance to that seen in standard products, but also provide external protection for more aggressive environments such as those with harsh chemicals or wash downs from equipment employed during manufacturing processes - making them perfect additions to most plant operations.

Key Features

Key features and benefits of the 40W4040XL Actuated Butterfly Valves.

Key Features

Hytork actuators offer NAMUR mounting (VDE/VDI 3845) allowing for easy integration with the manufacturer ancillary products such as solenoid valves and limit switch boxes that might be site standard. Actuation Valve can also supply a range of accessories for you actuator.

Key Features

Hytork Pneumatic Actuators are designed specifically for critical installations where downtime is not an option. Emerson offer worldwide technical support during installation as well as after sales and technical advice for the lifetime of the product.

Key Features

Hytork understand how important it is for customers' equipment to function properly at all times, which is why we make sure every pneumatic actuator undergoes rigorous testing before leaving the factory. Ready for immediate installation on your Valve or production line!

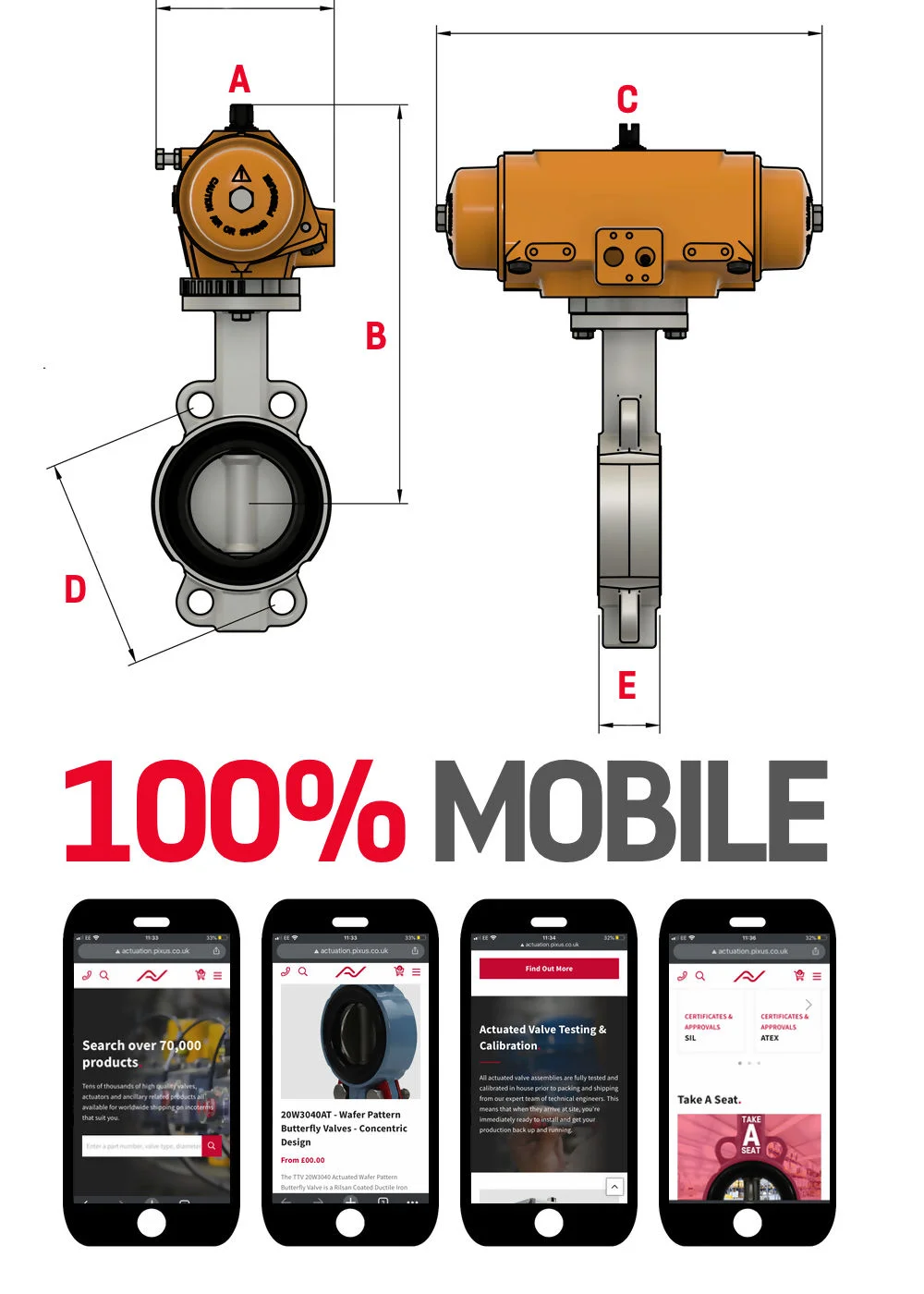

Wafer Type Butterfly Valve Technical

1.5" 97.00 244.50 165.00 97.00 244.50 165.00 TBA 33.00
2" 116.50 278.40 221.80 97.00 260.50 165.00 TBA 43.00
2.5" 116.50 283.40 221.80 116.50 283.40 221.80 TBA 46.00
3" 133.50 307.40 292.00 116.50 291.40 221.80 TBA 46.00
4" 143.10 331.05 331.60 133.50 325.40 292.00 TBA 52.00
5" 170.00 382.00 348.00 143.10 350.05 331.60 TBA 56.00
6" 174.00 384.00 462.00 158.50 374.90 349.80 TBA 56.00
8" 190.00 459.00 580.00 174.00 424.00 292.00 TBA 60.00
10" 240.00 482.00 647.00 190.00 452.00 324.00 TBA 68.00
12" 246.00 529.00 696.00 240.00 514.00 396.00 TBA 78.00
14" 253.00 594.00 862.00 246.00 549.00 407.00 TBA 78.00
16" 321.00 730.00 884.00 253.00 634.00 476.00 TBA 102.00
18" 321.00 780.00 884.00 321.00 780.00 515.00 TBA 114.00
20" TBA TBA TBA 321.00 830.00 515.00 TBA 127.00

Wafer Type Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: CF8M Stainless Steel
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat

Hytork Actuator Videos

TopWorx Limit Switch Box

TopWorx Hytork Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Hytork Actuator prior to shipping.
