PTFE Lined SS Actuated Hytork Butterfly Valves

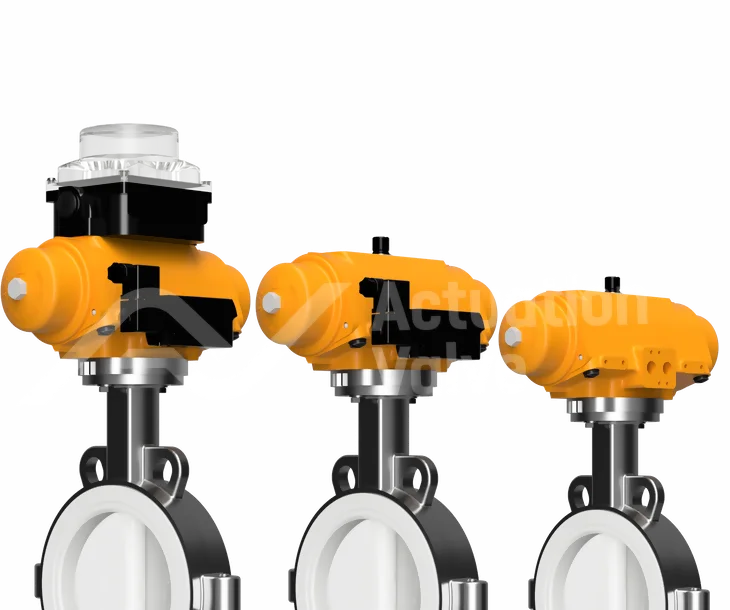

The TTV High Performance Wafer Pattern PTFE Butterfly Valve features a non-toxic internal seal and coated seat. The butterfly design of this valve provides excellent flow rates and reduces particulate collection. The non-toxic PTFE internal seal also covers the outer body of this valve, making it able to Seal perfectly with counter flanges while providing a protective layer against corrosion caused by exposure to aggressive environments. Hytork has developed a unique ceramic-like coating (CEREMIGARD) for its internal parts that protects pneumatic actuators from corrosion caused by exposure to moisture and chemicals found in the environment where they operate.

Key Features

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.
1

Key Features

The PTFE Butterfly Valve features a non-toxic PTFE seal that also partially covers the outer body of the valve for perfect sealing with counter flanges. This makes them ideal for use in highly corrosive environments and higher service temperatures where traditional materials fail.
2

Key Features

The TTV PTFE Stainless Steel Butterfly Valves offer both external and internal protection to extreme environments. They can be used in pipelines, food processing plants or pharmaceutical factories that need regular washing down due the harsh chemicals they process with.
3

Key Features

The Hytork Pneumatic Actuator provides precise gear tooth mesh while extending gear life thanks to its extra large rack and pinion tooth design that promotes full tooth engagement. This product comes with a one year warranty against manufacturing defects from date of purchase.

PTFE Lined SS Wafer Butterfly Valve Dims

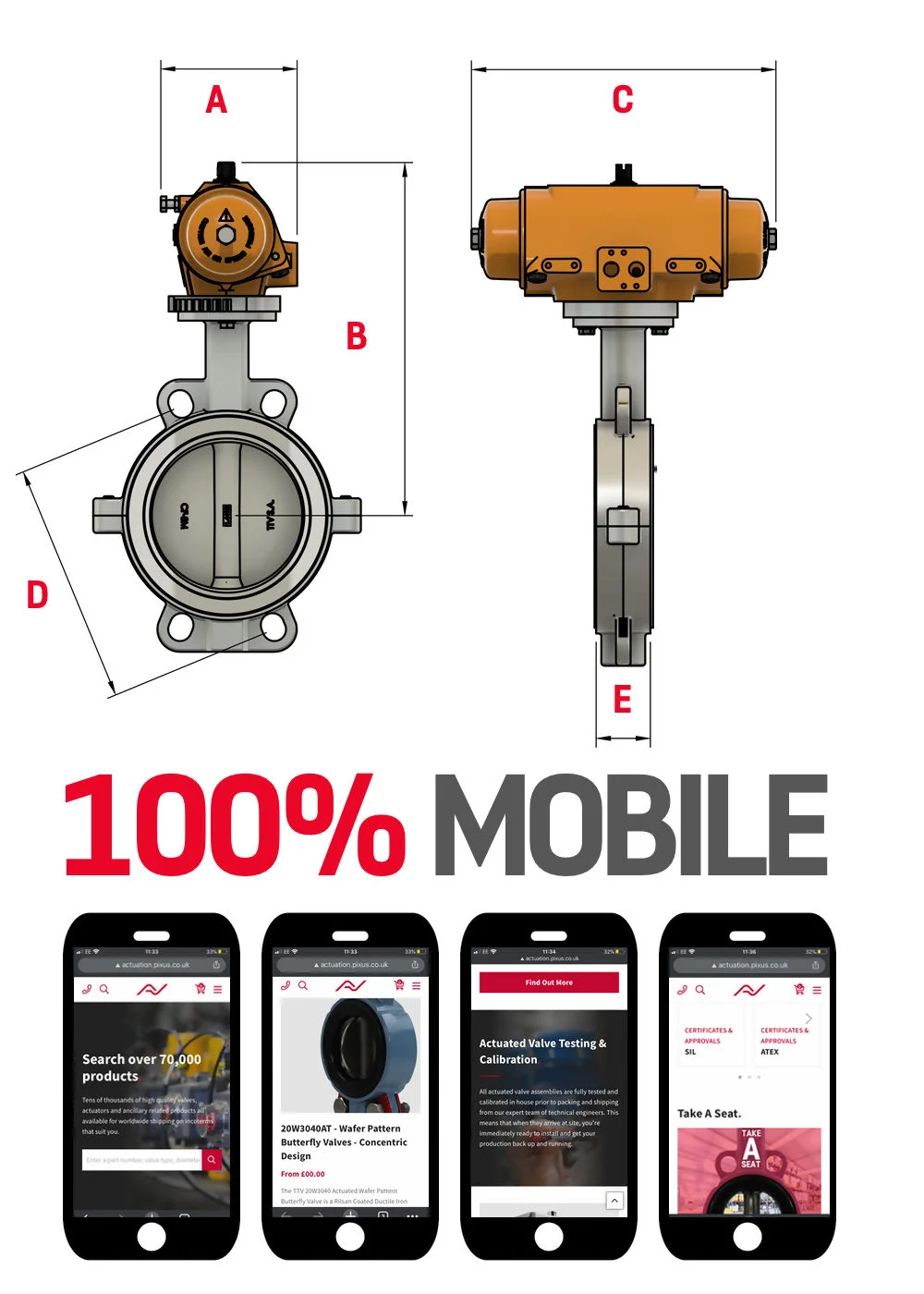

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 116.50 262.40 221.80 116.50 262.40 221.80 TBA 33.00
2" 143.01 300.05 331.60 133.50 294.40 292.00 TBA 43.00
2.5" 143.01 305.05 331.60 133.50 299.40 292.00 TBA 46.00
3" 158.50 328.90 349.80 143.10 313.05 331.60 TBA 46.00
4" 170.00 363.00 348.00 158.50 346.90 349.80 TBA 52.00
5" 190.00 410.00 582.00 156.00 375.00 292.00 TBA 56.00
6" 190.00 419.00 582.00 156.00 384.00 292.00 TBA 56.00
8" 190.00 459.00 582.00 174.00 459.00 324.00 TBA 60.00
10" 246.00 497.00 696.00 199.00 482.00 396.00 TBA 68.00
12" 253.00 574.00 862.00 216.00 529.00 407.00 TBA 78.00
14" TBA TBA TBA TBA TBA TBA TBA TBA
16" TBA TBA TBA TBA TBA TBA TBA TBA
18" TBA TBA TBA TBA TBA TBA TBA TBA
20" TBA TBA TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA TBA TBA

PTFE Lined SS Wafer Butterfly Valve 3D

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: CF8M Stainless Steel
Disc Materials: PTFE, PFA, UHMWPE Stainless steel (CF-8M)
Shaft Materials: AISI 316, 17-4PH, Duplex
Face To Face: ISO 5752 Series 20, BS 5155 Wafer, DIN 3202 Part 3, Series K1
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 705, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, API 598

Frequent Interrogation

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

We can. The final is product customizable at the bottom of the page! Have a look down there or get us on 0151 547 1221. We have everything from Safe Area to ATEX in multiple voltages.

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boxes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No. Why do people keep asking!? We are not the silly pink valve company.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Non Toxic FDA Approved PTFE

Wafer Pattern concentric design features a non-toxic PTFE internal seal which also partially covers the outer body of the valve for perfect sealing with counter flanges. Thus avoiding any possibility of cross-contamination and providing a butterfly valve that is extremely resistant to chemicals and solvents with complete insolubility to 300°C.

Engineered Shaft Design

A single piece shaft design brings high strength and stability with direct mount capabilities for actuation assemblies and ensures fluid is again isolated from both the shaft and the body of the butterfly valve. This also eliminates the need for a customised mounting assembly kit which can bring additional costs and time.

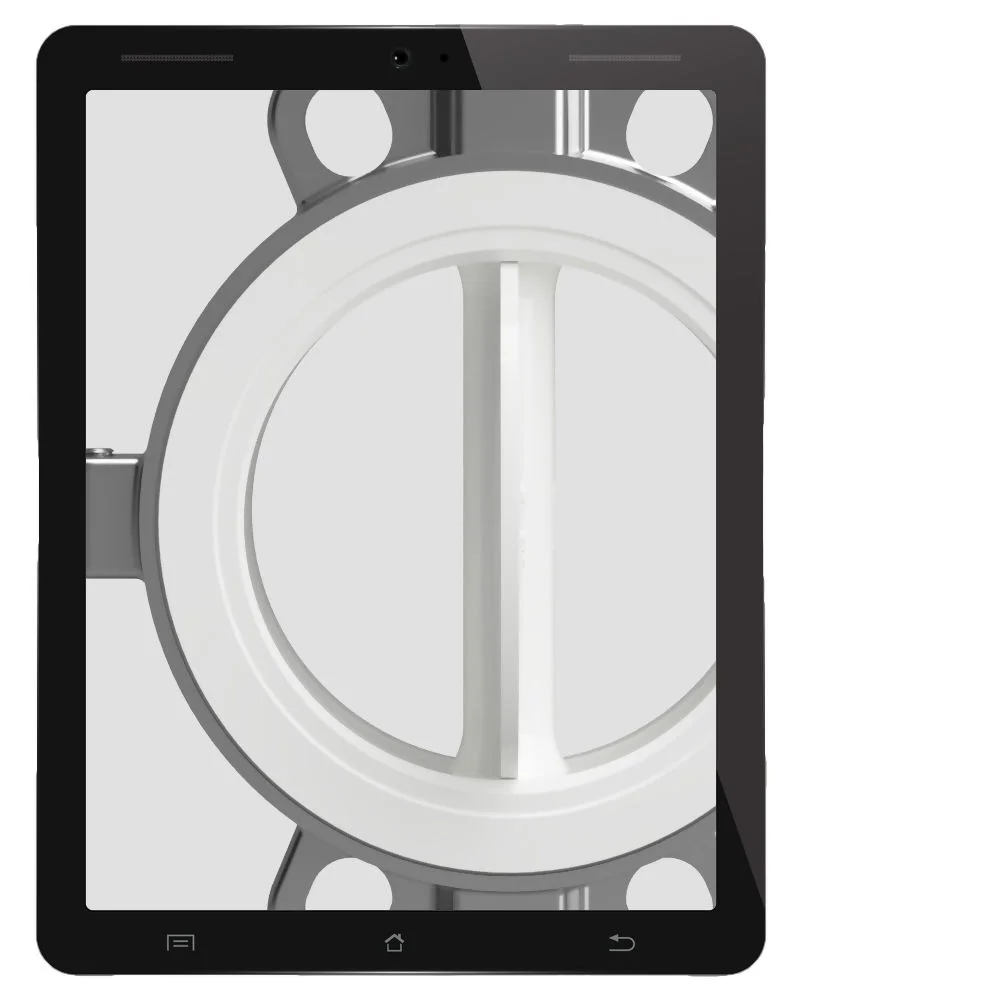

Streamlined Butterfly Valve Discs

Greater CV Potential & Less Pipe Space

TTV’s streamlined discs produce a much greater Cv than other butterfly valves on the market resulting in low-pressure drops and reduced energy costs while maintaining a bi-directional zero leakage seal when in the closed position. Low operational torque and reduced friction reduces the costs of gear, pneumatic and electric actuation whilst extending the life of the valve seal. A silicone elasticised gasket facilitates the valve sealing.

For applications which require abrasion resistance the option of a UHMWPE (Ultra-High-Molecular-Weight-Polyethylene) is available for this particular butterfly valve.

Less space, results in less material, bringing significantly lower costs in the process. As part of Isolation applications, our valves can be fully open or fully closed with quarter turn movement (90 Degrees) of the functioning lever or actuator. When closed, the reliable seal and disc can provide 100% leak tight downstream shutoff and low-pressure loss across the valve when opened through a streamlined, energy saving metallic disc. These types of valves can also be used to regulate flow pressure or temperature through a multi-position lockable lever or 4-20mA 3-15 psi control.

Actuated Butterfly Valves are available in both pneumatic and electric operation and can be beneficial for use in remotely accessed areas, valves that require larger torque figures to operate, timing or synchronisation and reliability. Pneumatically Actuated Butterfly Valves provide the quickest form of operational control for open/close functionality and are available in both double acting and spring return units with either direct/solenoid operation. Spring Return units can be set up in a fail-safe closed mode for critical lines were the Valve will return to the closed position upon the event of power failure through the loaded springs. Fail-safe open Valves are also available upon request.

Hytork Actuator Videos

TopWorx Limit Switch Box

TopWorx Hytork Valve Limit Switch Box available foe this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Hytork Actuator prior to shipping.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

PTFE Lined Stainless Steel Hytork Actuated Butterfly Valves
