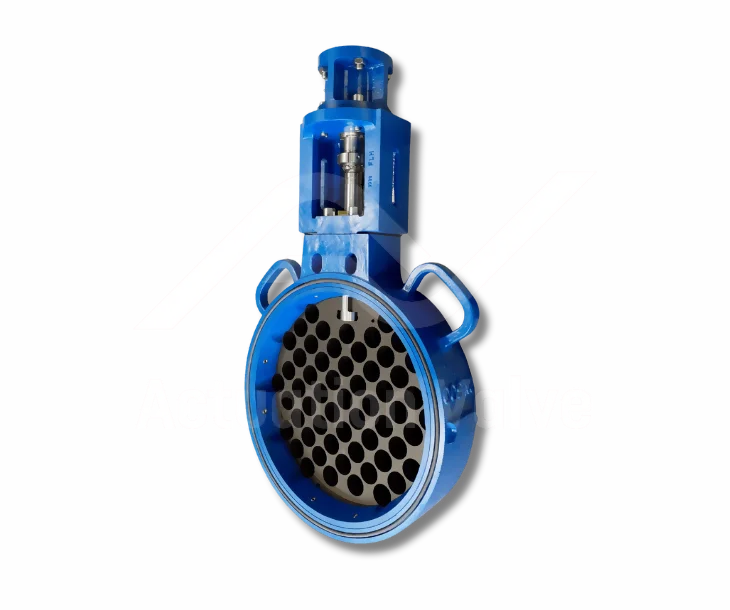

SAPAG MONOVAR® Control Valves

The SAPAG MONOVAR® Control Valves are ideal for water distribution and treatment networks, sea water networks, and energy production. Available in sizes DN100 to DN200 (4" to 8"), these unidirectional valves operate at a maximum pressure of 50 bar and a temperature range of -20°C to 100°C. They offer a leakage rate of FCI70-2 Class III max and come in various flange types: Wafer (DN100 – 1500), Lug (DN 900 – 2100), with other options on request. They are approved by ACS.
Shop Help Me

Key Features

Key features and benefits of SAPAG MONOVAR® Control Valves
1

Key Features

Designed with a compact, short face-to-face dimension, making installation and integration into existing systems easy and space-efficient.
2

Key Features

Engineered to be lightweight, facilitating easier handling, transportation, and installation without compromising on performance or durability.
3

Key Features

Built with materials and design features that minimise wear, ensuring long-lasting operation and reducing the need for frequent maintenance.

Valve Standards & Stuff
Valve Size: DN100 to DN200 (4" to 8")
Maximum Pressure: 50 bar
Temperature Range: -20°C to 100°C
Design: Unidirectional Design
Leakage Rate: FCI70-2 Class III max
Flange Types: Wafer: DN100 – 1500 / Lug: DN 900 – 2100 / Others: On Request
Approvals: ACS
General Applications: Water Distribution & Treatment Networks, Sea Water Networks, & Energy Production

Frequent Interrogation

SAPAG Control Valves are commonly used in water distribution and treatment networks, sea water networks, and energy production networks, including power plants and various general industries.

SAPAG Control Valves are available in sizes ranging from DN 100 to DN 2100.

The maximum working pressure for SAPAG Control Valves is 50 bar, depending on the valve size (DN).

SAPAG Control Valves can operate within a temperature range of -20°C to +100°C.

SAPAG Control Valves are designed to be unidirectional.

SAPAG Control Valves have a leakage rate of FCI70-2 Class III max.

SAPAG Control Valves offer wafer connections for DN 100 – 1500, lug connections for DN 900 – 2100, and other types of connections available on request.

Yes, SAPAG Control Valves are certified for potable water use with ACS certification, and NSF61 certification is available upon request.

SAPAG Control Valves offer several advantages, including a short face to face, low weight, low wear, very precise process regulation, low cavitation, high resistance, fast flow recovery, external mechanical stop, and a direct visual indicator.

The short face-to-face design of SAPAG Control Valves helps reduce installation space and weight, making them easier to handle and install.
