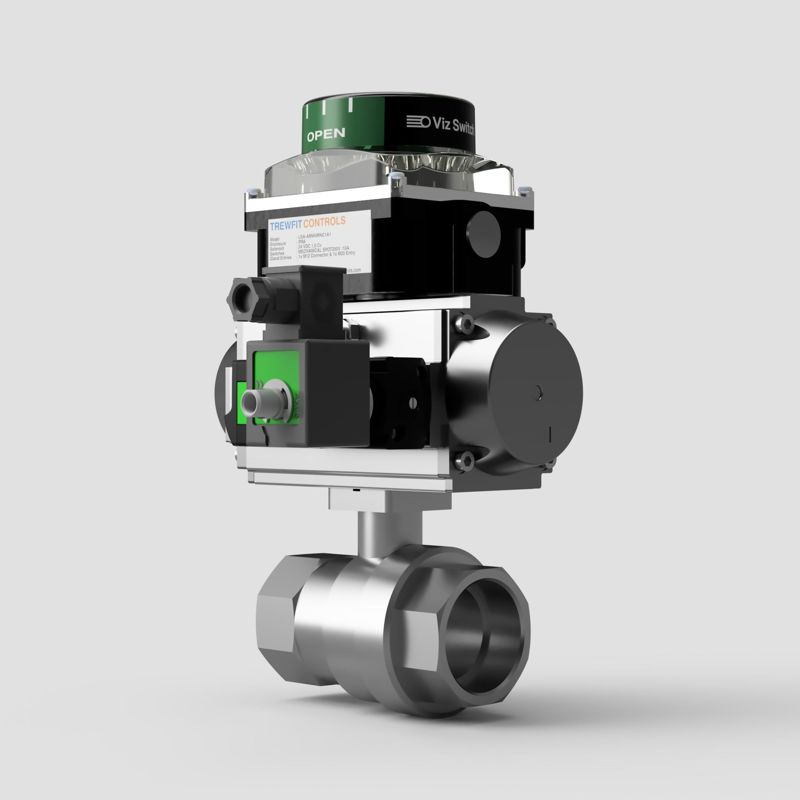

The V-Tork Solenoid Operated 2 Piece Premium Ball Valve with Switchbox combines a two-piece full bore stainless steel ball valve with a V-Tork pneumatic actuator, solenoid valve and switchbox for automated flow control with position feedback.
The valve body is cast in stainless steel A351 CF8M with screwed BSP connections and a 1000 PSI rating. The two-piece design gives a compact, robust assembly with fewer potential leak paths than a three-piece body.
The pneumatic actuator provides quarter-turn operation in either spring return or double acting form, while the solenoid valve controls the actuator air supply electrically in 24VDC, 110VAC or 230VAC. The fitted switchbox provides open and closed position indication, making the assembly suitable for systems where valve status needs to be monitored remotely.
Key Features:
V-Tork pneumatic actuator
Two-piece full bore ball valve
Stainless steel A351 CF8M body
Screwed BSP connections
1000 PSI rated
Compact two-piece body design
Spring return and double acting options
Solenoid valve with 24VDC, 110VAC and 230VAC coil options
Switchbox for open and closed position feedback
Suitable for industrial and process systems
