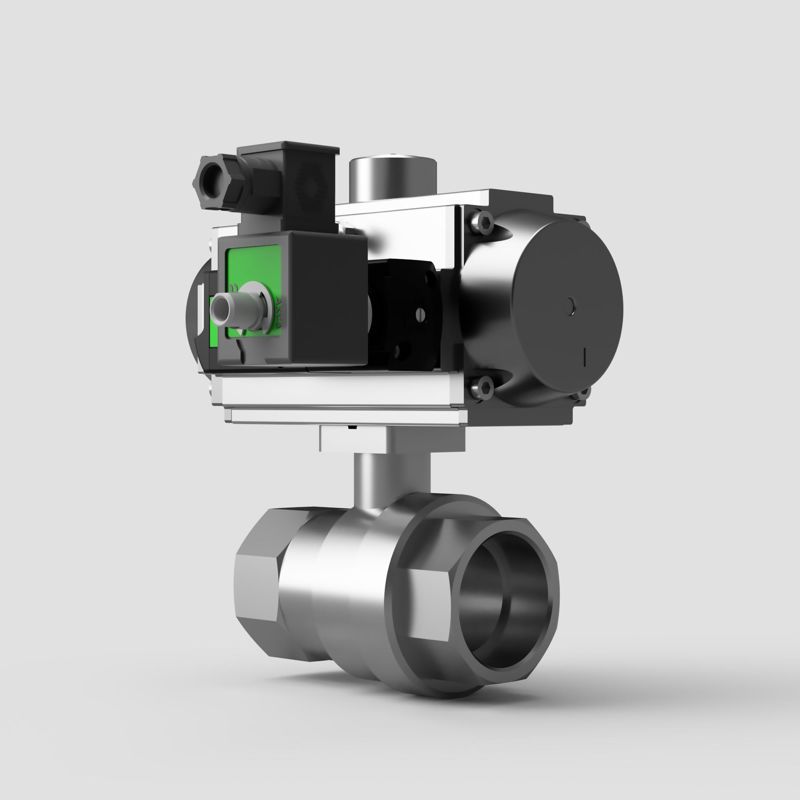

The V-Tork Solenoid Operated 2 Piece Premium Ball Valve combines a two-piece full bore stainless steel ball valve with a V-Tork pneumatic actuator and solenoid valve for automated flow control in industrial and process systems.
The valve body is cast in stainless steel A351 CF8M with screwed BSP connections and a 1000 PSI rating. The two-piece design gives a compact, robust assembly with fewer potential leak paths than a three-piece body.
The pneumatic actuator provides reliable quarter-turn operation in either spring return or double acting form, while the solenoid valve enables electrical control of the actuator air supply. Solenoid coils are available in 24VDC, 110VAC and 230VAC.
Key Features:
V-Tork pneumatic actuator
Two-piece full bore ball valve
Stainless steel A351 CF8M body
Screwed BSP connections
1000 PSI rated
Compact two-piece body design
Spring return and double acting options
Solenoid valve for electrical control of the air supply
24VDC, 110VAC and 230VAC coil options
Suitable for industrial and process systems
