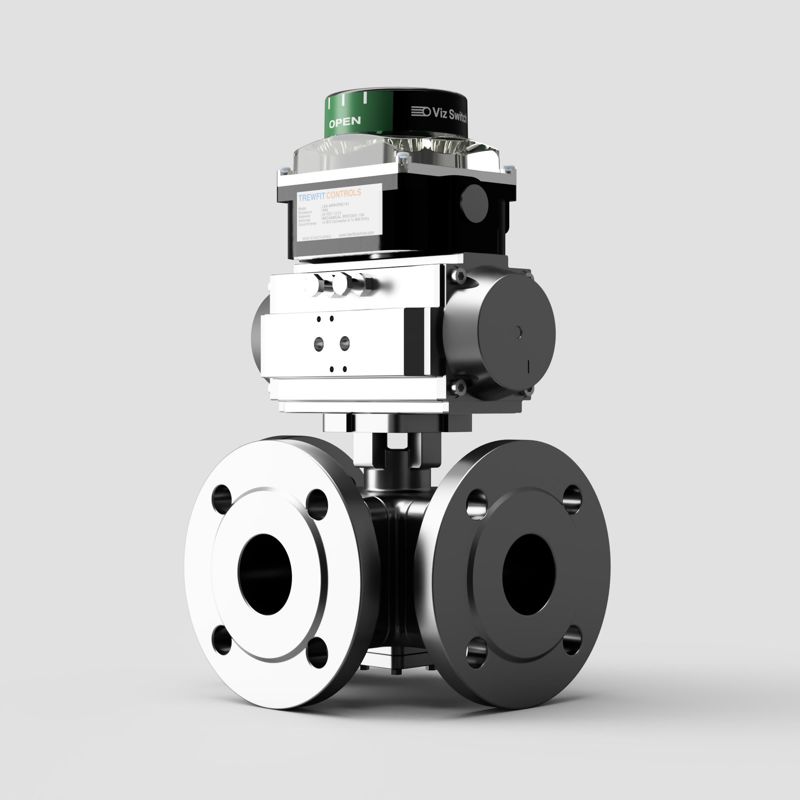

The V-Tork Pneumatic Actuated Stainless Steel ANSI 150 Ball Valve with Switchbox combines a two-piece full bore stainless steel ball valve with a V-Tork pneumatic actuator and switchbox for automated flow control with valve position feedback.
The valve body is cast in stainless steel A351 CF8M with ANSI 150 flanged connections, giving good corrosion resistance and a flange standard suited to North American and export pipework specifications.
The pneumatic actuator provides quarter-turn operation using a compressed air supply in either spring return or double acting form, while the fitted switchbox provides open and closed position indication for remote monitoring of the valve status.
Key Features:
V-Tork pneumatic actuator
Two-piece full bore ball valve
Stainless steel A351 CF8M body
ANSI 150 flanged connections
Sizes from 0.5" to 8"
Spring return and double acting options
Switchbox for valve position feedback
Open and closed position indication
Suitable for industrial and process systems
