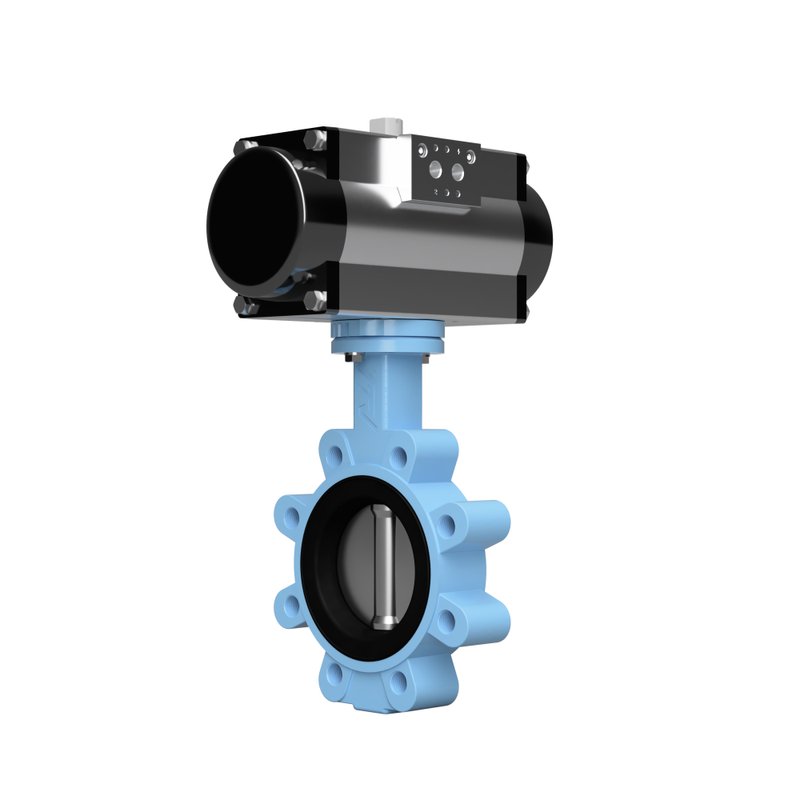

The 20L3040E0FEDN0065DAALPN16 is a 2 1/2" TTV butterfly valve in a lugged pattern, rated PN16 for flanged pipework and supplied as a complete actuated assembly.
The valve has a ductile iron GJS500-7 body and a concentric seat design, fitted with an EPDM seat.
It is automated with a Festo DFPD-40-RP-90-RDF05-07 8047615 pneumatic actuator, double acting (air to open, air to close). The actuator has an anodised wrought aluminium alloy housing.
It is supplied without a pilot solenoid or limit switch box.
