20L3040E0GBDN0350PN10VS01 TTV Butterfly Valves PN10 Lugged Ductile Iron GJS500-7 EPDM Seat Limit Switch Gear Box

£1239.10ex. VAT
Pay in 3 easy payments of £495.64 with Klarna
Add to Basket
Make an Enquiry Apply for Credit
Next Day Delivery Available
Technical Support
Price Match Guarantee

Product Description

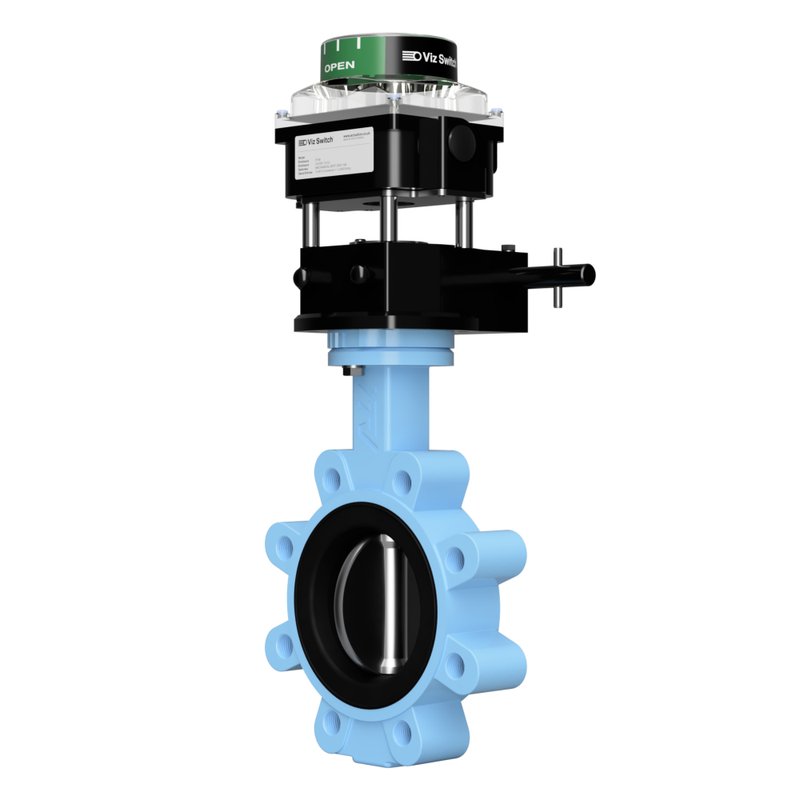

The 20L3040E0GBDN0350PN10VS01 is a 14" TTV butterfly valve in a lugged pattern, rated PN10 for flanged pipework.

It is built with a ductile iron GJS500-7 body and a concentric seat design, fitted with an EPDM seat. The valve is manually operated by a gearbox with a handwheel.

It is supplied as a manual valve, without a pilot solenoid or limit switch box.

Technical Specs

Valve Size 14"
Connections Flanged
Pressure Design PN10
Body Design Lugged
Body Material Ductile Iron GJS500-7
Seat Design Concentric
Seat Material EPDM
Actuator Function Open Close
Actuator Type Gear Box Hand Wheel
Actuator Housing None
Manual Override None
F2F Dimension 78
Part Number 20L3040E0GBDN0350PN10VS01
Brand TTV
Actuator Brand TTV
