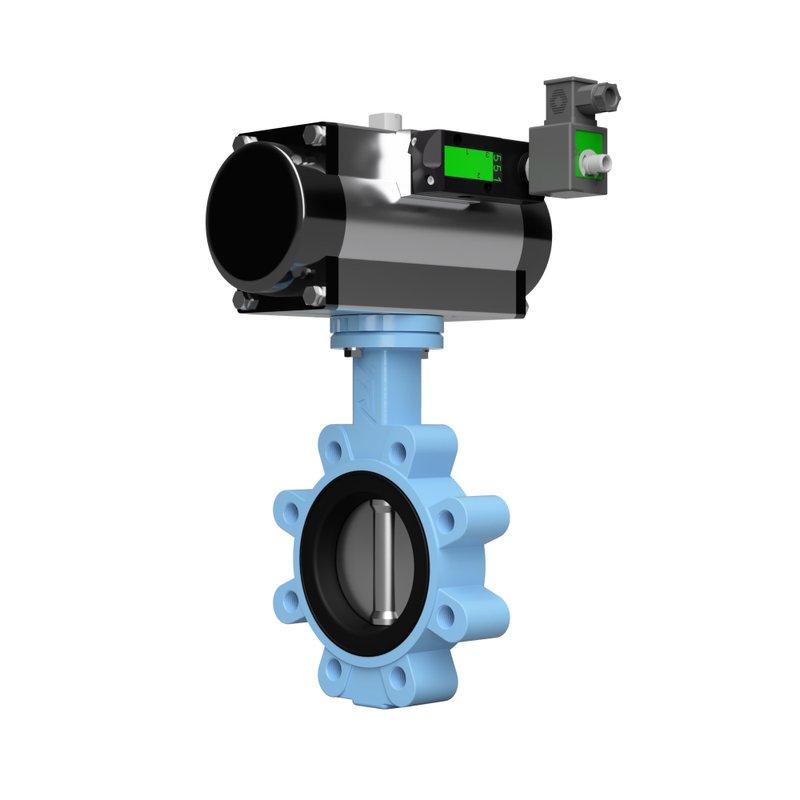

The 20L3040ETFEDN0080SRALPN1003 is a 3" TTV butterfly valve in a lugged pattern, rated PN10 for flanged pipework and supplied as a complete actuated assembly.
The valve has a ductile iron GJS500-7 body and a concentric seat design, fitted with a high temperature EPDM seat.
It is automated with a Festo DFPD-80-RP-90-RS60-F05-07 8047626 pneumatic actuator, spring return (air to open, spring to close). The actuator has an anodised wrought aluminium alloy housing and a screw-type manual override.
It is supplied with a 230VAC SCG551A001MS pilot solenoid valve and without a limit switch box.
