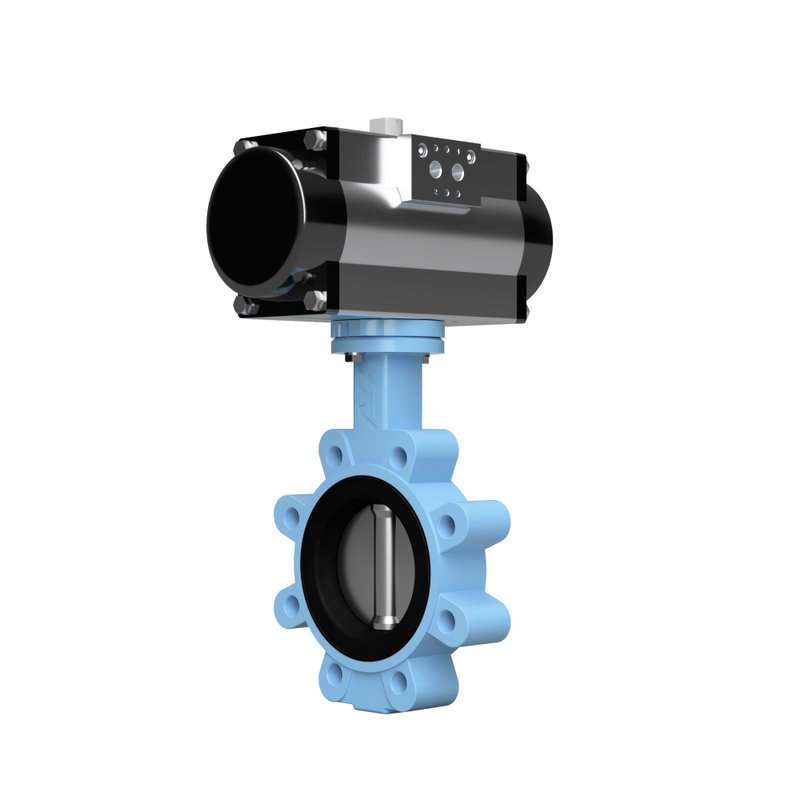

The 20L3040N0VFEDN0040SRALPN10 is a 1 1/2" TTV butterfly valve in a lugged pattern, rated PN10 for flanged pipework and supplied as a complete actuated assembly.
The valve has a ductile iron GJS500-7 body and a concentric seat design, fitted with a vulcanised NBR (Buna) seat.
It is automated with a Festo DFPD-40-RP-90-RS60-F05-F07 8047624 pneumatic actuator, spring return (air to open, spring to close). The actuator has an anodised wrought aluminium alloy housing.
It is supplied without a pilot solenoid or limit switch box.
