20L3040NWGBDN0300ANSI150 TTV Butterfly Valves ANSI 150 Lugged Ductile Iron GJS500-7 White NBR Buna Seat Gear Box Hand Wheel Operated

£1173.59ex. VAT
Pay in 3 easy payments of £469.44 with Klarna
Add to Basket
Make an Enquiry Apply for Credit
Next Day Delivery Available
Technical Support
Price Match Guarantee

Product Description

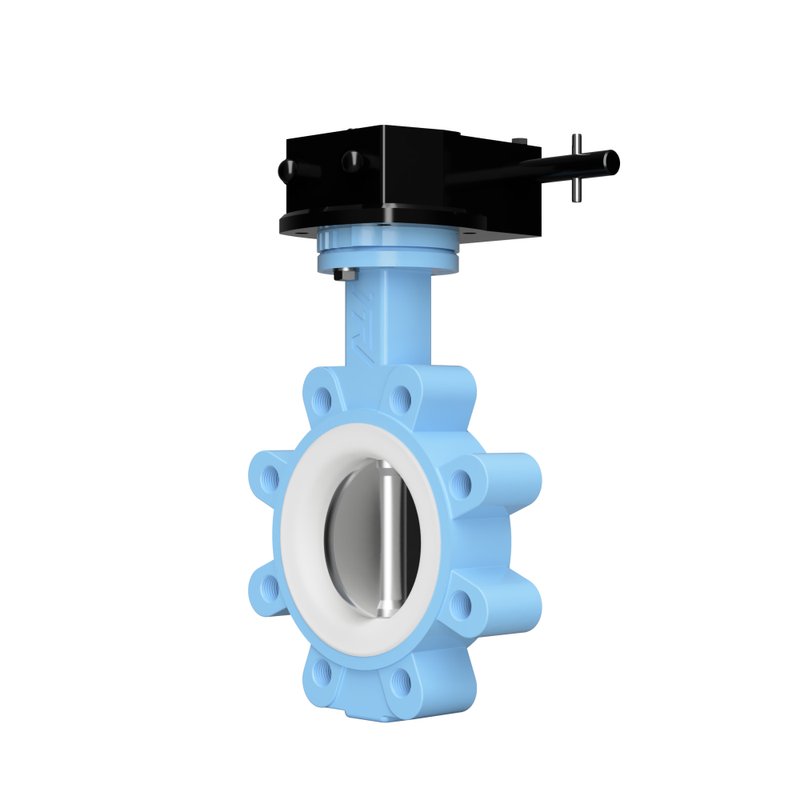

The 20L3040NWGBDN0300ANSI150 is a 12" TTV butterfly valve in a lugged pattern, rated ANSI Class 150 for flanged pipework.

It is built with a ductile iron GJS500-7 body and a concentric seat design, fitted with a white NBR (Buna) seat. The valve is manually operated by a gearbox with a handwheel.

It is supplied as a manual valve, without a pilot solenoid or limit switch box.

Technical Specs

Valve Size 12"
Connections Flanged
Pressure Design ANSI 150
Body Design Lugged
Body Material Ductile Iron GJS500-7
Seat Design Concentric
Seat Material White NBR Buna
Actuator Function Open Close
Actuator Type Gear Box Hand Wheel
Actuator Housing None
Manual Override None
F2F Dimension 78
Part Number 20L3040NWGBDN0300ANSI150
Brand TTV
Actuator Brand TTV
