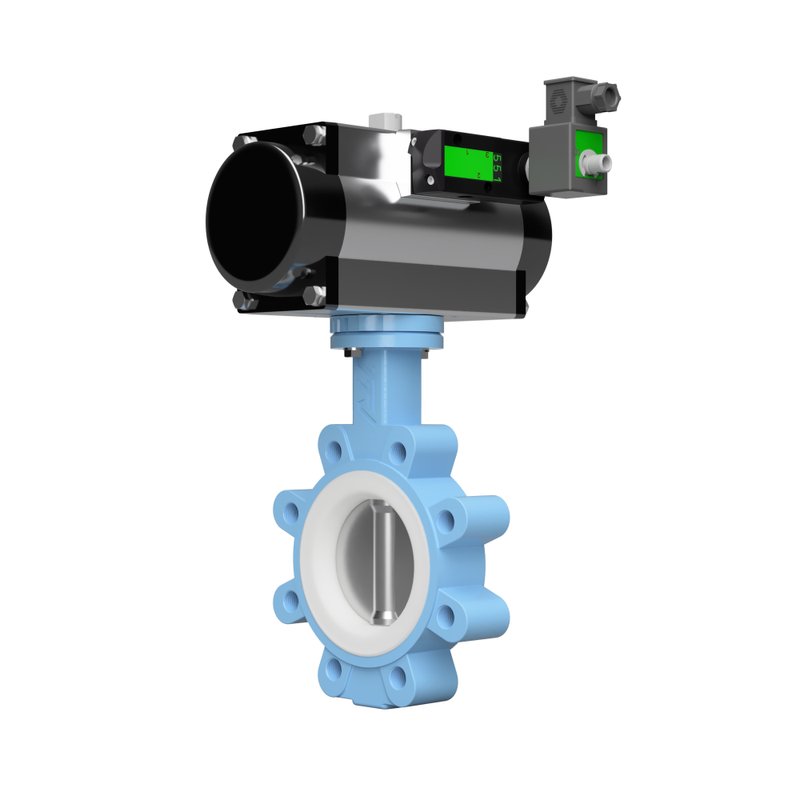

The 20L3040SAFEDN0050DAALPN1001 is a 2" TTV butterfly valve in a lugged pattern, rated PN10 for flanged pipework and supplied as a complete actuated assembly.
The valve has a ductile iron GJS500-7 body and a concentric seat design, fitted with a food-grade silicone seat.
It is automated with a Festo DFPD-40-RP-90-RDF05-07 8047615 pneumatic actuator, double acting (air to open, air to close). The actuator has an anodised wrought aluminium alloy housing and a screw-type manual override.
It is supplied with a 24VDC SCG551A001MS pilot solenoid valve and without a limit switch box.
