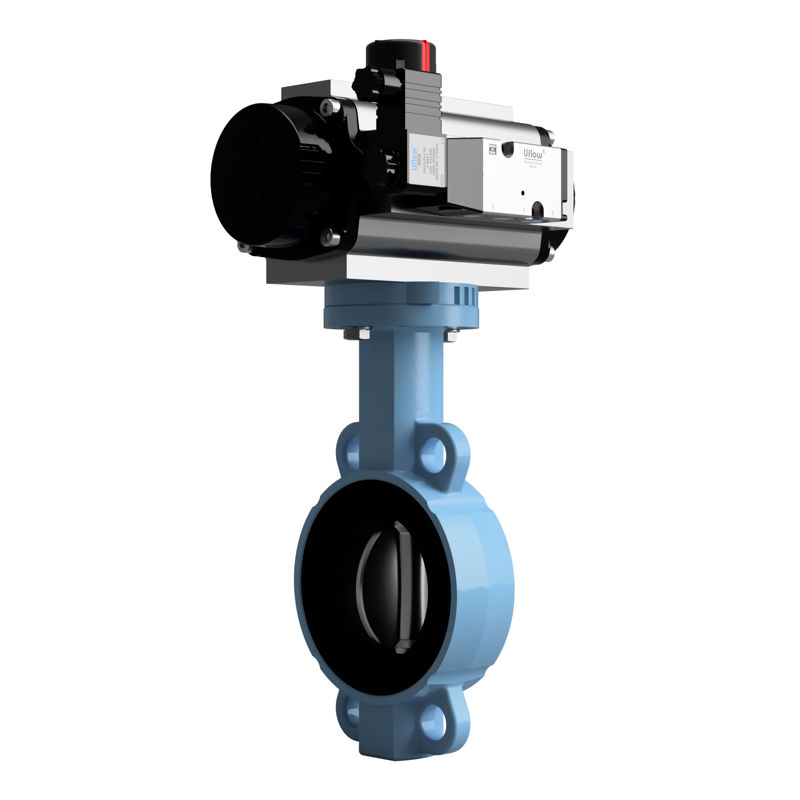

The 20W3040E0ACDN0080DAALPN1001 is a 3" TTV butterfly valve in a wafer pattern, rated PN10 for flanged pipework and supplied as a complete actuated assembly.
The valve has a ductile iron GJS500-7 body and a concentric seat design, fitted with an EPDM seat.
It is automated with an Actreg ADA 40 pneumatic actuator, double acting (air to open, air to close). The actuator has a hard anodised aluminium housing.
It is supplied with a 24VDC solenoid valve and without a limit switch box.
