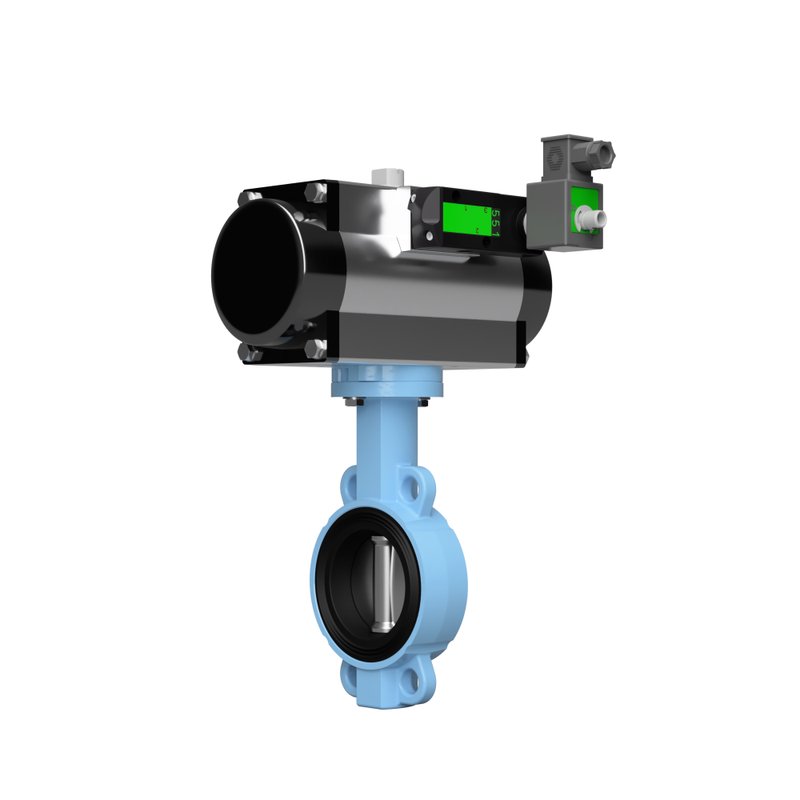

The 20W3040E0VFEDN0065SRALPN1002 is a 2 1/2" TTV butterfly valve in a wafer pattern, rated PN10 for flanged pipework and supplied as a complete actuated assembly.
The valve has a ductile iron GJS500-7 body and a concentric seat design, fitted with an EPDM seat.
It is automated with a Festo DFPD-40-RP-90-RS60-F05-F07 8047624 pneumatic actuator, spring return (air to open, spring to close). The actuator has an anodised wrought aluminium alloy housing and a screw-type manual override.
It is supplied with a 110VAC SCG551A001MS pilot solenoid valve and without a limit switch box.
